Product Details

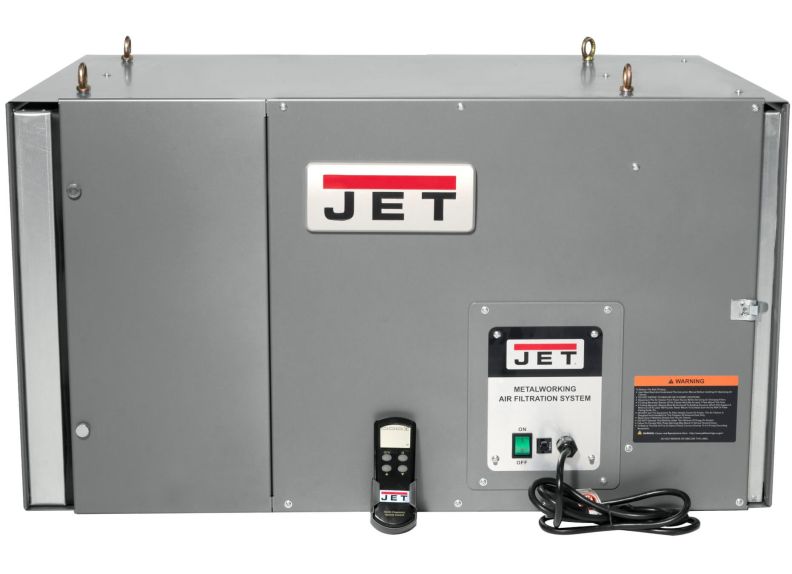

Engineered for the dust and mist production work generates. Designed for industrial shop floors with serious air-quality requirements, the IAFS-2400 stands up to the duty cycle. Equipped with a 0.75 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage stands behind every CFM rating.
Features
- Industrial-spec 1946 CFM air movement handles particulate capture for the air-volume production shops actually need to move.

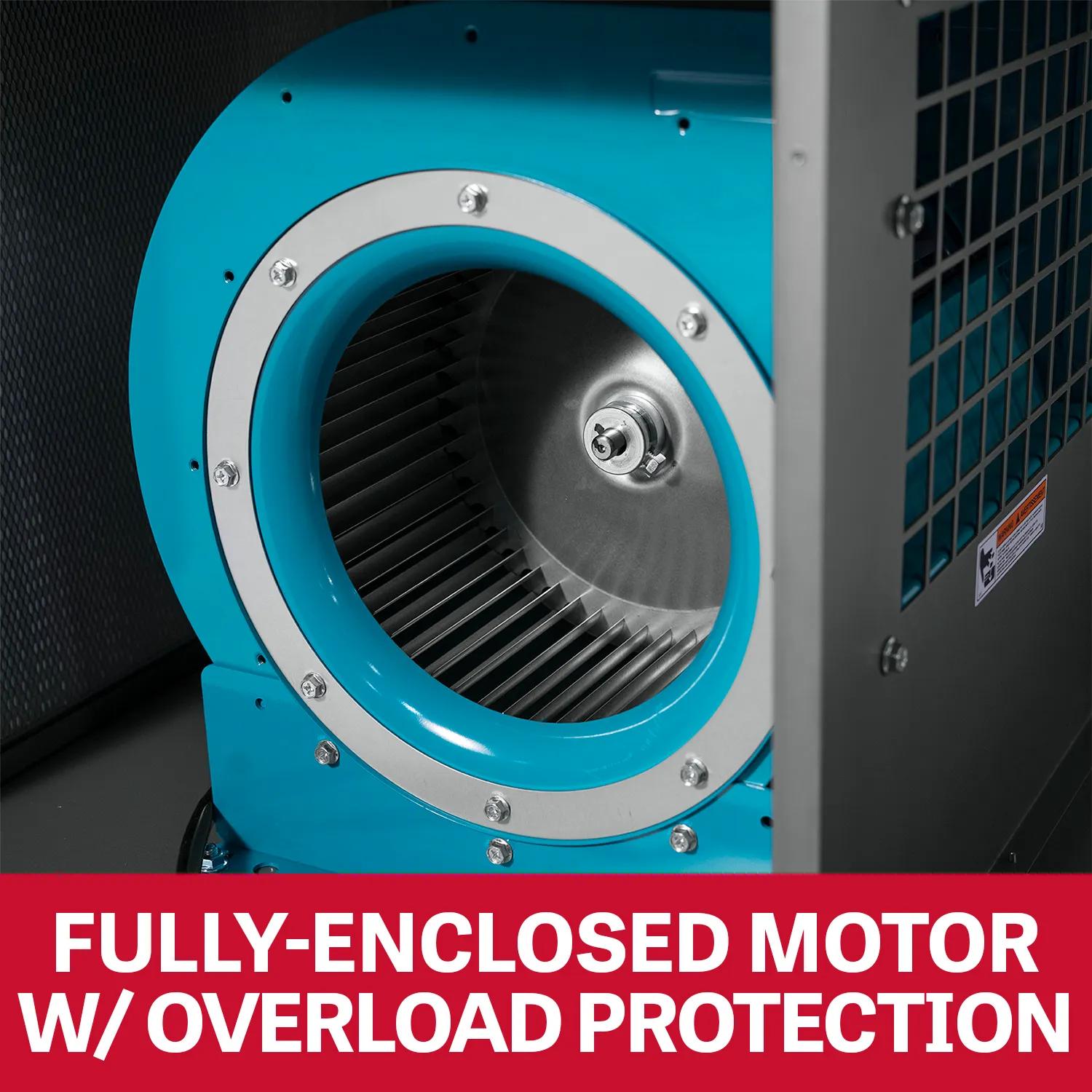

- Sealed 0.75 HP induction motor protects against the dust, chips, and humidity of production environments.
- Pleated media construction matches particulate capture for capturing fine particulates production air quality monitoring requires.

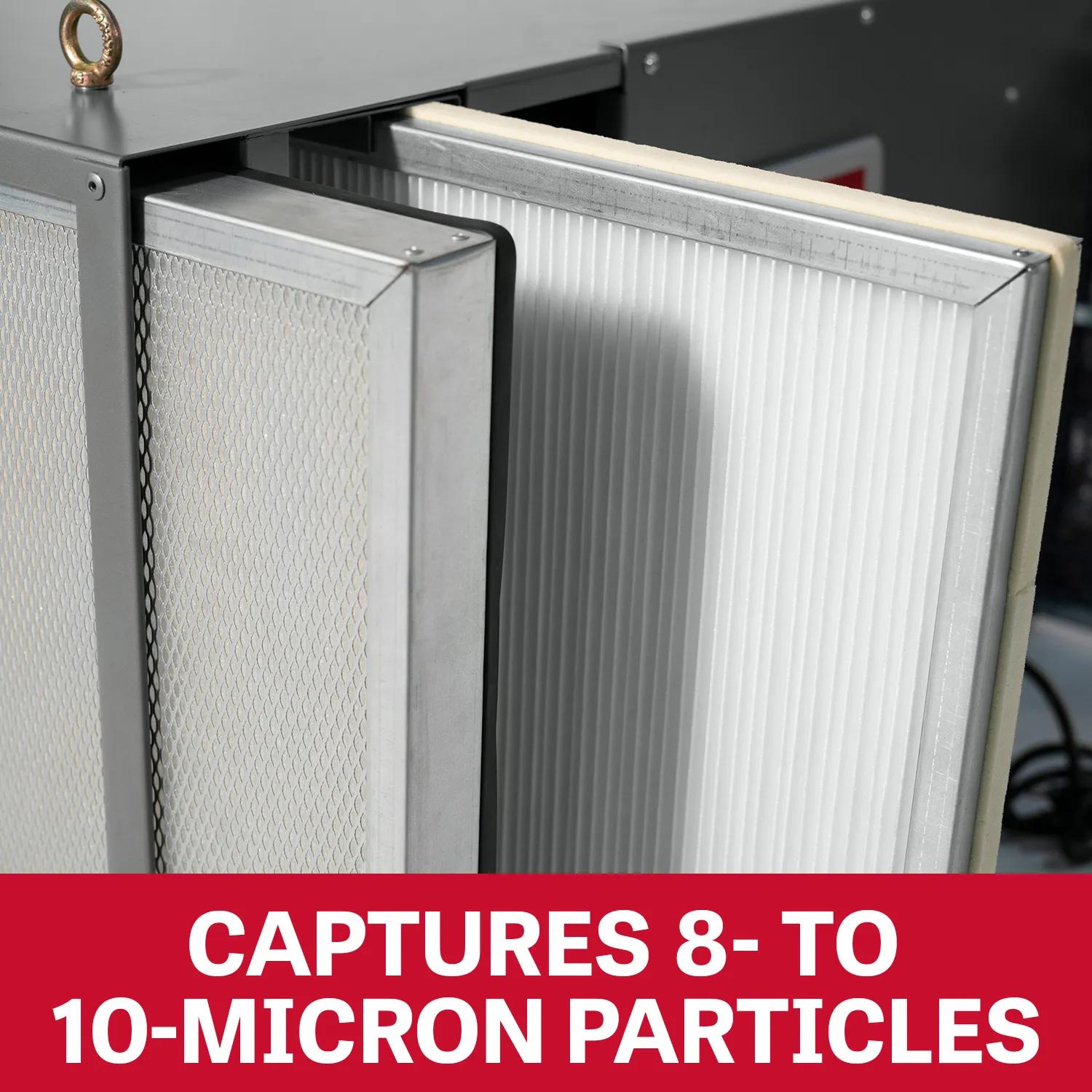

- Pre-filter and main filter combination — capturing both coarse and fine particulates in one engineered path.

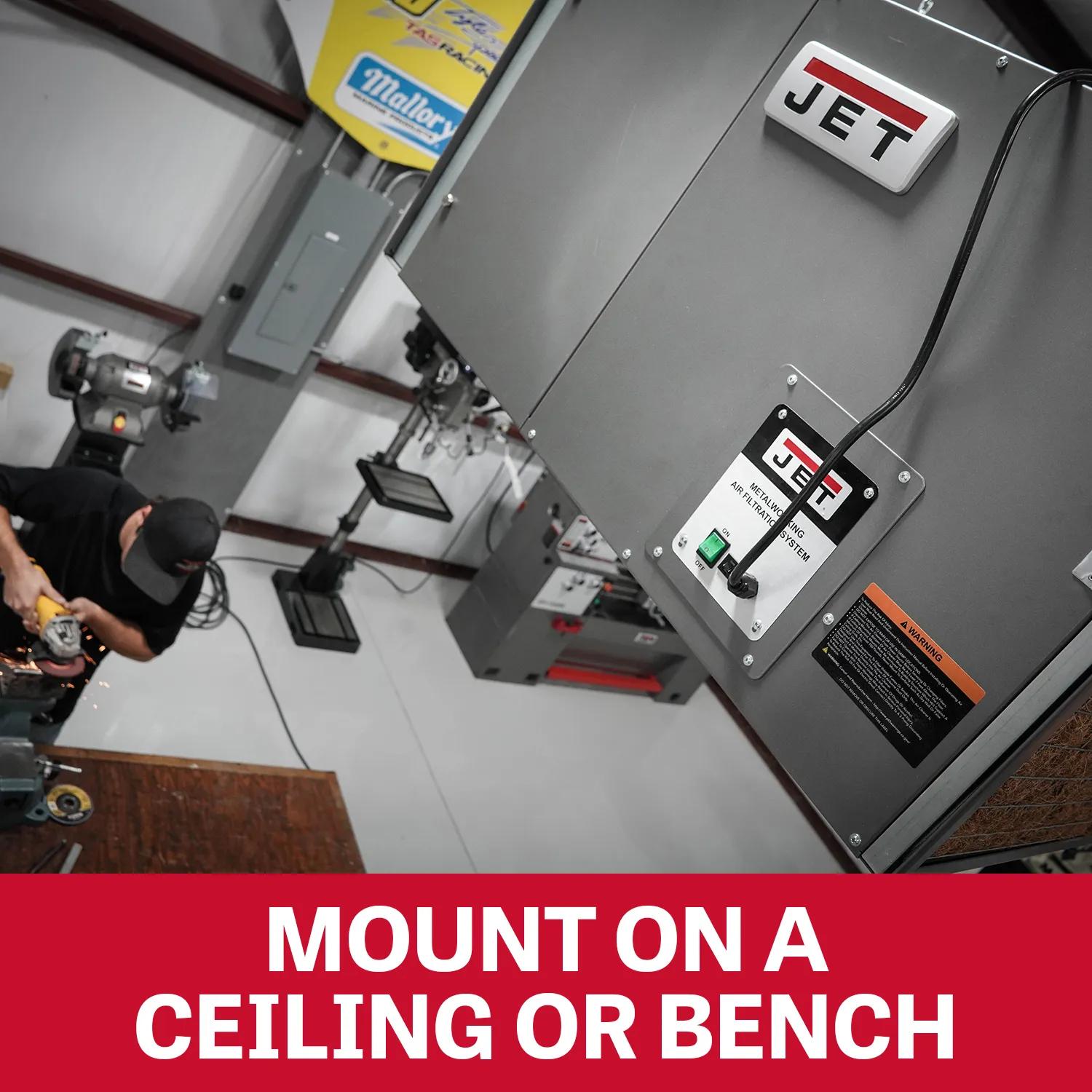

- Wall-mountable construction fits the shop layouts for vibration loads continuous-duty operation generates.
- RF remote means filtration runs without operator-side wiring for the operator-side control industrial filtration actually requires.
Specifications
- SKUJT9-415125
- Air Consumption1946 CFM
- Assembled Dimensions36-11/16 x 24 x 20-9/32 in.
- Batteries IncludedNo
- Filter TypeResin Fiber (washable)
- Height20-9/32 in.
- Horse Power0.75 HP
- Inner Filter EfficiencyMERV 12
- Inner Filter MaterialREEMAY®WHT (Polyester)
- Inner Filter Size23-15/32 x 19-3/8 x 1-3/4 in.
- Input Power115 V 1 Ph
- Maximum CFM2400 CFM
- MERV ValueMERV 8 (outer), MERV 12 (inner)
- Model NumberIAFS-2400
- Motor Amps8.5 A
- Motor HP0.75 HP
- Motor PhaseSingle
- Motor Voltage115 V
- Noise Level Db at 3Ft71/69/66 dB
- Old Material Number415125
- Outer Filter EfficiencyMERV 8
- Outer Filter MaterialResin Fiber (washable)
- Outer Filter Overall Size23-15/32 x 19-3/8 x 1-3/4 in.
- Prewired Voltage115 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- SAP Gross Weight178
- SAP Net weight178
- Speed ControlRF Remote Control
- Speeds940/700/520 RPM
- Speeds CFM Filtered Air1415/1325/1182 CFM
- Speeds High Medium1946/1640/1269 CFM
- Style TypeAir Filtration
- Timer Settings1 to 9 hours
- Timer Settings Hrs1 to 9 hours
- Total Pressure Efficiency Medium0.43
- Total Pressure Mercury3.34
- UPC731325838510
- WarrantyTwo Years
