Product Details
Surface finish that survives the QA bench. Designed for industrial finishing environments running long abrasive cycles, the IBDG-248 stands up to the duty cycle. Equipped with a 1 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for production finishing cycles, warrantied for the duty.
Features
- Shop-rated 1 HP drive delivers consistent torque for sustained-load operation production work demands.
- Abrasive belt geometry was sized for consistent abrasive contact across long runs.
- Industrial belt geometry delivers abrasive media for the surface-area envelope production sanding requires.
- Factory-tested disc geometry supports flat grinding for consistent surface finish at full RPM.
- Tilting-table geometry matches angle work for angled grinding work production fabrication generates.
- Cast iron structural components hold reference flat for tolerance retention across years of cycles.
Specifications
- SKUJT9-578842
- Abrasive Grit80
- Abrasive TypeAluminum Oxide
- Assembled Dimensions23-7/16 x 26-27/32 x 12-7/32 in., 23-7/16 x 15-1/16 x 25-29/32 in.
- Base Size9-1/2 x 8-1/16 in.

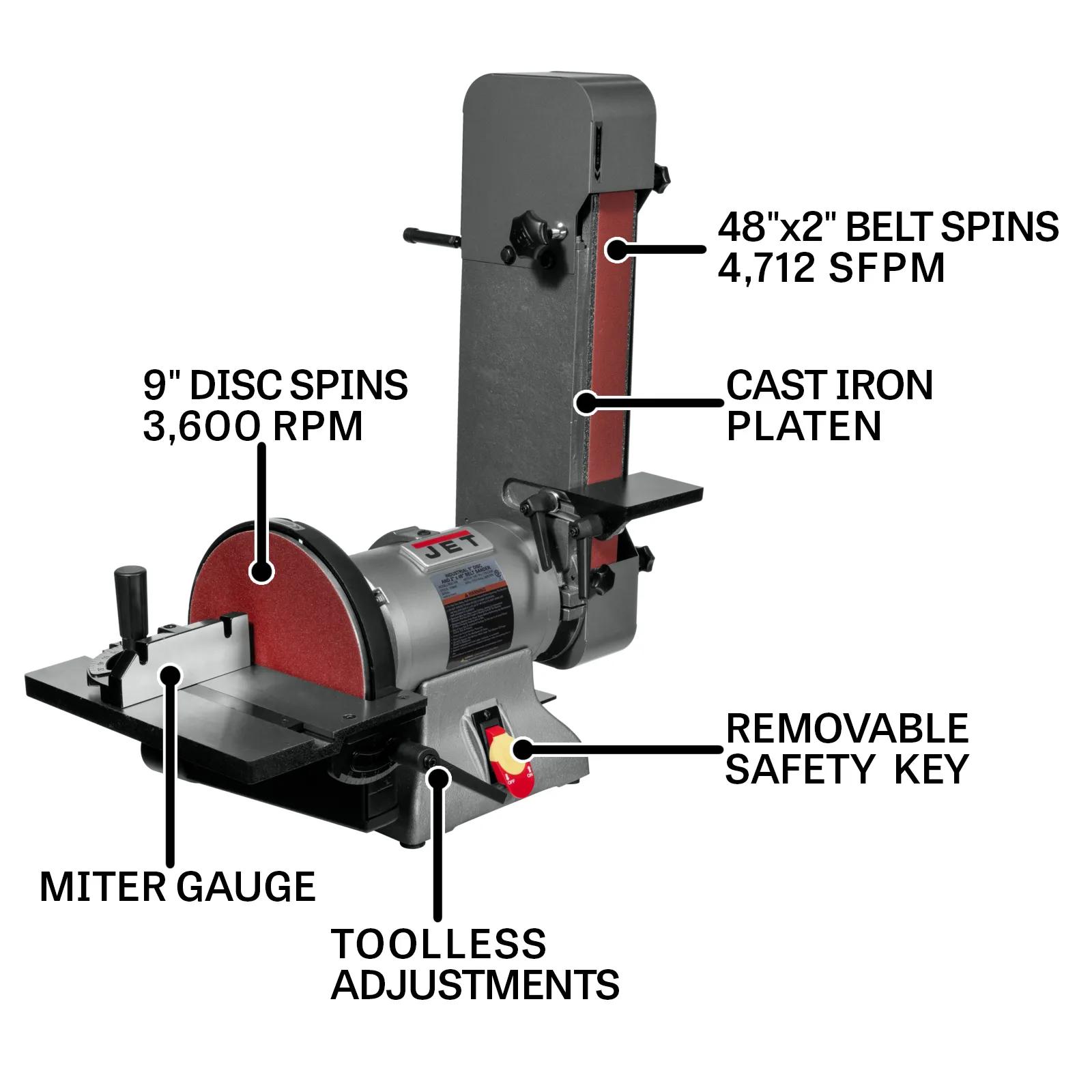

- Belt Size48 x 2 in.
- Belt Speed4712 SFPM
- Belt Table Size4-11/32 x 2-15/16 in.
- Belt Tilt Range45 Deg. down
- Disc Diameter9 in.
- Disc Speed3600 RPM
- Disc Table MaterialCast Iron
- Disc Table Size L X W11-13/16 x 5-29/32 in.
- Disc Table T-slot Width3/4 x 3/8 in.
- Disc Table Tilt45 Deg. down
- Dust Port Outside Diameter2 in.
- Horse Power1 HP
- Input Power115/230 V 1 Ph
- Model NumberIBDG-248
- Motor Amps15 A
- Motor HP1 HP
- Motor PhaseSingle
- Motor TypeEnclosed
- Motor Voltage115/230 V
- Mounting Hole Diameter7/16 in.
- Mounting Hole Spacing8-15/32 in.
- Number Ports2
- Old Material Number578842
- Prewired Voltage115 V
- Product TypeMachines
- Prop 65Cancer
- Recommended Circut Size Amp15 A
- Required Cfm350 - 350 CFM
- SAP Gross Weight95
- SAP Net weight77
- Shaft Diameter5/8 in.
- Spindle Speed3600 RPM
- UPC731325806861
- WarrantyTwo Years
