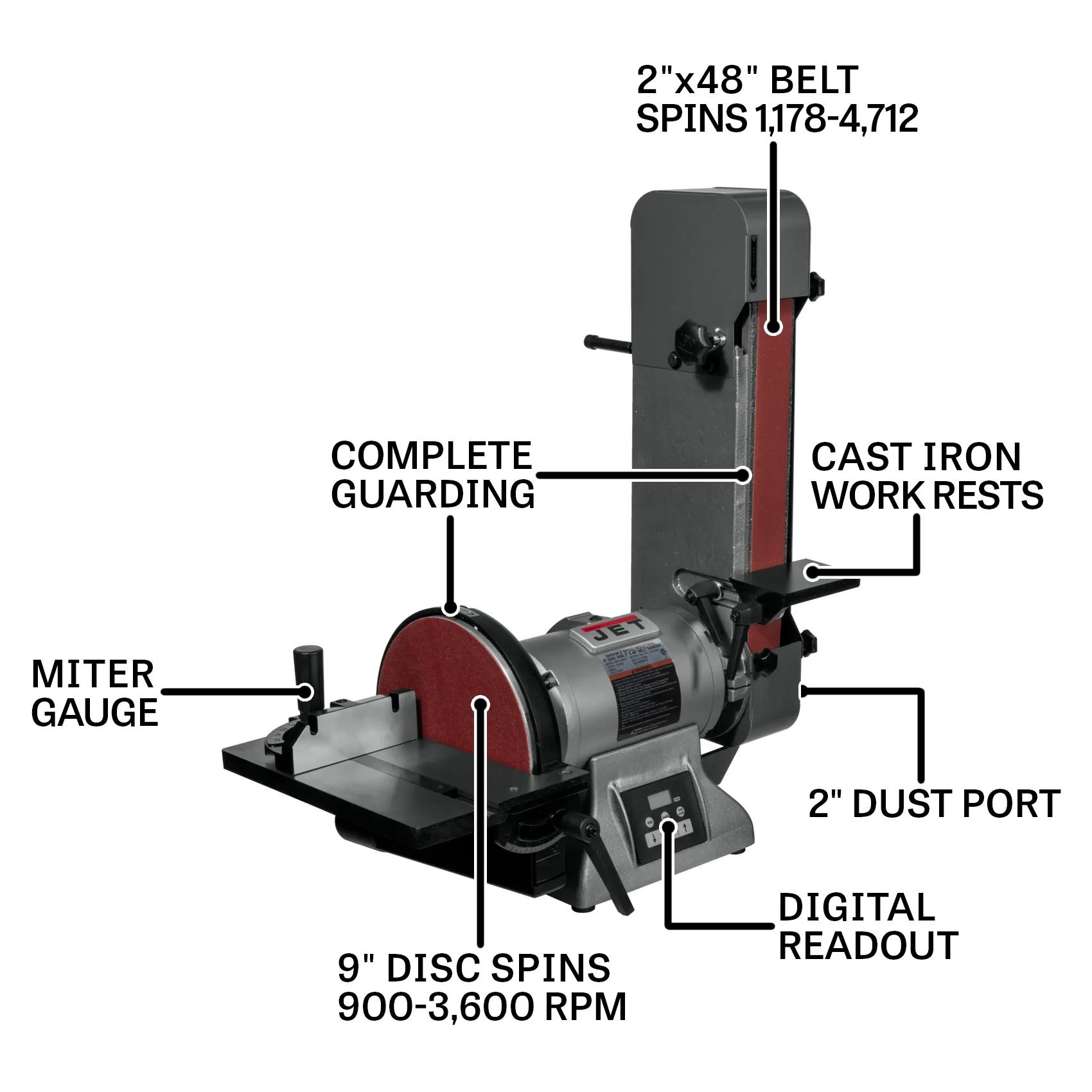

Product Details
Engineered for the abrasive cycle counts production work actually generates. Built around shops where surface finish gets shipped, not reworked, the IBDG-248VS delivers production-grade results. Equipped with a 1 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for production finishing cycles, warrantied for the duty.
Features
- 1 HP three-phase induction motor sized for the working loads daily production generates.
- Abrasive belt geometry was sized for the abrasive media library production finishing actually uses.
- Heavy-duty belt design handles the abrasive cycle counts for the belt-length production finishing depends on.
- Disc-grinding architecture — covering the disc-finishing envelope production work generates across professional finishing environments.
- Precision tilt mechanism handles angle accuracy for angled grinding work production fabrication generates.
- Heavy cast iron reference surfaces — holding reference geometry, engineered for vibration dampening welded steel can't match.
Specifications
- SKUJT9-577842
- Abrasive Grit80
- Abrasive TypeAluminum Oxide
- Assembled Dimensions23-7/16 x 26-27/32 x 12-7/32 in., 23-7/16 x 15-1/16 x 25-29/32 in.
- Base Size9-1/2 x 8-1/16 in.
- Belt Size48 x 2 in.
- Belt Speed1178 - 4712 SFPM
- Belt Table Size4-11/32 x 2-15/16 in.
- Belt Tilt Range45 Deg. down
- Disc Diameter9 in.
- Disc Speed900-3600 RPM
- Disc Table MaterialCast Iron
- Disc Table Size L X W11-13/16 x 5-29/32 in.
- Disc Table T-slot Width3/4 x 3/8 in.
- Disc Table Tilt45 Deg. down
- Dust Port Outside Diameter2 in.
- Horse Power1 HP
- Input Power115/230 V 1 Ph
- Model NumberIBDG-248VS
- Motor Amps15 A
- Motor HP1 HP
- Motor PhaseThree
- Motor TypeEnclosed
- Motor Voltage115/230 V
- Mounting Hole Diameter7/16 in.
- Mounting Hole Spacing8-15/32 in.
- Number Ports2
- Old Material Number577842
- Prewired Voltage115 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Recommended Circut Size Amp15 A
- Required Cfm350 - 350 CFM
- SAP Gross Weight96
- SAP Net weight78
- Shaft Diameter5/8 in.
- Spindle Speed3600 RPM
- UPC731325806854
- WarrantyTwo Years
