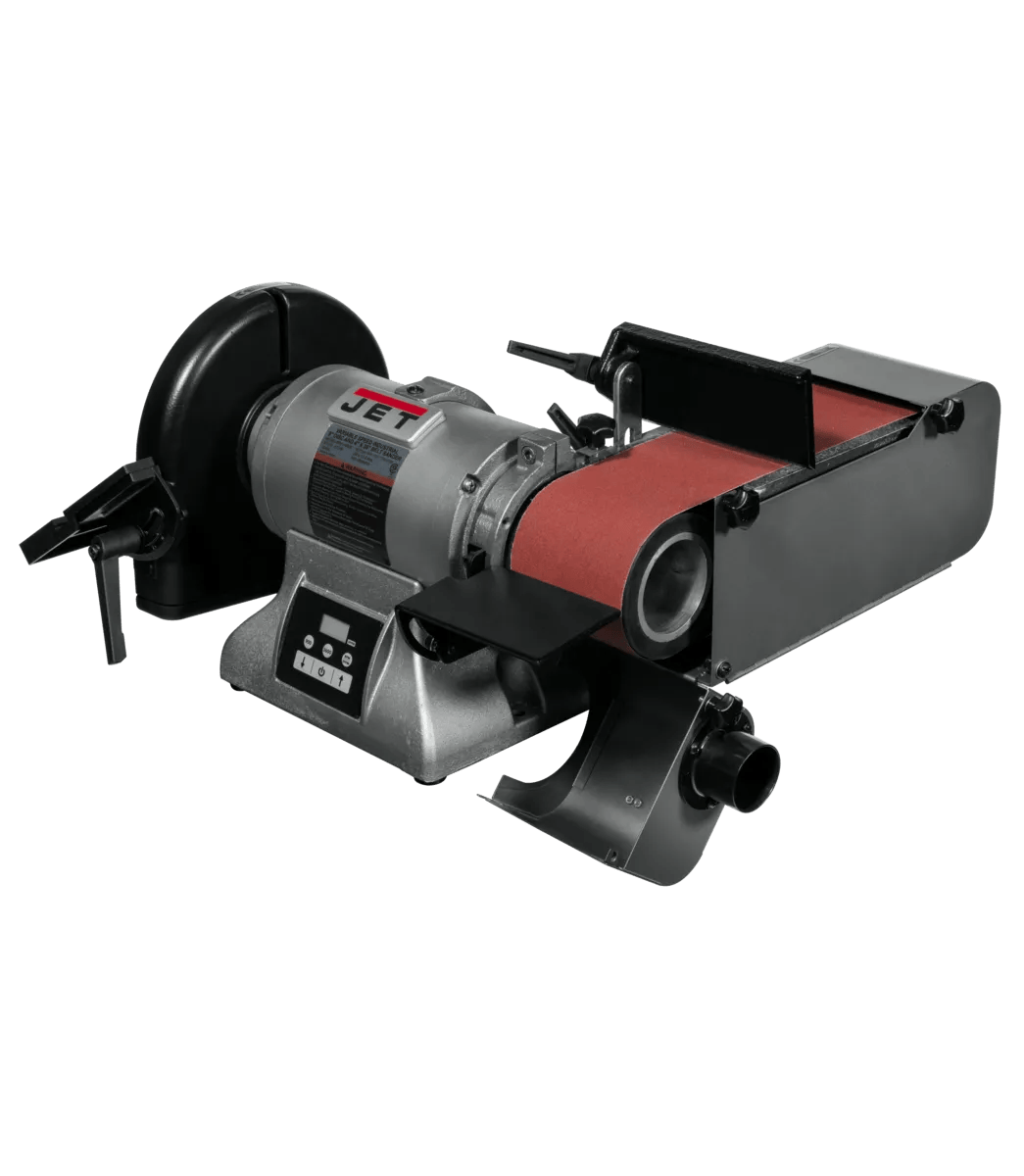

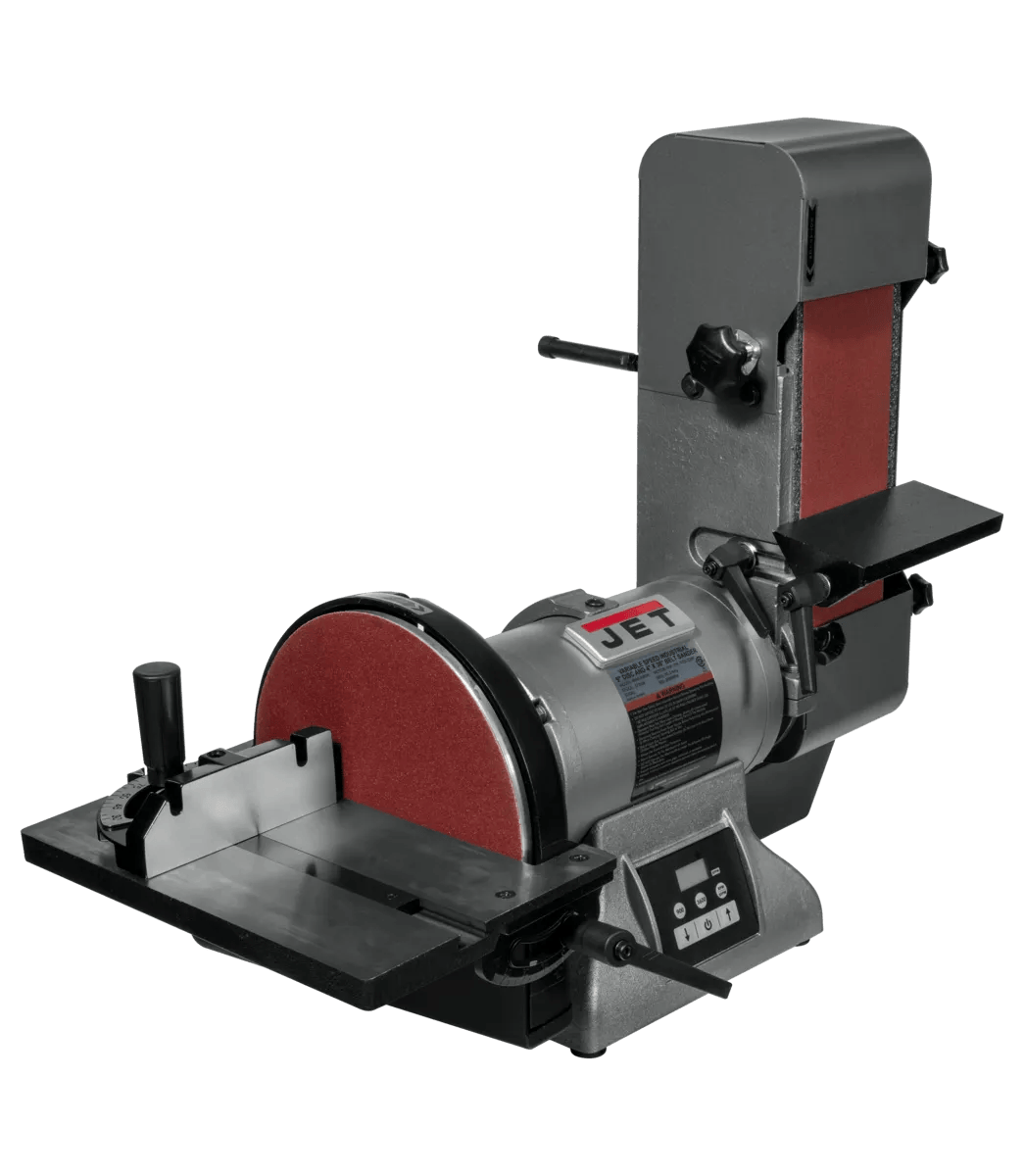

Product Details
Production-grade grinding and sanding for the work that gets shipped. Designed for industrial finishing environments running long abrasive cycles, the IBDG-436VS stands up to the duty cycle. Equipped with a 1 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial-grade construction, industrial-grade warranty.
Features
- Factory-sealed 1 HP 115/230V induction motor stands up to production environments.
- Production-spec abrasive belt drive — delivering consistent abrasive contact across professional finishing environments.
- Industrial belt geometry matches abrasive media for the surface-area envelope production sanding requires.
- Precision-balanced disc — delivering disc-grinding authority production finishing requires.
- Production-grade tilting table — covering miter and bevel grinding production fabrication generates across industrial finishing.
- Cast iron reference surfaces hold reference flat for dimensional stability under sustained cutting loads.
Specifications
- SKUJT9-577634
- Abrasive Grit80
- Abrasive TypeAluminum Oxide
- Assembled Dimensions25-13/32 x 21-11/16 x 11-3/4 in., 25-13/32 x 15-1/16 x 20-3/4 in.
- Base Size9-1/2 x 8-1/16 in.
- Belt Size36 x 4 in.
- Belt Speed942-3769 SFPM
- Belt Table Size6-5/16 x 2-15/16 in.
- Belt Tilt Range45 Deg. down
- Disc Diameter9 in.
- Disc Speed942-3769 RPM
- Disc Table MaterialCast Iron
- Disc Table Size L X W11-13/16 x 5-29/32 in.
- Disc Table T-slot Width3/4 x 3/8 in.
- Disc Table Tilt45 Deg. down
- Dust Port Outside Diameter2 in.
- Horse Power1 HP
- Input Power115/230 V 1 Ph
- Model NumberIBDG-436VS
- Motor Amps15 A
- Motor HP1 HP
- Motor PhaseThree
- Motor TypeEnclosed
- Motor Voltage115/230 V
- Mounting Hole Diameter7/16 in.
- Mounting Hole Spacing8-15/32 in.
- Number Ports2
- Old Material Number577634
- Prewired Voltage115 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Recommended Circut Size Amp15 A
- Required Cfm350 - 350 CFM
- SAP Gross Weight93
- SAP Net weight77
- Shaft Diameter5/8 in.
- Spindle Speed3600 RPM
- UPC731325806878
- WarrantyTwo Years
