Product Details
Where surface quality gets decided. The IBG-10 answers the work generated by production grinding and sanding cycles. Equipped with a 1.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage backs every production-grade finish.
Features
- Industrial 1.5 HP induction motor: handling startup loads where smaller motors trip, designed for industrial machining.
- Heavy-duty belt drive handles the cycle counts for the material removal rates production sanding demands.
- Industrial belt geometry delivers abrasive media for the material removal rates production work demands.
- Professional-grade disc geometry delivers flat grinding for the disc-finishing envelope production work demands.

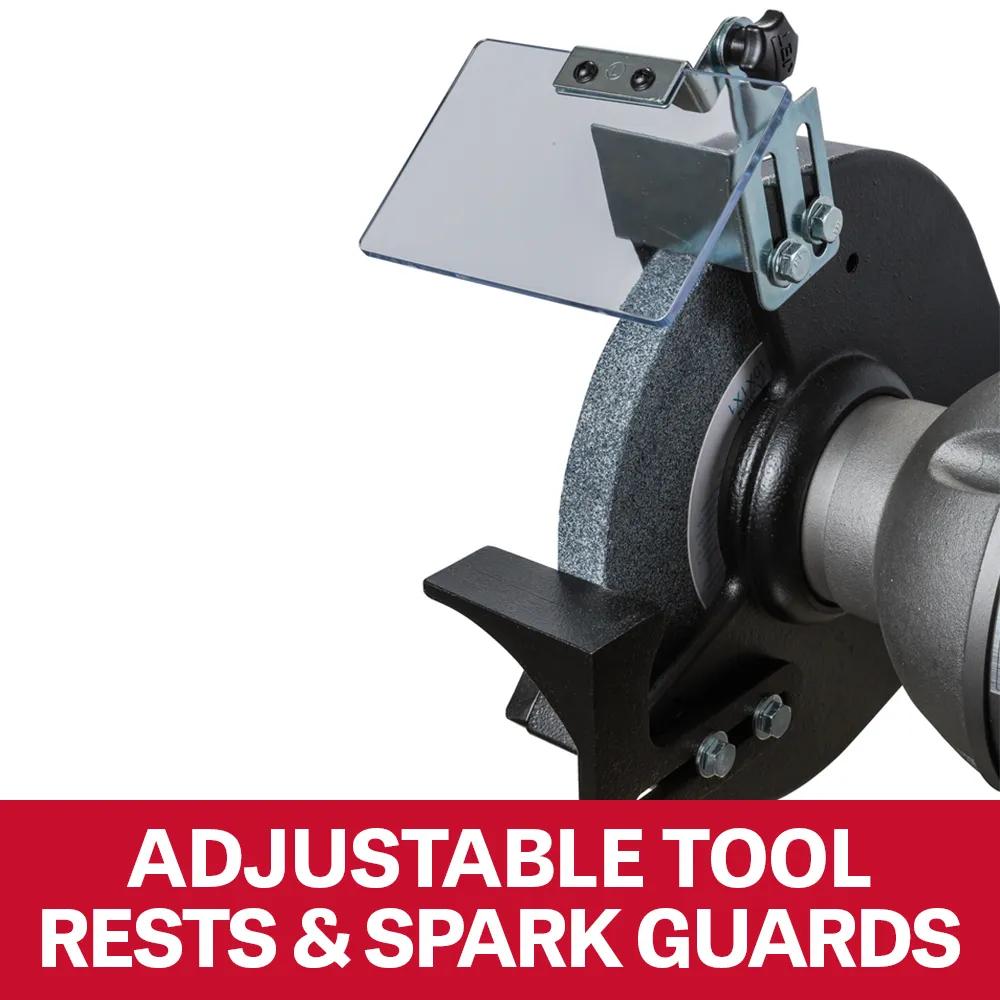

- Precision tilt mechanism handles angle accuracy for the angle envelope production grinding actually runs.
- Heavy-gauge cast iron load-bearing surfaces — resisting deflection under sustained cutting forces.
Specifications
- SKUJT9-578010
- Abrasive TypeAluminum Oxide
- Assembled Dimensions24.8 x 16.7 x 15.9 in.
- Disc Diameter10 in.
- Disc Speed1800 RPM

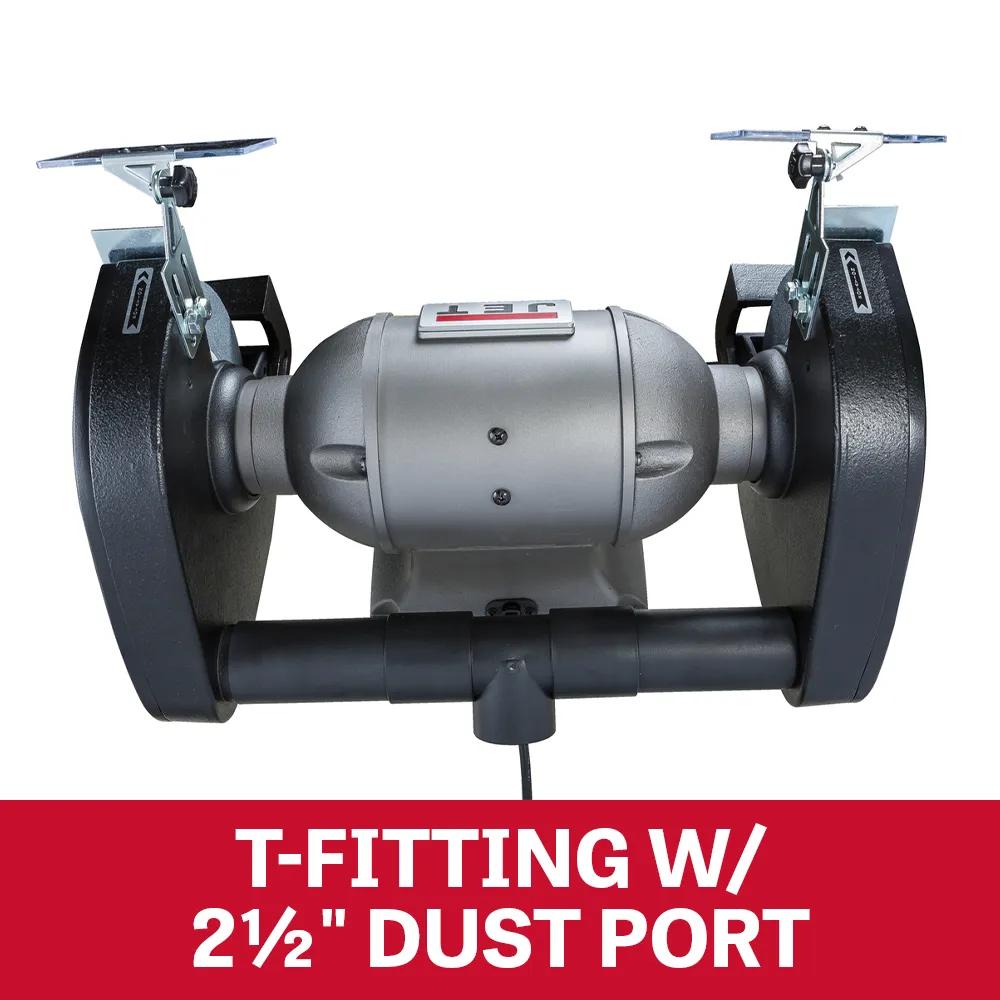

- Dust Port Outside Diameter2-1/2 in.
- Horse Power1.5 HP
- Input Power115/230 V 1 Ph
- Model NumberIBG-10
- Motor Amps8 / 4 A
- Motor HP1.5 HP
- Motor PhaseSingle
- Motor TypeEnclosed
- Motor Voltage115/230 V
- Mounting Hole Diameter7/16 in.
- Mounting Hole Spacing8-3/4 in.
- Noise Level Db at 3Ft75 dB
- Old Material Number578010
- Prewired Voltage115 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Recommended Circut Size Amp15 A
- Required Cfm350 - 350 CFM
- SAP Gross Weight115.5
- SAP Net weight110
- Shaft Diameter1 in.
- Spindle Diameter1 in.
- Spindle Speed1800 RPM
- UPC731325242638
- WarrantyTwo Years
- Wheel Diameter10 in.
- Wheel Grits36 / 60
- Wheel Speed RPM1800 RPM
- Wheel Width1 in.
