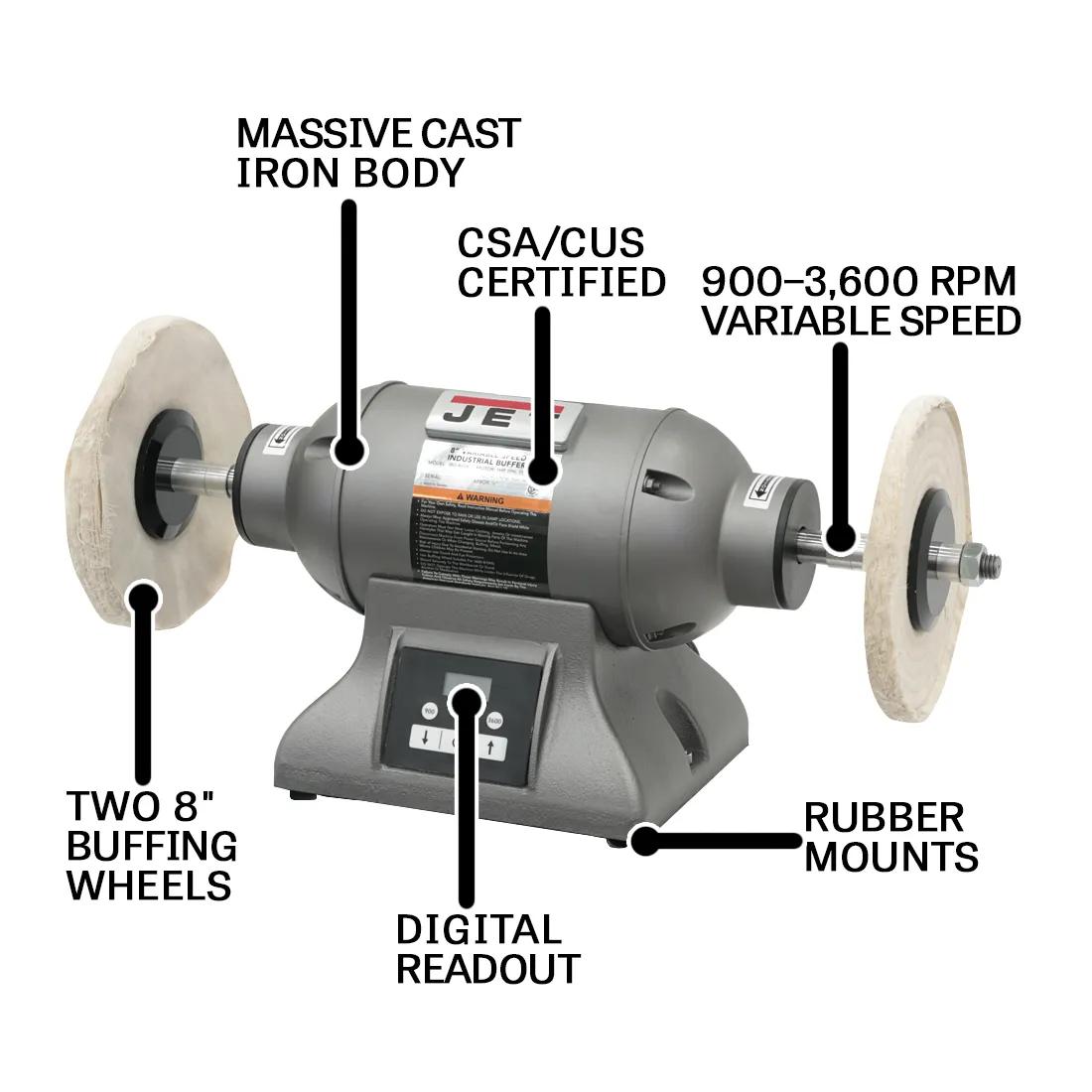

8" Vari. Speed Industrial Buffer, 1HP, 115/230V 1PH(IBG-8VSB)
8" Vari. Speed Industrial Buffer, 1HP, 115/230V 1PH(IBG-8VSB)
8" Vari. Speed Industrial Buffer, 1HP, 115/230V 1PH(IBG-8VSB)

8" Vari. Speed Industrial Buffer, 1HP, 115/230V 1PH(IBG-8VSB)

Stock Number: JT9-578218

0 Reviews

No reviews yet.

  • 1 HP, 115/230V, single-phase
  • Heavy-duty belt drive
  • Cast iron base
  • Precision-balanced disc
BUY NOW

Product Details

Built for the operators who measure success in finished surfaces. Engineered around finishing work that has to pass QA review, the IBG-8VSB earns its place. Equipped with a 1 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial-grade construction, industrial-grade warranty.

Features

  • Industrial-spec 1 HP motor with sealed bearings — delivering full nameplate output across professional shop floors.
  • Production-grade belt drive delivers abrasive contact for the surface finish production sanding actually targets.
  • Belt-tension mechanism — delivering consistent abrasive contact.
  • Production-grade disc geometry delivers flat grinding for consistent surface finish at full RPM.
  • Tilting-table geometry provides angle work for angled finishing in one setup.
  • Solid cast iron structural components cover reference geometry across tolerance-grade cutting.

Specifications

  • SKU
    JT9-578218
  • Abrasive Type
    Woven cotton
  • Assembled Dimensions
    23-1/2 x 8 x 10-9/16 in. (590 x 205 x 268 mm)
  • Dust Port Outside Diameter
    2-1/2 in.
  • Horse Power
    1 HP
  • Input Power
    115/230 V 1 Ph
  • Model Number
    IBG-8VSB
  • Motor Amps
    15 A
  • Motor HP
    1 HP
  • Motor Phase
    Single
  • Motor Speed
    900-3600 RPM
  • Motor Type
    Enclosed
  • Motor Voltage
    115/230 V
  • Mounting Hole Diameter
    7/16 in.
  • Mounting Hole Spacing
    8-1/2 in.
  • Noise Level Db at 3Ft
    75 dB
  • Old Material Number
    578218
  • Prewired Voltage
    115 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Recommended Circut Size Amp
    15 A
  • Required Cfm
    350 - 350 CFM
  • SAP Gross Weight
    52
  • SAP Net weight
    50
  • Shaft Diameter
    5/8 in.
  • Spindle Diameter
    5/8 in.
  • Spindle Speed
    3600 RPM
  • UPC
    731325705164
  • Warranty
    Two Years
  • Wheel Diameter
    8 in.
  • Wheel Speed RPM
    900-3600 RPM
  • Wheel Width
    1/2 in.
