Product Details
Production-grade grinding and sanding for the work that gets shipped. The IBGB-248 answers the work generated by production grinding and sanding cycles. Equipped with a 1 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage backs every production-grade finish.
Features

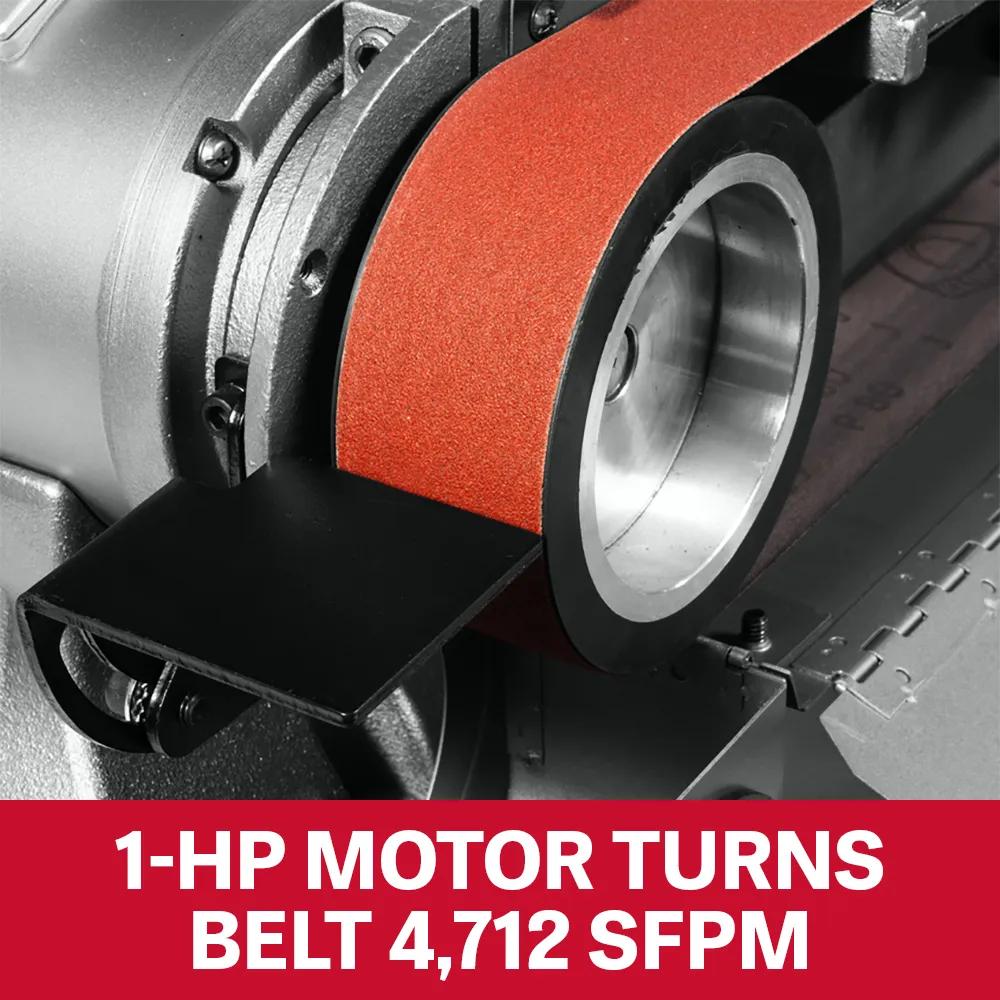

- Professional-grade 1 HP single-phase induction motor delivers torque for mixed-material work envelopes.

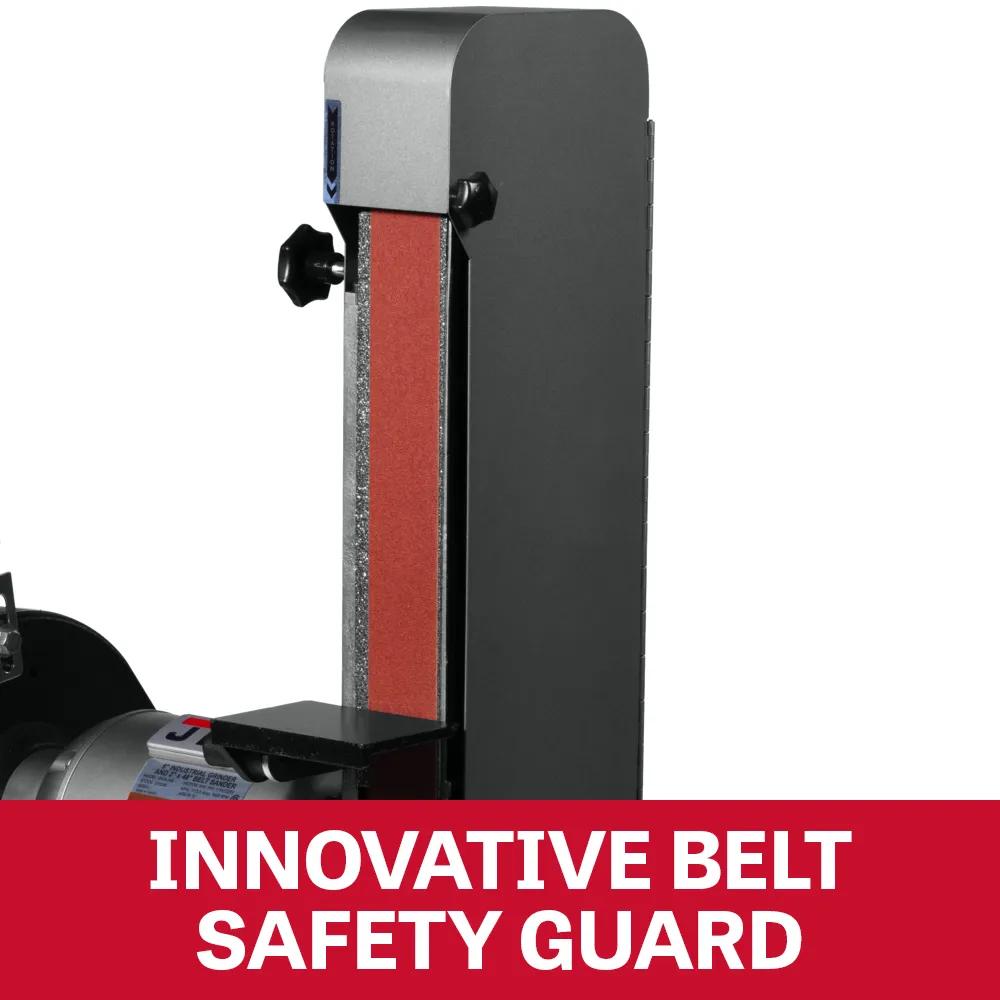

- Production-grade belt drive delivers abrasive contact for the material removal rates production sanding demands.
- Production-spec belt design handles the abrasive cycle counts for the material removal rates production work demands.
- Industrial disc geometry provides flat grinding for the production work this machine targets.
- Industrial-spec tilting table — extending the working envelope across industrial finishing.

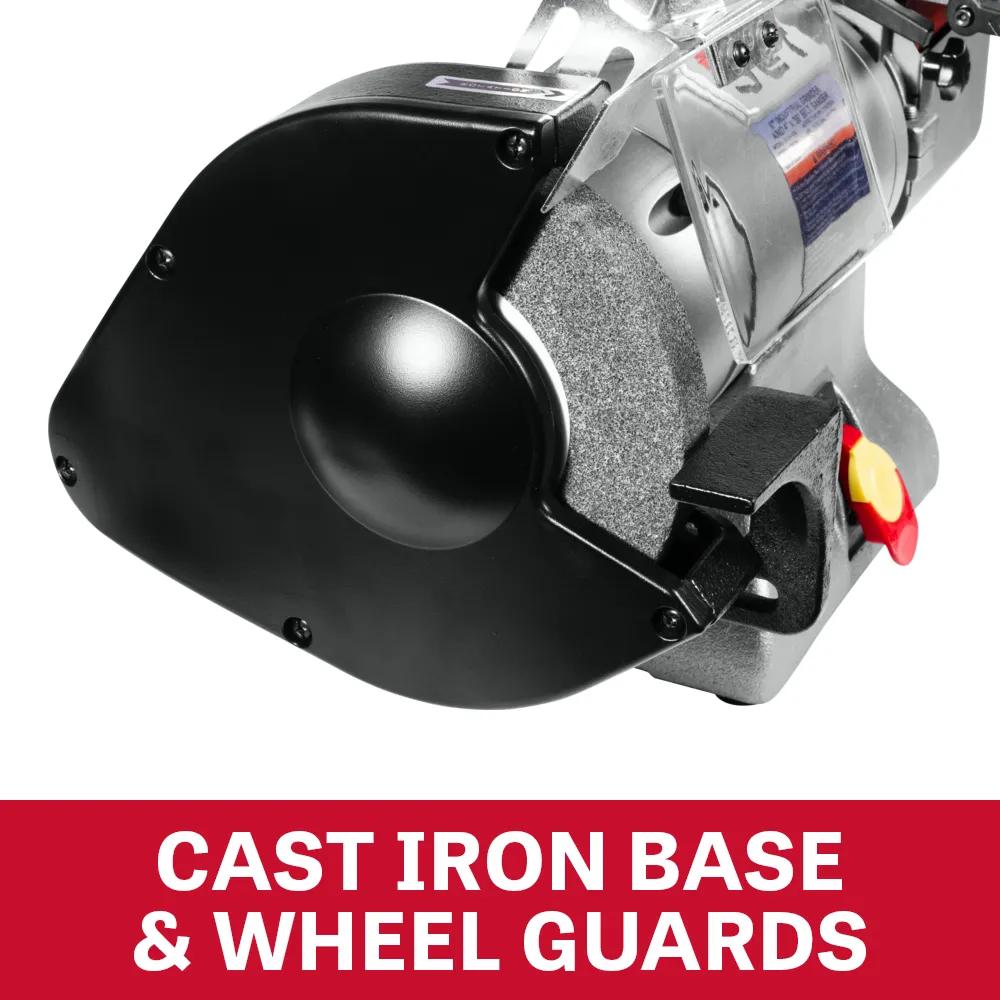

- Solid cast iron frame castings weigh in where stability counts most across production runs.
Specifications
- SKUJT9-578248
- Abrasive Grit80
- Abrasive TypeBelt
- Assembled Dimensions21-1/4 x 24-3/4 x 13-15/16 in., 21-1/4 x 12-9/32 x 25-29/32 in.
- Base Size9-1/2 x 8-1/16 in.
- Belt Size48 x 2 in.
- Belt Speed4712 SFPM
- Belt Table Size4-11/32 x 2-15/16 in.
- Belt Tilt Range45 Deg. down
- Disc Diameter8 in.

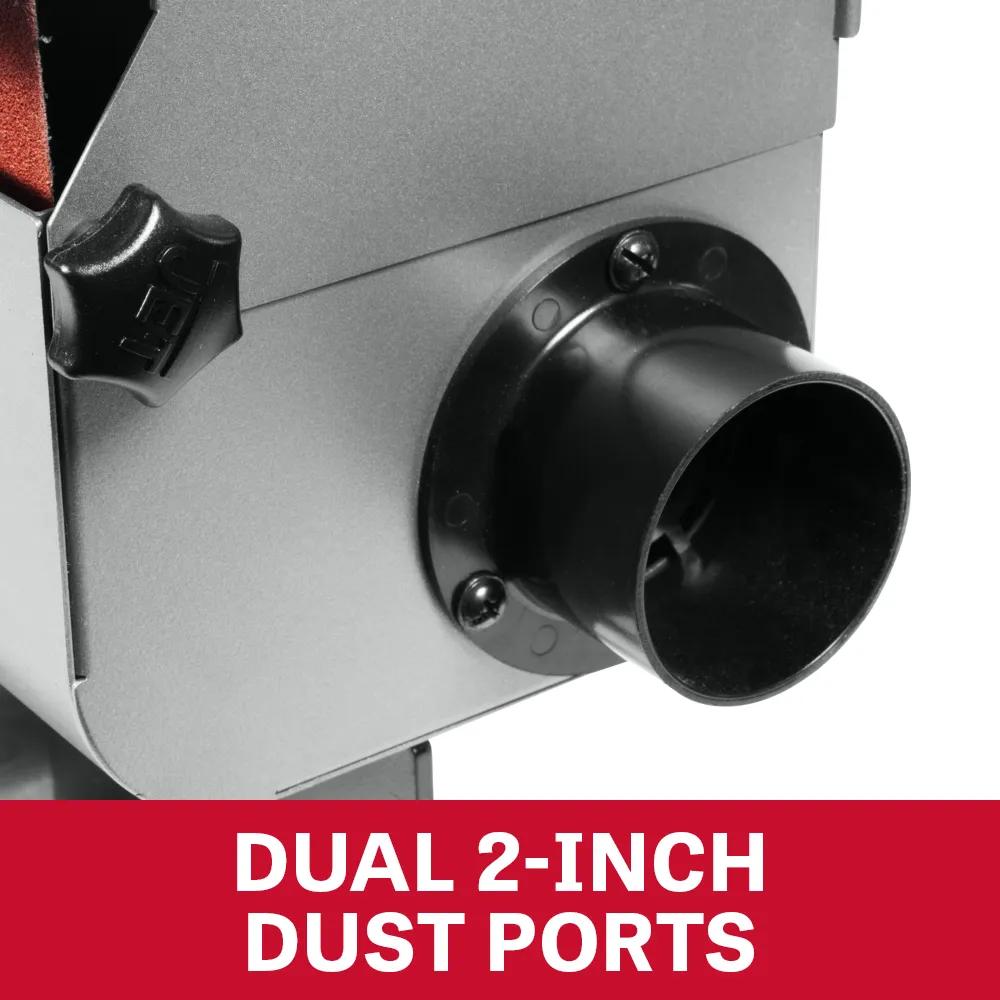

- Dust Port Outside Diameter2 in.
- Horse Power1.5 HP
- Input Power115/230 V 1 Ph
- Model NumberIBGB-248
- Motor Amps8 / 4 A
- Motor HP1 HP
- Motor PhaseSingle
- Motor TypeEnclosed
- Motor Voltage115/230 V
- Noise Level Db at 3Ft75 dB
- Number Ports2
- Old Material Number578248
- Prewired Voltage115 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Recommended Circut Size Amp20 A
- Required Cfm400 - 400 CFM
- SAP Gross Weight86.5
- SAP Net weight80
- Shaft Diameter5/8 in.
- UPC731325773132
- WarrantyTwo Years
- Wheel Diameter8 in.
- Wheel Grits36
- Wheel Speed RPM2600 RPM
- Wheel Width1 in.
