Product Details

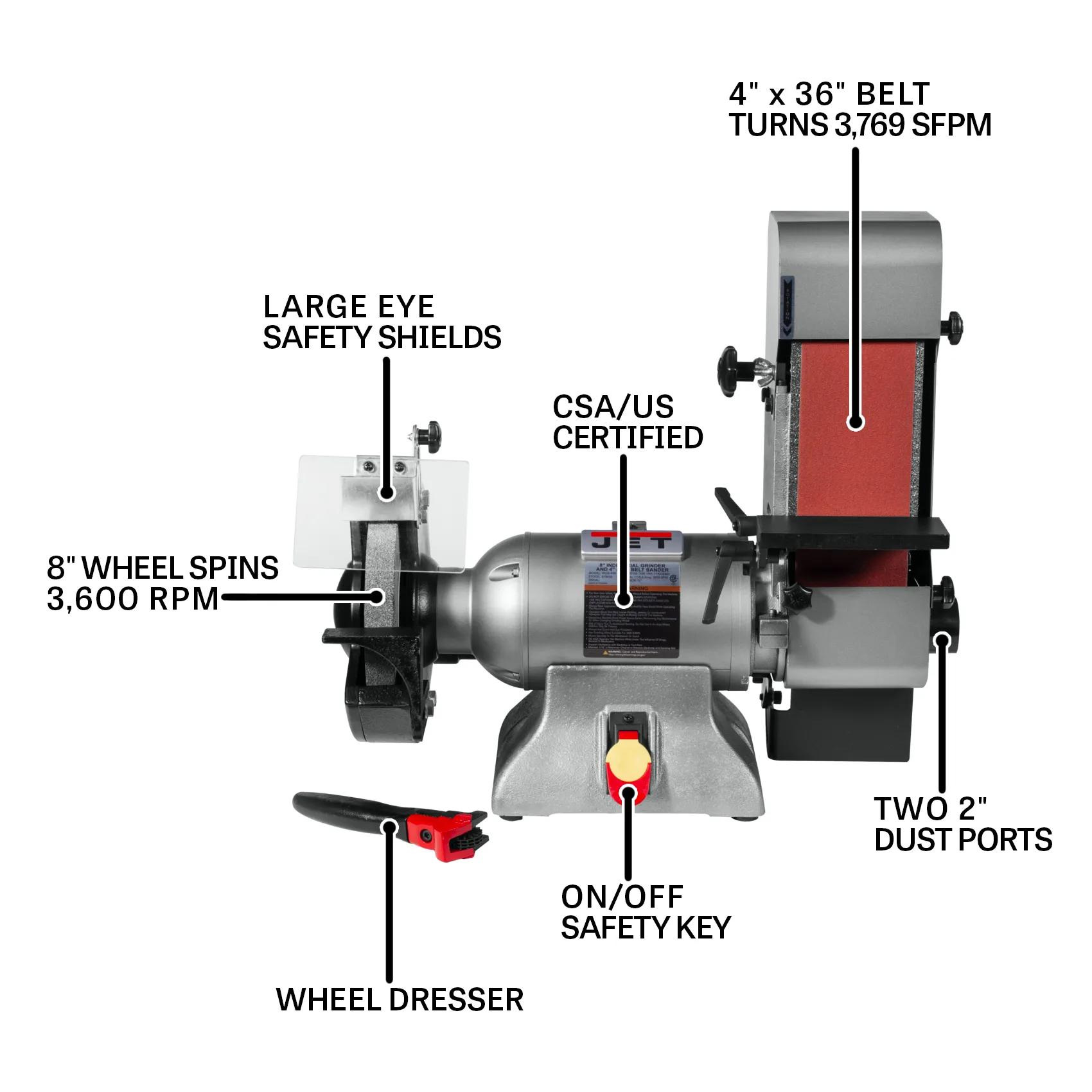

Material removal sized for production, finish quality sized for delivery. Built around industrial finishing environments running long abrasive cycles, the IBGB-436 delivers production-grade results. Equipped with a 1 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial-grade construction, industrial-grade warranty.
Features
- Engineered 1 HP single-phase induction drive: running quieter and cooler than equivalent open-frame designs, sized for the duty range working shops actually run.

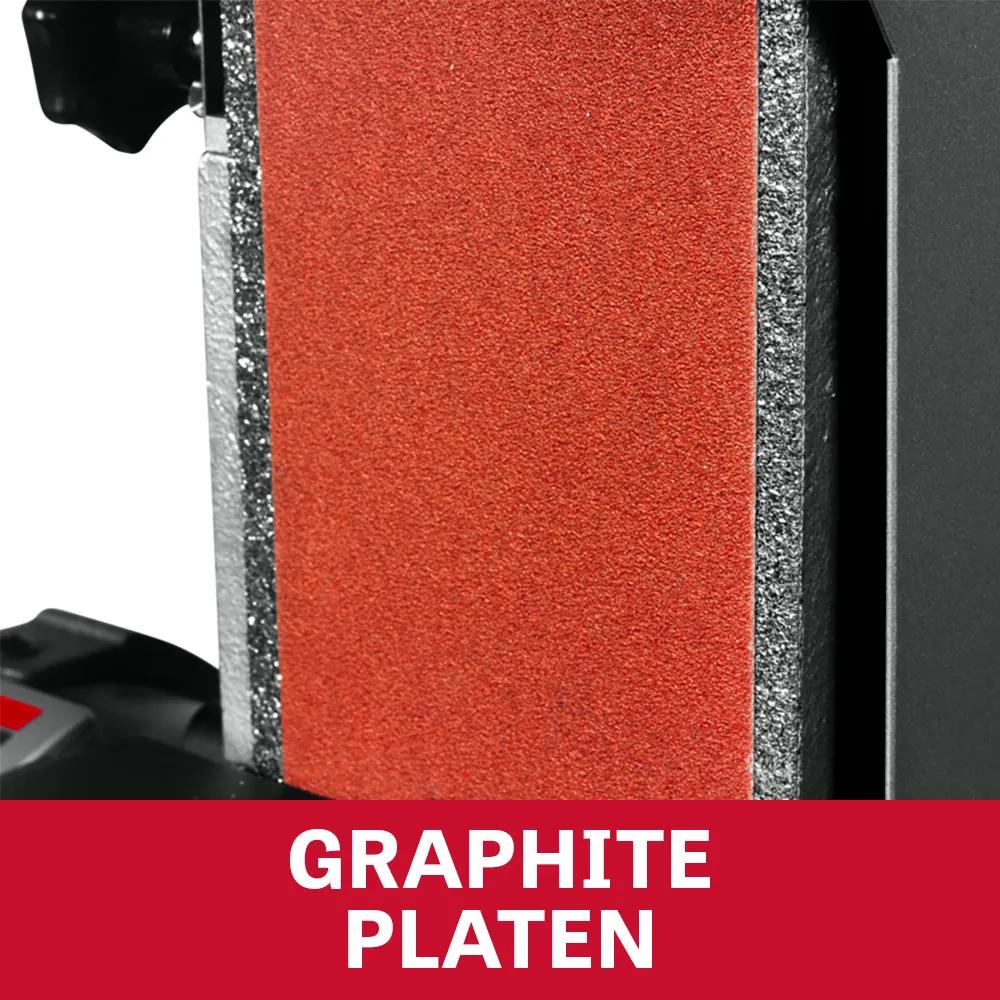

- Heavy-duty abrasive belt drive — matching the surface-finish envelope production sanding generates across industrial sanding environments.
- Industrial belt geometry matches abrasive media for the material removal rates production work demands.
- Industrial-grade disc geometry matches flat grinding for the disc-finishing envelope production work demands.
- Tilting-table geometry handles angle work for the angle accuracy finish work demands.
- Cast iron construction in the support castings — delivering the structural mass precision work depends on.
Specifications
- SKUJT9-578436
- Abrasive Grit80
- Abrasive TypeBelt
- Assembled Dimensions23-7/32 x 19-1/2 x 13-15/16 in., 23-7/32 x 12-7/32 x 20-3/4 in.
- Base Size9-1/2 x 8-1/16 in.
- Belt Size36 x 4 in.
- Belt Speed3769 SFPM
- Belt Table Size6-5/16 x 2-15/16 in.
- Belt Tilt Range45 Deg. down
- Disc Diameter8 in.

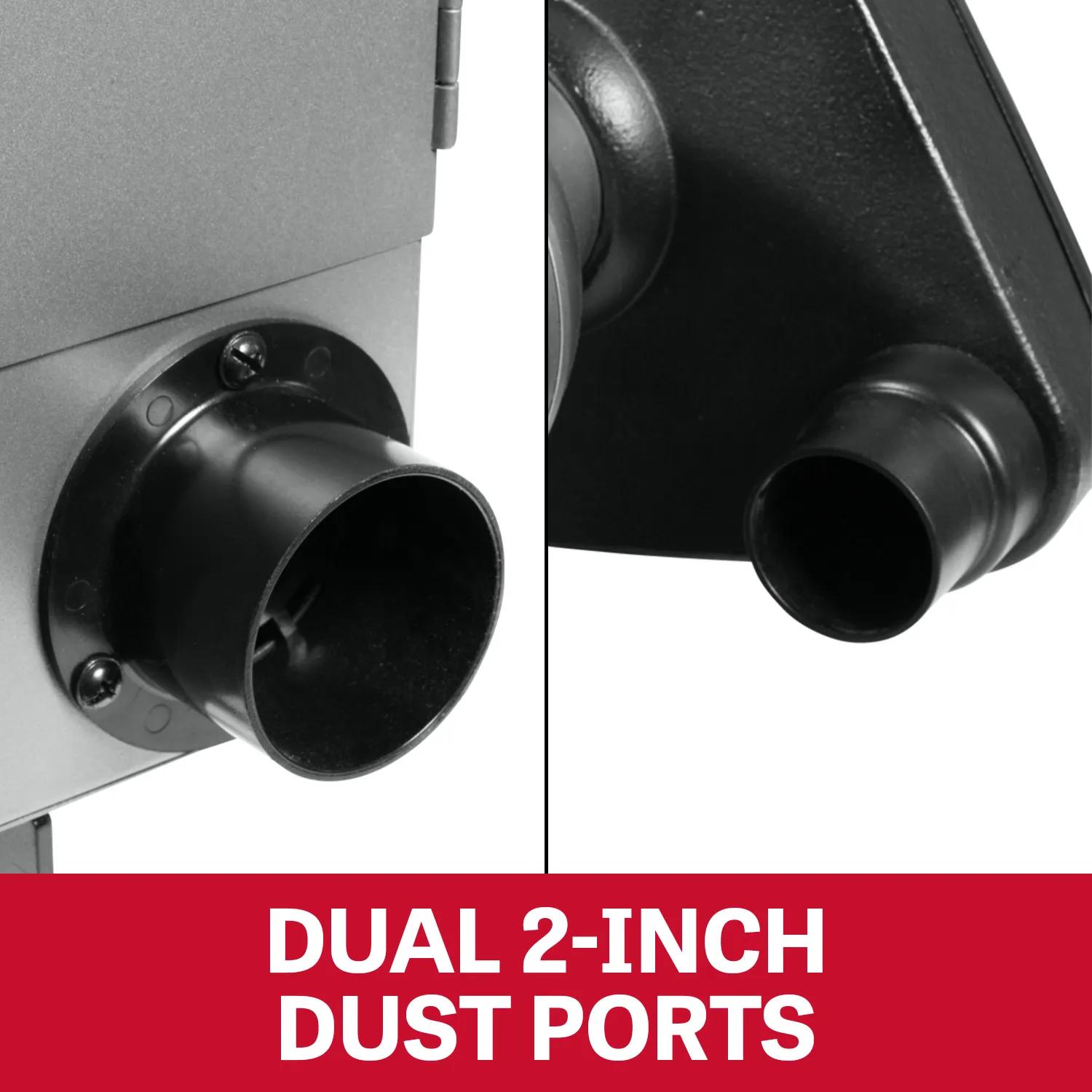

- Dust Port Outside Diameter2 in.
- Horse Power1 HP
- Input Power115/230 V 1 Ph
- Model NumberIBGB-436
- Motor Amps8 / 4 A
- Motor HP1 HP
- Motor PhaseSingle
- Motor TypeEnclosed
- Motor Voltage115/230 V
- Noise Level Db at 3Ft75 dB
- Number Ports2
- Old Material Number578436
- Prewired Voltage115 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Recommended Circut Size Amp15 A
- Required Cfm350 - 350 CFM
- SAP Gross Weight86.5
- SAP Net weight80
- Shaft Diameter5/8 in.
- Spindle Diameter5/8 in.
- Spindle Speed3600 RPM
- UPC731325773149
- WarrantyTwo Years
- Wheel Diameter8 in.
- Wheel Grits36
- Wheel Speed RPM3600 RPM
- Wheel Width1 in.
