Product Details
Built for the operators who measure success in finished surfaces. The IBGB-436VS fits production grinding and sanding cycles — and the cycle counts they generate. Equipped with a 1 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage backs every production-grade finish.
Features
- 1 HP, 115/230V single-phase induction motor — handling startup loads where smaller motors trip, sized for sustained-load operation production work demands.
- Precision-rated abrasive belt drive — delivering consistent abrasive contact across production finishing.
- Industrial-spec belt design handles the abrasive cycle counts for the surface-area envelope production sanding requires.
- Heavy-duty disc construction — handling the material removal rates production finishing demands.
- Adjustable tilting table — extending the working envelope.

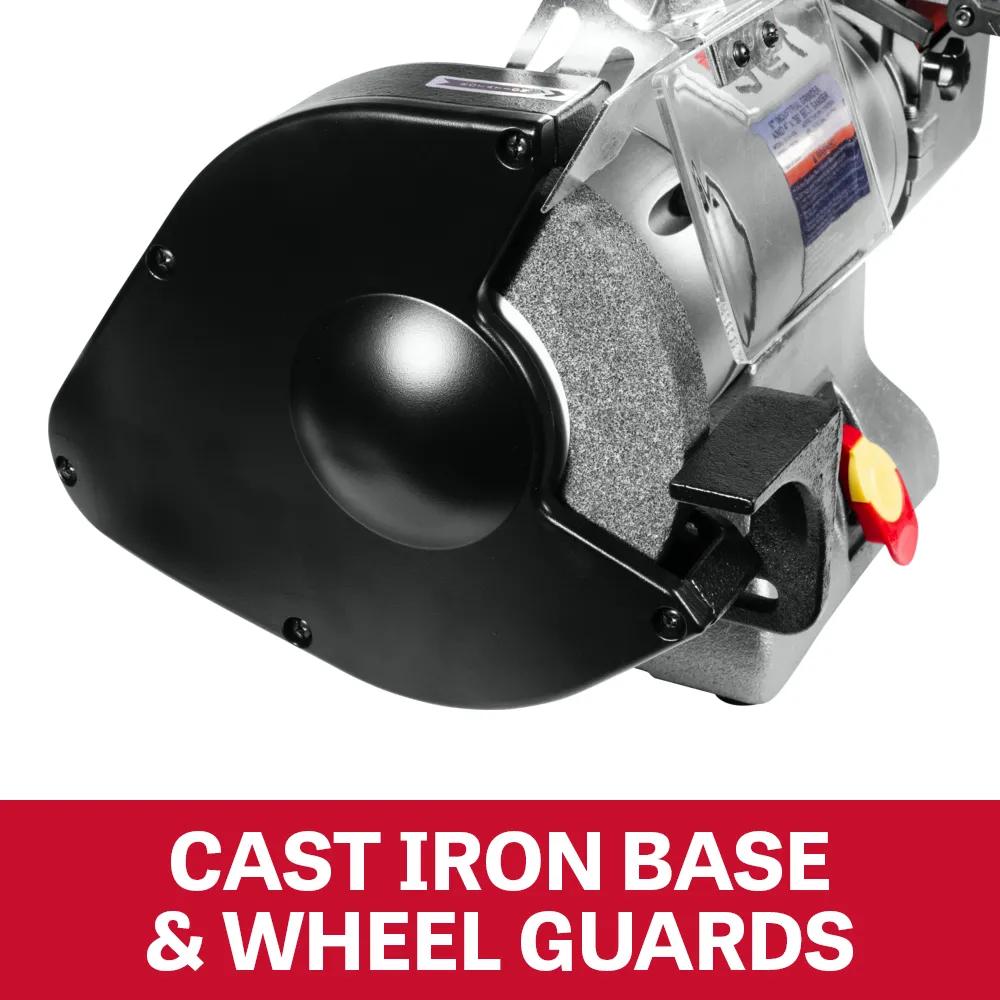

- Solid cast iron reference surfaces deliver reference geometry across industrial tool-room work.
Specifications
- SKUJT9-577436
- Abrasive Grit80
- Abrasive TypeBelt

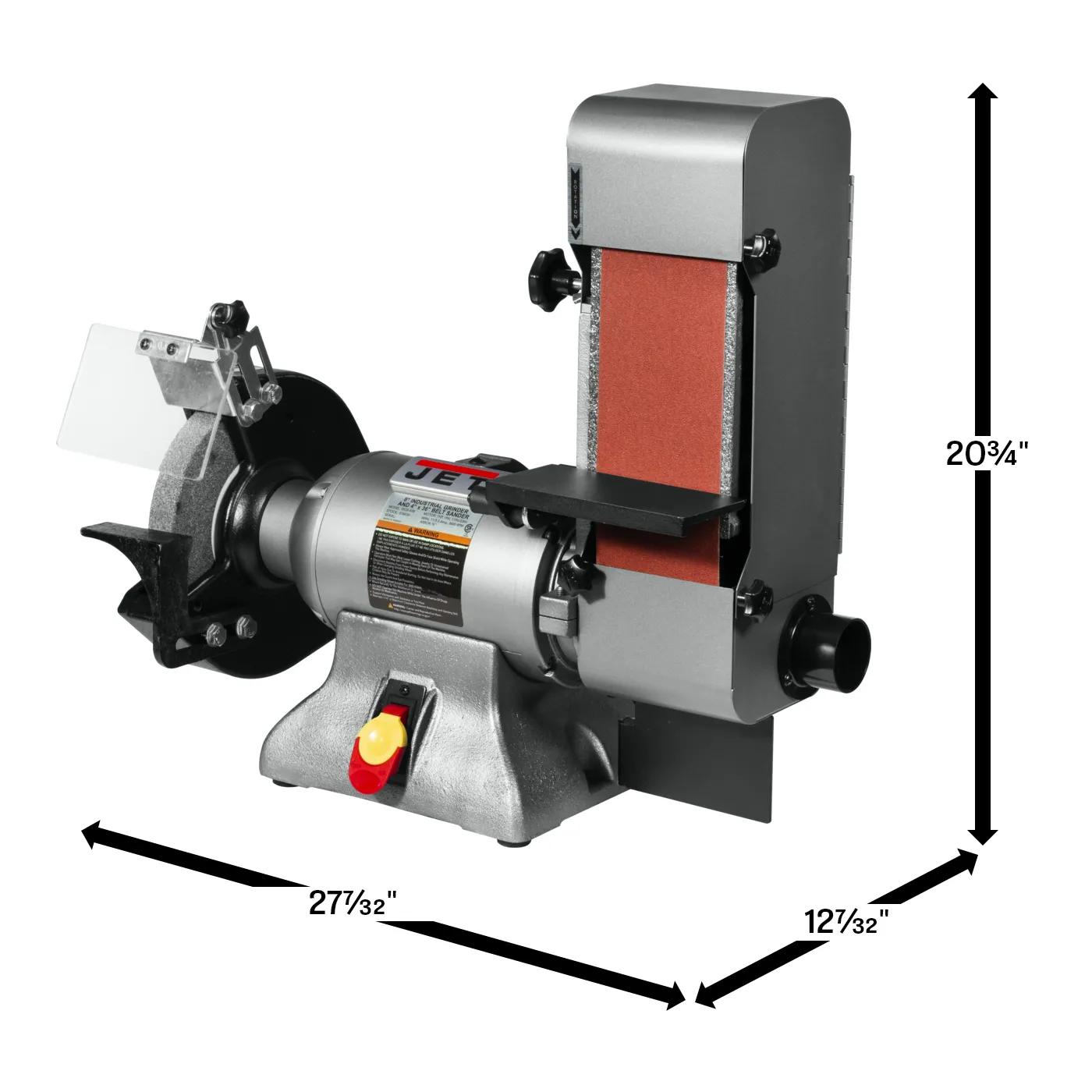

- Assembled Dimensions23-7/32 x 19-1/2 x 13-15/16 in., 23-7/32 x 12-7/32 x 20-3/4 in.
- Base Size9-1/2 x 8-1/16 in.
- Belt Size36 x 4 in.
- Belt Speed942-3769 SFPM
- Belt Table Size6-5/16 x 2-15/16 in.
- Belt Tilt Range45 Deg. down
- Disc Diameter8 in.

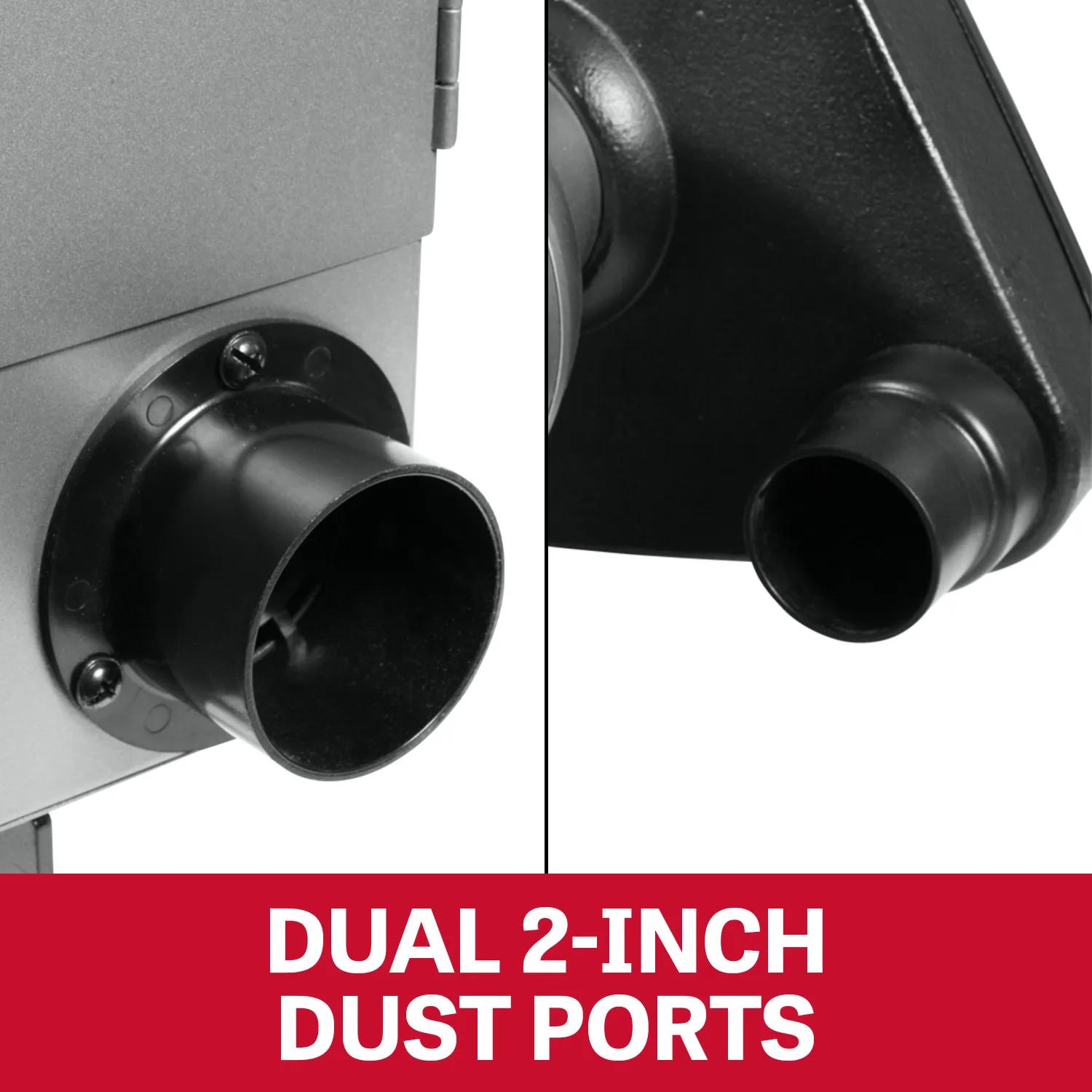

- Dust Port Outside Diameter2 in.
- Horse Power1 HP
- Input Power115/230 V 1 Ph
- Model NumberIBGB-436VS
- Motor Amps8 / 4 A
- Motor HP1 HP
- Motor PhaseSingle
- Motor TypeEnclosed
- Motor Voltage115/230 V
- Noise Level Db at 3Ft75 dB
- Number Ports2
- Old Material Number577436
- Prewired Voltage115 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Recommended Circut Size Amp15 A
- Required Cfm350 - 350 CFM
- SAP Gross Weight86.5
- SAP Net weight80
- Shaft Diameter5/8 in.
- Spindle Diameter5/8 in.
- Spindle Speed3600 RPM
- UPC731325773163
- WarrantyTwo Years
- Wheel Diameter8 in.
- Wheel Grits36

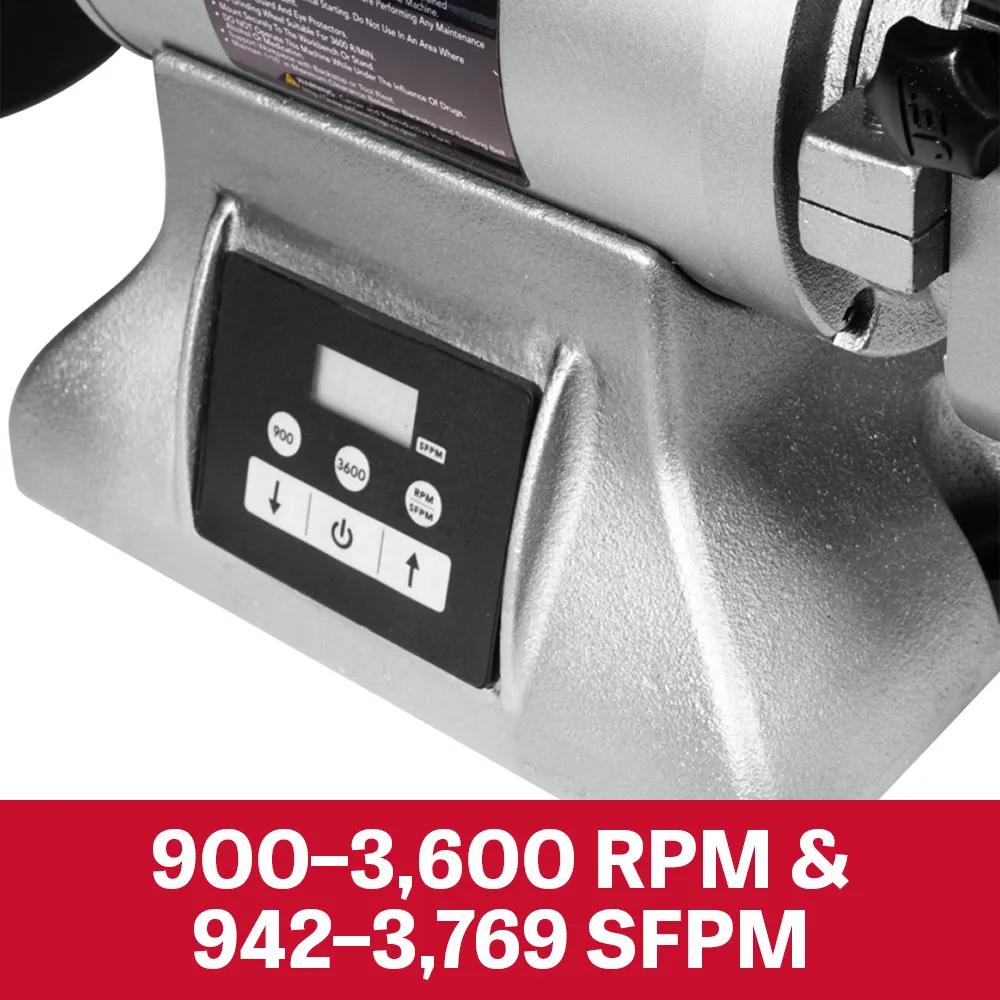

- Wheel Speed RPM900-3600 RPM
- Wheel Width1 in.
