22" Industrial Floor Model Drill Press, 1.5HP, 115/230V 1PH / 3PH(IDP-22)
22" Industrial Floor Model Drill Press, 1.5HP, 115/230V 1PH / 3PH(IDP-22)
22" Industrial Floor Model Drill Press, 1.5HP, 115/230V 1PH / 3PH(IDP-22)
22" Industrial Floor Model Drill Press, 1.5HP, 115/230V 1PH / 3PH(IDP-22)
22" Industrial Floor Model Drill Press, 1.5HP, 115/230V 1PH / 3PH(IDP-22)
22" Industrial Floor Model Drill Press, 1.5HP, 115/230V 1PH / 3PH(IDP-22)
22" Industrial Floor Model Drill Press, 1.5HP, 115/230V 1PH / 3PH(IDP-22)
22" Industrial Floor Model Drill Press, 1.5HP, 115/230V 1PH / 3PH(IDP-22)
22" Industrial Floor Model Drill Press, 1.5HP, 115/230V 1PH / 3PH(IDP-22)
22" Industrial Floor Model Drill Press, 1.5HP, 115/230V 1PH / 3PH(IDP-22)

22" Industrial Floor Model Drill Press, 1.5HP, 115/230V 1PH / 3PH(IDP-22)

Stock Number: JT9-354301

0 Reviews

No reviews yet.

  • 1.5 HP, 115/230V, single-phase
  • 22" drilling capacity
  • MT-3 spindle taper
BUY NOW
Fetching Data...

Product Details

Repeatable hole-making, run after run. Built around tool-room hole-making and repeat parts production, the IDP-22 delivers production-grade results. Equipped with a 1.5 HP (1-1/2 HP) HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage and the service network keep production drilling running.

Features

  • The 1.5 HP (1-1/2 HP) HP, 115/230V induction motor handles full-capacity passes for full-capacity production runs.
  • Precision-rated 22-inch drilling envelope — handling the work envelope industrial shops actually face across professional shop floors.

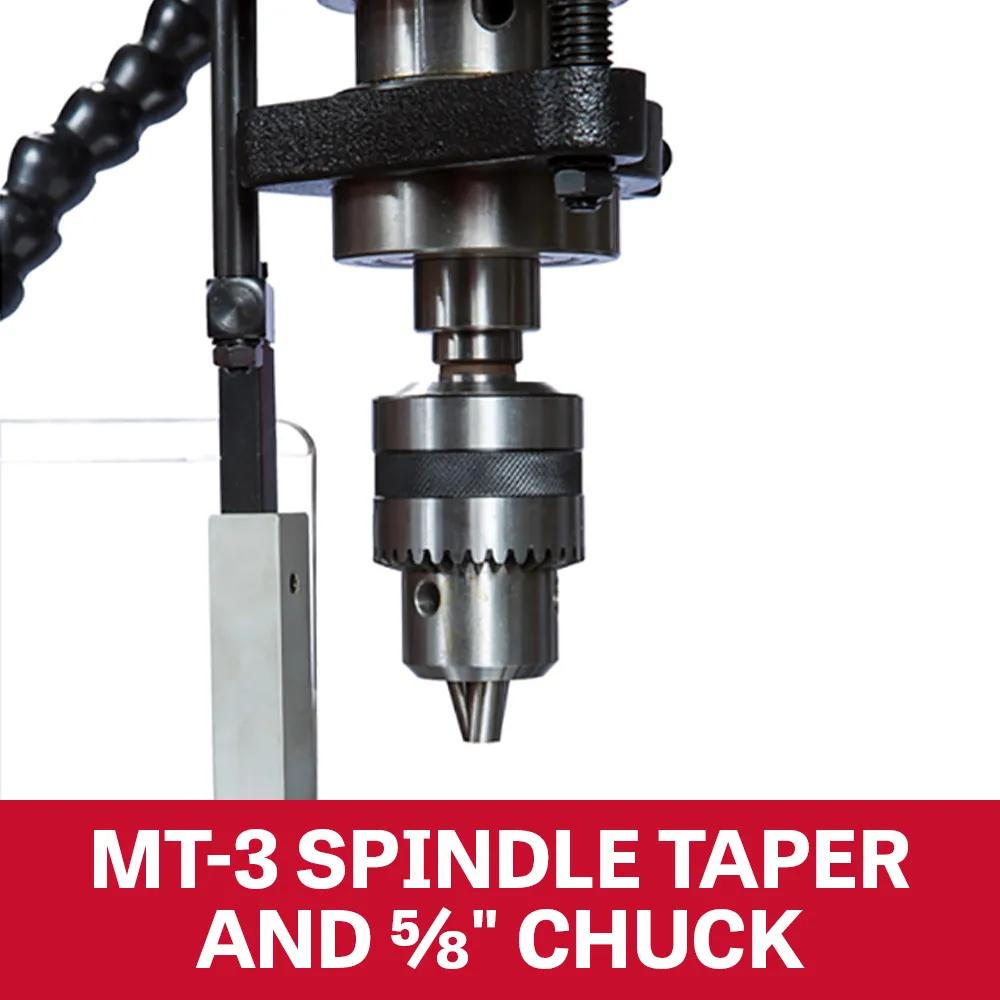

  • Continuous-duty MT-3 spindle interface — accepting the end mills, drill chucks, and collets this market depends on.

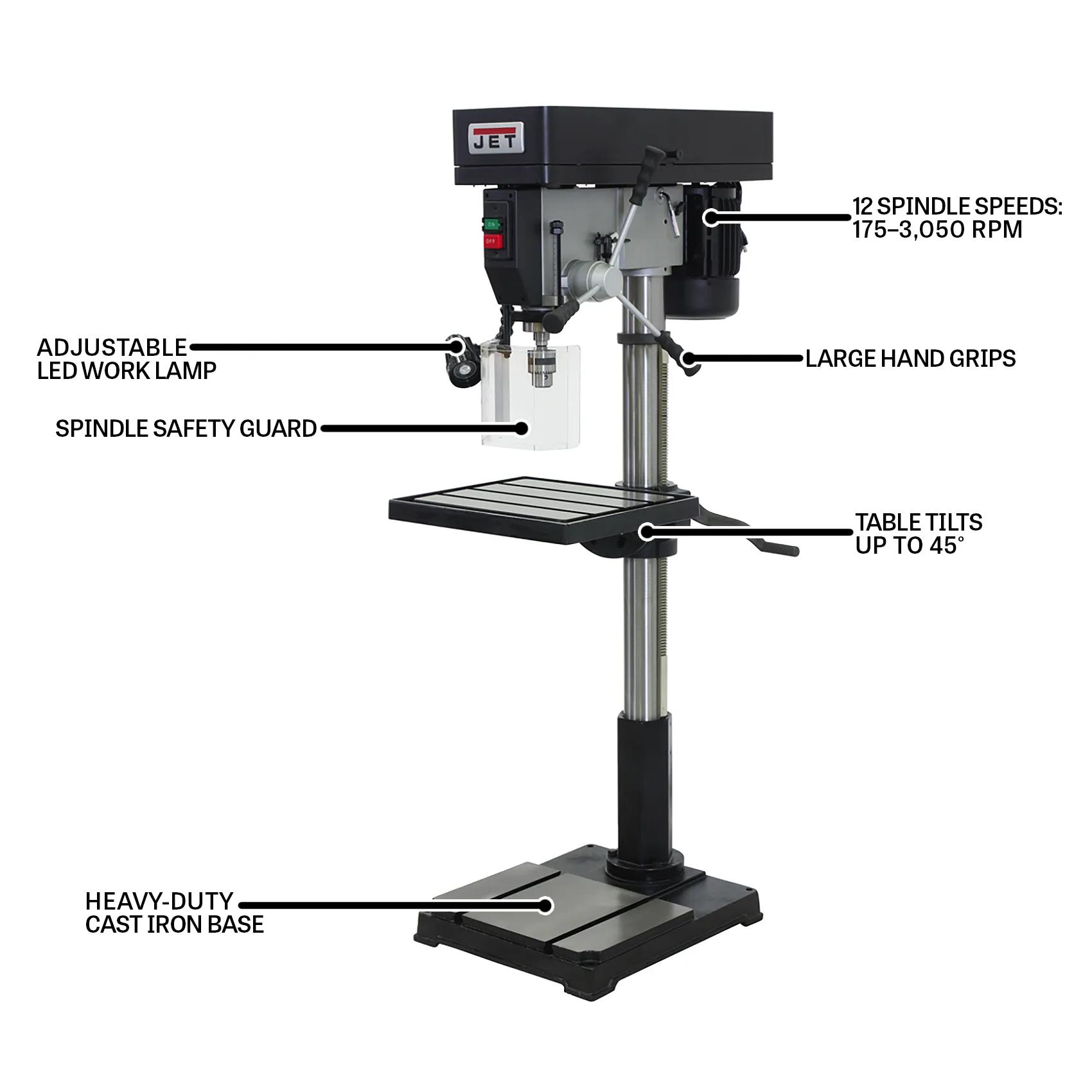

  • Operating range of 175 - 3,050 RPM covers the cuts for the cutting envelope production cuts demand.
  • Cast iron table castings handle the structural mass for dimensional stability under sustained cutting loads.
  • Surface-ground gear assemblies provide dimensional stability for the dimensional stability precision work demands.

Specifications

  • SKU
    JT9-354301
  • Assembled Dimensions
    35 x 19 x 67 in.
  • Base Size
    22-5/8 x 19-7/16 x 3-3/8 in., 21-1/2 x 18-5/16 in.
  • Chuck Size
    3/4 in.
  • Collet Size
    3-5/8 in.
  • Distance Column to Spindle
    10.875 in.
  • Drilling Capacity Cast Iron
    1.25 in.
  • Drilling Capacity Mild Steel
    1 in.
  • Drills to Center of Circle
    22 in.
  • Input Power
    115/230 V 1 Ph
  • Model Number
    IDP-22
  • Motor Amps
    12.4/6.2 A
  • Motor HP
    1.5 HP
  • Motor Phase
    Single / Three
  • Motor Voltage
    115/230 V
  • Number of Spindle Speeds
    12
  • Old Material Number
    354301
  • Prewired Voltage
    115 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Range Of Spindle Speeds
    175 - 3050 RPM
  • SAP Gross Weight
    364
  • SAP Net weight
    322
  • Spindle Distance To Base
    48-1/2 in.
  • Spindle Distance To Table Max
    28 in.
  • Spindle Taper X Tpi
    MT3
  • Style Type
    Belt Drive
  • Swing
    22 in.
  • T-Slot Centers
    3/4 in.
  • T-Slots Number And Size
    2 and 5/8 in.

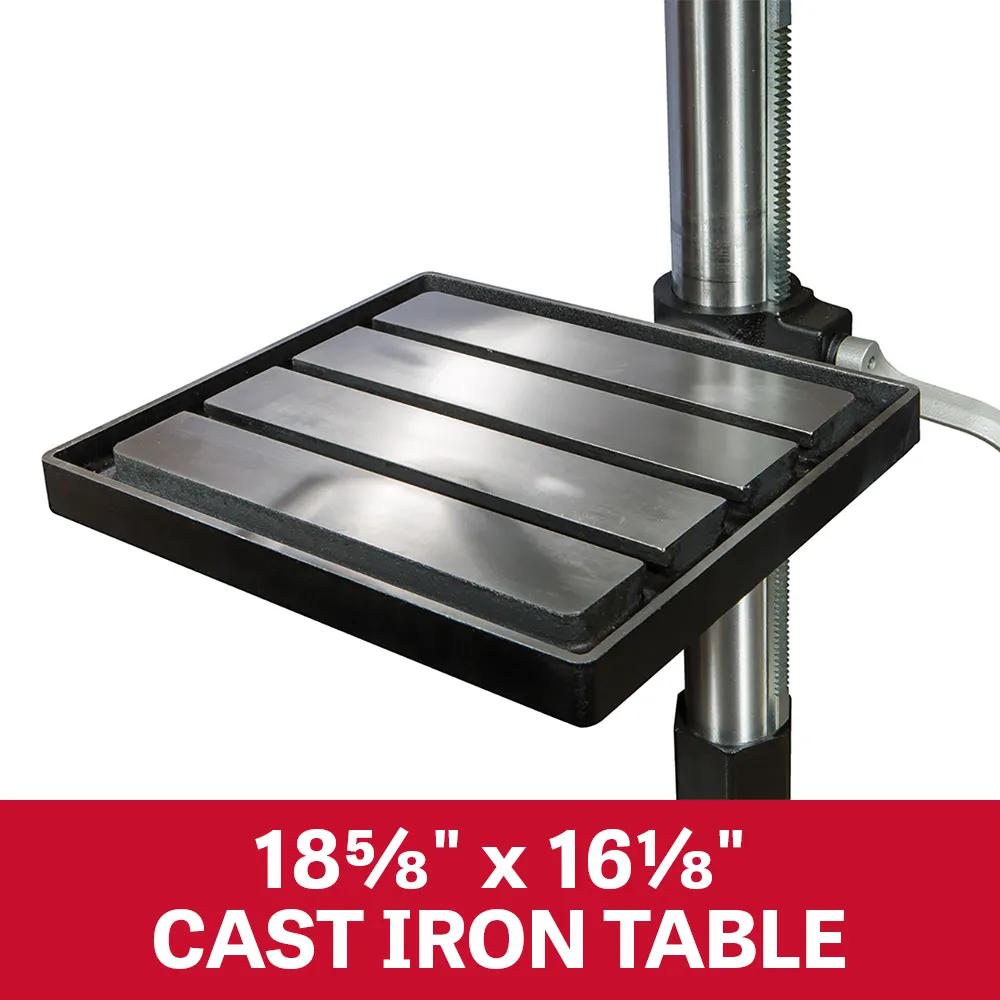

  • Table Size
    18-5/8 x 16-1/8 in.

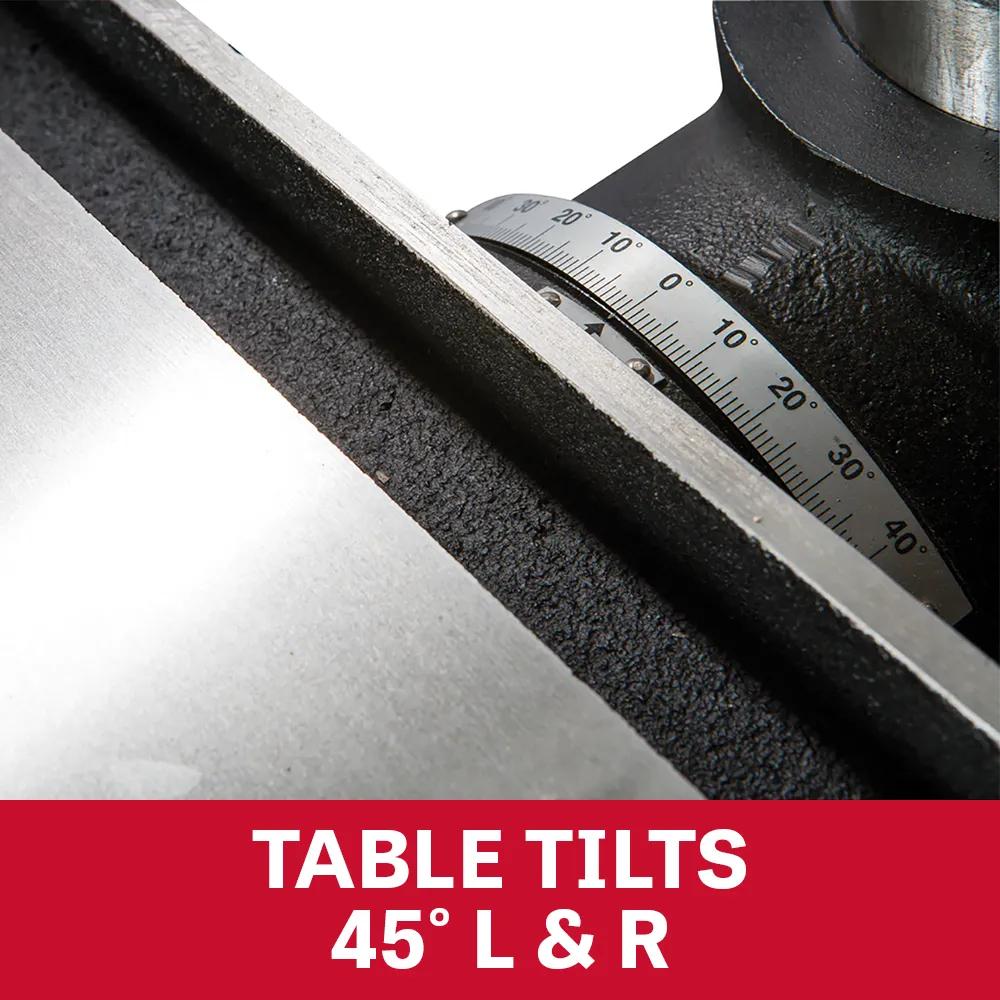

  • Table Tilt (L, R, C)
    45 Deg.
  • UPC
    731325466744
  • Warranty
    Two Years
  • Work Table Weight Capacity
    176 lbs
