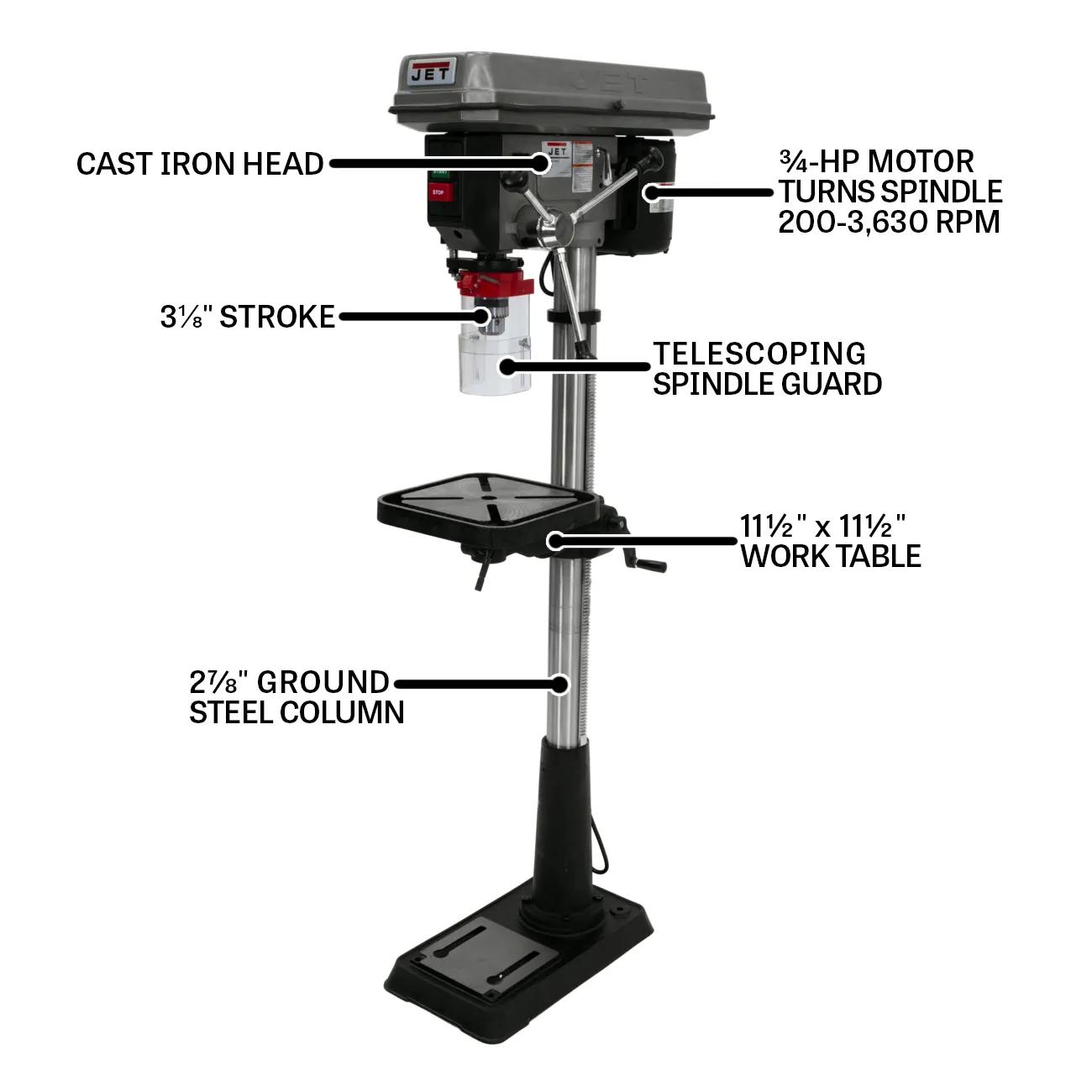

15" Floor Model Drill Press, 0.75HP, 115V 1PH(J-2500)
15" Floor Model Drill Press, 0.75HP, 115V 1PH(J-2500)
15" Floor Model Drill Press, 0.75HP, 115V 1PH(J-2500)

15" Floor Model Drill Press, 0.75HP, 115V 1PH(J-2500)

Stock Number: JT9-354400

0 Reviews

No reviews yet.

  • 0.75 HP, 115V, single-phase
  • 15" drilling capacity
  • MT-2 spindle taper
BUY NOW

Product Details

Engineered for the drilling work production schedules actually generate. Designed for shops where drilling capacity meets daily duty cycles, the J-2500 stands up to the duty cycle. Equipped with a 0.75 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for the cycle counts production drilling actually generates.

Features

  • Engineered 0.75 HP single-phase induction drive: holding speed under load when lighter motors stall, sized for sustained-load operation production work demands.
  • Wide 15-inch drilling envelope — delivering drilling capacity production work actually demands.
  • Industrial MT-2 taper — handling the tooling loads production cutting generates across tool-room machining.
  • Heat-treated cast iron column castings resist deflection — running cooler under sustained cutting loads than stock alternatives.
  • Hardened and ground feed gears transmit power for repeatable feed rates across long cycles.
  • Premium-grade CSA/cUS listing — covering electrical safety compliance regulated sites actually verify across professional shop floors.

Specifications

  • SKU
    JT9-354400
  • Assembled Dimensions
    31 x 13 x 63 in.
  • Base Size
    11 x 19-1/2 in.
  • Chuck Size
    3/8 in.
  • Collet Size
    2.875 in.
  • Distance Column to Spindle
    7.5 in.
  • Drilling Capacity Cast Iron
    5/8 in.
  • Drilling Capacity Mild Steel
    0.5 in.
  • Drills to Center of Circle
    15 in.
  • Input Power
    115 V 1 Ph
  • Model Number
    J-2500
  • Motor Amps
    9 A
  • Motor HP
    0.75 HP
  • Motor Phase
    Single
  • Motor Voltage
    115 V
  • Number of Spindle Speeds
    16
  • Old Material Number
    354400
  • Prewired Voltage
    115 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Range Of Spindle Speeds
    200, 290, 350, 430, 500, 580, 640, 720, 800, 870, 1440, 1630, 1820, 2380, 2540, 3630 RPM
  • SAP Gross Weight
    167
  • SAP Net weight
    167
  • Spindle Distance To Base
    48 in.
  • Spindle Distance To Table Max
    24 in.
  • Spindle Taper X Tpi
    MT2
  • Style Type
    Belt Drive
  • Swing
    15 in.
  • Table Size
    11-1/2 x 11-1/2 in.
  • Table Tilt (L, R, C)
    45 Deg.
  • Table Travel
    24 in.
  • UPC
    662756092649
  • Warranty
    Two Years
  • Work Table Weight Capacity
    44 lbs
