15" Bench Model Drill Press, 0.75HP, 115V 1PH(J-2530)
15" Bench Model Drill Press, 0.75HP, 115V 1PH(J-2530)
15" Bench Model Drill Press, 0.75HP, 115V 1PH(J-2530)
15" Bench Model Drill Press, 0.75HP, 115V 1PH(J-2530)
15" Bench Model Drill Press, 0.75HP, 115V 1PH(J-2530)

15" Bench Model Drill Press, 0.75HP, 115V 1PH(J-2530)

Stock Number: JT9-354401

0 Reviews

No reviews yet.

  • 0.75 HP, 115V, single-phase
  • 15" drilling capacity
  • MT-2 spindle taper
BUY NOW

Product Details

Drill press performance from setup to finish. The J-2530 fits shops where drilling capacity meets daily duty cycles — and the cycle counts they generate. Equipped with a 0.75 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial-grade build, industrial-grade warranty.

Features

  • Industrial 0.75 HP induction motor: running quieter and cooler than equivalent open-frame designs, designed for working shops.
  • 15-inch drilling capacity handles the production hole-making for the working envelope production drilling demands.
  • Tolerance-grade MT-2 spindle interface — expanding tooling compatibility without operator-side workarounds.
  • Cast iron table castings provide the structural mass for the working loads industrial cutting generates.
  • Heat-treated drive gears hold spec — delivering the dimensional stability precision work measures across fabrication and tool-room work.
  • CSA/cUS listing simplifies safety compliance for compliance with North American electrical safety standards.

Specifications

  • SKU
    JT9-354401
  • Assembled Dimensions
    31 x 13 x 39-1/2 in.
  • Base Size
    18 x 10-1/2 in., 8 x 8 in.
  • Chuck Size
    3/8 in.
  • Collet Size
    2.875 in.
  • Distance Column to Spindle
    7.5 in.

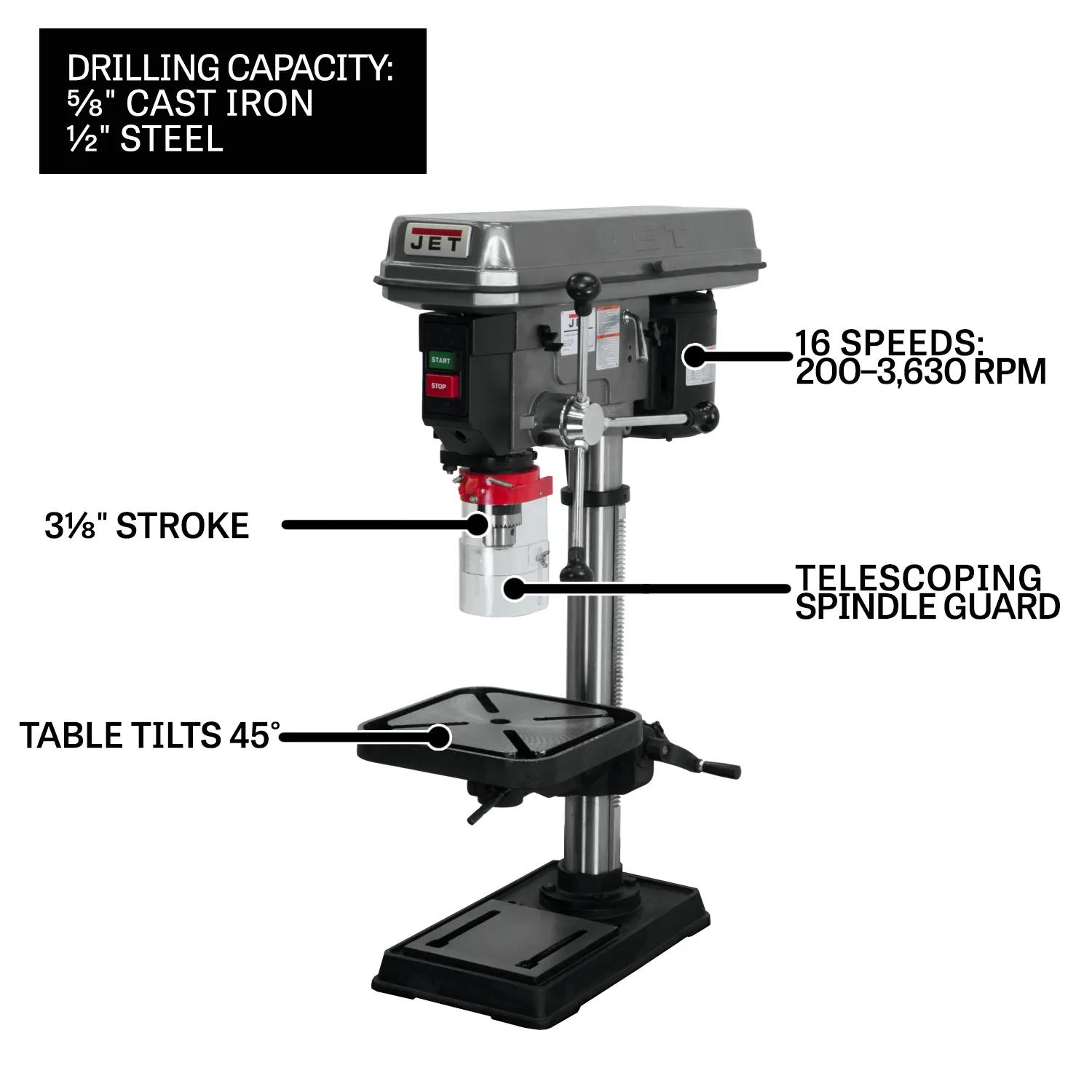

  • Drilling Capacity Cast Iron
    5/8 in.
  • Drilling Capacity Mild Steel
    0.5 in.
  • Drills to Center of Circle
    15 in.
  • Input Power
    115 V 1 Ph
  • Model Number
    J-2530
  • Motor Amps
    9 A
  • Motor HP
    0.75 HP
  • Motor Phase
    Single
  • Motor Voltage
    115 V
  • Number of Spindle Speeds
    16
  • Old Material Number
    354401
  • Prewired Voltage
    115 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Range Of Spindle Speeds
    200, 290, 350, 430, 500, 580, 640, 720, 800, 870, 1440, 1630, 1820, 2380, 2540, 3630 RPM
  • SAP Gross Weight
    163
  • SAP Net weight
    157
  • Spindle Distance To Base
    24 in.
  • Spindle Distance To Table Max
    15 in.
  • Spindle Taper X Tpi
    MT2
  • Style Type
    Belt Drive
  • Swing
    15 in.

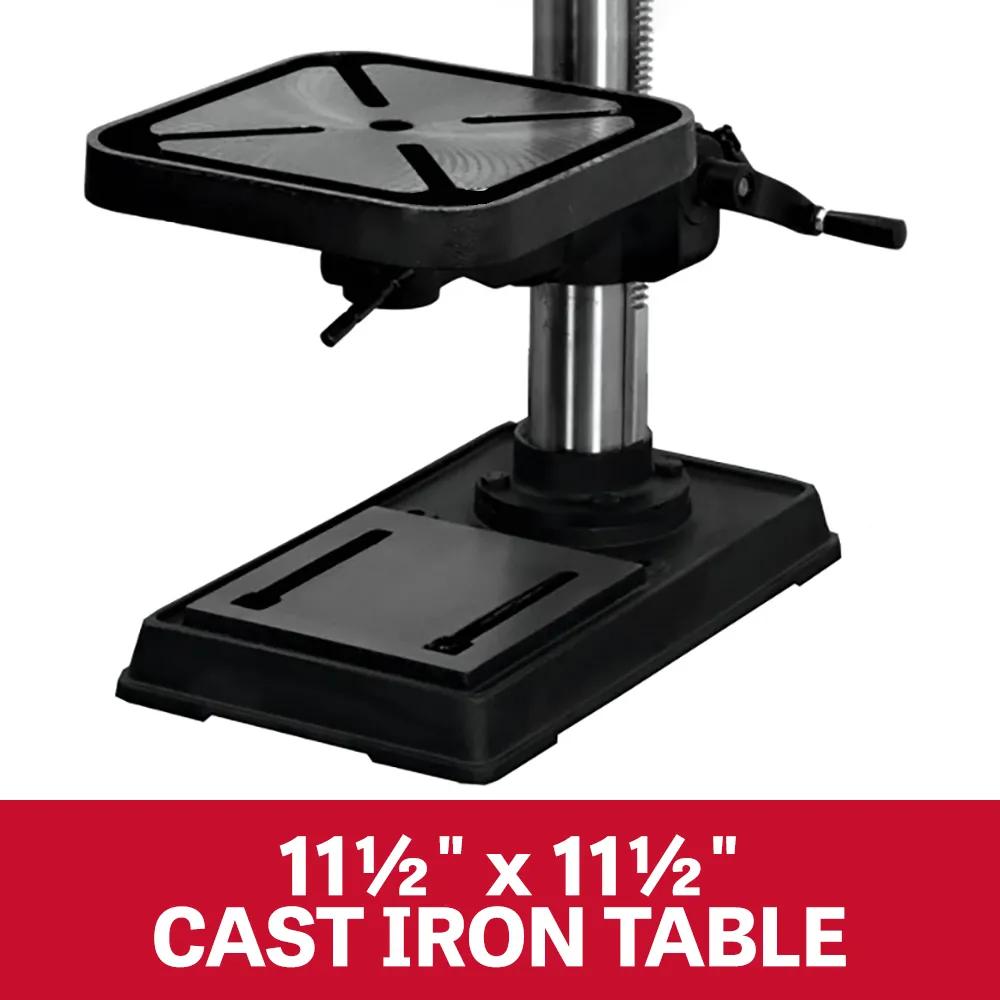

  • Table Size
    11-1/2 x 11-1/2 in.
  • Table Tilt (L, R, C)
    45 Deg.
  • Table Travel
    15-1/2 in.
  • UPC
    662756092656
  • Warranty
    Two Years
  • Work Table Weight Capacity
    44 lbs
