20" Floor Model Drill Press, 1HP, 115V 1PH(J-2550)
20" Floor Model Drill Press, 1HP, 115V 1PH(J-2550)
20" Floor Model Drill Press, 1HP, 115V 1PH(J-2550)
20" Floor Model Drill Press, 1HP, 115V 1PH(J-2550)
20" Floor Model Drill Press, 1HP, 115V 1PH(J-2550)
20" Floor Model Drill Press, 1HP, 115V 1PH(J-2550)

20" Floor Model Drill Press, 1HP, 115V 1PH(J-2550)

Stock Number: JT9-354402

0 Reviews

No reviews yet.

  • 1 HP, 115V, single-phase
  • 20" drilling capacity
  • MT-3 spindle taper
BUY NOW
Fetching Data...

Product Details

Where holes meet tolerance. The J-2550 answers the work generated by production drilling and tapping work. Equipped with a 1 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial-grade build, industrial-grade warranty.

Features

  • Industrial-grade 1 HP single-phase drive — delivering full nameplate output, built for production cutting.
  • Production-grade 20-inch drilling envelope — covering the hole library production drilling generates across professional shop floors.
  • Industrial-spec MT-3 spindle interface — delivering tooling compatibility shops already own.
  • Cast iron head castings provide the structural mass for the working loads industrial cutting generates.
  • Hardened-steel headstock gears cover the working precision for power-transmission accuracy production work depends on.
  • Independently CSA/cUS listed for the documentation safety officers expect.

Specifications

  • SKU
    JT9-354402
  • Assembled Dimensions
    33-1/2 x 18-1/2 x 67 in.
  • Base Size
    22-3/4 x 17-3/4 in.
  • Chuck Size
    3/8 in.
  • Collet Size
    3-5/8 in.
  • Distance Column to Spindle
    10 in.
  • Drilling Capacity Cast Iron
    3/4 in.
  • Drilling Capacity Mild Steel
    0.375 in.
  • Drills to Center of Circle
    20 in.
  • Input Power
    115 V 1 Ph
  • Model Number
    J-2550
  • Motor Amps
    14 A
  • Motor HP
    1 HP
  • Motor Phase
    Single
  • Motor Voltage
    115 V
  • Number of Spindle Speeds
    12
  • Old Material Number
    354402
  • Prewired Voltage
    115 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm

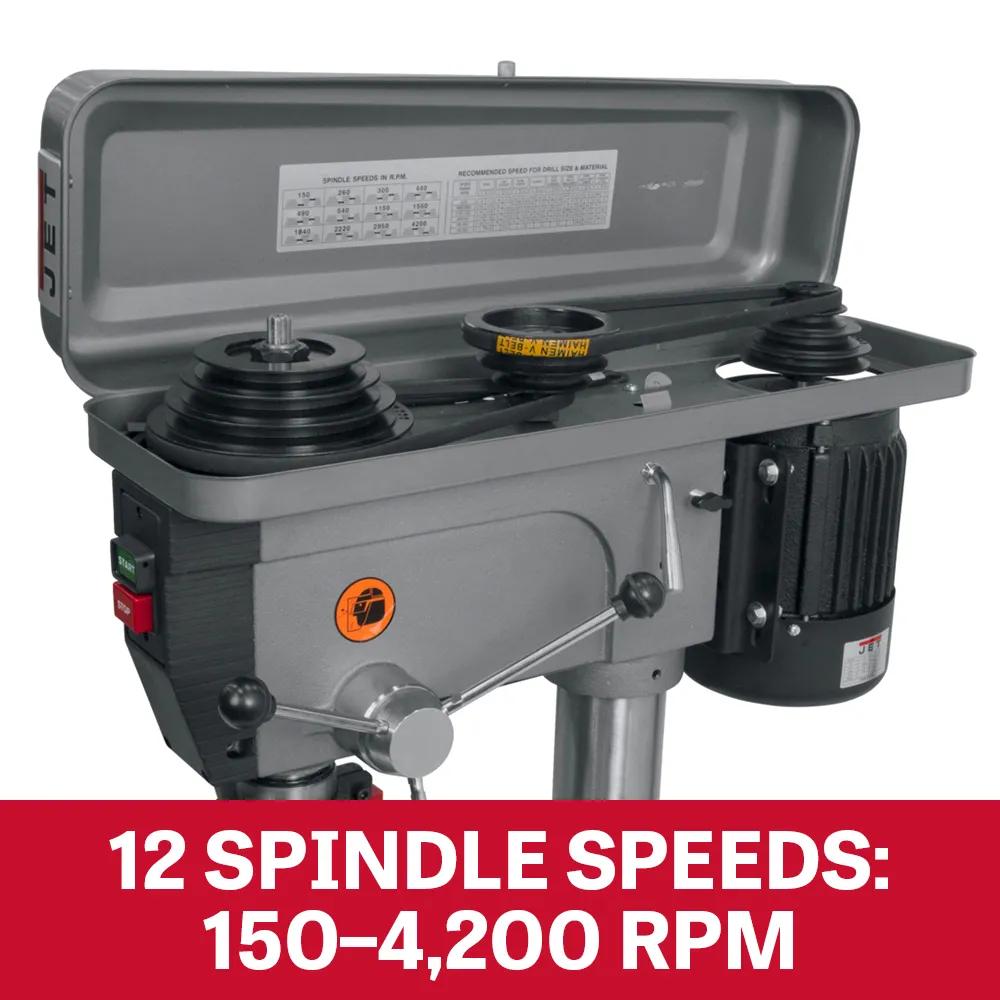

  • Range Of Spindle Speeds
    150, 260, 300, 440, 490, 540, 1150, 1550, 1840, 2220, 2950, 4200 RPM
  • SAP Gross Weight
    304
  • SAP Net weight
    304
  • Spindle Distance To Base
    43-1/2 in.
  • Spindle Distance To Table Max
    24 in.

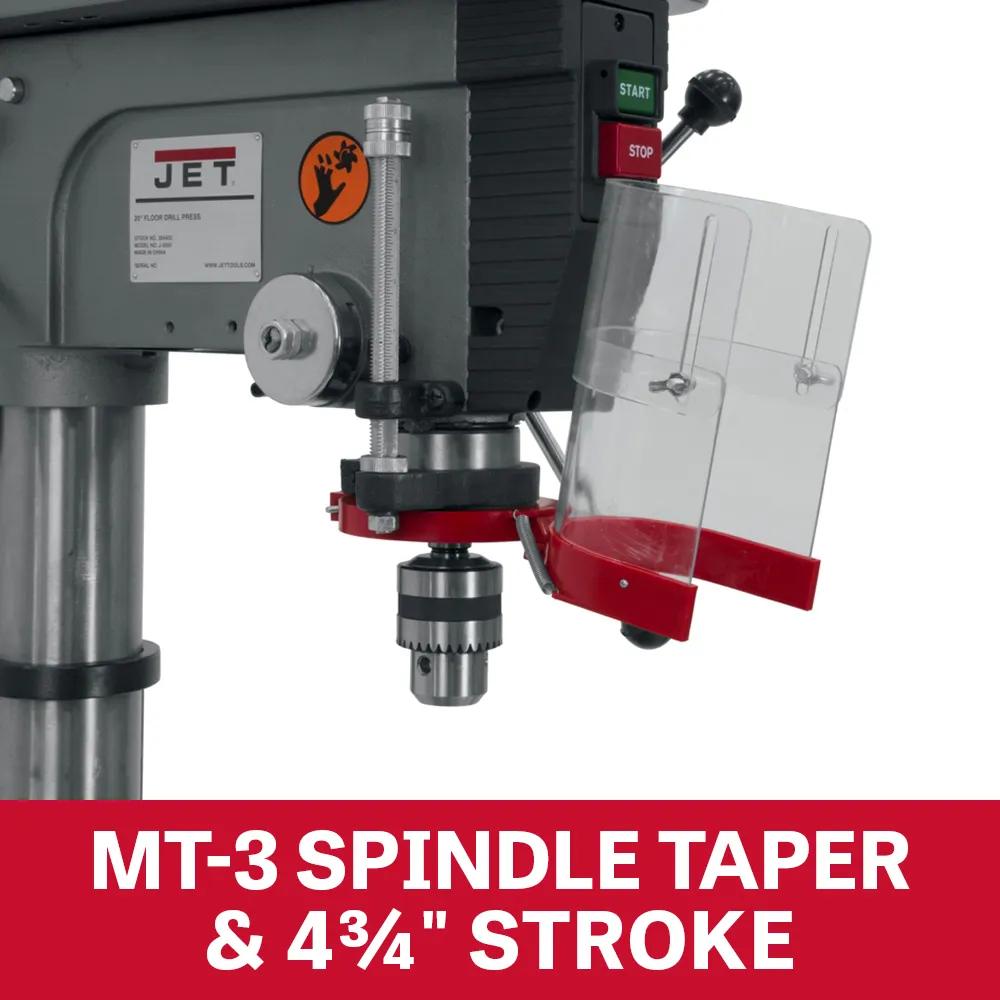

  • Spindle Taper X Tpi
    MT3
  • Style Type
    Belt Drive
  • Swing
    20 in.
  • T-Slot Centers
    4 in.
  • T-Slots Number And Size
    3 and 1/2 in.

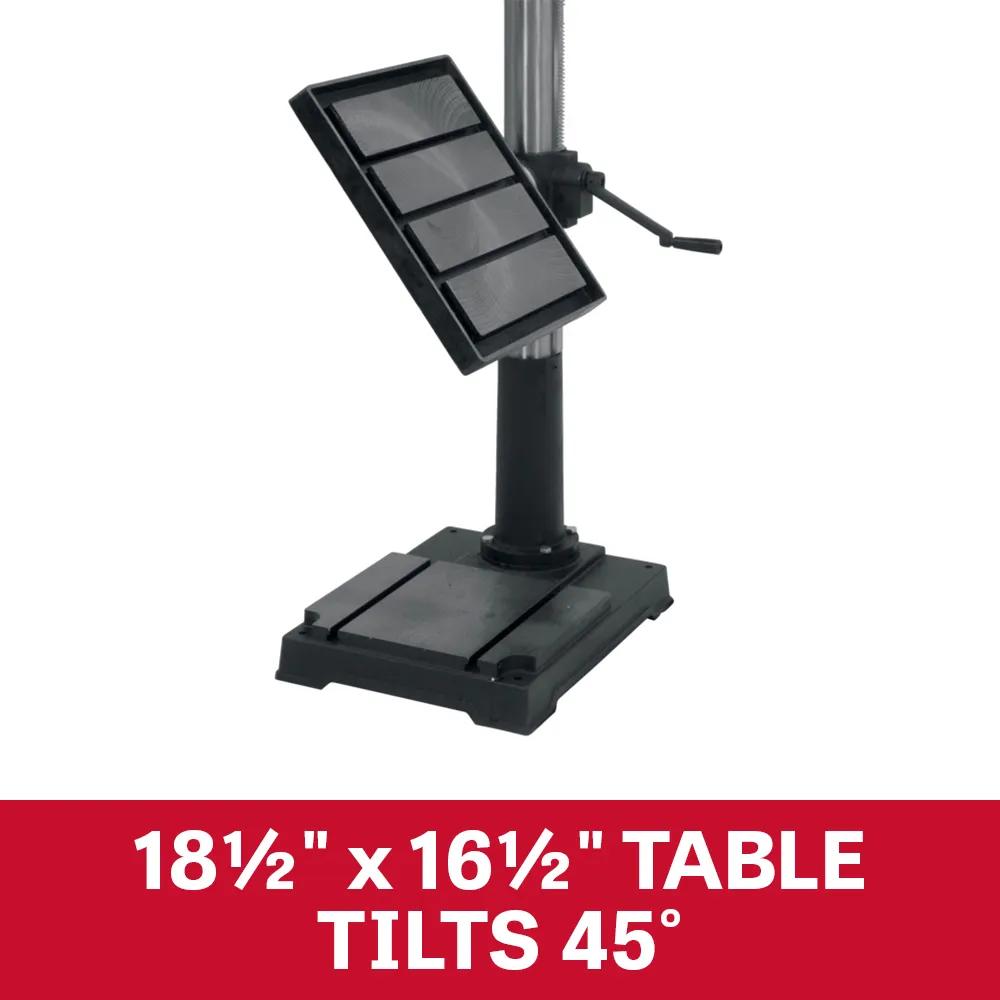

  • Table Size
    18-11/16 x 16-3/4 in.
  • Table Tilt (L, R, C)
    45 Deg.
  • Table Travel
    21-1/2 in.
  • UPC
    662756092663
  • Warranty
    Two Years
  • Work Table Weight Capacity
    66 lbs
