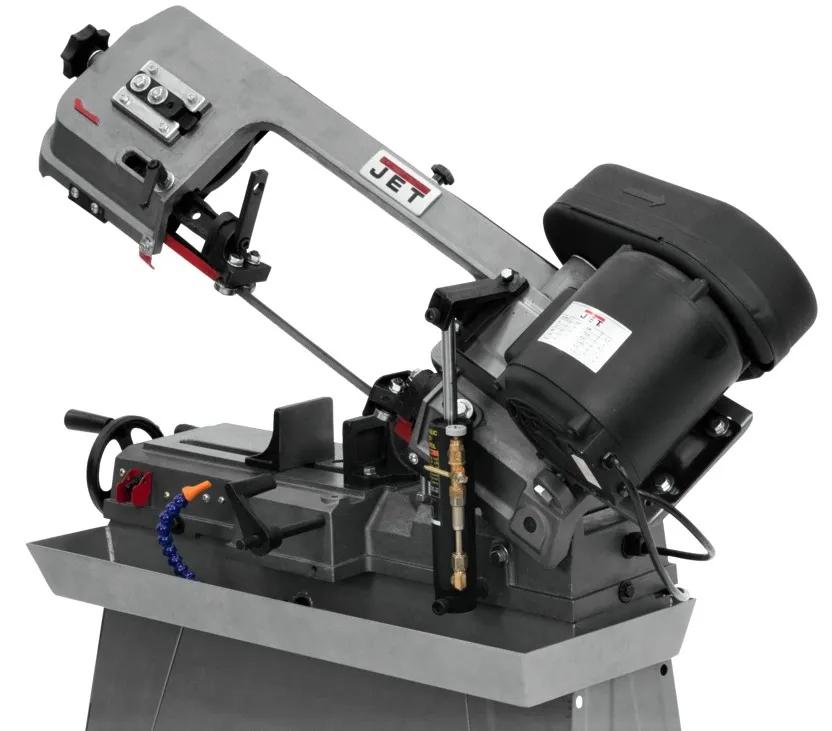

5" x 8" Horizontal Bandsaw, 0.5HP, 115/230V 1PH(J-3130)
5" x 8" Horizontal Bandsaw, 0.5HP, 115/230V 1PH(J-3130)
5" x 8" Horizontal Bandsaw, 0.5HP, 115/230V 1PH(J-3130)
5" x 8" Horizontal Bandsaw, 0.5HP, 115/230V 1PH(J-3130)

5" x 8" Horizontal Bandsaw, 0.5HP, 115/230V 1PH(J-3130)

Stock Number: JT9-414461

0 Reviews

No reviews yet.

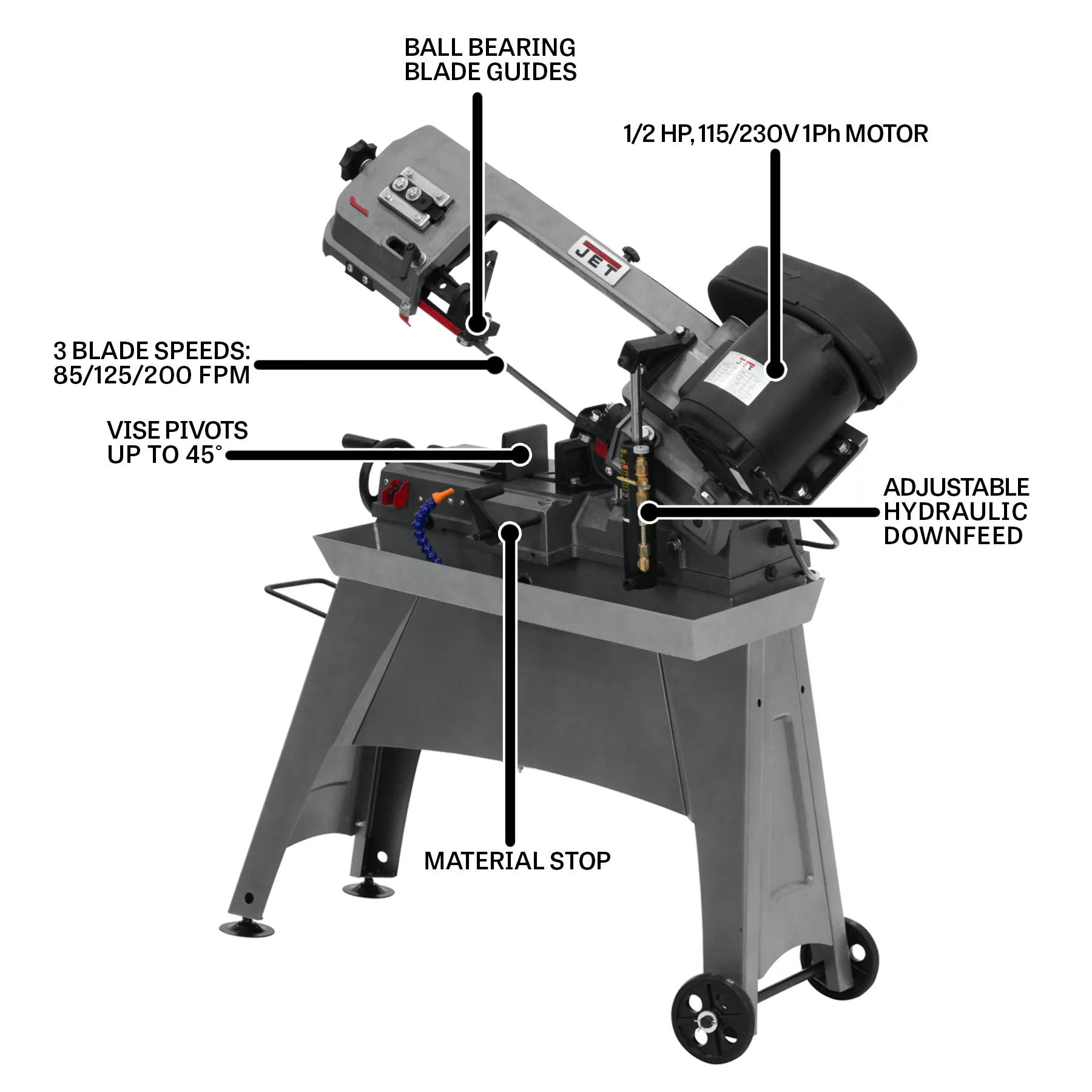

  • 0.5 HP, 115/230V, single-phase
  • 85, 125, 200 SFPM
  • Heavy-duty welded steel frame
  • Adjustable blade tracking
BUY NOW
Fetching Data...

Product Details

Built for the cuts that production fabrication actually generates. The J-3130 is built for shops cutting varied stock through long-cycle work. Equipped with a 0.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial-grade construction backed by the JET service network.

Features

  • Tolerance-grade 0.5 HP motor with sealed bearings — running cooler under sustained load than equivalents across industrial shop floors.
  • 85, 125, 200 SFPM cutting speed — covering hard and soft material cuts in one machine across production fabrication.
  • Heavy-duty frame construction holds blade alignment for cut quality consistency across long runs.
  • Tilt-table design extends the working envelope for miter-and-bevel work in one setup.
  • Production cutting capacity — expanding the cutting envelope industrial sawing requires across industrial cutting environments.
  • Production-grade cast iron support castings dampen harmonics across industrial machining.

Specifications

  • SKU
    JT9-414461
  • Assembled Dimensions
    38 x 16 x 38 in. (960 x 400 x 940mm)
  • Bed Height
    23.5 in.
  • Blade Diameter
    5 in.
  • Blade Length
    68 in.
  • Blade Size (In.)
    5 x 96 in.
  • Blade Speed
    85, 125, 200 sfpm
  • Cutting Capacity - Height
    5 in.
  • Drive Type
    Belt Drive
  • Height
    38 in.
  • Horse Power
    1 HP
  • Input Power
    115/230 V 1 Ph
  • Model Number
    J-3130
  • Motor HP
    0.5 HP
  • Motor Phase
    Single
  • Motor Voltage
    115/230 V
  • Old Material Number
    414461
  • Overall Assembled (Bow Lowered)
    20 x 22 x 28 in.
  • Prewired Voltage
    115 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Recommended Circut Size Amp
    15 A
  • Rectangle At 45 Degrees
    4-1/2 x 5 in.
  • Rectangle At 90 Degrees
    7-1/2 x 5 in.
  • Round Capacity At 90 Degrees
    5 in.
  • SAP Gross Weight
    170
  • SAP Net weight
    143
  • UPC
    662756091000
  • Vise Swivels Deg
    45 Deg.
  • Warranty
    Two Years
  • Wheel Diameter
    7-3/8 in.
