1 x 42, Bench Belt & Disc Sander, 0.33HP, 115V 1PH(J-4002)
1 x 42, Bench Belt & Disc Sander, 0.33HP, 115V 1PH(J-4002)
1 x 42, Bench Belt & Disc Sander, 0.33HP, 115V 1PH(J-4002)
1 x 42, Bench Belt & Disc Sander, 0.33HP, 115V 1PH(J-4002)
1 x 42, Bench Belt & Disc Sander, 0.33HP, 115V 1PH(J-4002)

1 x 42, Bench Belt & Disc Sander, 0.33HP, 115V 1PH(J-4002)

Stock Number: JT9-577003

0 Reviews

No reviews yet.

  • 0.33 HP, 115V, single-phase
  • Heavy-duty belt drive
  • Cast iron base
  • Precision-balanced disc
BUY NOW
Fetching Data...

Product Details

Material removal sized for production, finish quality sized for delivery. The J-4002 was sized for finishing work that has to pass QA review. Equipped with a 0.33 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for production finishing cycles, warrantied for the duty.

Features

  • Engineered 0.33 HP single-phase induction drive: holding RPM under cutting load that would stall lighter motors, sized for the duty range working shops actually run.
  • Production-spec abrasive belt drive — matching the surface-finish envelope production sanding generates across industrial sanding environments.
  • Working-grade belt design handles the abrasive cycle counts for the belt-length production finishing depends on.
  • Tolerance-grade disc geometry supports flat grinding for the production work this machine targets.

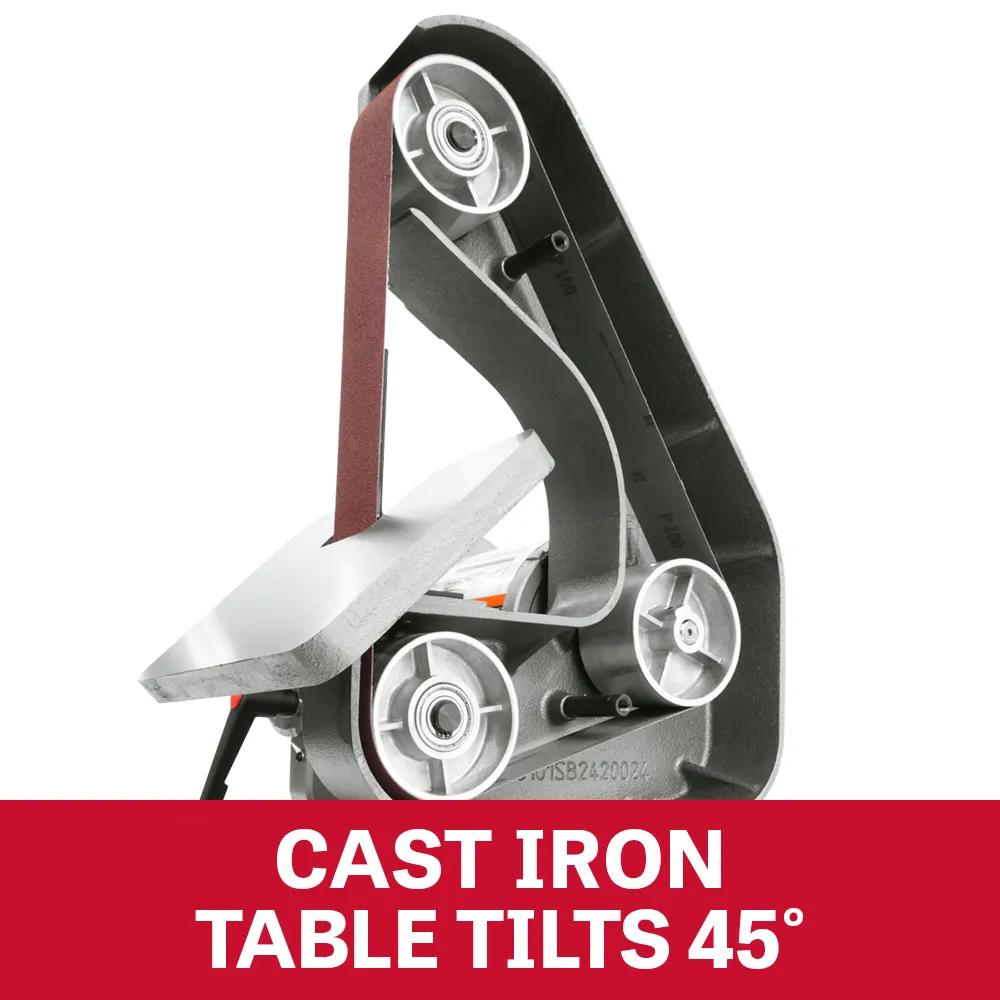

  • Production-grade tilting table — extending the working envelope across fabrication finishing.
  • Cast iron reference surfaces dampen vibration for the structural stability shop work demands.

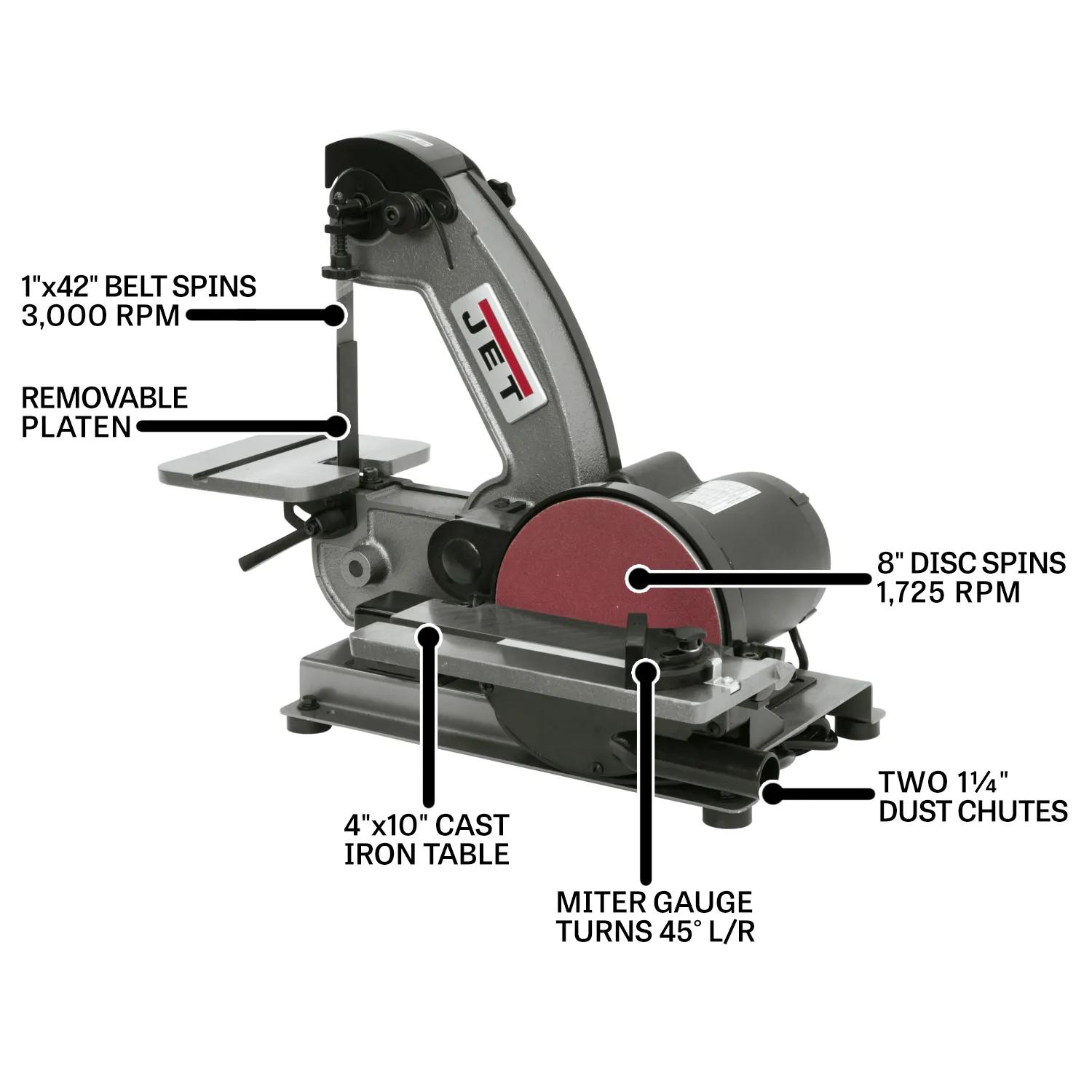

Specifications

  • SKU
    JT9-577003
  • Abrasive Type
    Belt/Disc
  • Assembled Dimensions
    21 x 22 x 14 in.
  • Belt Size
    1 x 42 in.
  • Belt Speed
    3000 SFPM
  • Belt Table Size
    6-1/8 x 7-1/8 in.
  • Belt Tilt Range
    45 Deg. Out
  • Disc Diameter
    8 in.
  • Disc Speed
    1725 RPM
  • Disc Table Size L X W
    4 x 10 in.
  • Disc Table T-slot Width
    5/8 in.
  • Disc Table Tilt
    45 Deg. Out
  • Dust Port Outside Diameter
    1-1/2 in.
  • Horse Power
    1/3 HP
  • Input Power
    115 V 1 Ph
  • Model Number
    J-4002
  • Motor Amps
    6 A
  • Motor HP
    0.33 HP
  • Motor Phase
    Single
  • Motor Speed
    1725 RPM
  • Motor Voltage
    115 V
  • Noise Level Db at 3Ft
    74-88 dB
  • Old Material Number
    577003
  • Prewired Voltage
    115 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Recommended Circut Size Amp
    15 A
  • SAP Gross Weight
    63
  • SAP Net weight
    63
  • Table Slots
    0.625 in.
  • UPC
    662756093653
  • Warranty
    Two Years
