Product Details

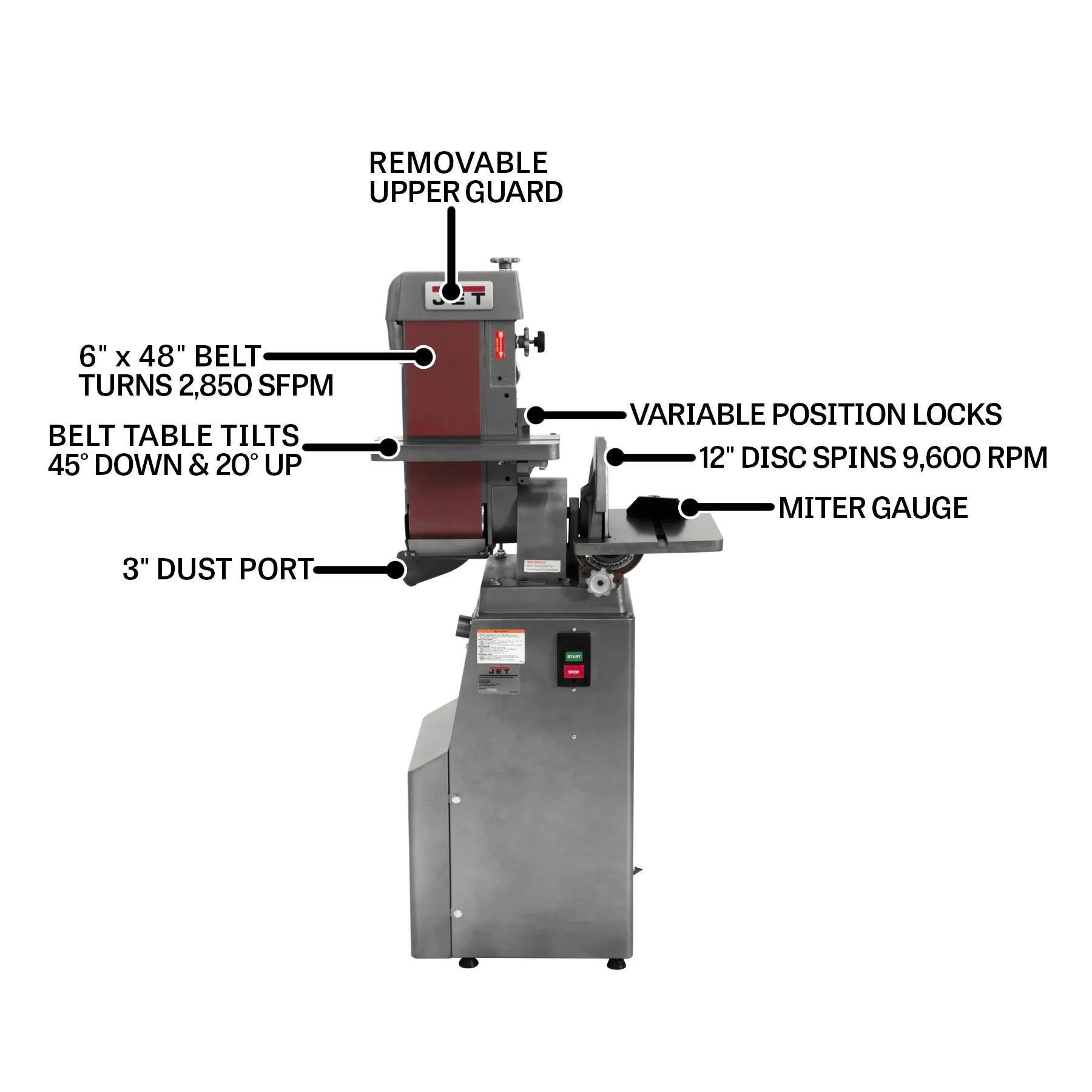

Built for the operators who measure success in finished surfaces. The J-4200A is built for production grinding and sanding cycles. Equipped with a 1.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for production finishing cycles, warrantied for the duty.
Features
- Heavy-duty 1.5 HP induction motor handles working speed under load — running cooler under sustained load than equivalents.
- Production-grade belt drive provides abrasive contact for consistent abrasive contact across long runs.
- Premium-grade belt design handles the abrasive cycle counts for the material removal rates production work demands.
- Shop-rated disc geometry supports flat grinding for the production work this machine targets.
- Tilting-table geometry matches angle work for the angle envelope production grinding actually runs.
- Vibration-dampening cast iron structural components keep finish quality consistent for the operating envelope precision cutting generates.
Specifications
- SKUJT9-414551
- Abrasive TypeBelt/Disc
- Assembled Dimensions25-1/2 x 16 x 43 in., 19 x 16 x 57-1/2 in.

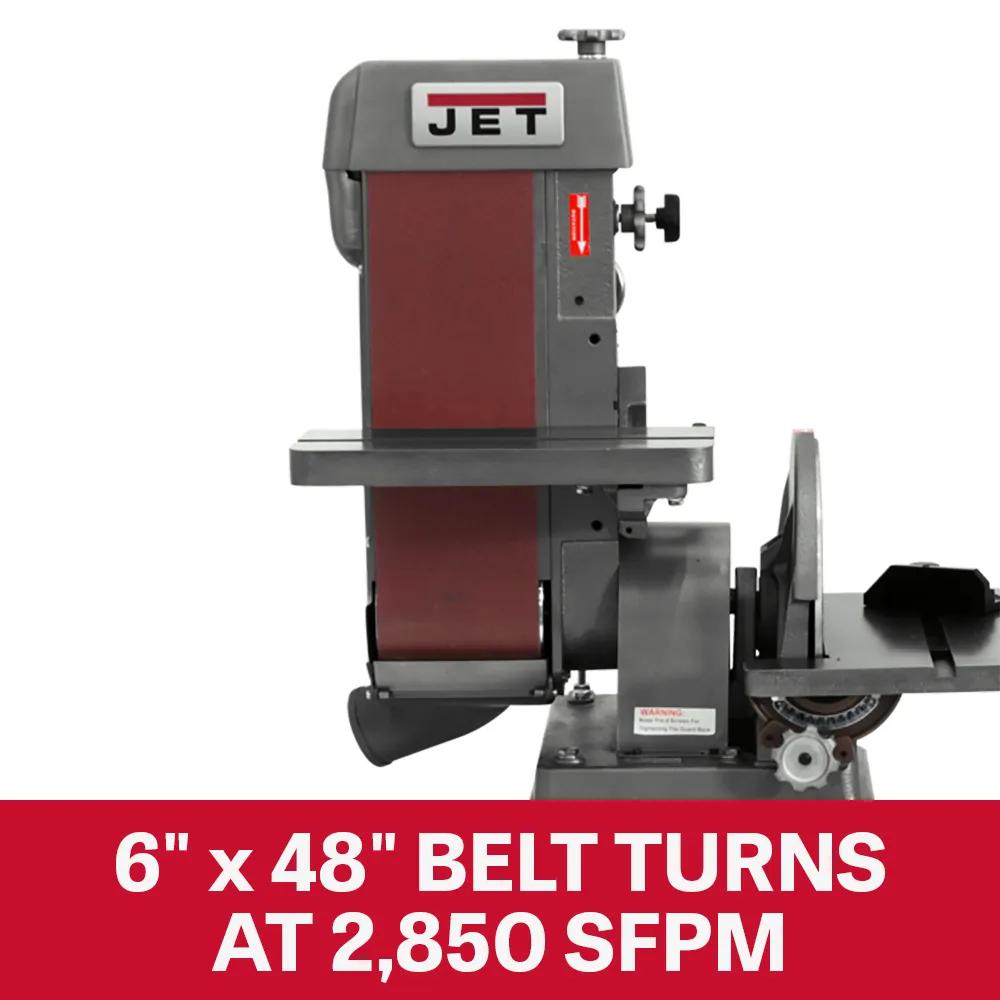

- Belt Size6 x 48 in.
- Belt Speed2850 SFPM
- Belt Table Size7-3/8 x 14-3/4 in.
- Belt Tilt Range20 Deg. Up, 45 Deg. Down

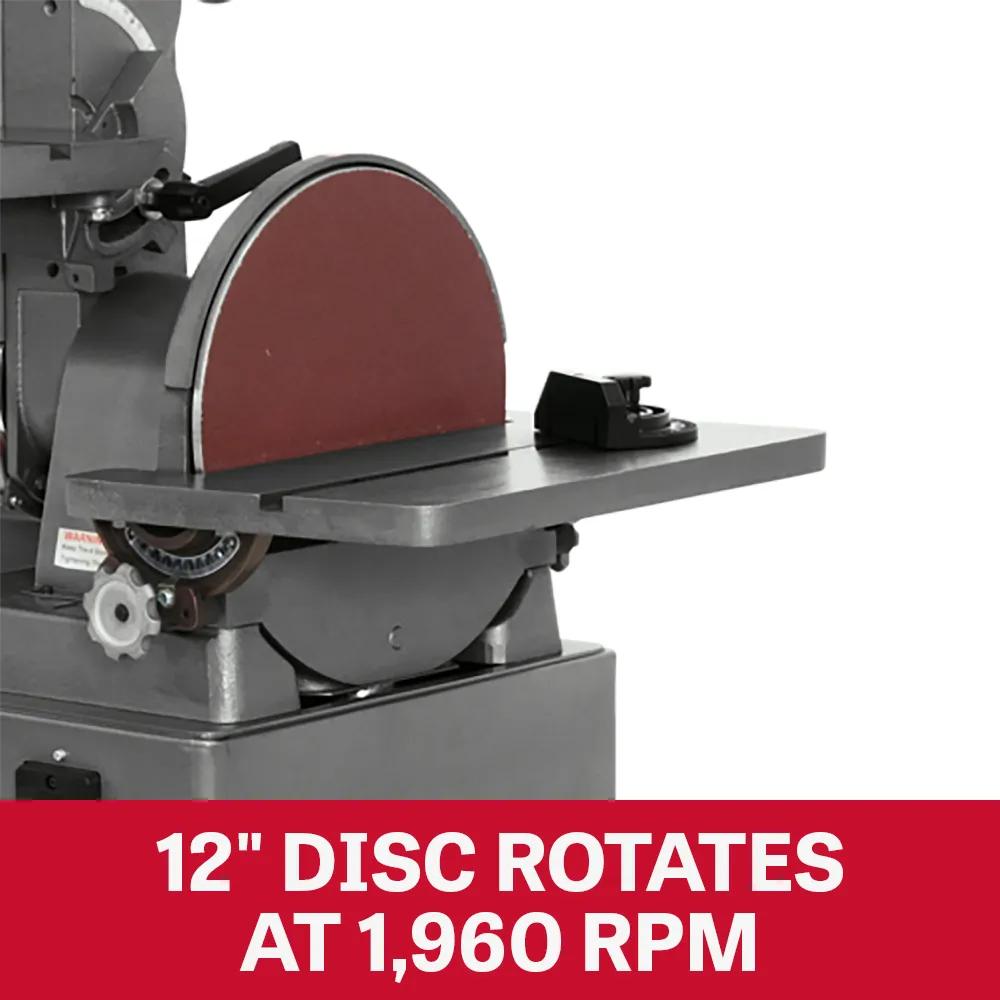

- Disc Diameter12 in.
- Disc Speed1960 RPM
- Disc Table Size L X W12 x 16-3/8 in.
- Disc Table Tilt45 Deg. down, 20 Deg. up

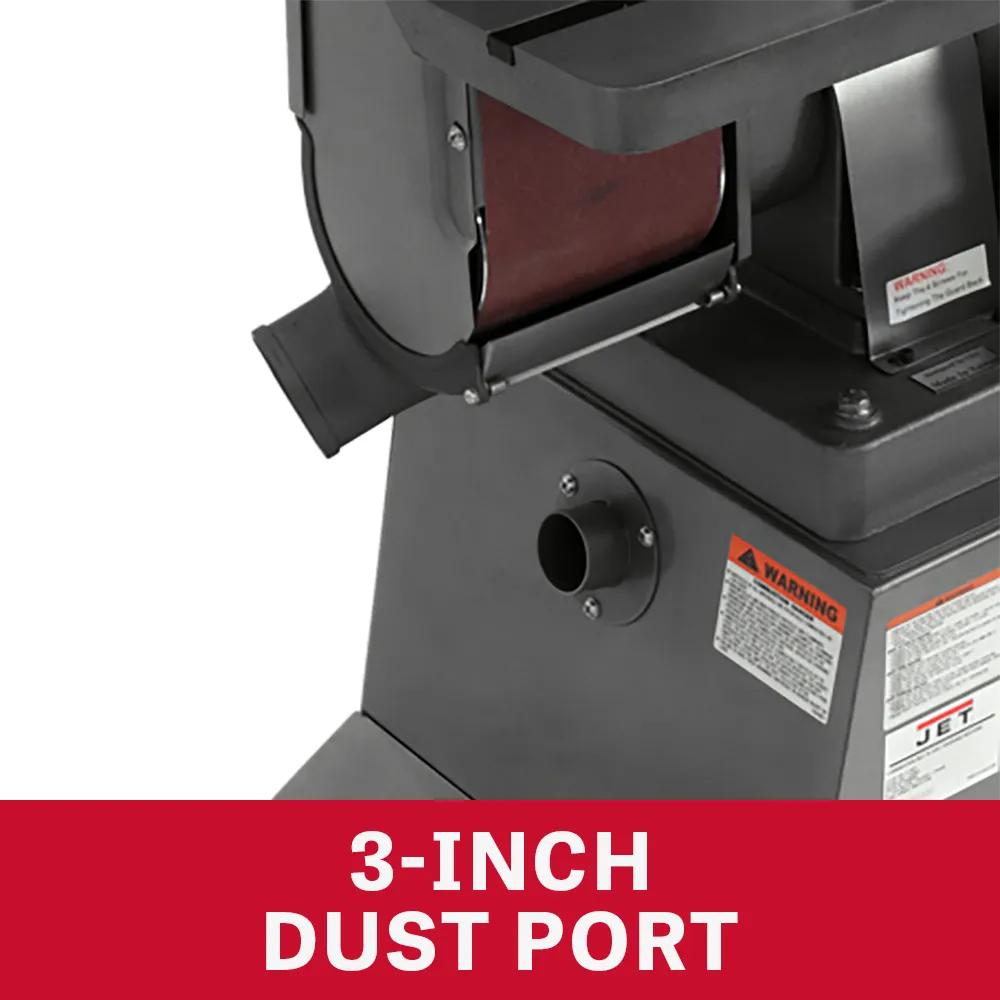

- Dust Port Outside Diameter3 in.
- Horse Power1.5 HP
- Input Power115/230 V 1 Ph
- Miter Gauge Groove3/8 x 3/4 in.
- Model NumberJ-4200A
- Motor Amps12/6 A
- Motor HP1.5 HP
- Motor PhaseSingle
- Motor Voltage115 V
- Noise Level Db at 3Ft74-88 dB
- Old Material Number414551
- Platen Size6-1/4 x 14-3/4 in.
- Prewired Voltage115 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Recommended Circut Size Amp12/6 A
- Required Cfm300 - 300 CFM
- SAP Gross Weight327
- SAP Net weight300
- UPC662755111341
- WarrantyTwo Years
