Product Details
Built for the operators who measure success in finished surfaces. The J-4202A fits shops where surface finish gets shipped, not reworked — and the cycle counts they generate. Equipped with a 1.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage backs every production-grade finish.
Features
- 1.5 HP, 230/460V three-phase induction motor — running quieter and cooler than equivalent open-frame designs, sized for the operating envelope production demands.
- Continuous-duty abrasive belt drive — covering the material removal rates production demands across industrial sanding environments.
- Precision-rated belt design handles the abrasive cycle counts for the surface-area envelope production sanding requires.
- Precision-balanced disc — handling the material removal rates production finishing demands.
- Industrial-grade tilting table — covering miter and bevel grinding production fabrication generates across production grinding.
- Solid cast iron support castings weigh in where stability counts most across industrial machining.
Specifications
- SKUJT9-414553
- Abrasive TypeBelt/Disc
- Assembled Dimensions25-1/2 x 16 x 43 in., 19 x 16 x 57-1/2 in.

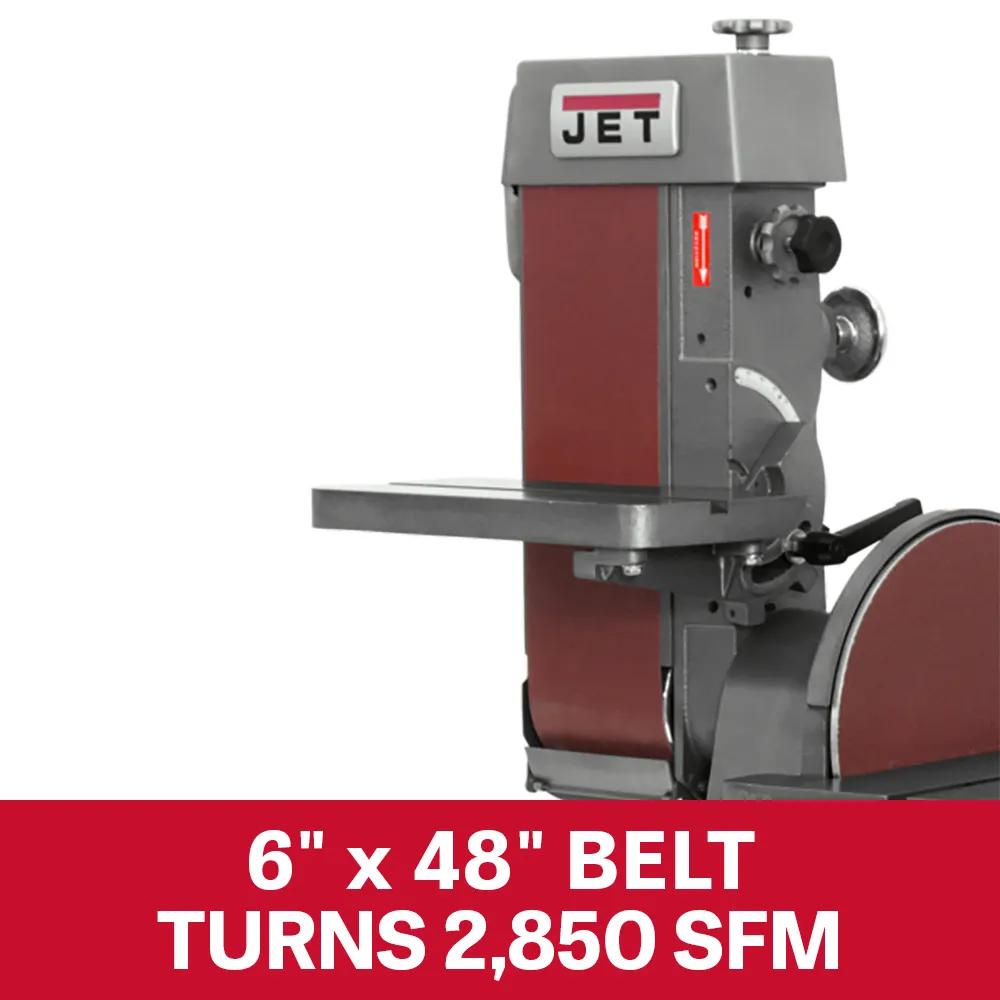

- Belt Size6 x 48 in.
- Belt Speed2850 SFPM
- Belt Table Size7-3/8 x 14-3/4 in.
- Belt Tilt Range20 Deg. Up, 45 Deg. Down

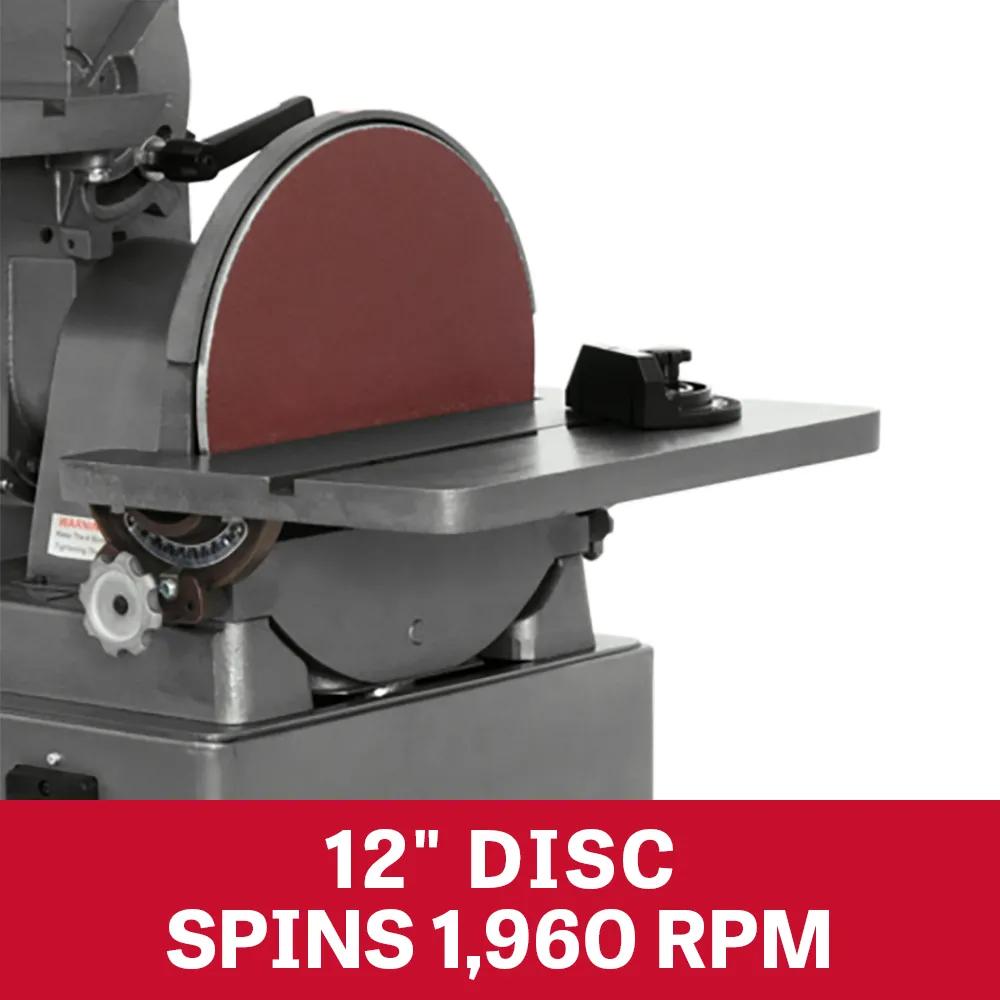

- Disc Diameter12 in.
- Disc Speed1960 RPM
- Disc Table Size L X W12 x 16-3/8 in.
- Disc Table Tilt45 Deg. down, 20 Deg. up
- Dust Port Outside Diameter3 in.
- Horse Power1.5 HP
- Input Power230/460 V 3 Ph
- Miter Gauge Groove3/8 x 3/4 in.
- Model NumberJ-4202A
- Motor Amps4.6/2.3 A
- Motor HP1.5 HP
- Motor PhaseThree
- Motor Voltage230/460 V
- Old Material Number414553
- Platen Size6-1/4 x 14-3/4 in.
- Prewired Voltage230 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Recommended Circut Size Amp4.6/2.3 A
- Required Cfm300 - 300 CFM
- SAP Gross Weight320
- SAP Net weight250
- UPC662756093608
- WarrantyTwo Years
