6" x 48" Belt & 10" Disc , 1HP, 115/230V 1PH(J-4210K)
6" x 48" Belt & 10" Disc , 1HP, 115/230V 1PH(J-4210K)
6" x 48" Belt & 10" Disc , 1HP, 115/230V 1PH(J-4210K)
6" x 48" Belt & 10" Disc , 1HP, 115/230V 1PH(J-4210K)
6" x 48" Belt & 10" Disc , 1HP, 115/230V 1PH(J-4210K)

6" x 48" Belt & 10" Disc , 1HP, 115/230V 1PH(J-4210K)

Stock Number: JT9-414550K

0 Reviews

No reviews yet.

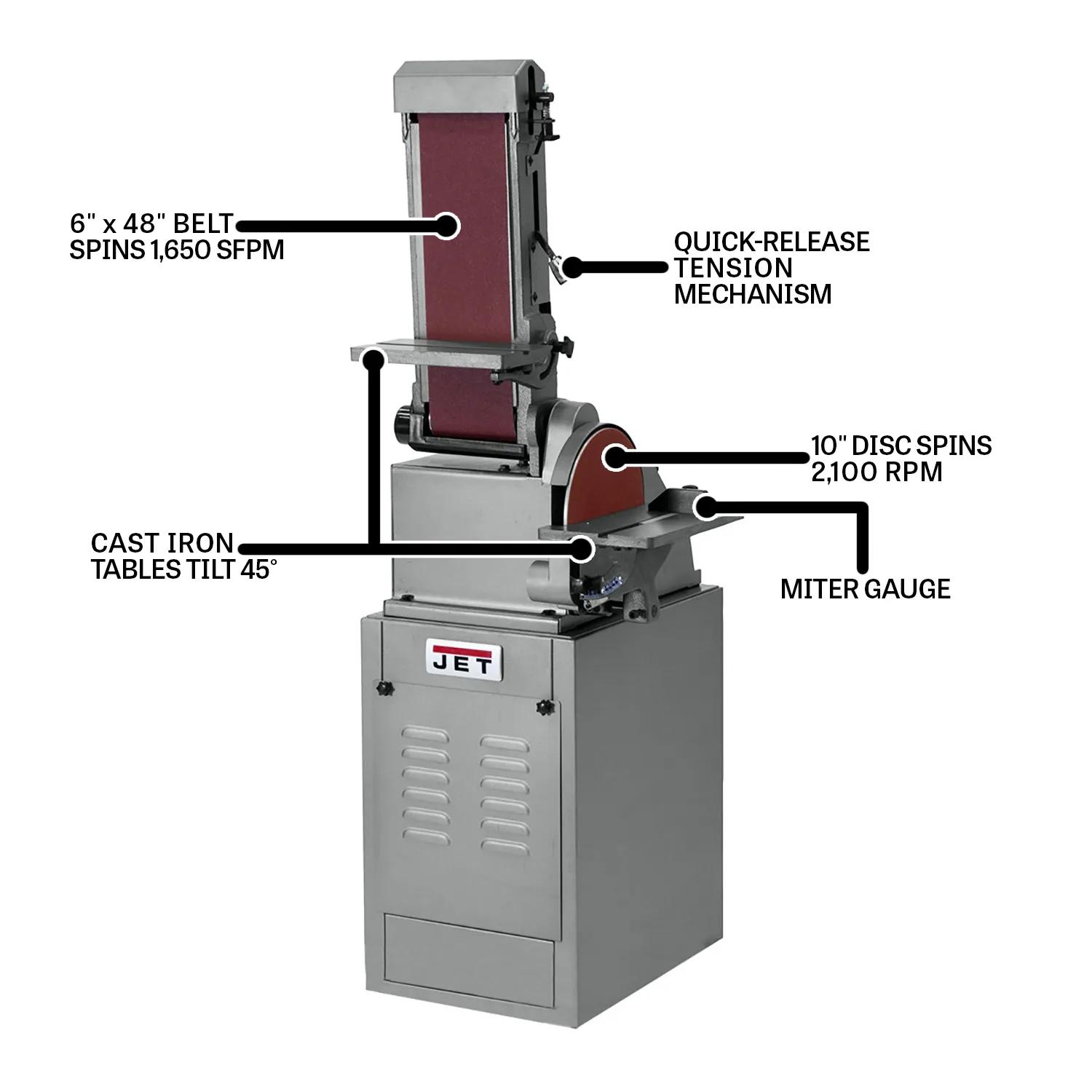

  • 1 HP, 115/230V, single-phase
  • Heavy-duty belt drive
  • Cast iron base
  • Precision-balanced disc
BUY NOW
Fetching Data...

Product Details

Where surface quality gets decided. The J-4210K answers the work generated by finishing work that has to pass QA review. Equipped with a 1 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial-grade construction, industrial-grade warranty.

Features

  • Industrial 1 HP induction motor — transmitting power smoothly, engineered for mixed-material work envelopes.
  • Production-grade abrasive belt drive — covering the material removal rates production demands across industrial sanding environments.
  • Heavy-duty belt drive — handling the abrasive media production finishing uses.
  • Industrial-grade disc geometry delivers flat grinding for the production work this machine targets.
  • Precision-rated tilting table — delivering angle-grinding authority production finishing demands across fabrication finishing.
  • Industrial cast iron frame castings earn their place for tolerance retention across years of cycles.

Specifications

  • SKU
    JT9-414550K

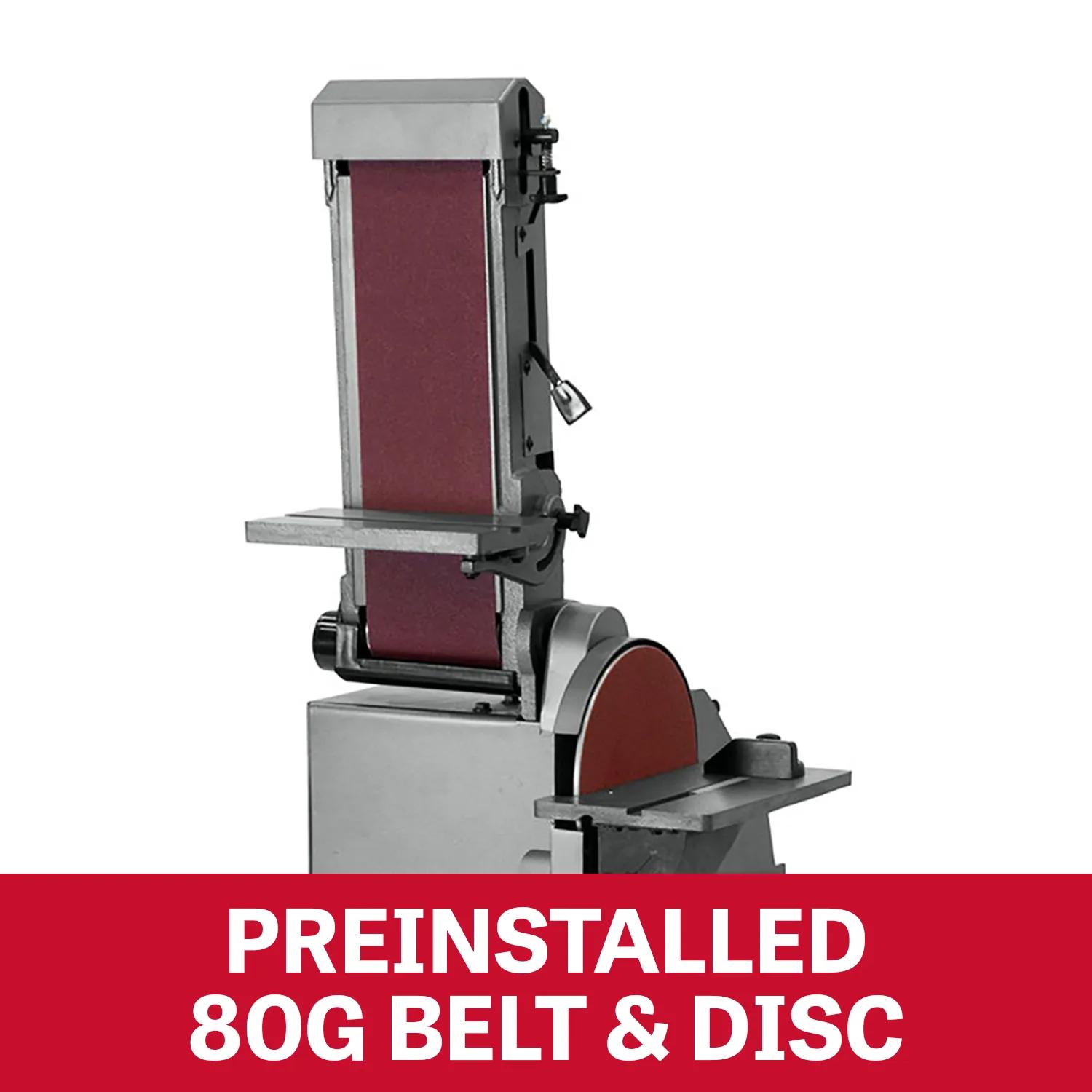

  • Abrasive Grit
    80
  • Abrasive Type
    Aluminum Oxide
  • Assembled Dimensions
    23 x 26 x 61 in.
  • Belt Size
    6 x 48 in.
  • Belt Speed
    1650 SFPM
  • Belt Table Size
    6 x 10-1/2 in.
  • Belt Tilt Range
    45 Deg. Out
  • Disc Diameter
    10 in.
  • Disc Speed
    2100 RPM
  • Disc Table Material
    Cast Iron
  • Disc Table Size L X W
    7-1/2 x 13 in.
  • Disc Table T-slot Width
    5/8 in.
  • Disc Table Tilt
    45 Deg. Out
  • Dust Port Outside Diameter
    2-1/2 in.
  • Horse Power
    1 HP
  • Input Power
    115/230 V 1 Ph
  • Maximum Board Width
    10.5 in.
  • Model Number
    J-4210K
  • Motor Amps
    10 A
  • Motor HP
    1 HP
  • Motor Phase
    Single
  • Motor Speed
    3450 RPM
  • Motor Type
    Enclosed
  • Motor Voltage
    115/230 V
  • Noise Level Db at 3Ft
    74-88 dB
  • Old Material Number
    414550K
  • Prewired Voltage
    115 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Recommended Circut Size Amp
    15 A
  • SAP Gross Weight
    190
  • SAP Net weight
    170
  • UPC
    731325167566
  • Warranty
    Two Years
