Product Details
Material removal sized for production, finish quality sized for delivery. Built around industrial finishing environments running long abrasive cycles, the J-4400A delivers production-grade results. Equipped with a 1.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for production finishing cycles, warrantied for the duty.
Features
- Sealed 1.5 HP induction motor protects against the dust, chips, and humidity of production environments.
- Tolerance-grade abrasive belt drive — delivering belt geometry production finishing actually requires across industrial sanding environments.
- Industrial-grade belt design handles the abrasive cycle counts for the surface-area envelope production sanding requires.
- Precision-rated disc geometry handles flat grinding for the disc-finishing envelope production work demands.
- Production-spec tilting table — extending the working envelope across industrial finishing.
- Heavy cast iron main castings — absorbing the cutting forces lighter materials transmit, engineered for the structural stability shop work demands.
Specifications
- SKUJT9-414602
- Abrasive TypeDisc
- Assembled Dimensions29 x 17 x 42-3/4 in.
- Disc Diameter12 in.
- Disc Speed1960 RPM
- Disc Table Size L X W12 x 16-3/8 in.

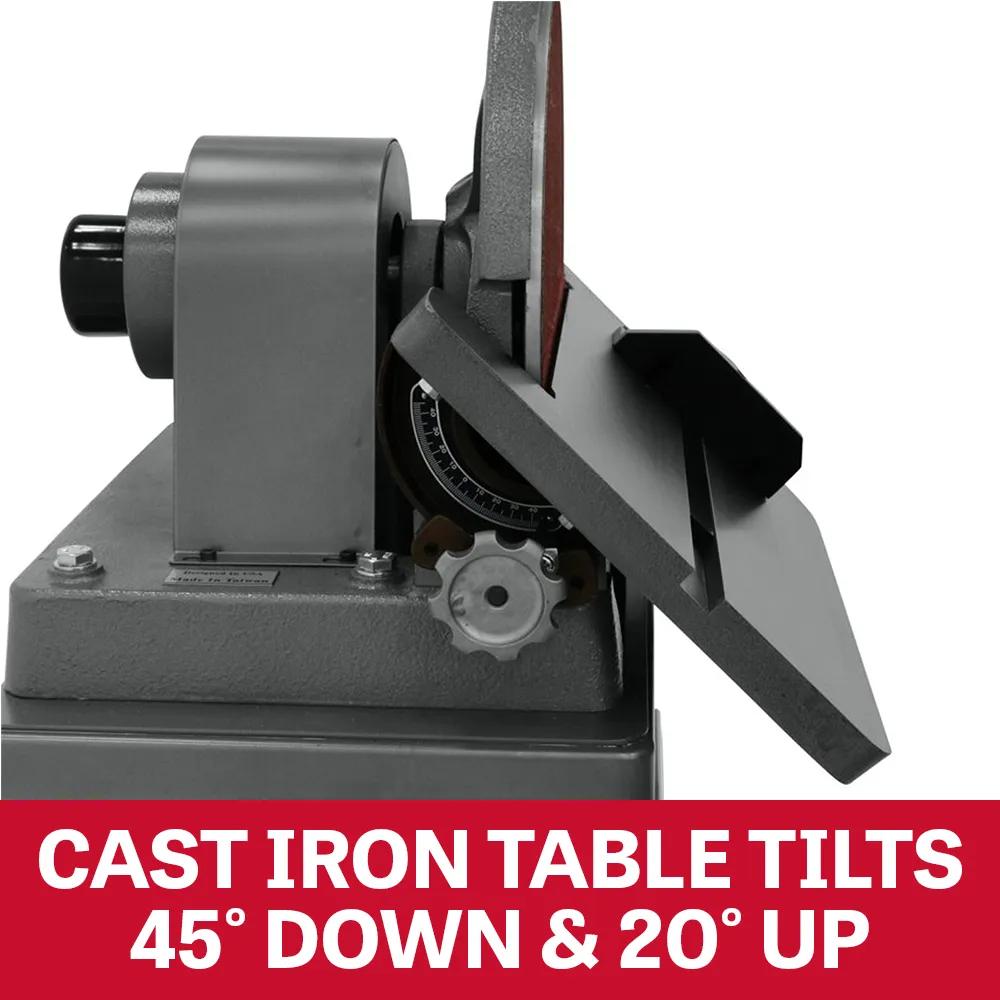

- Disc Table Tilt45 Deg. down, 20 Deg. up
- Dust Port Outside Diameter3 in.
- Horse Power1.5 HP
- Input Power115/230 V 1 Ph

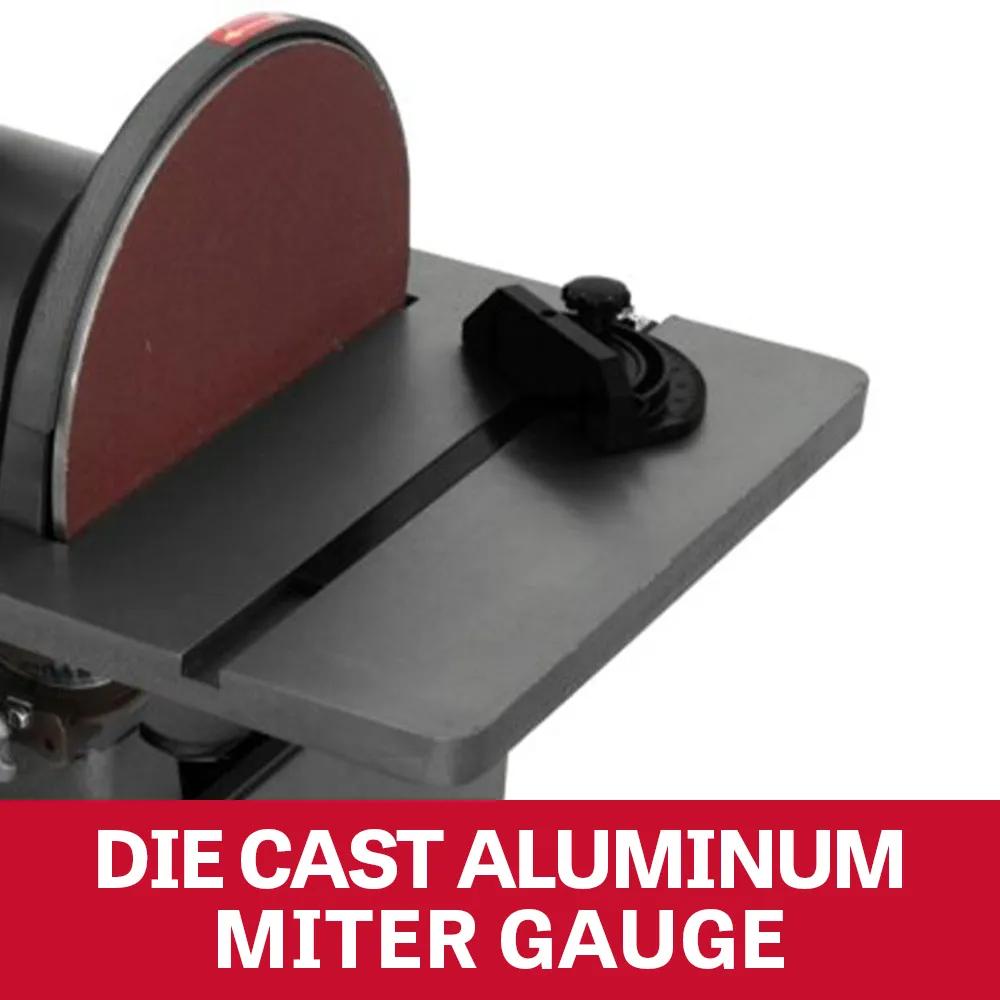

- Miter Gauge Groove3/8 x 3/4 in.
- Model NumberJ-4400A
- Motor Amps12.6/6.3 A
- Motor HP1.5 HP
- Motor PhaseSingle
- Motor Voltage115/230 V
- Old Material Number414602
- Prewired Voltage115/230 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Recommended Circut Size Amp12/6.3 A
- Required Cfm300 - 300 CFM
- SAP Gross Weight234
- SAP Net weight175
- Style TypeDisc
- UPC662755111396
- WarrantyTwo Years
