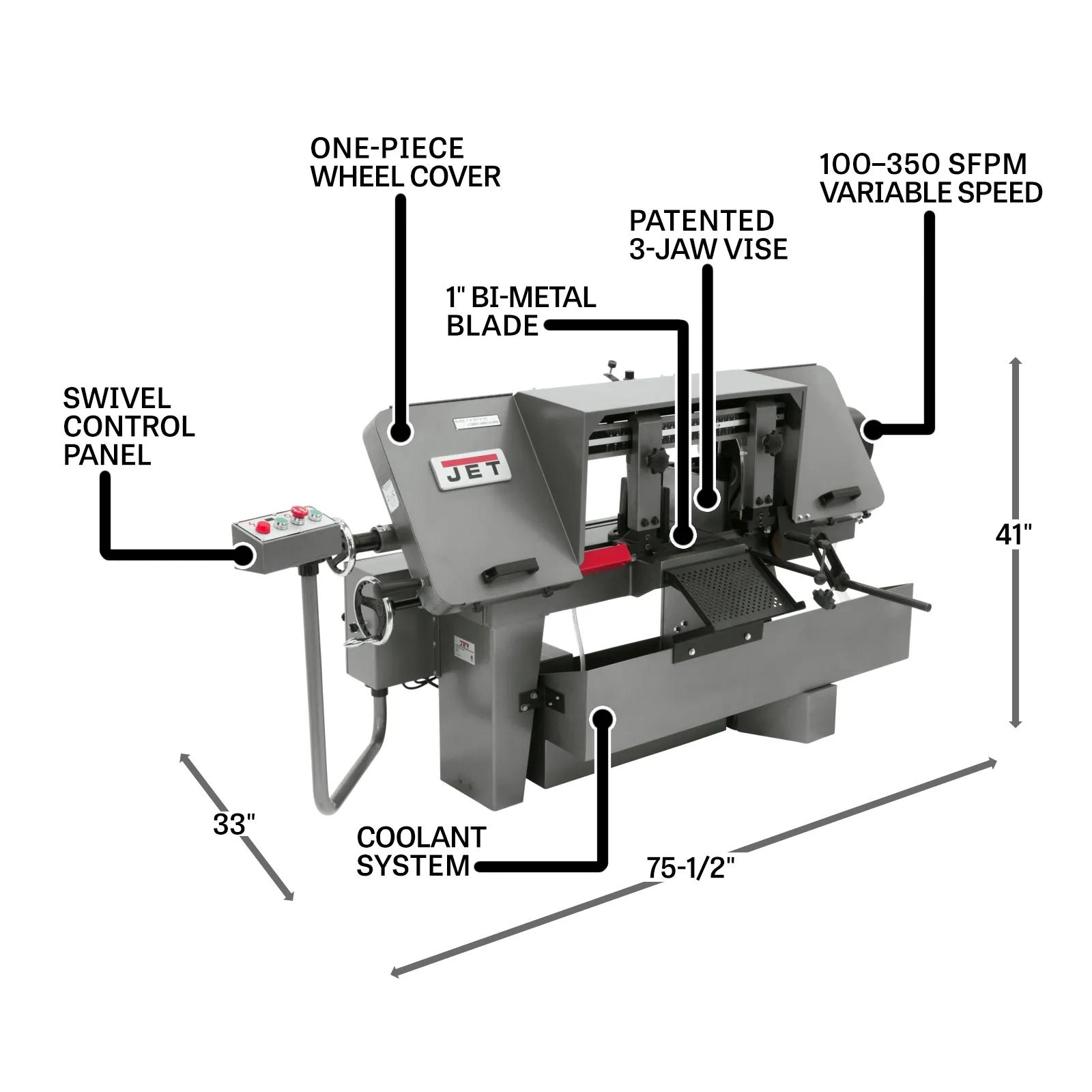

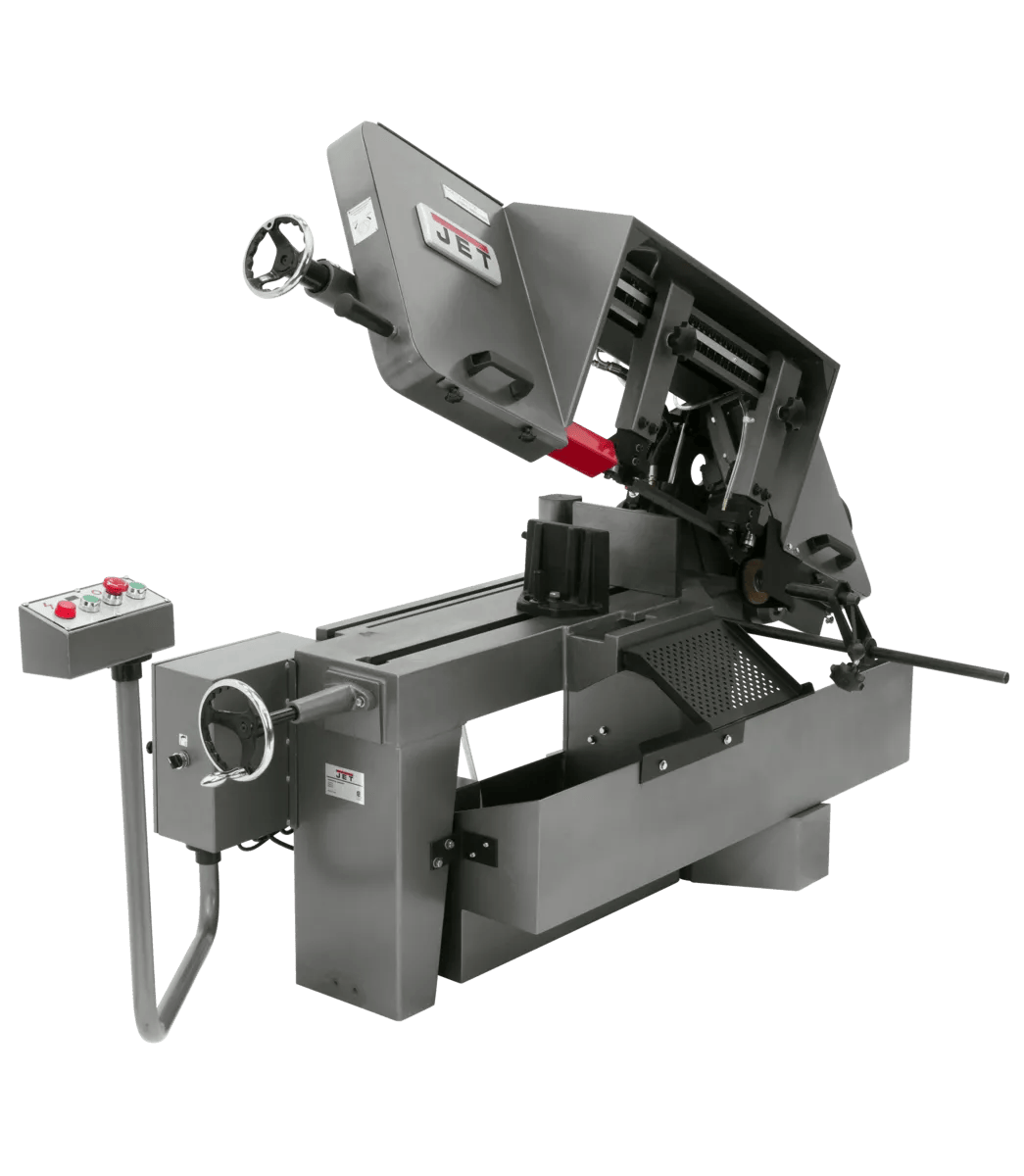

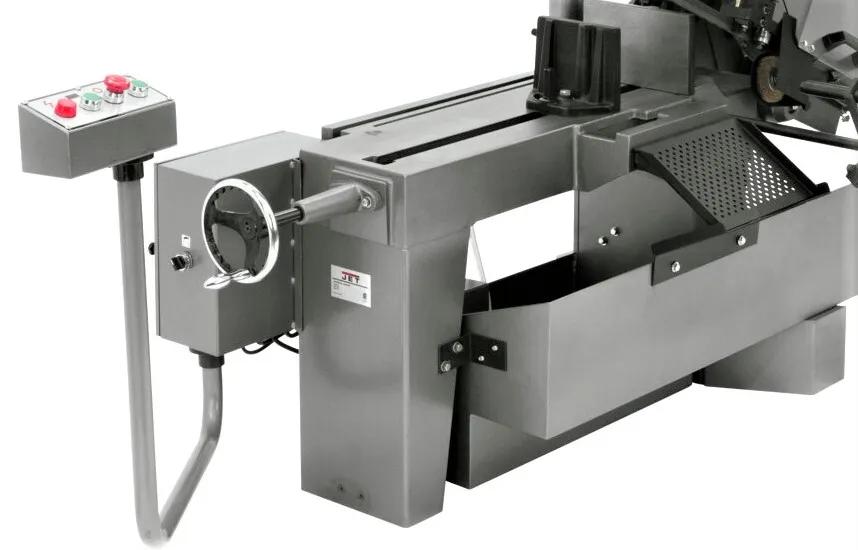

10" x 16" Horizontal Bandsaw, 1.5HP, 115/230V 1PH(J-7020)
10" x 16" Horizontal Bandsaw, 1.5HP, 115/230V 1PH(J-7020)
10" x 16" Horizontal Bandsaw, 1.5HP, 115/230V 1PH(J-7020)
10" x 16" Horizontal Bandsaw, 1.5HP, 115/230V 1PH(J-7020)
10" x 16" Horizontal Bandsaw, 1.5HP, 115/230V 1PH(J-7020)

10" x 16" Horizontal Bandsaw, 1.5HP, 115/230V 1PH(J-7020)

Stock Number: JT9-414472

0 Reviews

No reviews yet.

  • 1.5 HP, 115/230V, single-phase
  • 100 - 350 SFPM
  • Heavy-duty welded steel frame
  • Adjustable blade tracking
BUY NOW
Fetching Data...

Product Details

Engineered for clean cuts across hardwoods, softwoods, and metal stock. Engineered around production sawing across hardwoods, softwoods, and metal stock, the J-7020 earns its place. Equipped with a 1.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage stands behind every cut.

Features

  • Brushless 1.5 HP motor design fits modern shop priorities for low-maintenance operation across production cutting.
  • 100 - 350 SFPM blade speed — expanding the cutting envelope.
  • Rigid frame construction — delivering structural rigidity production cutting depends on.
  • Engineered tilting table — delivering angle accuracy precision work expects, engineered for the angled cuts production fabrication actually runs.
  • Premium-grade cutting envelope handles workpiece sizes for the stock library production fabrication actually generates.
  • Heat-treated cast iron trunnion castings resist deflection — delivering dimensional stability lighter materials can't match.

Specifications

  • SKU
    JT9-414472
  • Assembled Dimensions
    75-1/2 x 33 x 41 in.
  • Bed Height
    23.5 in.
  • Blade Diameter
    7 in.
  • Blade Length
    144 in.
  • Blade Size (In.)
    Blade-style bandsaw
  • Blade Speed
    100 - 350 sfpm
  • Coating
    Powder Coat
  • Cutting Capacity - Height
    10 x 16 in.
  • Drive Type
    Variable Speed
  • Height
    23 in.
  • Horse Power
    1.5 HP
  • Input Power
    115/230 V 1 Ph
  • Model Number
    J-7020
  • Motor Amps
    22/11 A
  • Motor HP
    1.5 HP
  • Motor Phase
    Single
  • Motor Voltage
    115/230 V
  • Old Material Number
    414472
  • Overall Assembled (Bow Lowered)
    25 x 26 x 30 in.
  • Prewired Voltage
    115 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Recommended Circut Size Amp
    15 A
  • Rectangle At 45 Degrees
    6-1/2 x 11 in.
  • Rectangle At 90 Degrees
    10 x 10 in. and 7 x 16 in.
  • Round Capacity At 45 Degrees
    10 in.
  • Round Capacity At 90 Degrees
    10 in.
  • SAP Gross Weight
    1,000
  • SAP Net weight
    973
  • UPC
    662756090973
  • Vise Swivels Deg
    45 Deg.
  • Warranty
    Two Years
  • Wheel Diameter
    14 in.
