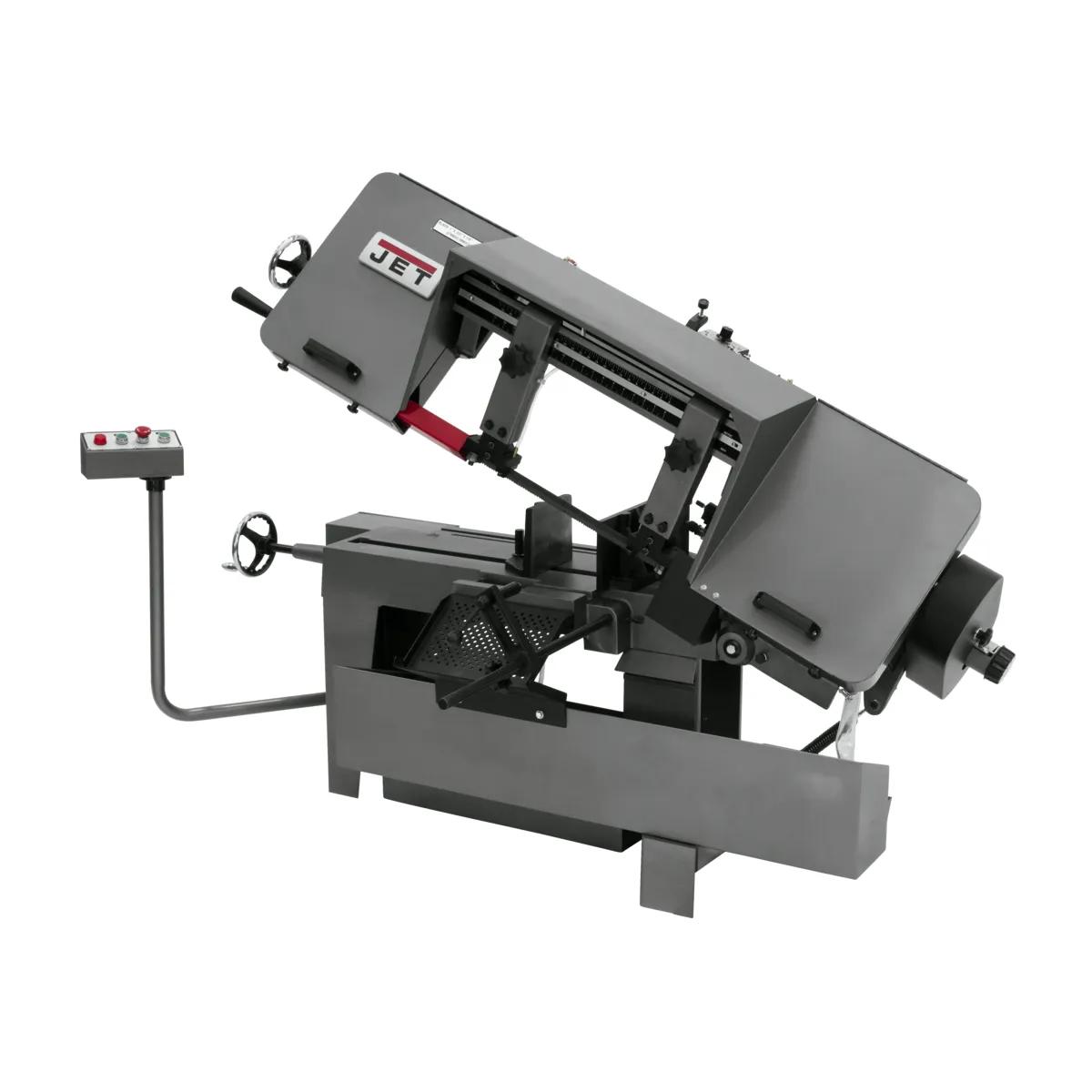

10" x 16" Horizontal Bandsaw, 2HP, 460V 3PH(J-7040-4)
10" x 16" Horizontal Bandsaw, 2HP, 460V 3PH(J-7040-4)
10" x 16" Horizontal Bandsaw, 2HP, 460V 3PH(J-7040-4)

10" x 16" Horizontal Bandsaw, 2HP, 460V 3PH(J-7040-4)

Stock Number: JT9-414499

0 Reviews

No reviews yet.

  • 2 HP, 460V, three-phase
  • 100 - 350 SFPM
  • Heavy-duty welded steel frame
  • Adjustable blade tracking
BUY NOW
Fetching Data...

Product Details

Frame rigidity meets blade-speed flexibility. The J-7040-4 answers the work generated by production sawing across hardwoods, softwoods, and metal stock. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage stands behind every cut.

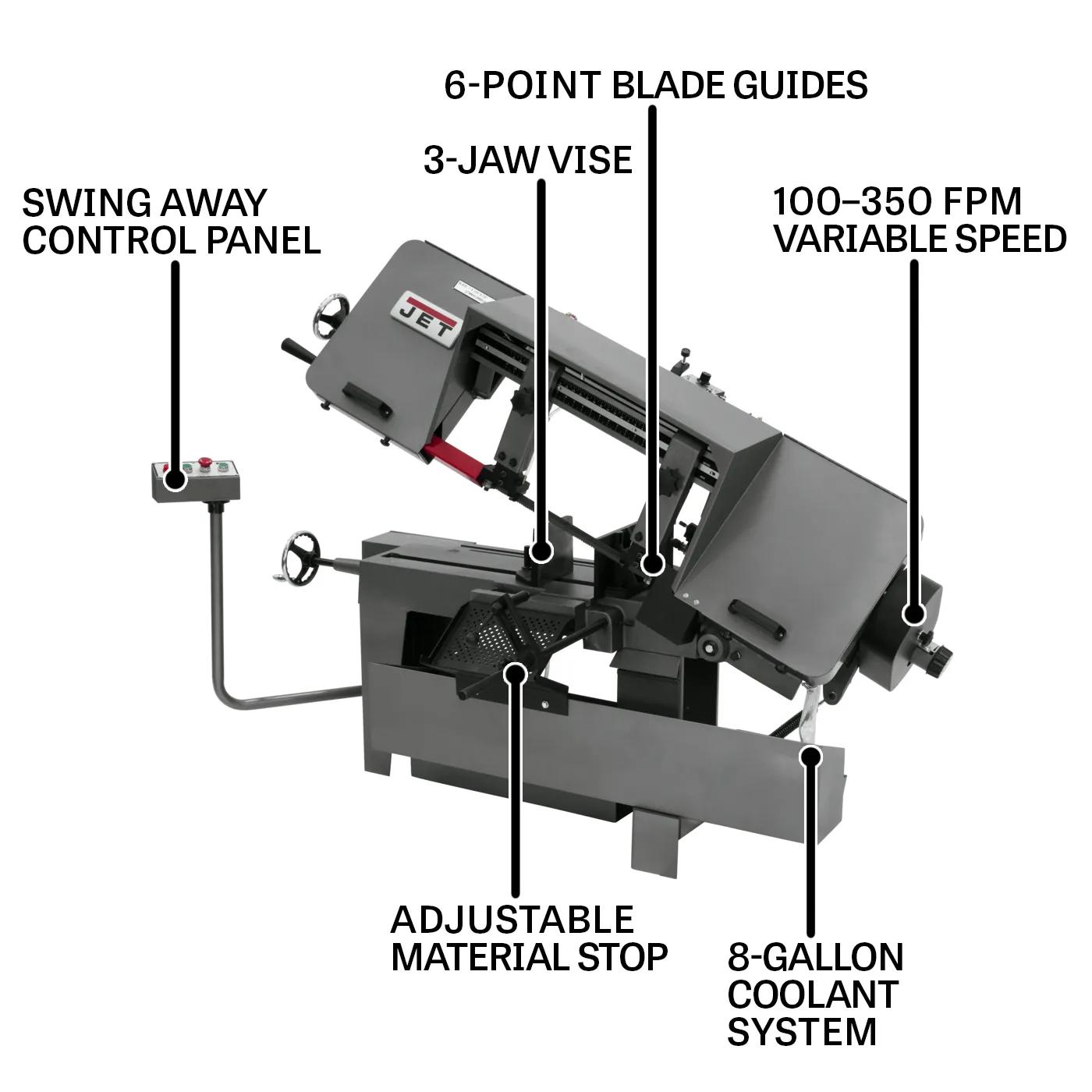

Features

  • 2 HP three-phase induction motor sized for the duty range working shops actually run.
  • 100 - 350 SFPM blade speed — matching cut velocity to material density.
  • Heavy-gauge welded frame supports structural rigidity for the structural mass production sawing depends on.
  • Shop-rated tilting table — delivering angle accuracy precision work expects, engineered for miter-and-bevel work in one setup.
  • Precision-rated cutting envelope covers workpiece sizes for the cutting envelope production sawing demands.
  • Industrial-spec cast iron trunnion castings earn their place for finish quality where lighter materials fail.

Specifications

  • SKU
    JT9-414499
  • Assembled Dimensions
    75-1/2 x 33 x 41 in.
  • Blade Diameter
    14 in.
  • Blade Length
    1 x 0.035 x 135 in.
  • Blade Size (In.)
    1 x 0.035 x 135 in.
  • Blade Speed
    100 - 350 sfpm
  • Cutting Capacity - Height
    10 in.
  • Drive Type
    Variable Speed
  • Height
    41 in.
  • Horse Power
    1.5 HP
  • Input Power
    460 V 3 Ph
  • Model Number
    J-7040-4
  • Motor HP
    2 HP
  • Motor Phase
    Three
  • Motor Voltage
    460 V
  • Old Material Number
    414499
  • Overall Assembled (Bow Lowered)
    79 x 31 x 41 in.
  • Prewired Voltage
    460 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Recommended Circut Size Amp
    20 A
  • Rectangle At 45 Degrees
    6-1/2 x 11 in.
  • Rectangle At 90 Degrees
    10 x 10 in. and 7 x 16 in.
  • Round Capacity At 45 Degrees
    10 in.
  • Round Capacity At 90 Degrees
    10 in.
  • SAP Gross Weight
    1,025
  • SAP Net weight
    973
  • UPC
    662756141668
  • Vise Swivels Deg
    45 Deg.
  • Warranty
    Two Years
  • Wheel Diameter
    14 in.
