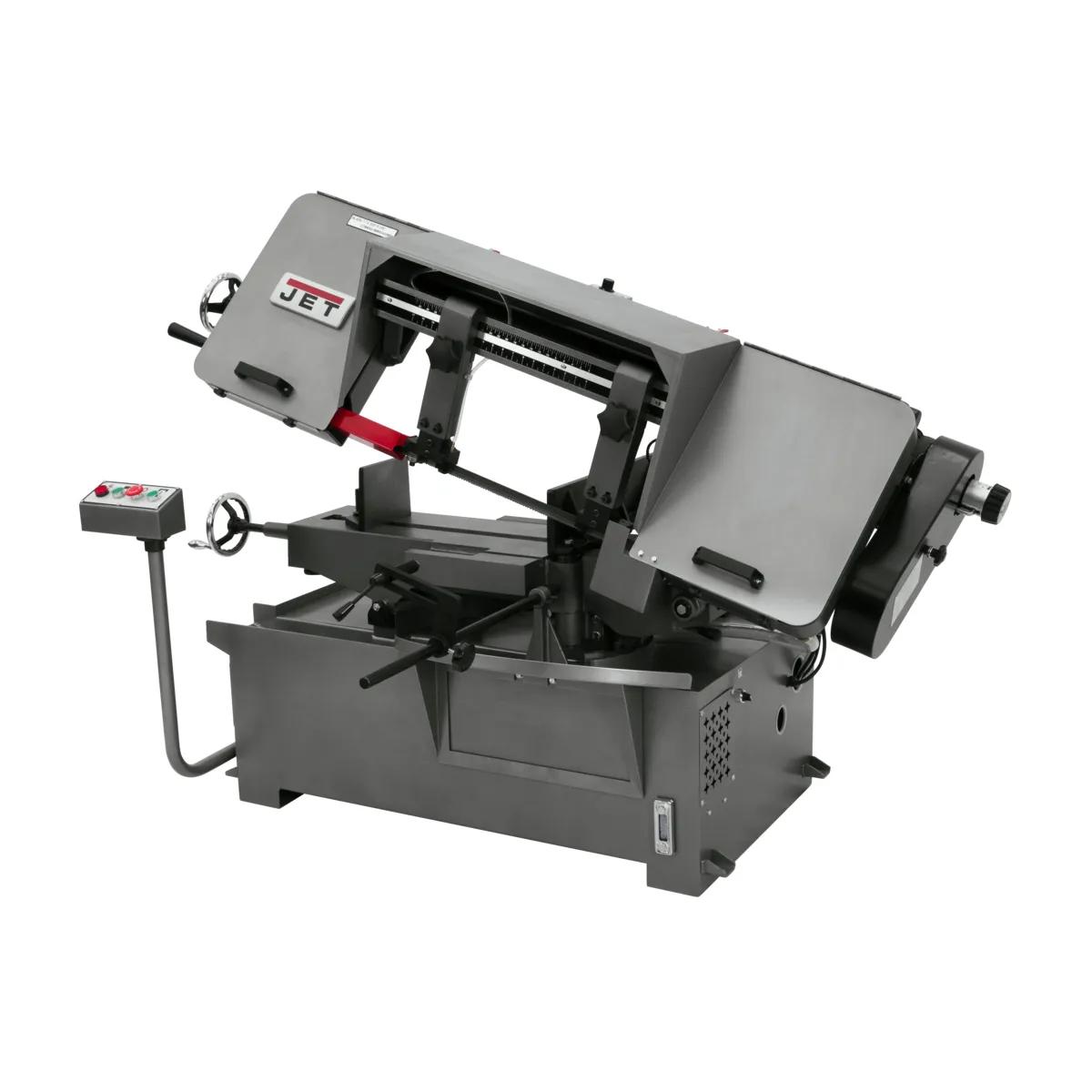

10" x 16" Horizontal Mitering Bandsaw, 2HP, 460V 3PH(J-7040M-4)
10" x 16" Horizontal Mitering Bandsaw, 2HP, 460V 3PH(J-7040M-4)
10" x 16" Horizontal Mitering Bandsaw, 2HP, 460V 3PH(J-7040M-4)

10" x 16" Horizontal Mitering Bandsaw, 2HP, 460V 3PH(J-7040M-4)

Stock Number: JT9-414484

0 Reviews

No reviews yet.

  • 2 HP, 460V, three-phase
  • 100 - 350 SFPM
  • Heavy-duty welded steel frame
  • Adjustable blade tracking
BUY NOW

Product Details

Built for the cuts that production fabrication actually generates. Engineered around fabrication shops running daily cuts, the J-7040M-4 earns its place. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial-grade construction backed by the JET service network.

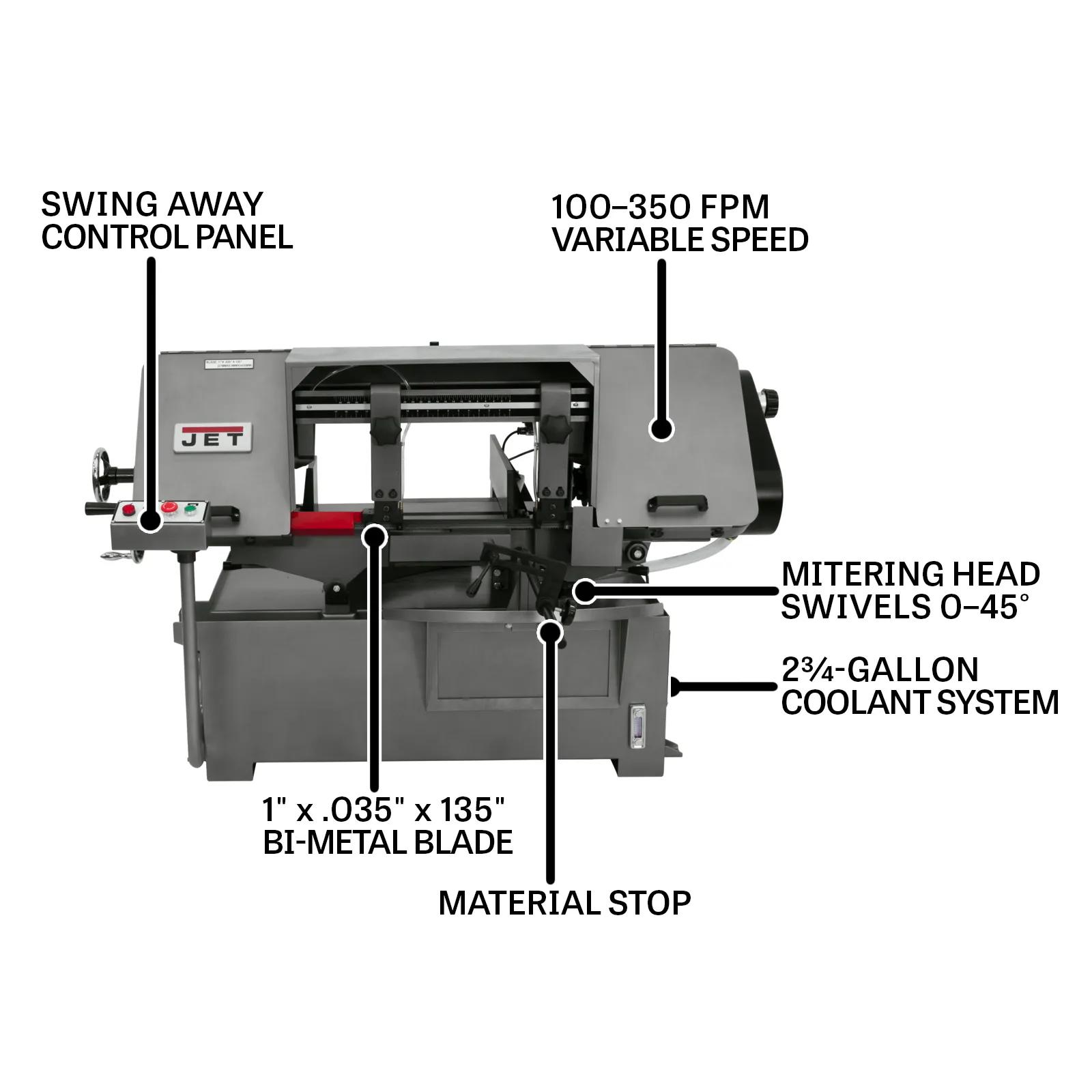

Features

  • 2 HP, 460V three-phase induction motor — running quieter and cooler than equivalent open-frame designs, sized for industrial-grade duty cycles.
  • 100 - 350 SFPM blade speed — delivering blade velocity production sawing demands.
  • Working-grade saw frame covers blade alignment for blade-tracking accuracy production sawing requires.
  • Engineered tilting table — extending the working envelope, engineered for miter and bevel cuts that defeat fixed-table saws.
  • Industrial-spec cutting envelope matches workpiece sizes for the workpiece sizes production sawing actually runs.
  • Cast iron reference surfaces dampen vibration for harmonic dampening lighter materials can't match.

Specifications

  • SKU
    JT9-414484
  • Assembled Dimensions
    76 x 30 x 48 in.
  • Blade Diameter
    14 in.
  • Blade Length
    1 x 0.035 x 135 in.
  • Blade Size (In.)
    1 x 0.035 x 135 in.
  • Blade Speed
    100 - 350 sfpm
  • Cutting Capacity - Height
    10 in.
  • Drive Type
    Variable Speed
  • Height
    41 in.
  • Horse Power
    2 HP
  • Input Power
    460 V 3 Ph
  • Model Number
    J-7040M-4
  • Motor HP
    2 HP
  • Motor Phase
    Three
  • Motor Voltage
    460 V
  • Old Material Number
    414484
  • Overall Assembled (Bow Lowered)
    79 x 31 x 41 in.
  • Prewired Voltage
    460 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Recommended Circut Size Amp
    20 A
  • Rectangle At 45 Degrees
    8-1/2 x 9 in.
  • Rectangle At 90 Degrees
    10 x 14 in. and 2 x 16 in.
  • Round Capacity At 90 Degrees
    10 in.
  • SAP Gross Weight
    1,200
  • SAP Net weight
    1,125
  • UPC
    662756091048
  • Vise Swivels Deg
    45 Deg.
  • Warranty
    Two Years
  • Wheel Diameter
    14 in.
