Product Details
Production-grade sawing for shops that need it daily. Built around production environments where blade speed and frame rigidity both count, the J-8201K delivers production-grade results. Equipped with a 1 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial-grade construction backed by the JET service network.
Features
- Brushless 1 HP induction motor design means decades of service across industrial shop floors.
- 39, 57, 78, 107, 142, 196, 278 spfm cutting speed — delivering the cutting velocity production fabrication requires across professional sawing environments.
- Heavy-gauge welded frame delivers structural rigidity for the structural rigidity production cutting demands.

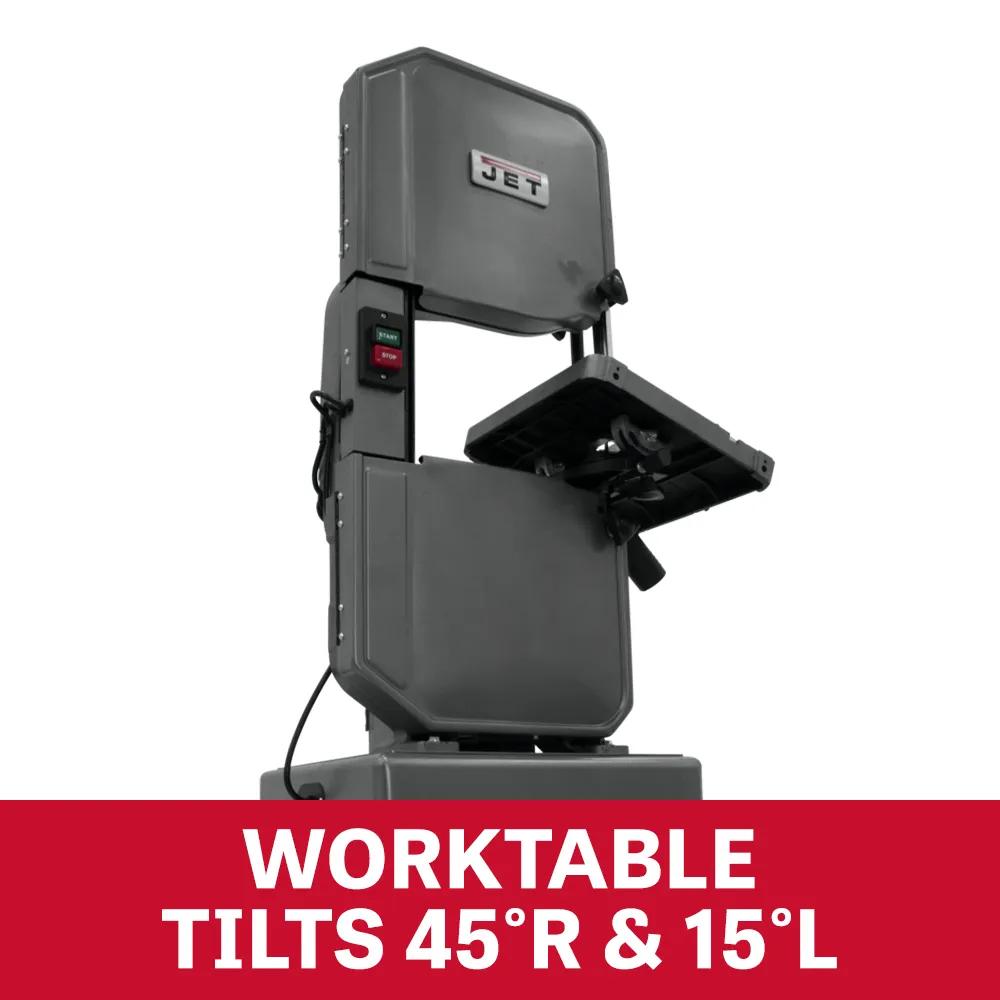

- Precision-rated tilting table — extending the working envelope, engineered for miter and bevel cuts that defeat fixed-table saws.
- Tolerance-grade cutting envelope delivers workpiece sizes for the stock library production fabrication actually generates.

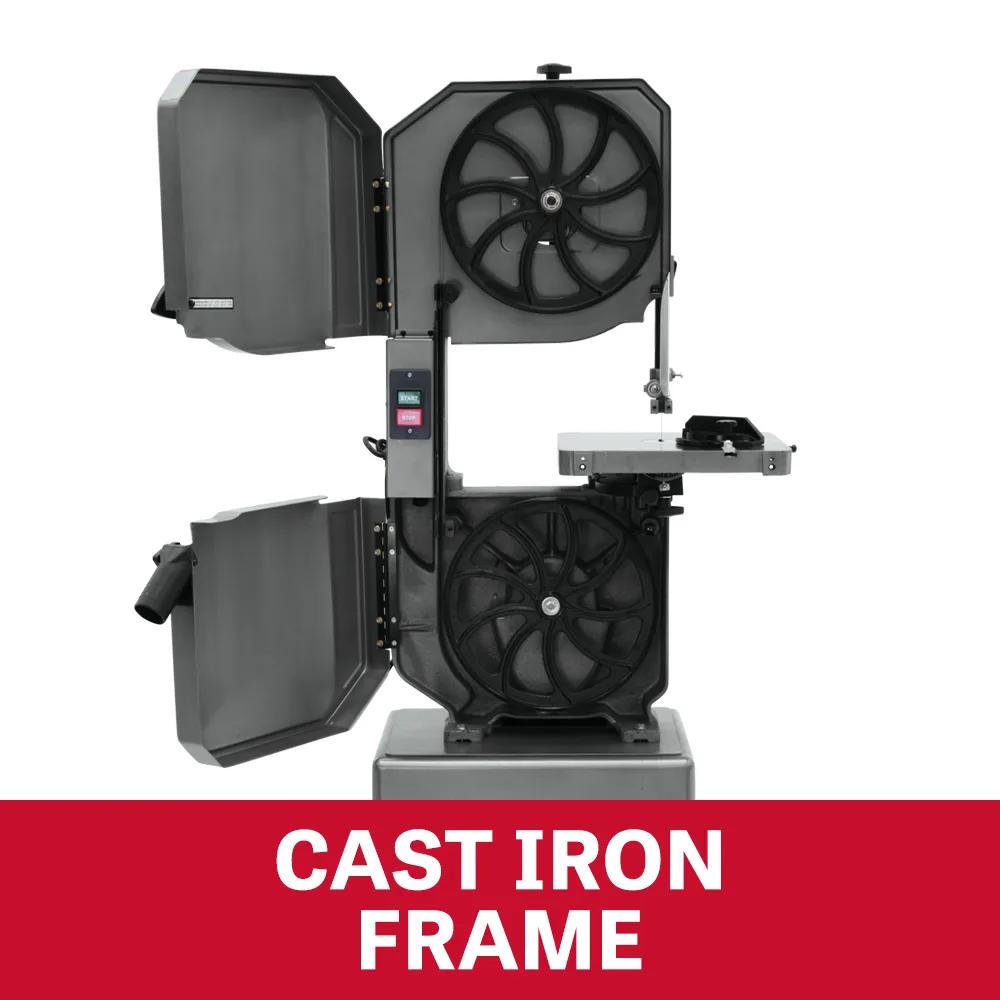

- Cast iron main castings hold reference flat for the structural stability shop work demands.
Specifications
- SKUJT9-414500
- Assembled Dimensions26 x 18.5 x 67 in.
- Bed Height44 in.
- Blade Length93-1/2 in.
- Blade Size (In.)3/8 x 0.025 x 93.5 in.
- Blade Speed39, 57, 78, 107, 142, 196, 278 spfm
- Cutting Capacity - Height6 in.

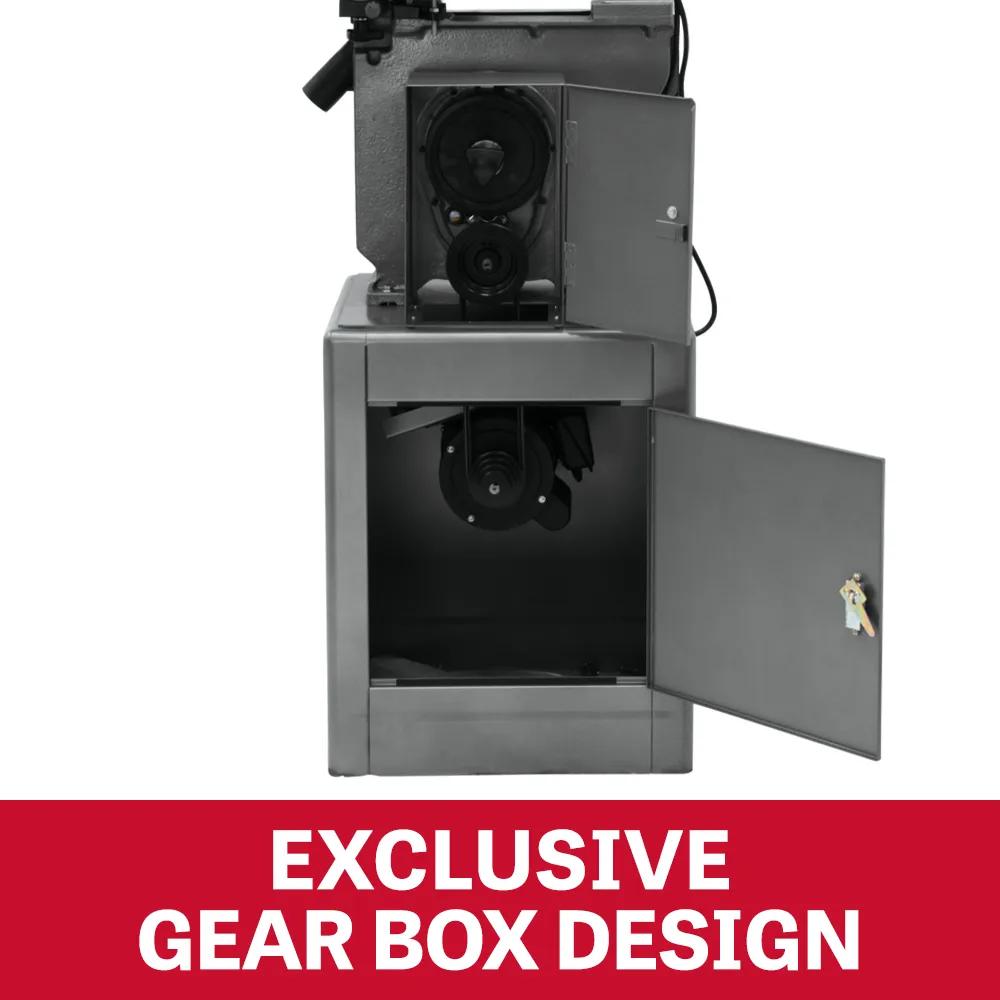

- Drive TypeBelt
- Height44 in.
- Height Capacity Max6 in.
- Horse Power1 HP
- Input Power115/230 V 1 Ph
- Model NumberJ-8201K
- Motor HP1 HP
- Motor PhaseSingle
- Motor Voltage115/230 V
- Old Material Number414500
- Overall Assembled (Bow Lowered)26 x 18.5 x 67 in.
- Prewired Voltage115 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Recommended Circut Size Amp15 A
- SAP Gross Weight308
- SAP Net weight308
- Table Height44 in.
- Table Size14 x 14 in.
- Table Tilt (L, R, C)15, 45 Deg.
- Throat Depth13-1/2 in.
- Under Guide6 in.
- Under Guide With Riser Block12 in.
- UPC731325338744
- WarrantyTwo Years
- Wheel Diameter14 in.
