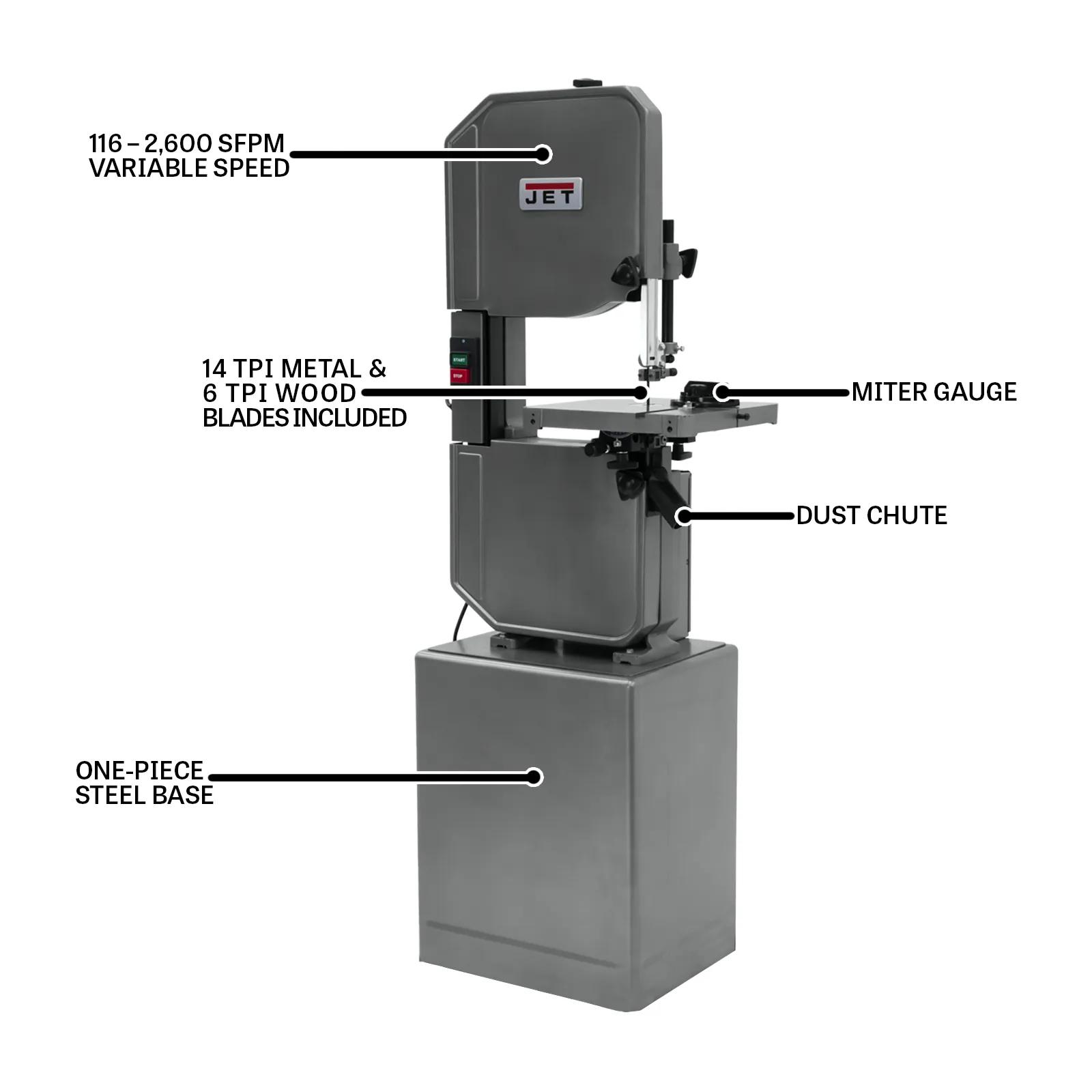

14" Metal/Wood Vert. Vari. Speed Bandsaw, 1HP, 115/230V 1PH(J-8201VS)
14" Metal/Wood Vert. Vari. Speed Bandsaw, 1HP, 115/230V 1PH(J-8201VS)
14" Metal/Wood Vert. Vari. Speed Bandsaw, 1HP, 115/230V 1PH(J-8201VS)

14" Metal/Wood Vert. Vari. Speed Bandsaw, 1HP, 115/230V 1PH(J-8201VS)

Stock Number: JT9-414502

0 Reviews

No reviews yet.

  • 1 HP, 115/230V, single-phase
  • 90 - 340 blade speed
  • Heavy-duty welded steel frame
  • Adjustable blade tracking
BUY NOW

Product Details

Built for the cuts that production fabrication actually generates. The J-8201VS was sized for fabrication shops running daily cuts. Equipped with a 1 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for production cycles, warrantied for the long run.

Features

  • 1 HP single-phase induction motor sized without thermal drift across long cycles.
  • 90 - 340 blade speed — covering hard and soft material cuts in one machine.
  • Working-grade saw frame delivers blade alignment for the cutting forces production sawing generates.
  • Adjustable table tilt — covering miter and bevel cuts production fabrication generates.
  • Production cutting capacity — delivering working capacity production sawing actually demands across fabrication shops.
  • Cast iron frames support the structural mass for the structural stability shop work demands.

Specifications

  • SKU
    JT9-414502
  • Assembled Dimensions
    26 x 18.5 x 67 in.
  • Bed Height
    44 in.
  • Blade Length
    93-1/2 in.
  • Blade Size (In.)
    3/8 x 0.025 x 93.5 in.
  • Blade Speed
    90 - 340
  • Cutting Capacity - Height
    6 in.
  • Drive Type
    Variable Speed
  • Height
    44 in.
  • Height Capacity Max
    6 in.
  • Horse Power
    1 HP
  • Input Power
    115/230 V 1 Ph
  • Model Number
    J-8201VS
  • Motor HP
    1 HP
  • Motor Phase
    Single
  • Motor Voltage
    115/230 V
  • Old Material Number
    414502
  • Overall Assembled (Bow Lowered)
    26 x 18.5 x 67 in.
  • Prewired Voltage
    115 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Recommended Circut Size Amp
    15 A
  • SAP Gross Weight
    400
  • SAP Net weight
    325
  • Table Height
    44 in.
  • Table Size
    14 x 14 in.
  • Table Tilt (L, R, C)
    15, 45 Deg.
  • Throat Depth
    13-1/2 in.
  • Under Guide
    6 in.
  • Under Guide With Riser Block
    12 in.
  • UPC
    662756091079
  • Warranty
    Two Years
  • Wheel Diameter
    14 in.
