Product Details
From benchtop to production floor, sized for the work that ships. Designed for shops cutting varied stock through long-cycle work, the J-8203K stands up to the duty cycle. Equipped with a 1 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage stands behind every cut.
Features
- Engineered 1 HP three-phase induction drive: delivering full-rated power to the cut, not the brush dust, sized for industrial-grade duty cycles.
- Blade speed of 39, 57, 78, 107, 142, 196, 278 spfm handles the cutting velocity for the cutting envelope production fabrication generates.
- Shop-rated saw frame covers blade alignment for blade-tracking accuracy production sawing requires.

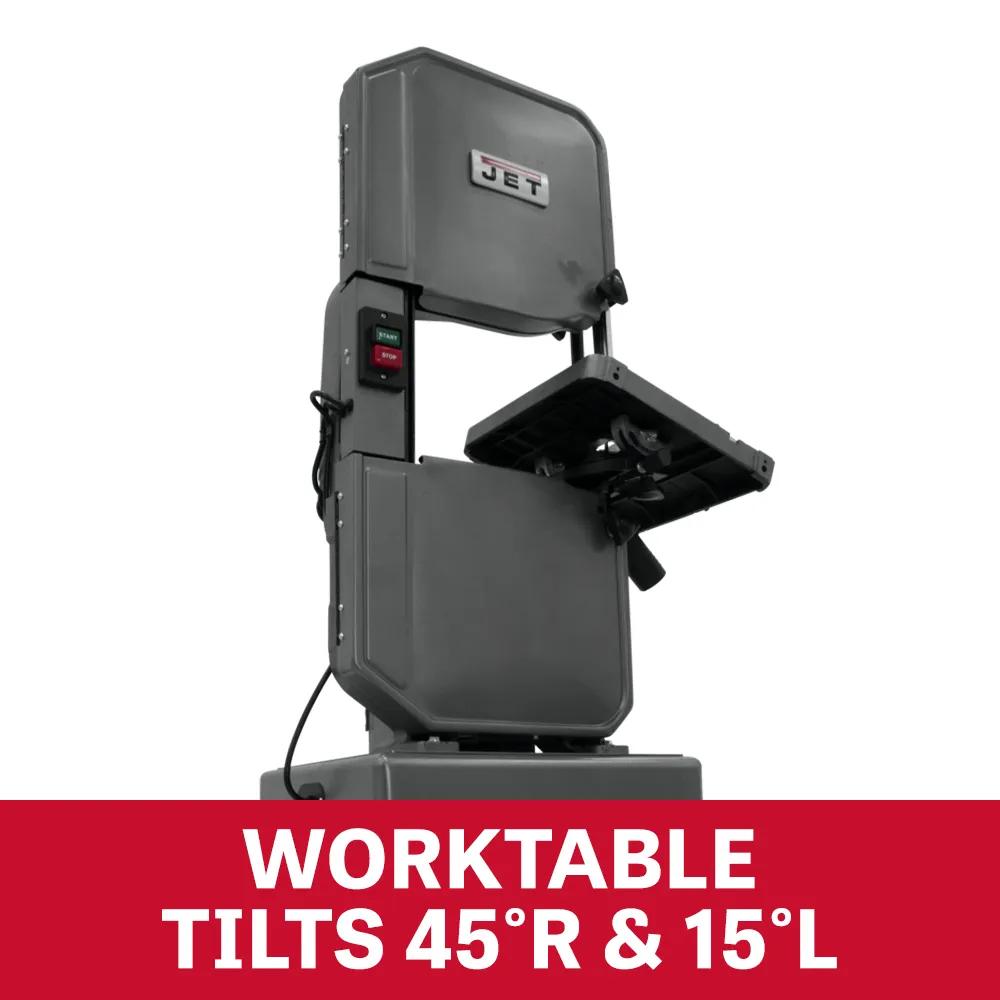

- Industrial-spec tilting table — delivering angle accuracy precision work expects, engineered for the angled cuts production fabrication actually runs.
- Premium-grade cutting envelope supports workpiece sizes for the cut-length envelope industrial sawing requires.

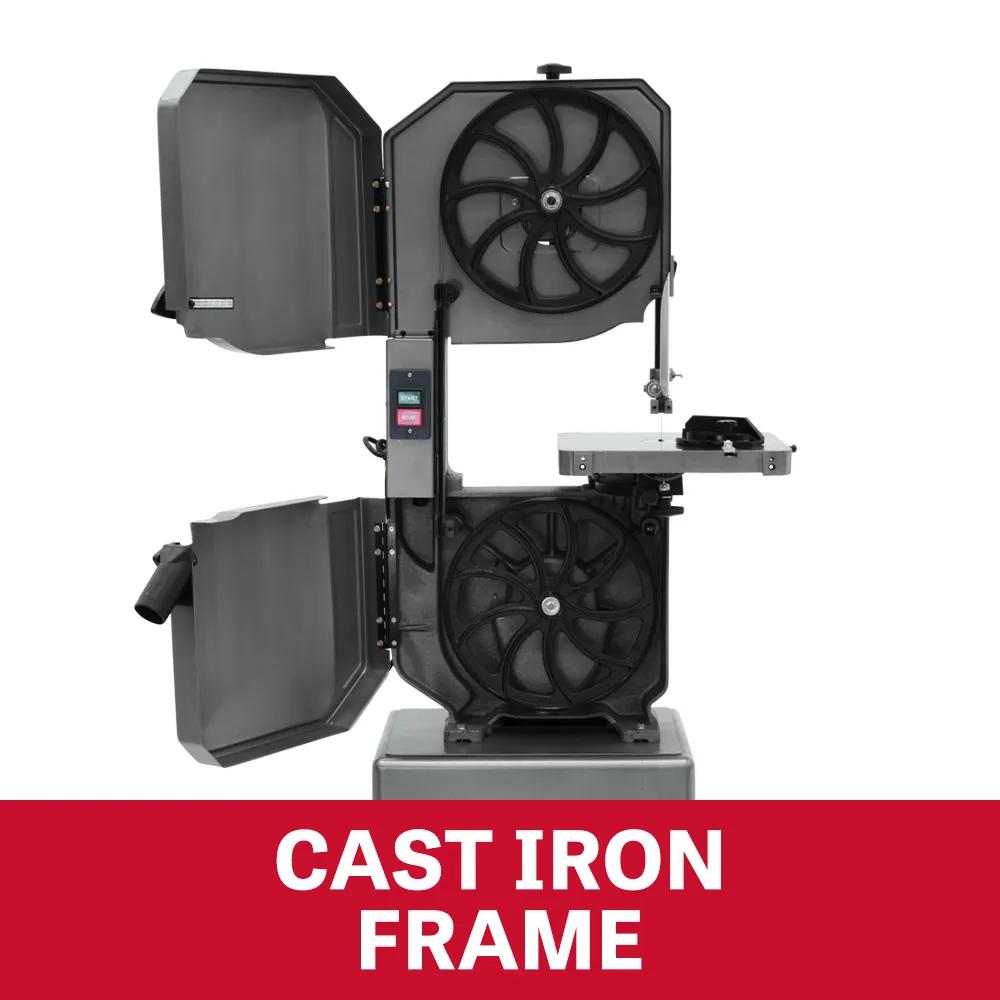

- Production-grade cast iron trunnion castings earn their place for the operating envelope precision cutting generates.
Specifications
- SKUJT9-414504C
- Assembled Dimensions26 x 18.5 x 67 in.
- Bed Height44 in.
- Blade Length93-1/2 in.
- Blade Size (In.)3/8 x 0.025 x 93.5 in.
- Blade Speed39, 57, 78, 107, 142, 196, 278 spfm
- Cutting Capacity - Height6 in.
- Drive TypeBelt
- Height44 in.
- Height Capacity Max6 in.
- Horse Power1 HP
- Input Power230/460 V 3 Ph
- Model NumberJ-8203K
- Motor HP1 HP
- Motor PhaseThree
- Motor Voltage230/460 V
- Old Material Number414504C
- Overall Assembled (Bow Lowered)26 x 18.5 x 67 in.
- Prewired Voltage230 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Recommended Circut Size Amp15 A
- SAP Gross Weight320
- SAP Net weight320
- Table Height44 in.
- Table Size14 x 14 in.
- Table Tilt (L, R, C)15, 45 Deg.
- Throat Depth12 in.
- UPC731325339925
- WarrantyTwo Years
- Wheel Diameter14 in.
