Product Details

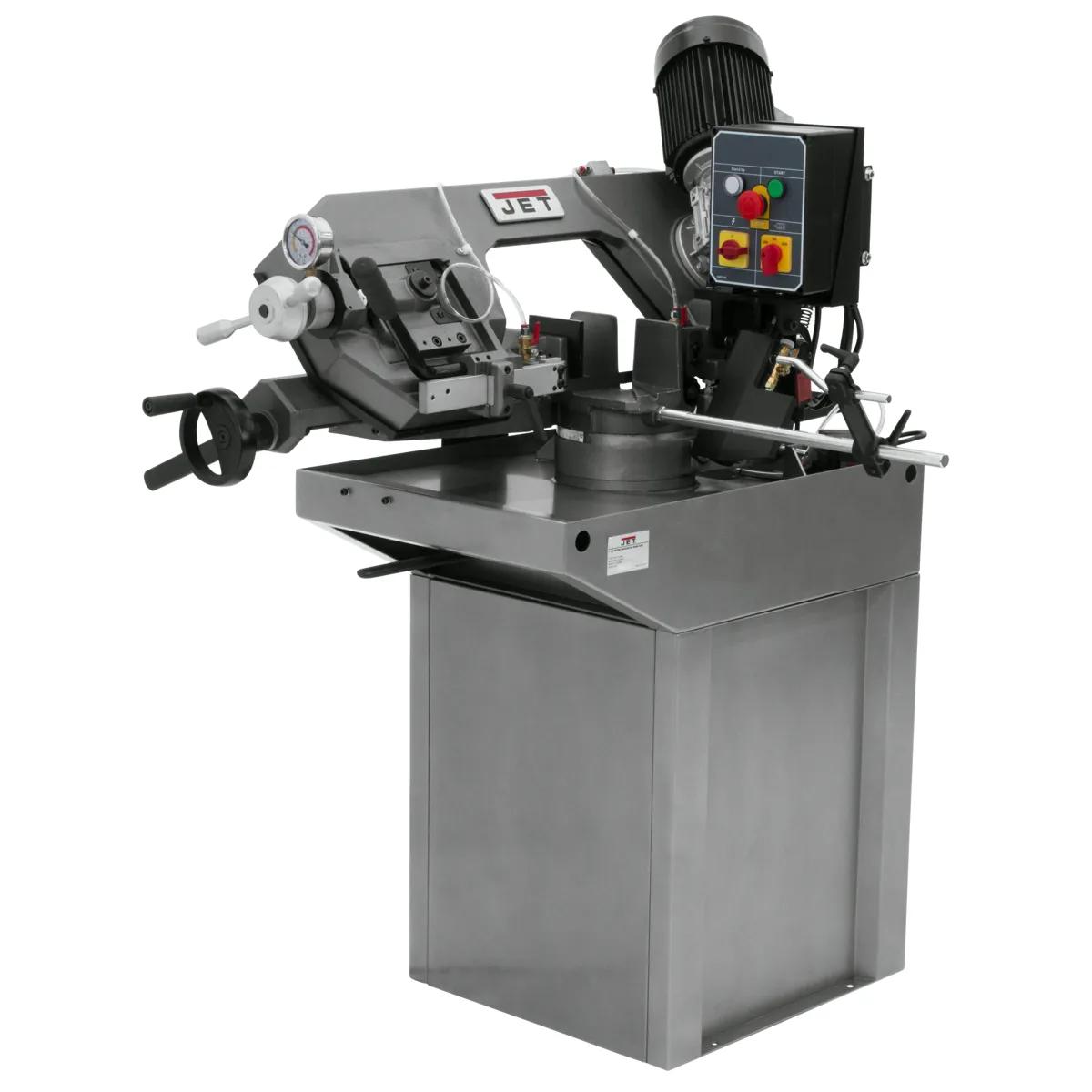

Production-grade sawing for shops that need it daily. Designed for fabrication shops running daily cuts, the J-9180-3 stands up to the duty cycle. Equipped with a 1 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage stands behind every cut.
Features
- Precision-rated 1 HP motor with sealed bearings — delivering production-grade power output across service shops.
- 137, 275 SFPM cutting speed — covering hard and soft material cuts in one machine across industrial cutting environments.
- Professional-grade saw frame supports blade alignment for blade alignment under sustained cutting.
- Tilting-table geometry covers angled cuts for the angle work production fabrication generates.
- Production-grade cutting envelope covers workpiece sizes for the cut-length envelope industrial sawing requires.
- Cast iron tables dampen vibration for the operating envelope precision cutting generates.
Specifications
- SKUJT9-414464
- Assembled Dimensions47 x 29 x 56-1/2 in.
- Bed Height35-7/8 in.
- Blade Diameter8 in.
- Blade Length82 in.
- Blade Size (In.)3/4 x 0 .035 x 82 in. x 5/8VT
- Blade Speed137, 275 sfpm
- Cutting Capacity - Height6 in.
- Drive TypeGeared Head

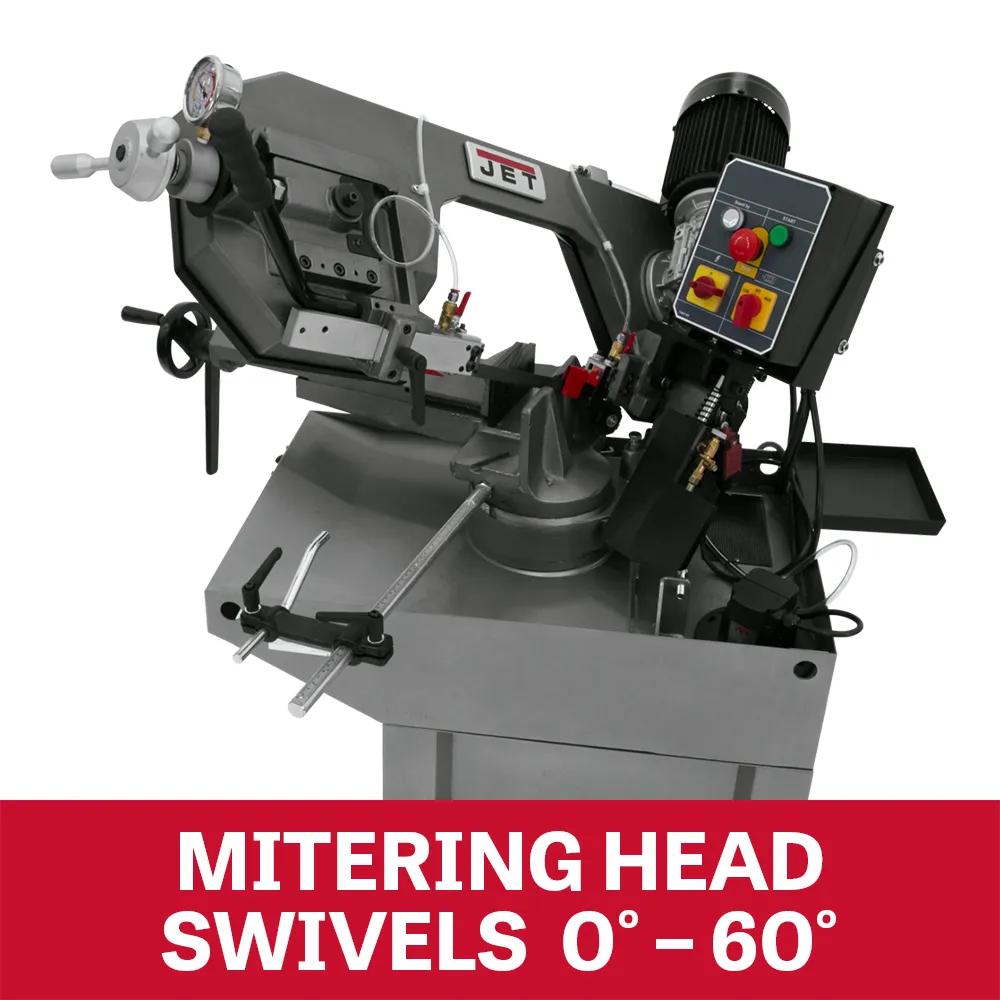

- Head Movement60 Deg.
- Height35-7 in.
- Horse Power1.5 HP
- Input Power230 V 3 Ph
- Model NumberJ-9180-3
- Motor HP1 HP
- Motor PhaseThree
- Motor Voltage230 V
- Old Material Number414464
- Overall Assembled (Bow Lowered)44 x 22 x 29-1/2 in.
- Prewired Voltage230 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Recommended Circut Size Amp20 A
- Rectangle At 45 Degrees4-1/2 x 4-1/2 in.
- Rectangle At 60 Degrees2-3/4 x 2-3/4 in.
- Rectangle At 90 Degrees7-7/8 x 6 in.
- Round Capacity At 90 Degrees7 in.
- SAP Gross Weight429
- SAP Net weight385
- UPC662755111839
- WarrantyTwo Years
- Wheel Diameter10.5 in.
