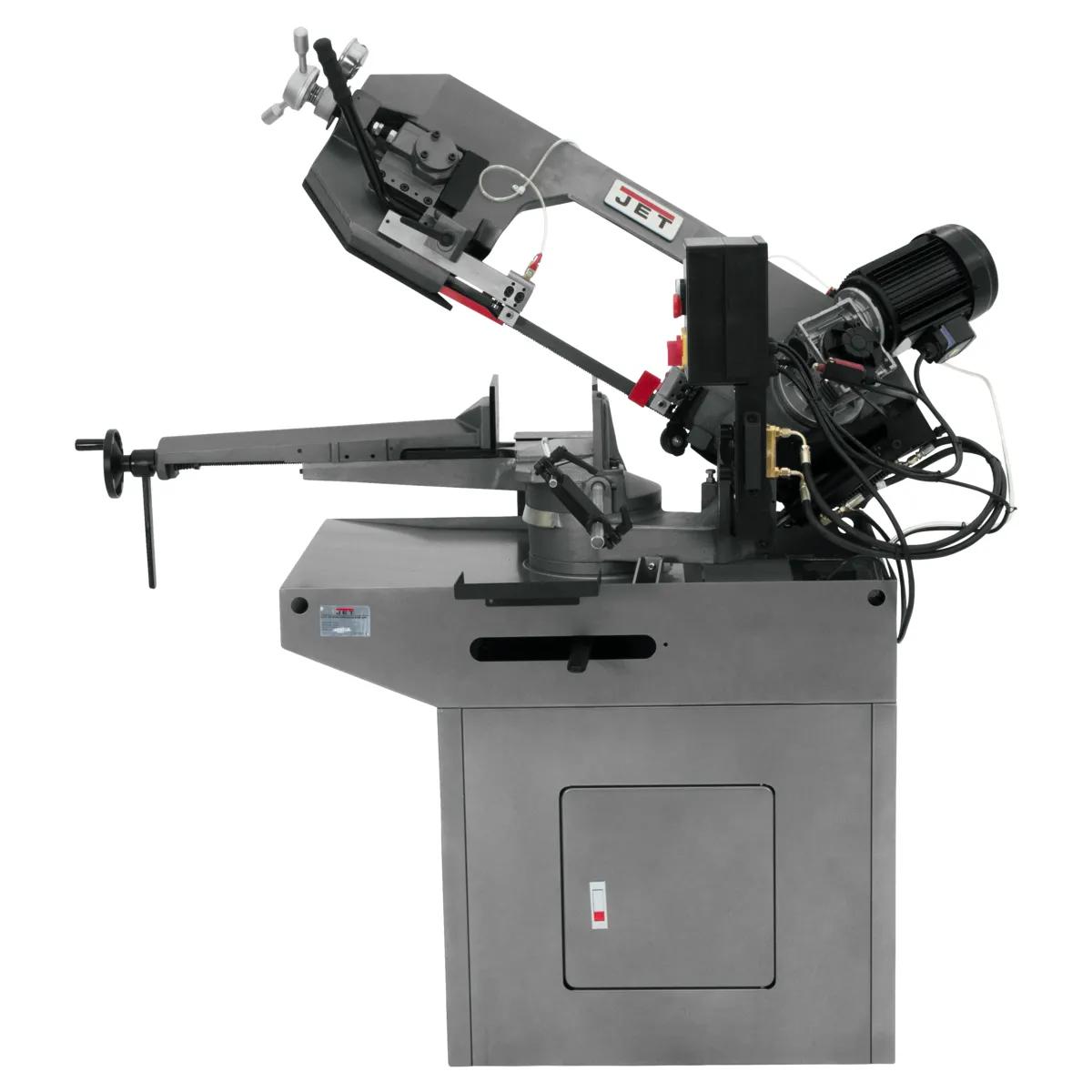

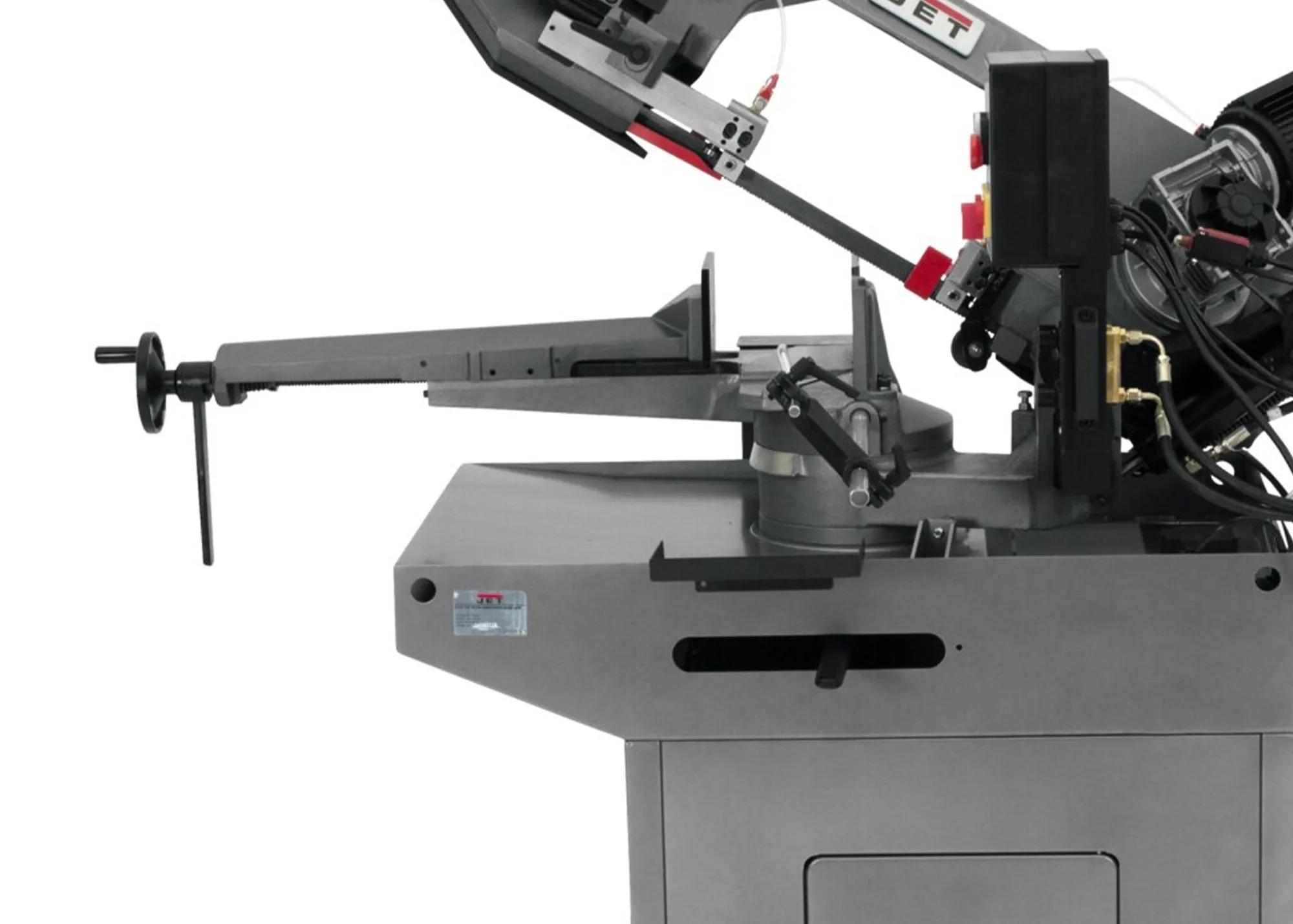

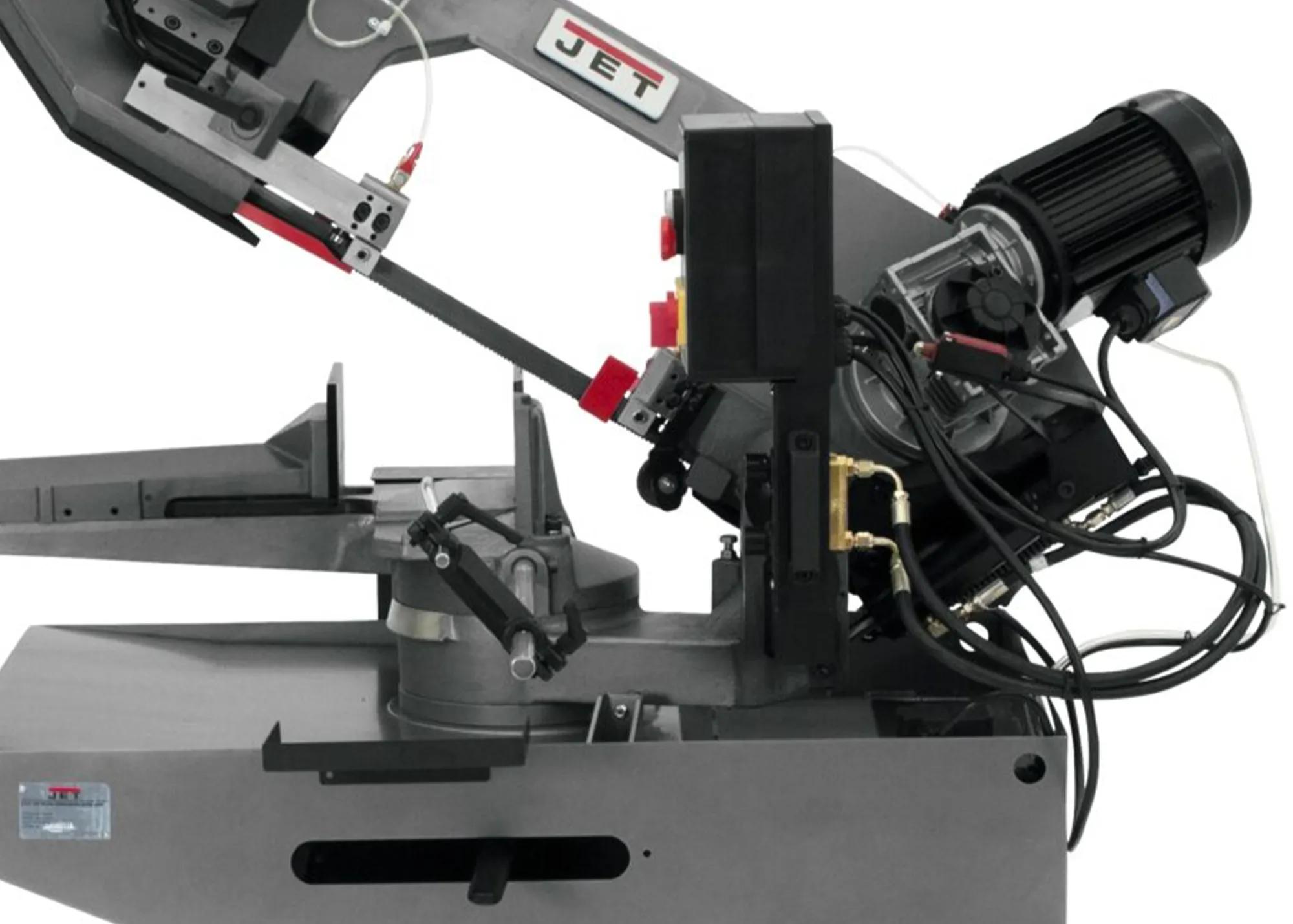

8-3/4" Zip Miter Horizontal Bandsaw, 1.5HP, 230V 3PH(J-9225)
8-3/4" Zip Miter Horizontal Bandsaw, 1.5HP, 230V 3PH(J-9225)
8-3/4" Zip Miter Horizontal Bandsaw, 1.5HP, 230V 3PH(J-9225)
8-3/4" Zip Miter Horizontal Bandsaw, 1.5HP, 230V 3PH(J-9225)

8-3/4" Zip Miter Horizontal Bandsaw, 1.5HP, 230V 3PH(J-9225)

Stock Number: JT9-414467

0 Reviews

No reviews yet.

  • 1.5 HP, 230V, three-phase
  • 157, 314 SFPM
  • Heavy-duty welded steel frame
  • Adjustable blade tracking
BUY NOW

Product Details

Cut quality starts with a saw built for the work. The J-9225 answers the work generated by production environments where blade speed and frame rigidity both count. Equipped with a 1.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage stands behind every cut.

Features

  • The 1.5 HP induction motor — running at nameplate output for the operating realities of production environments.
  • 157, 314 SFPM blade speed — covering the material library production sawing runs.
  • Industrial saw frame — running cooler under sustained cutting loads than commercial-grade frames across industrial cutting.
  • Adjustable table tilt — extending the working envelope.
  • Production cutting capacity — delivering working capacity production sawing actually demands across industrial cutting environments.
  • Industrial cast iron tables resist deflection for finish quality where lighter materials fail.

Specifications

  • SKU
    JT9-414467
  • Assembled Dimensions
    51 x 33 x 59-1/4 in.
  • Bed Height
    38-7/16 in.
  • Blade Diameter
    8 in.
  • Blade Length
    96-1/2 in.
  • Blade Size (In.)
    1 x 0.035 x 96-1/2 in.
  • Blade Speed
    157, 314 sfpm
  • Cutting Capacity - Height
    7.25 in.
  • Drive Type
    Geared Head
  • Head Movement
    60 Deg.
  • Height
    38-7 in.
  • Horse Power
    1.5 HP
  • Input Power
    230 V 3 Ph
  • Model Number
    J-9225
  • Motor HP
    1.5 HP
  • Motor Phase
    Three
  • Motor Voltage
    230 V
  • Old Material Number
    414467
  • Overall Assembled (Bow Lowered)
    55 x 33 x 59-1/4 in.
  • Prewired Voltage
    230 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Recommended Circut Size Amp
    20 A
  • Rectangle At 45 Degrees
    6-1/4 x 7-1/4 in.
  • Rectangle At 90 Degrees
    8-3/4 x 7 in.
  • SAP Gross Weight
    542
  • SAP Net weight
    476
  • UPC
    662755112065
  • Warranty
    Two Years
  • Wheel Diameter
    11.625 in.
