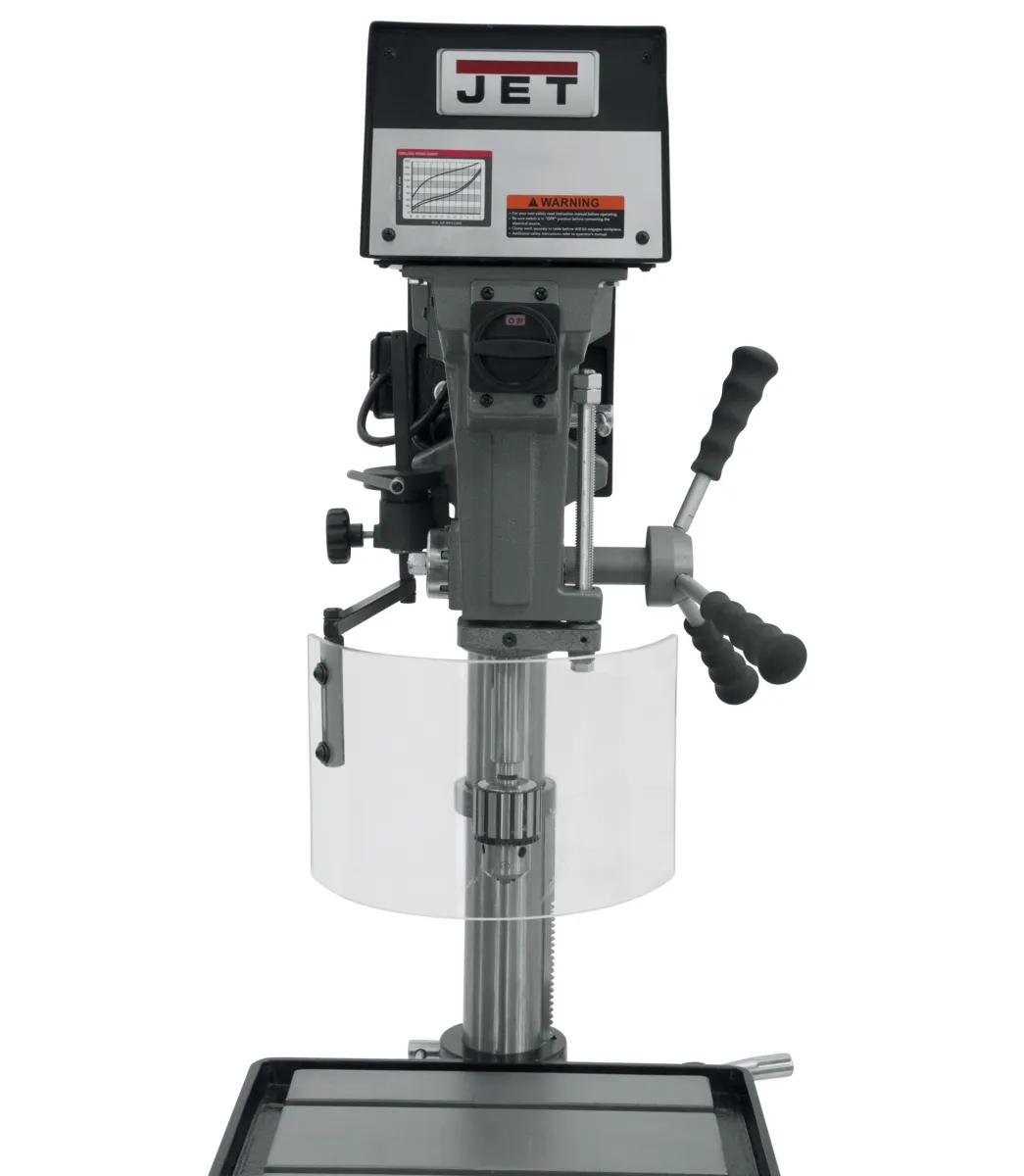

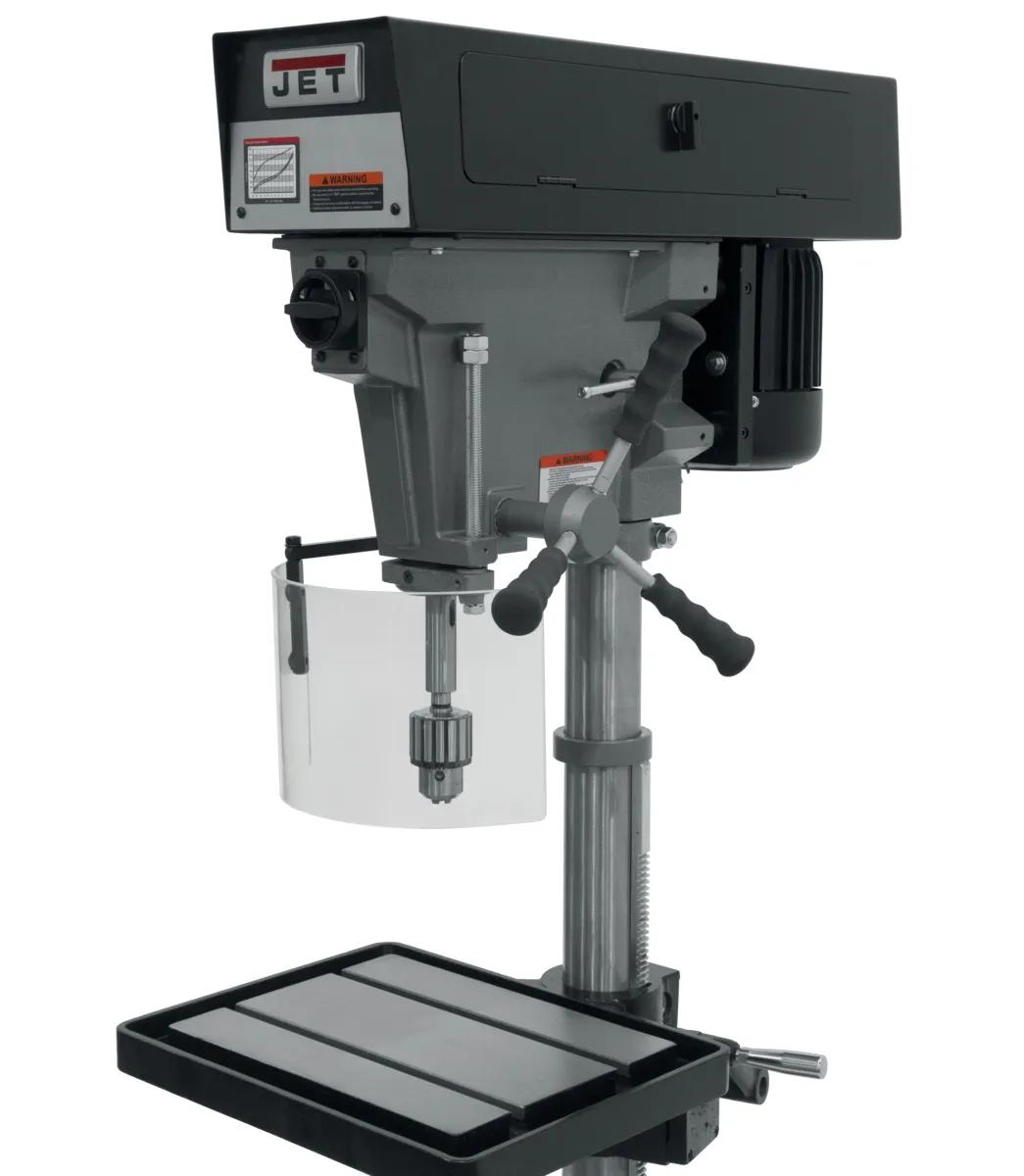

15" 6-Speed Floor Model Drill Press, 1HP, 115/230V 1PH(J-A3816)
15" 6-Speed Floor Model Drill Press, 1HP, 115/230V 1PH(J-A3816)
15" 6-Speed Floor Model Drill Press, 1HP, 115/230V 1PH(J-A3816)
15" 6-Speed Floor Model Drill Press, 1HP, 115/230V 1PH(J-A3816)
15" 6-Speed Floor Model Drill Press, 1HP, 115/230V 1PH(J-A3816)

15" 6-Speed Floor Model Drill Press, 1HP, 115/230V 1PH(J-A3816)

Stock Number: JT9-354500

0 Reviews

No reviews yet.

  • 1 HP, 115/230V, single-phase
  • MT-2 spindle taper
  • 6" spindle travel
BUY NOW
Fetching Data...

Product Details

From small-shop hole-making to tool-room precision. Engineered around industrial drilling environments running through-hole and deep-hole work, the J-A3816 earns its place. Equipped with a 1 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for the cycle counts production drilling actually generates.

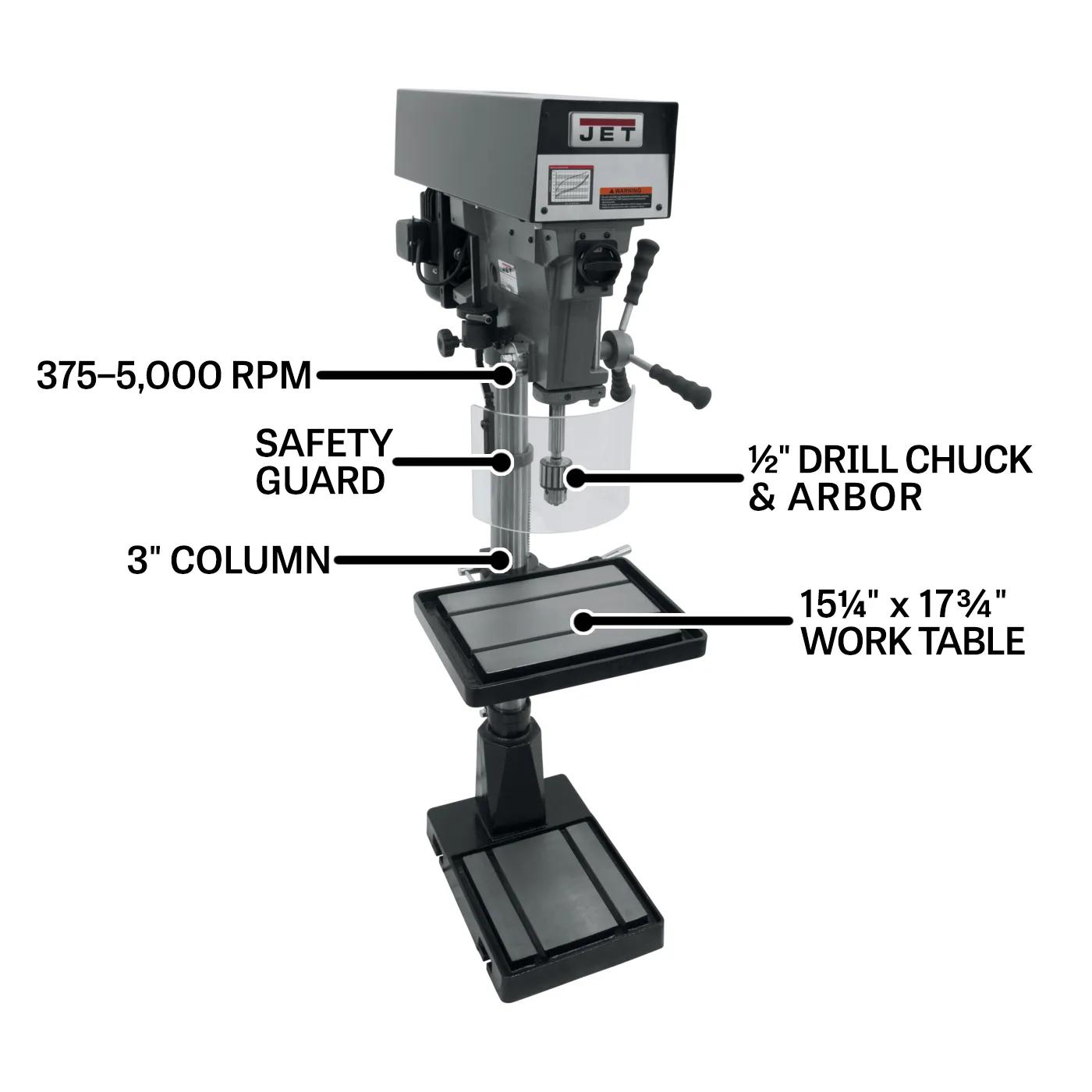

Features

  • The 1 HP, 115/230V induction motor handles full-capacity passes for the duty range working shops actually run.
  • Industrial MT-2 spindle interface — fitting the tooling library production shops already maintain.
  • 6-inch stroke covers the depth-of-cut envelope for the through-hole work production drilling generates.
  • Heavy cast iron head castings — staying true under loads that warp lighter castings, engineered for finish quality consistency across speeds.
  • Engineered hardened and ground quill assemblies deliver dimensional stability without the slop softer drivetrains develop.
  • Standard CSA/cUS certification covers regulated procurement for industrial-grade electrical safety certification.

Specifications

  • SKU
    JT9-354500
  • Assembled Dimensions
    30 x 20 x 71 in.
  • Base Size
    20-7/8 x 14-3/16 x 3-1/8 in., 12-1/8 x 11-13/16 in.
  • Chuck Size
    3/8 in.
  • Collet Size
    3 in.
  • Distance Column to Spindle
    15 in.
  • Drilling Capacity Cast Iron
    5/8 in.
  • Drilling Capacity Mild Steel
    0.5 in.
  • Drills to Center of Circle
    15 in.
  • Input Power
    115/230 V 1 Ph
  • Model Number
    J-A3816
  • Motor Amps
    15 A
  • Motor HP
    1 HP
  • Motor Phase
    Single
  • Motor Voltage
    115/230 V
  • Number of Spindle Speeds
    6
  • Old Material Number
    354500
  • Prewired Voltage
    115 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Range Of Spindle Speeds
    375, 625, 1125, 1950, 3400, 5000 RPM
  • SAP Gross Weight
    450
  • SAP Net weight
    394
  • Spindle Distance To Base
    44-1/2 in.
  • Spindle Distance To Table Max
    25-3/4 in.
  • Spindle Taper X Tpi
    MT2
  • Spindle Travel
    6 in.
  • Style Type
    Belt Drive
  • Swing
    15 in.
  • T-Slot Centers
    5 5/16 in.
  • T-Slots Number And Size
    2 and 1/2 in.
  • Table Size
    15 x 18 in.
  • Table Tilt (L, R, C)
    45 Deg.
  • Table Travel
    16-3/4 in.
  • UPC
    662756092670
  • Warranty
    Two Years
  • Work Table Weight Capacity
    90 lbs
