15" Vari. Speed Floor Model Drill Press, 1HP, 115V 1PH(J-A5816)
15" Vari. Speed Floor Model Drill Press, 1HP, 115V 1PH(J-A5816)
15" Vari. Speed Floor Model Drill Press, 1HP, 115V 1PH(J-A5816)
15" Vari. Speed Floor Model Drill Press, 1HP, 115V 1PH(J-A5816)
15" Vari. Speed Floor Model Drill Press, 1HP, 115V 1PH(J-A5816)
15" Vari. Speed Floor Model Drill Press, 1HP, 115V 1PH(J-A5816)
15" Vari. Speed Floor Model Drill Press, 1HP, 115V 1PH(J-A5816)

15" Vari. Speed Floor Model Drill Press, 1HP, 115V 1PH(J-A5816)

Stock Number: JT9-354550

0 Reviews

No reviews yet.

  • 1 HP, 115/230V, single-phase
  • MT-2 spindle taper

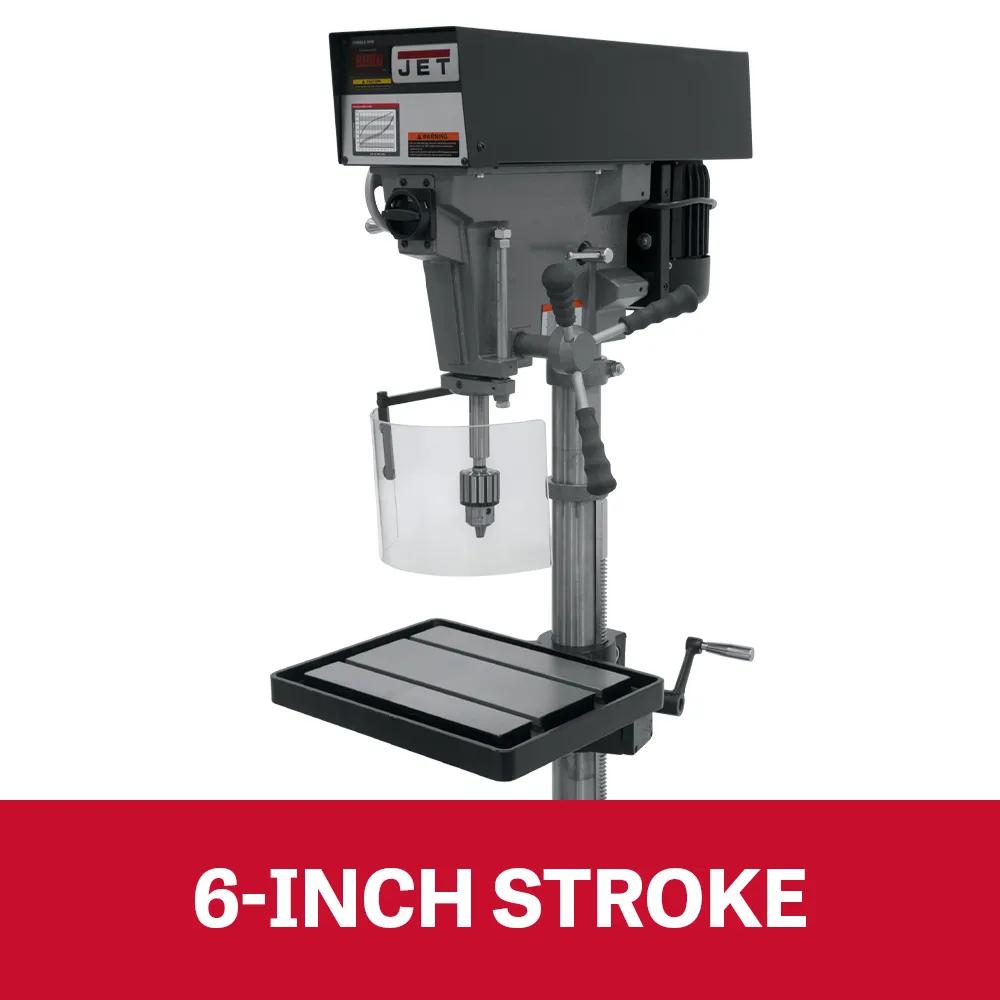

  • 6" spindle travel
BUY NOW

Product Details

Drill press performance from setup to finish. The J-A5816 was sized for shops where drilling capacity meets daily duty cycles. Equipped with a 1 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage and the service network keep production drilling running.

Features

  • Continuous-duty 1 HP induction drive — handling startup loads where smaller motors trip.
  • MT-2 spindle interface — expanding tooling compatibility without operator-side workarounds, sized for the tooling library every production operator already maintains.
  • 6-inch vertical reach handles production milling for the working depth precision cutting requires.

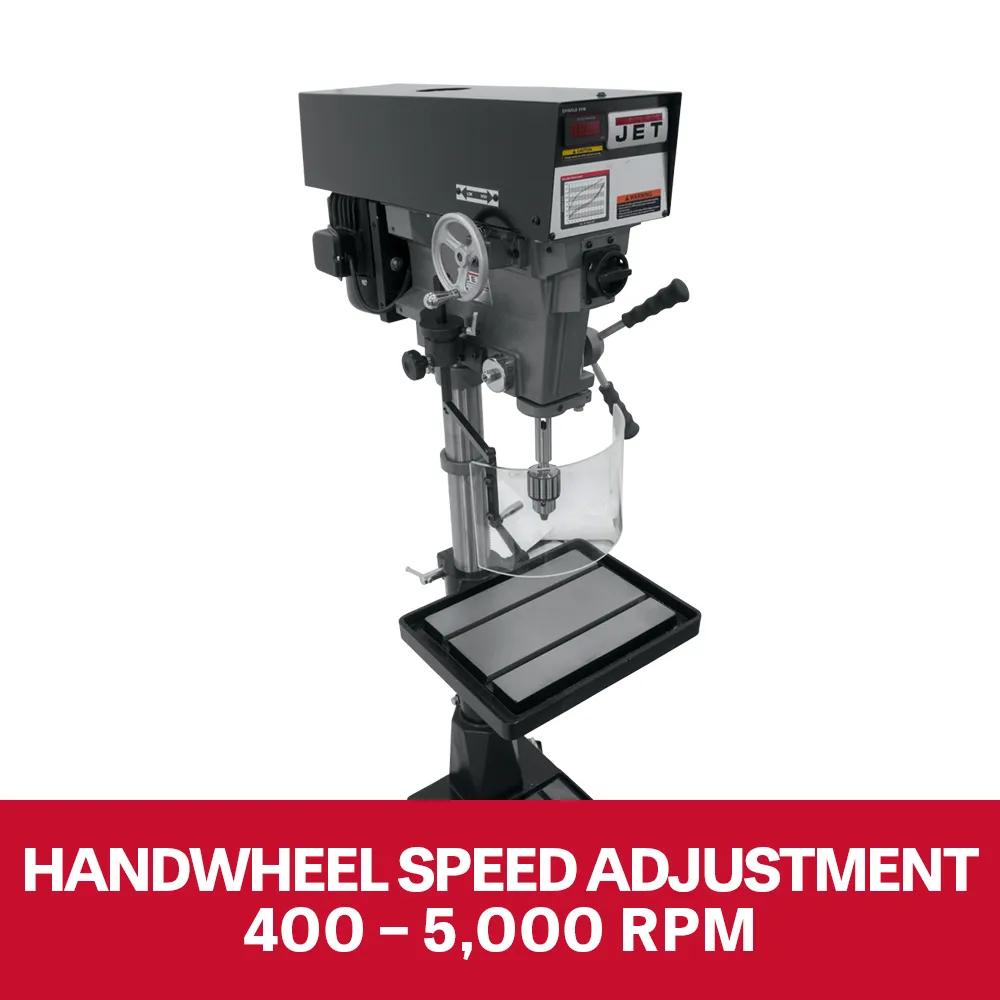

  • Variable spindle speeds across 400 - 5,000 RPM eliminate speed compromises for the speed library industrial cutting requires.
  • Production-grade cast iron head castings earn their place for vibration dampening welded steel can't match.
  • Heat-treated headstock gears hold spec — earning their place through service life, not just first-pass tolerance across working shops.

Specifications

  • SKU
    JT9-354550
  • Assembled Dimensions
    30 x 20 x 71 in.
  • Base Size
    20-7/16 x 14-3/16 in., 12-1/8 x 11-13/16 in.
  • Chuck Size
    3/8 in.
  • Collet Size
    3 in.
  • Distance Column to Spindle
    7.5 in.
  • Drilling Capacity Cast Iron
    5/8 in.
  • Drilling Capacity Mild Steel
    0.5 in.
  • Drills to Center of Circle
    15 in.
  • Input Power
    115 V 1 Ph
  • Model Number
    J-A5816
  • Motor Amps
    15 A
  • Motor HP
    1 HP
  • Motor Phase
    Single
  • Motor Voltage
    115/230 V
  • Old Material Number
    354550
  • Prewired Voltage
    115 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Range Of Spindle Speeds
    400 - 5000 RPM
  • SAP Gross Weight
    388
  • SAP Net weight
    388
  • Spindle Distance To Base
    44-1/2 in.
  • Spindle Distance To Table Max
    25-3/4 in.
  • Spindle Taper X Tpi
    MT2
  • Spindle Travel
    6 in.
  • Style Type
    Variable
  • Swing
    15 in.
  • T-Slot Centers
    5 5/16 in.
  • T-Slots Number And Size
    2 and 1/2 in.

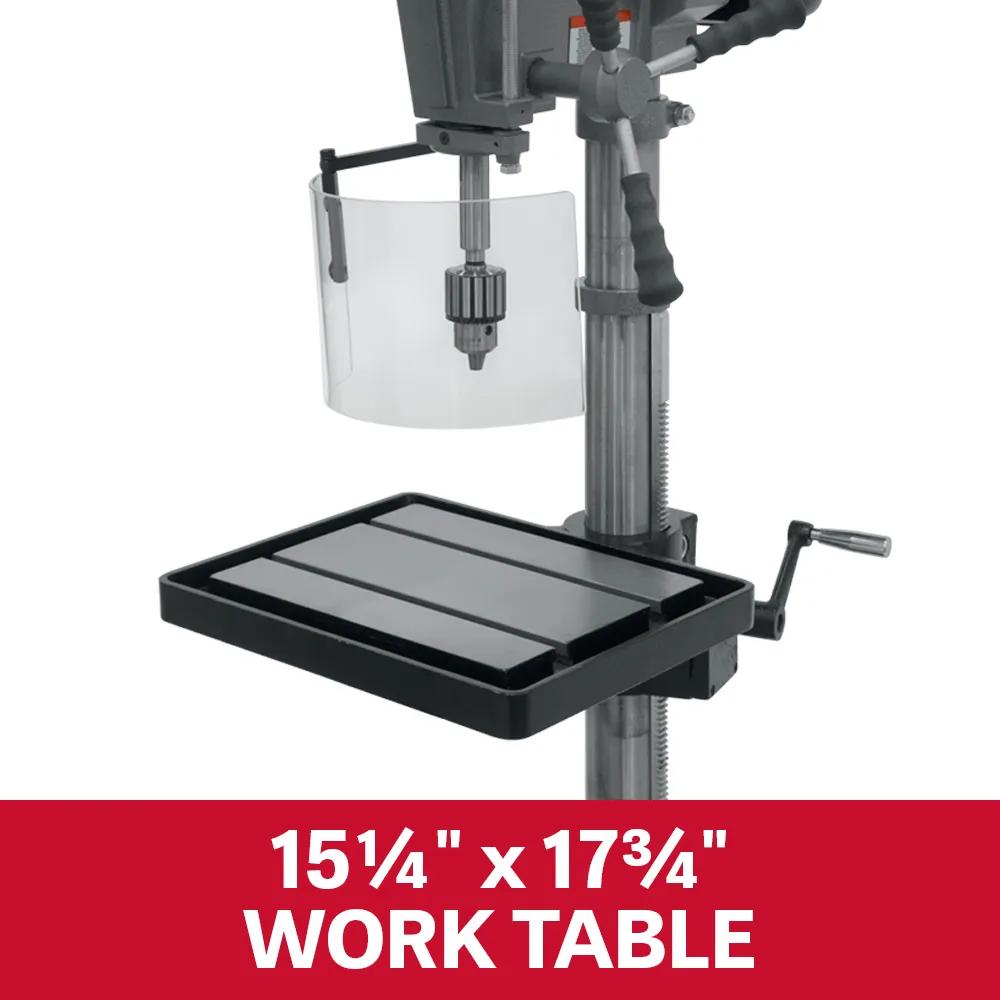

  • Table Size
    15 x 18 in.
  • Table Tilt (L, R, C)
    45 Deg.
  • Table Travel
    16-3/4 in.
  • UPC
    662756092687
  • Warranty
    Two Years
  • Work Table Weight Capacity
    90 lbs
