15" Vari. Speed Floor Model Drill Press, 1HP, 230/460V(J-A5818)
15" Vari. Speed Floor Model Drill Press, 1HP, 230/460V(J-A5818)
15" Vari. Speed Floor Model Drill Press, 1HP, 230/460V(J-A5818)
15" Vari. Speed Floor Model Drill Press, 1HP, 230/460V(J-A5818)
15" Vari. Speed Floor Model Drill Press, 1HP, 230/460V(J-A5818)
15" Vari. Speed Floor Model Drill Press, 1HP, 230/460V(J-A5818)
15" Vari. Speed Floor Model Drill Press, 1HP, 230/460V(J-A5818)

15" Vari. Speed Floor Model Drill Press, 1HP, 230/460V(J-A5818)

Stock Number: JT9-354551

0 Reviews

No reviews yet.

  • 1 HP, 230/460V, single-phase
  • MT-2 spindle taper
  • 6" spindle travel
BUY NOW
Fetching Data...

Product Details

Engineered for the drilling work production schedules actually generate. The J-A5818 was sized for industrial drilling environments running through-hole and deep-hole work. Equipped with a 1 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for the cycle counts production drilling actually generates.

Features

  • Production-spec 1 HP single-phase induction motor delivers torque for full-capacity production runs.
  • Tolerance-grade MT-2 spindle interface — delivering the standard interface production milling expects.

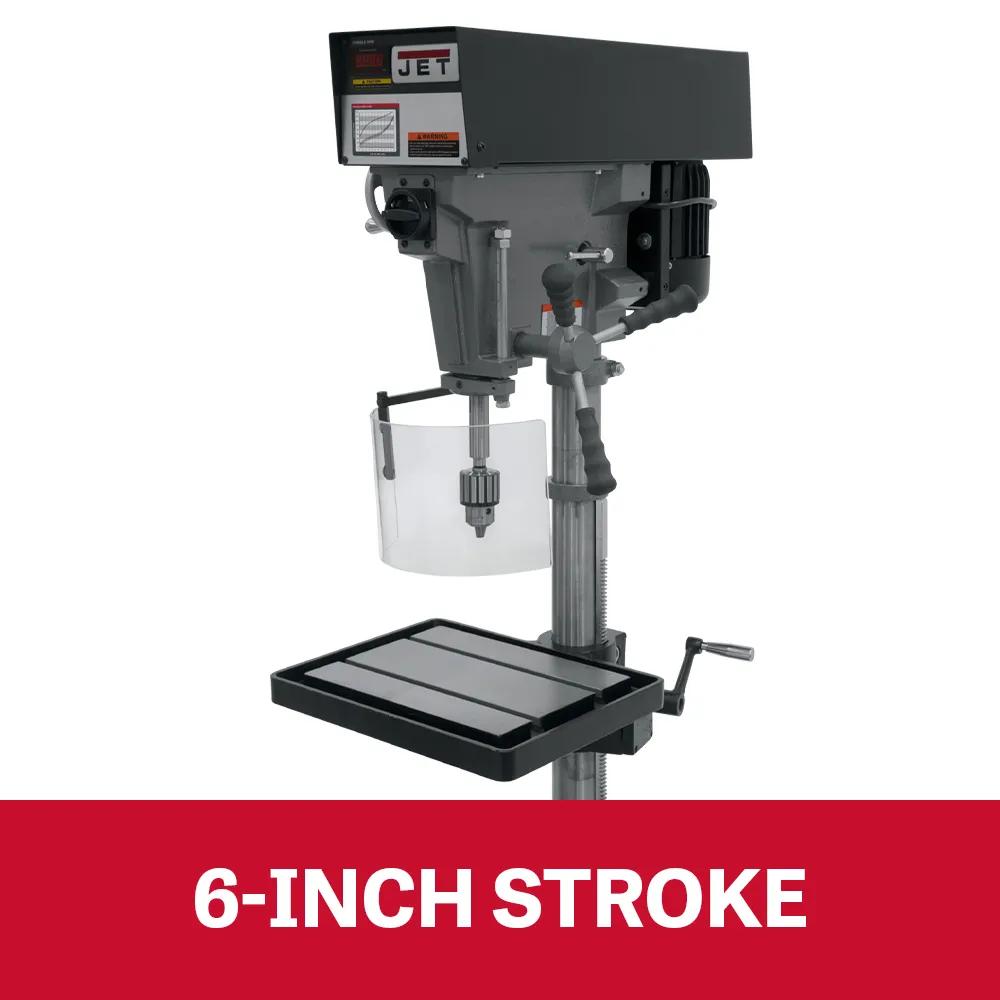

  • Generous 6-inch quill travel handles deep-hole and through-hole production work for the depth-of-cut production schedules generate.

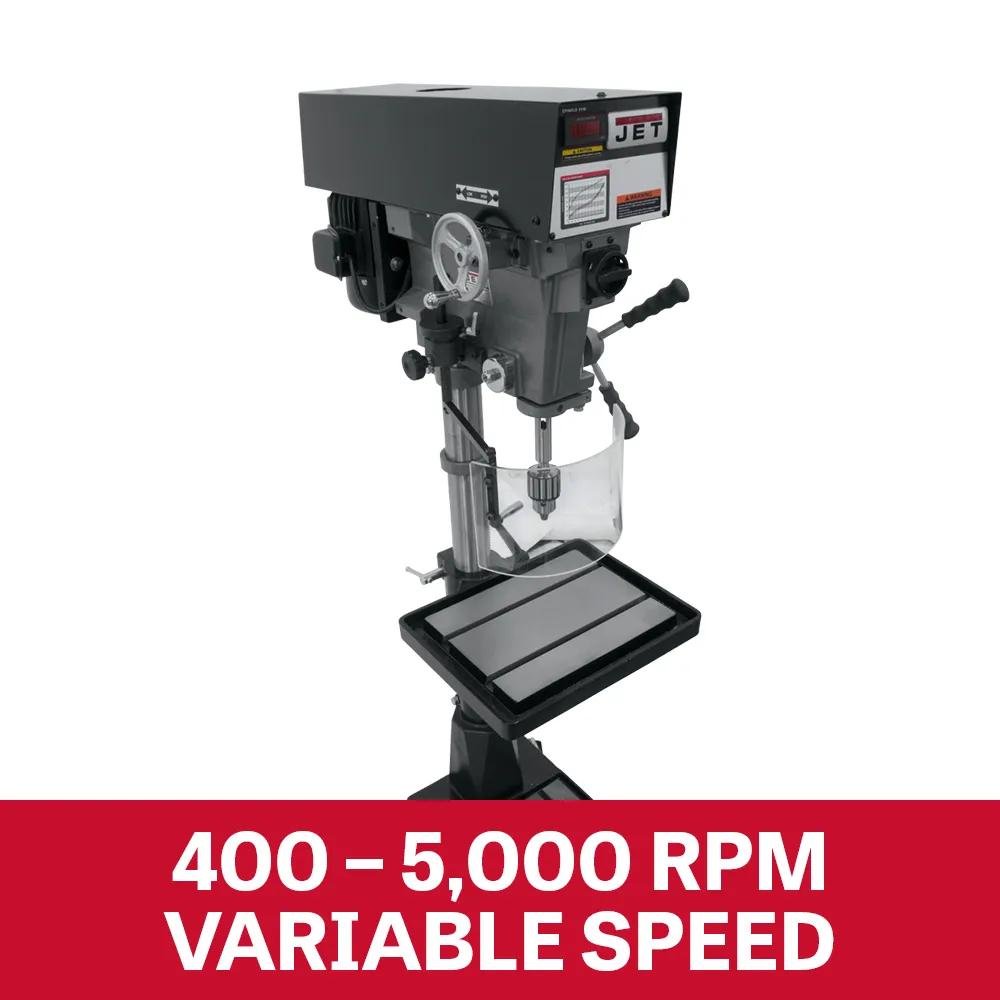

  • 400 - 5,000 RPM envelope handles the speed range for slow torque-heavy work and high-speed finishing in one machine.
  • Heat-treated cast iron head castings resist deflection — dampening vibration that compromises cut quality.

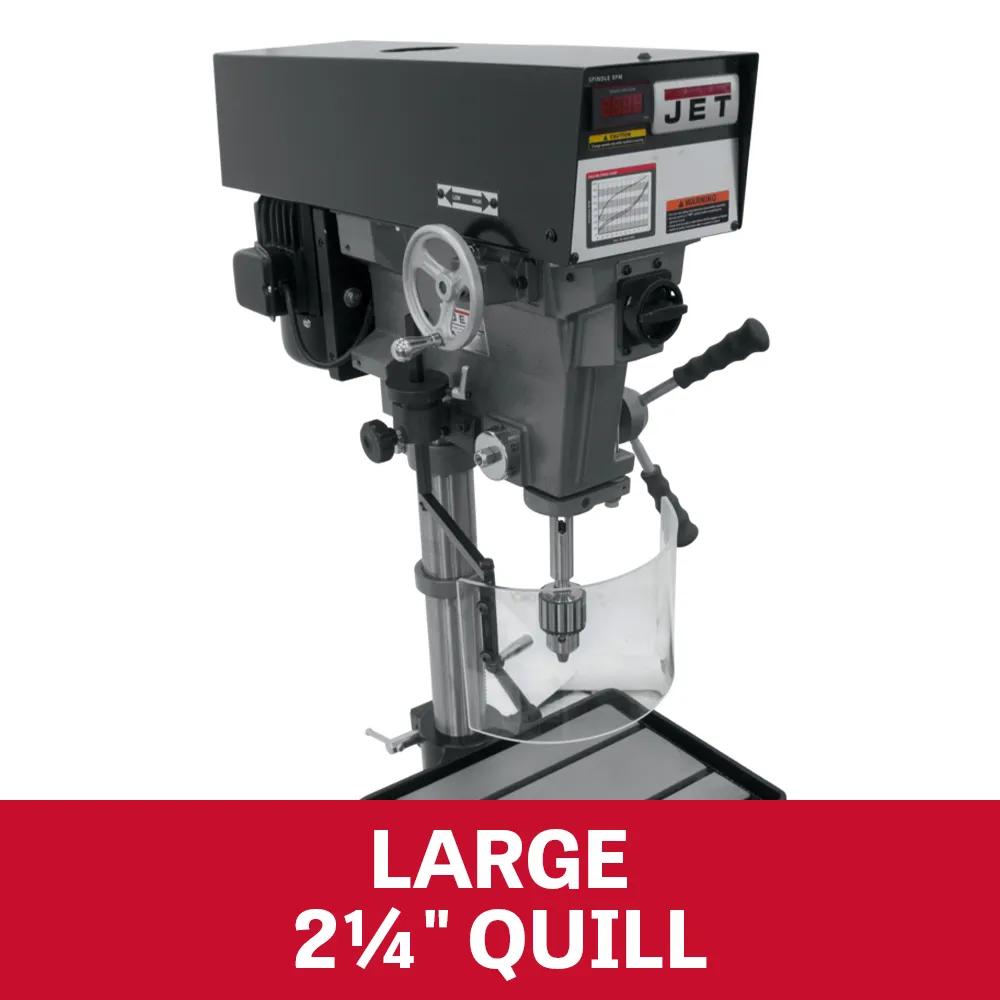

  • Hardened-steel quill assemblies cover the working precision for the cut quality production work depends on.

Specifications

  • SKU
    JT9-354551
  • Assembled Dimensions
    30 x 20 x 71 in.
  • Base Size
    20-7/16 x 14-3/16 in., 12-1/8 x 11-13/16 in.
  • Chuck Size
    3/8 in.
  • Collet Size
    3 in.
  • Distance Column to Spindle
    7.5 in.
  • Drilling Capacity Cast Iron
    5/8 in.
  • Drilling Capacity Mild Steel
    0.5 in.
  • Drills to Center of Circle
    15 in.
  • Input Power
    230/460 V 3 Ph
  • Model Number
    J-A5818
  • Motor Amps
    15 A
  • Motor HP
    1 HP
  • Motor Phase
    Single
  • Motor Voltage
    230/460 V
  • Old Material Number
    354551
  • Prewired Voltage
    230 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Range Of Spindle Speeds
    400 - 5000 RPM
  • SAP Gross Weight
    388
  • SAP Net weight
    308
  • Spindle Distance To Base
    44-1/2 in.
  • Spindle Distance To Table Max
    25-3/4 in.
  • Spindle Taper X Tpi
    MT2
  • Spindle Travel
    6 in.
  • Style Type
    Variable
  • Swing
    15 in.
  • T-Slot Centers
    5 5/16 in.
  • T-Slots Number And Size
    2 and 1/2 in.

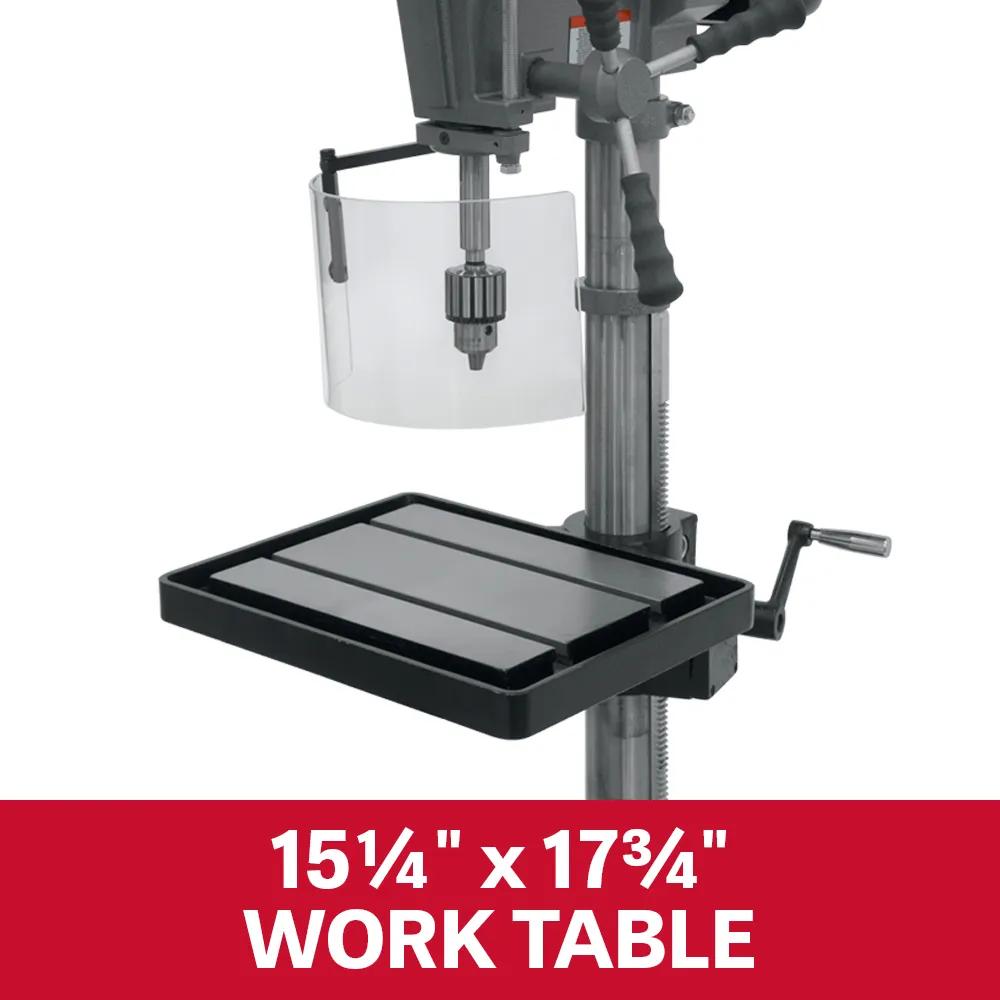

  • Table Size
    15 x 18 in.
  • Table Tilt (L, R, C)
    45 Deg.
  • Table Travel
    16-3/4 in.
  • UPC
    662756092700
  • Warranty
    Two Years
  • Work Table Weight Capacity
    90 lbs
