Product Details

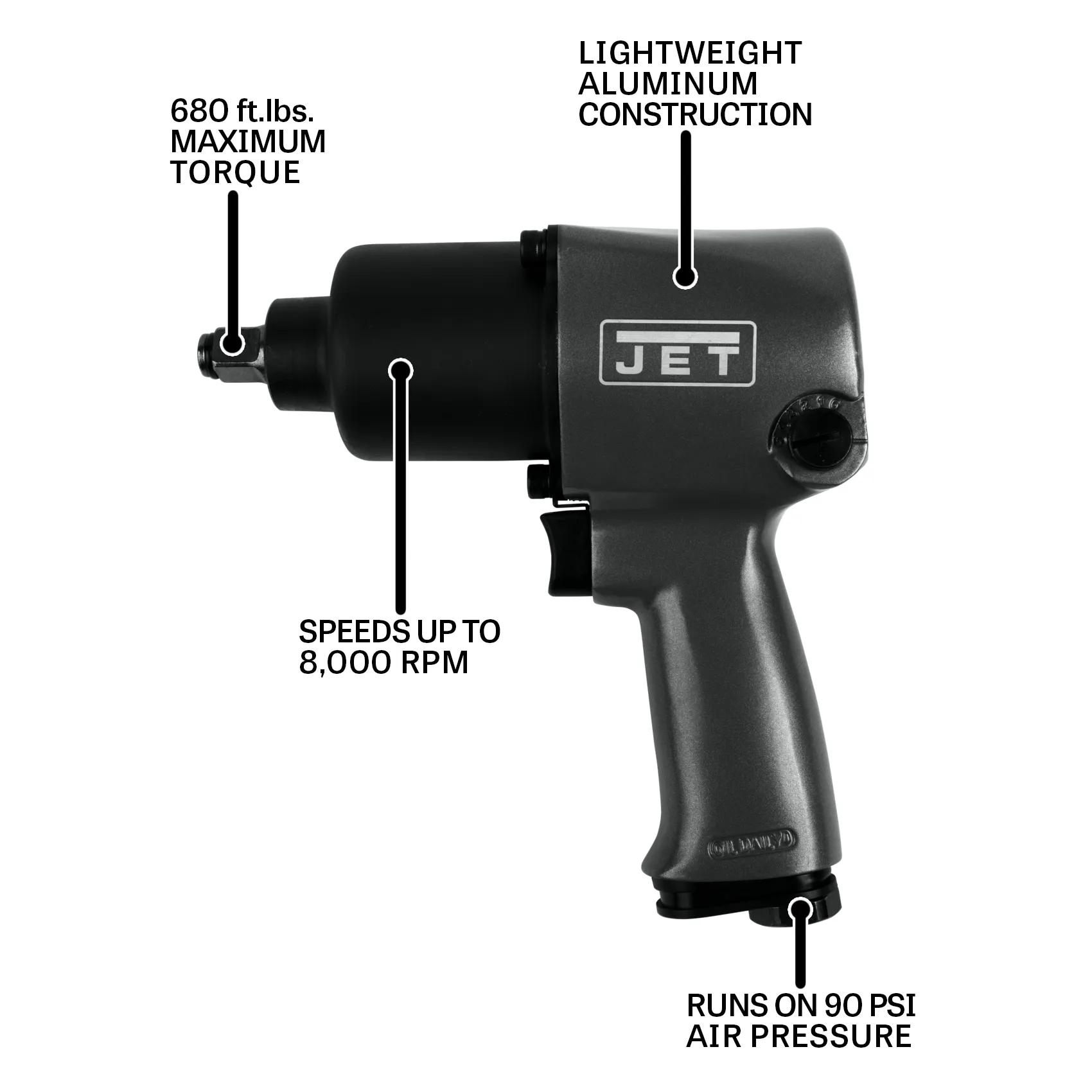

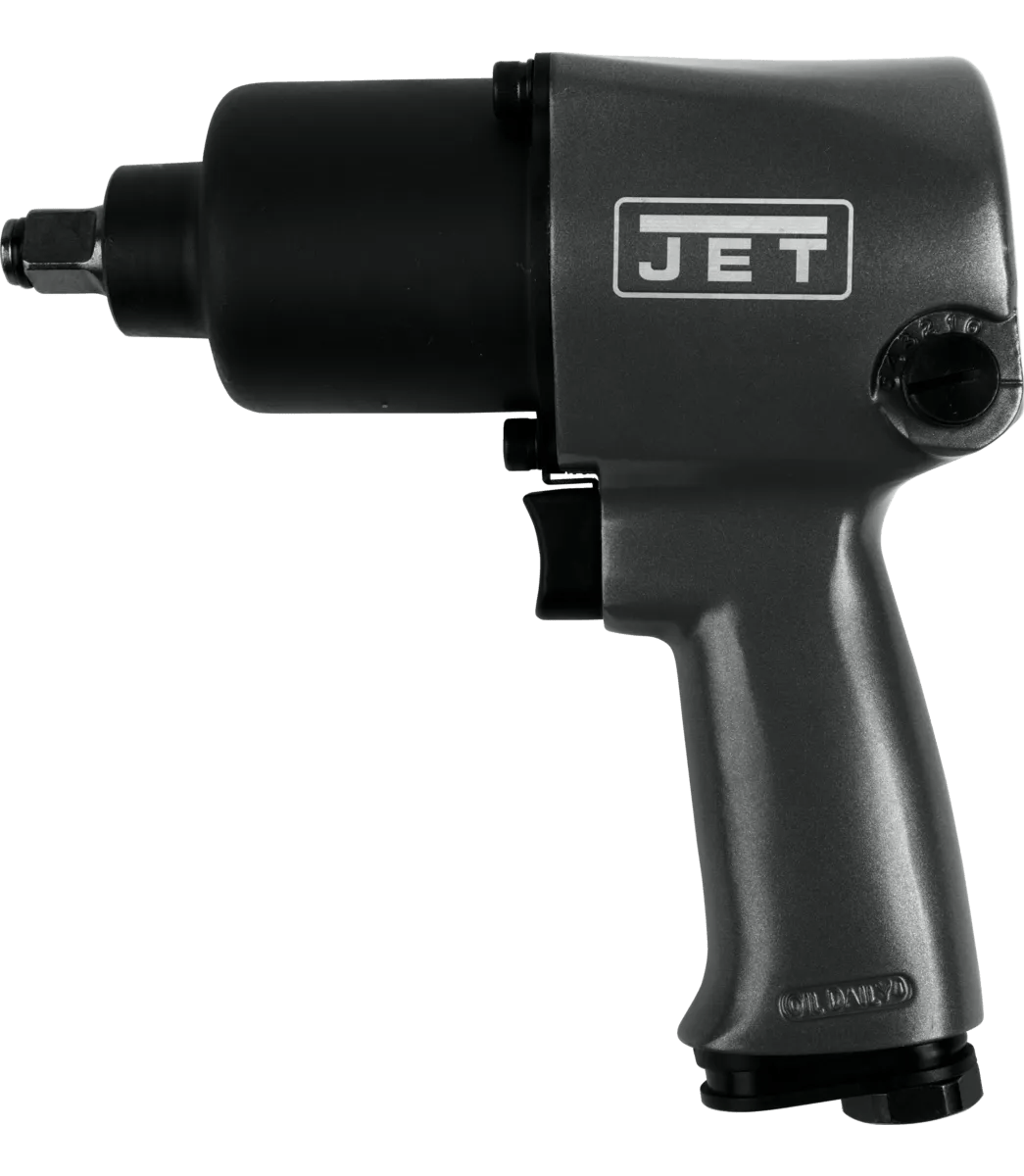

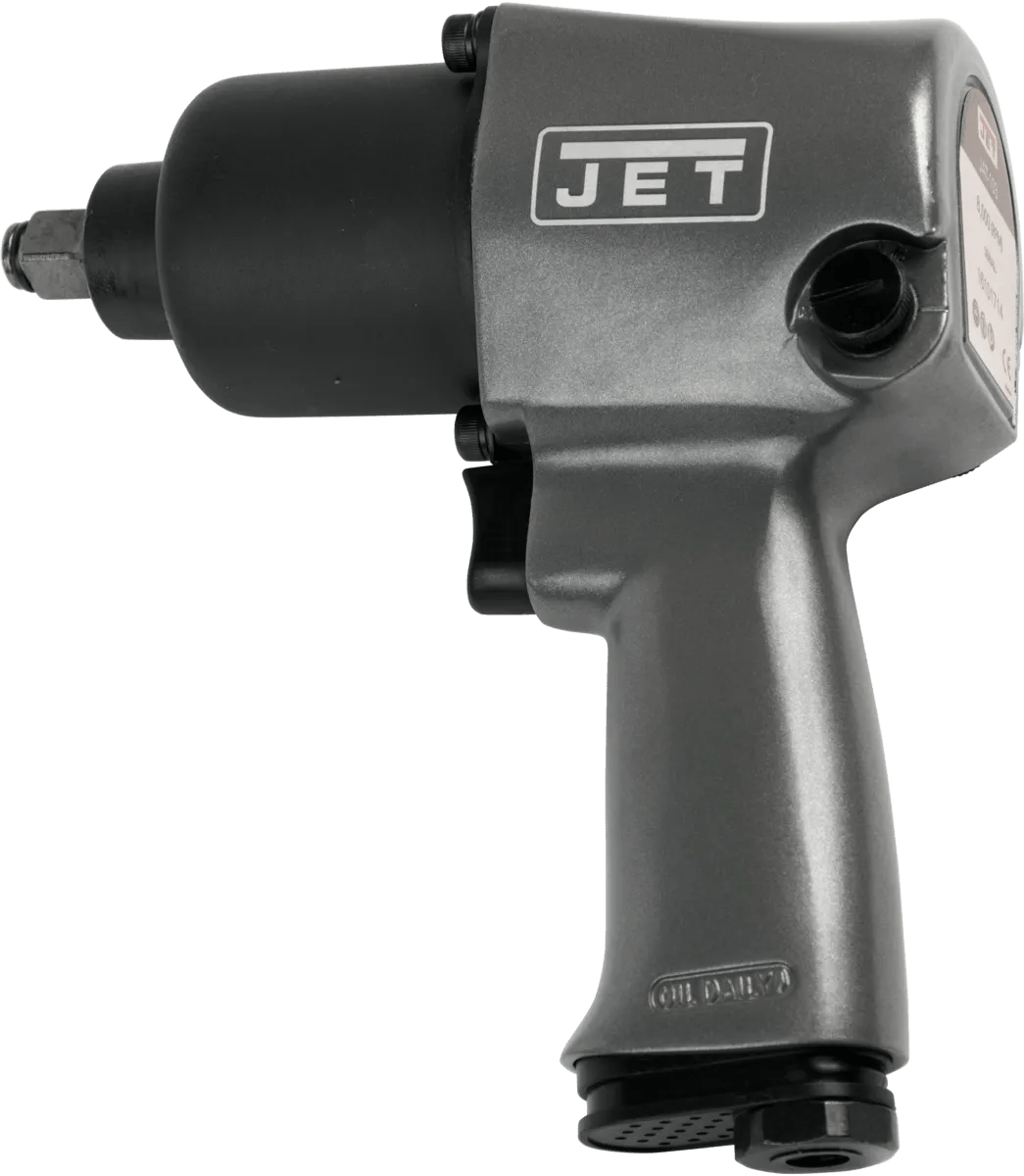

Power, precision, and the air supply your shop actually has. The JAT-103 fits the shops that run on compressed air daily — and the cycle counts they generate. Composite or aluminum housing, kevlar rotor vanes, and engineered trigger response deliver full-shift output across production cycles. Backed by JET warranty coverage.
Features
- Air consumption of 4.2 CFM matches the supply for full-shift pneumatic operation.
- Production-grade 8000 RPM free speed supports working velocity for production-grade material removal.
- Heavy-duty housing absorbs the impact loads for full-shift operator comfort under cutting load.

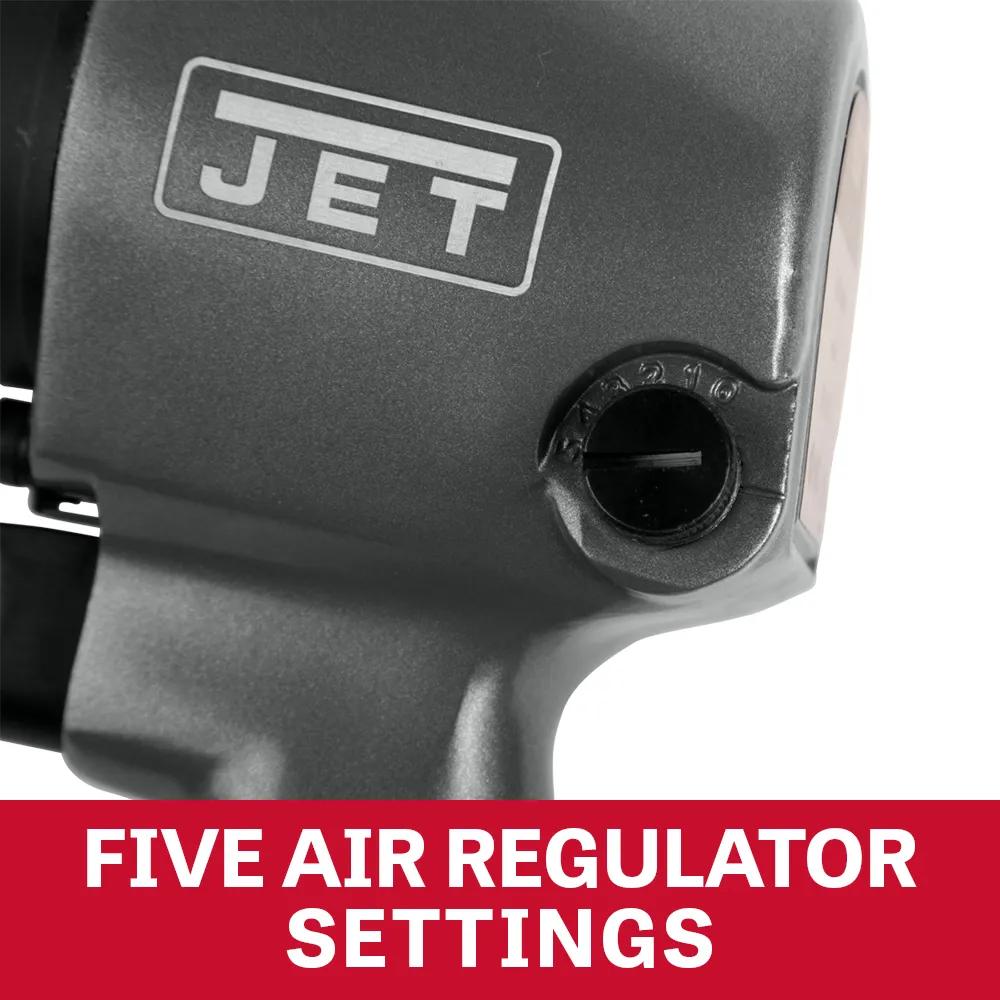

- Operator-side speed modulation matches working control for the modulation operators actually use during cuts.
- Industrial air tool design covers working output for the work envelope industrial pneumatic environments generate.
- Production capacity rating delivers the working envelope for the cycle counts production work actually generates.
Specifications
- SKUJT9-505103
- Air Consumption4.2 CFM
- Air Inlet Size1/4 in.
- Air Pressure Required90 psi
- Blow/hits1200
- Body TypePistol Grip
- Free Speed8000 RPM
- Length7.25 in.
- Maximum Torque680 ft. - lbs.
- Minimum Air Hose ID3/8 in.
- Model NumberJAT-103
- Old Material Number505103
- Product TypeTools & Equipment
- Prop 65Cancer and Reproductive Harm
- SAP Gross Weight6.38
- SAP Net weight5.89
- Sound Power Db A104 dB(A)
- Sound Pressure Db A100 dB(A)
- Square Drive1/2 in.
- UPC731325354058
- Vibration Value M S2.8 m/s2
- WarrantyLimited Lifetime Warranty
- Working Torque25-400 lbs. - ft.
