6" Bench Grinder, 0.25HP, 115V 1PH(JBG-6B)
6" Bench Grinder, 0.25HP, 115V 1PH(JBG-6B)
6" Bench Grinder, 0.25HP, 115V 1PH(JBG-6B)
6" Bench Grinder, 0.25HP, 115V 1PH(JBG-6B)
6" Bench Grinder, 0.25HP, 115V 1PH(JBG-6B)
6" Bench Grinder, 0.25HP, 115V 1PH(JBG-6B)
6" Bench Grinder, 0.25HP, 115V 1PH(JBG-6B)

6" Bench Grinder, 0.25HP, 115V 1PH(JBG-6B)

Stock Number: JT9-577101

0 Reviews

No reviews yet.

  • 0.25 HP, 115V, single-phase
  • Heavy-duty belt drive

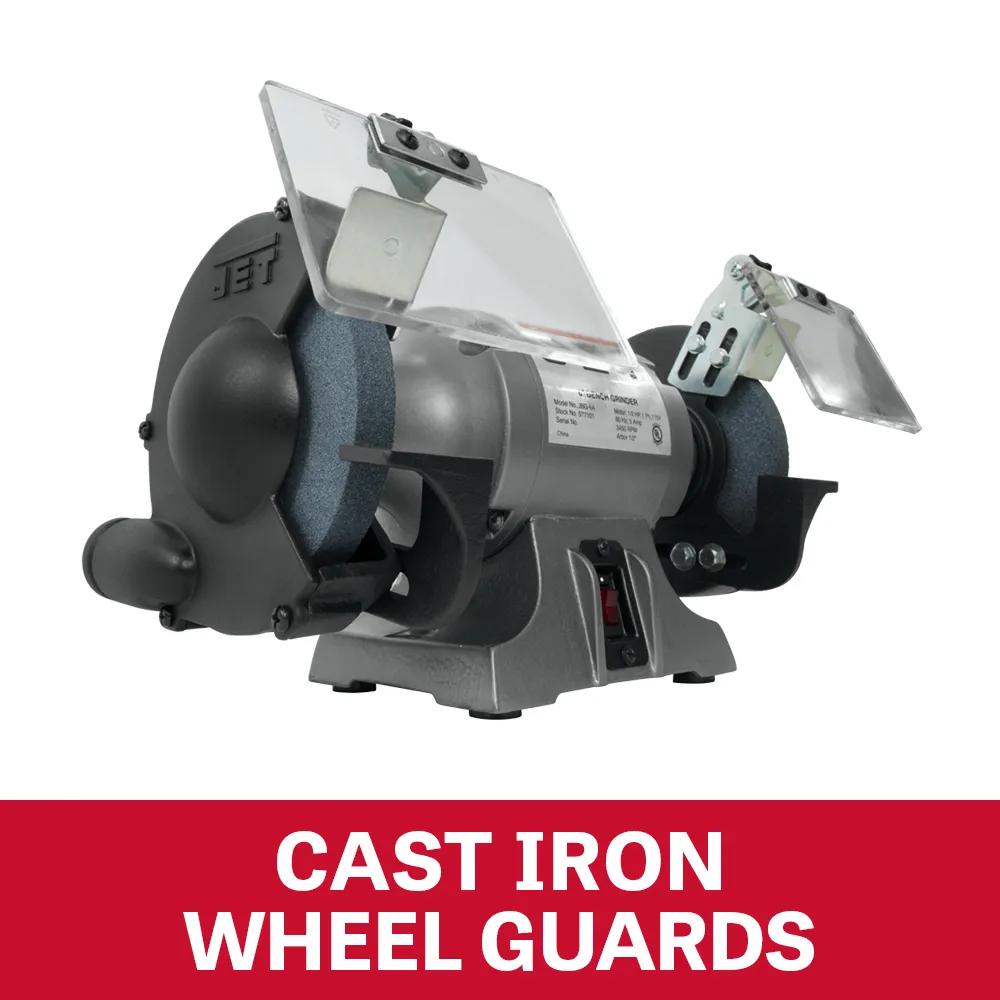

  • Cast iron base
  • Precision-balanced disc
BUY NOW

Product Details

Built for the operators who measure success in finished surfaces. Engineered around finishing work that has to pass QA review, the JBG-6B earns its place. Equipped with a 0.25 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for production finishing cycles, warrantied for the duty.

Features

  • Brushless 0.25 HP induction motor design means decades of service across production environments.
  • Industrial-grade abrasive belt drive — matching the surface-finish envelope production sanding generates across production finishing.
  • Production-spec belt design handles the abrasive cycle counts for the belt-length production finishing depends on.
  • Production-grade disc geometry matches flat grinding for the cycle counts production grinding generates.
  • Shop-rated tilting table — extending the working envelope across fabrication finishing.
  • Tolerance-grade cast iron frame castings earn their place for finish quality where lighter materials fail.

Specifications

  • SKU
    JT9-577101
  • Abrasive Type
    Aluminum Oxide
  • Assembled Dimensions
    18 x 10-1/2 x 8-1/2 in.
  • Disc Diameter
    6 in.
  • Disc Speed
    3450 RPM
  • Dust Port Outside Diameter
    2 in.
  • Horse Power
    1/2 HP
  • Input Power
    115 V 1 Ph
  • Model Number
    JBG-6B
  • Motor Amps
    5 A
  • Motor HP
    0.25 HP
  • Motor Phase
    Single
  • Motor Speed
    3450 RPM
  • Motor Voltage
    115 V
  • Net Weight
    37.45
  • Old Material Number
    577101
  • Prewired Voltage
    115 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Recommended Circut Size Amp
    15 A
  • Required Cfm
    350 - 350 CFM
  • SAP Gross Weight
    37.45
  • Shaft Diameter
    1/2 in.
  • Spindle Diameter
    1/2 in.
  • Spindle Speed
    3450 RPM
  • UPC
    662755105500
  • Warranty
    Two Years
  • Wheel Diameter
    6 in.
  • Wheel Grits
    36 / 60
  • Wheel Width
    3/4 in.
