8" Bench Grinder, 0.5HP, 120V 1PH(JBG-8B)
8" Bench Grinder, 0.5HP, 120V 1PH(JBG-8B)
8" Bench Grinder, 0.5HP, 120V 1PH(JBG-8B)
8" Bench Grinder, 0.5HP, 120V 1PH(JBG-8B)
8" Bench Grinder, 0.5HP, 120V 1PH(JBG-8B)
8" Bench Grinder, 0.5HP, 120V 1PH(JBG-8B)
8" Bench Grinder, 0.5HP, 120V 1PH(JBG-8B)

8" Bench Grinder, 0.5HP, 120V 1PH(JBG-8B)

Stock Number: JT9-577102

0 Reviews

No reviews yet.

  • 0.5 HP, 120V, single-phase
  • Heavy-duty belt drive
  • Cast iron base
  • Precision-balanced disc
BUY NOW
Fetching Data...

Product Details

Built for the operators who measure success in finished surfaces. Designed for industrial finishing environments running long abrasive cycles, the JBG-8B stands up to the duty cycle. Equipped with a 0.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage backs every production-grade finish.

Features

  • Industrial 0.5 HP induction motor — delivering production-grade power output, engineered for the cycle counts industrial use generates.
  • Working-grade abrasive belt drive — delivering consistent abrasive contact across production finishing.
  • Production-grade belt design handles the abrasive cycle counts for the surface-area envelope production sanding requires.
  • Heavy-duty disc construction — delivering flat grinding geometry.
  • Production-grade tilting table — delivering the angle accuracy precision finishing requires across production grinding.
  • Cast iron frame castings dampen vibration for dimensional stability under sustained cutting loads.

Specifications

  • SKU
    JT9-577102
  • Abrasive Type
    Aluminum Oxide
  • Assembled Dimensions
    19 x 12-1/2 x 10 in.
  • Disc Diameter
    8 in.
  • Disc Speed
    3450 RPM
  • Dust Port Outside Diameter
    2 in.
  • Horse Power
    1 HP
  • Input Power
    115 V 1 Ph
  • Model Number
    JBG-8B
  • Motor Amps
    8 A
  • Motor HP
    0.5 HP
  • Motor Phase
    Single
  • Motor Speed
    3450 RPM
  • Motor Voltage
    120 V
  • Old Material Number
    577102
  • Prewired Voltage
    115 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Recommended Circut Size Amp
    15 A
  • Required Cfm
    350 - 350 CFM
  • SAP Gross Weight
    61.7
  • SAP Net weight
    61.7
  • Shaft Diameter
    5/8 in.
  • Spindle Diameter
    5/8 in.
  • Spindle Speed
    3450 RPM
  • UPC
    662755105517
  • Warranty
    Two Years
  • Wheel Diameter
    8 in.
  • Wheel Grits

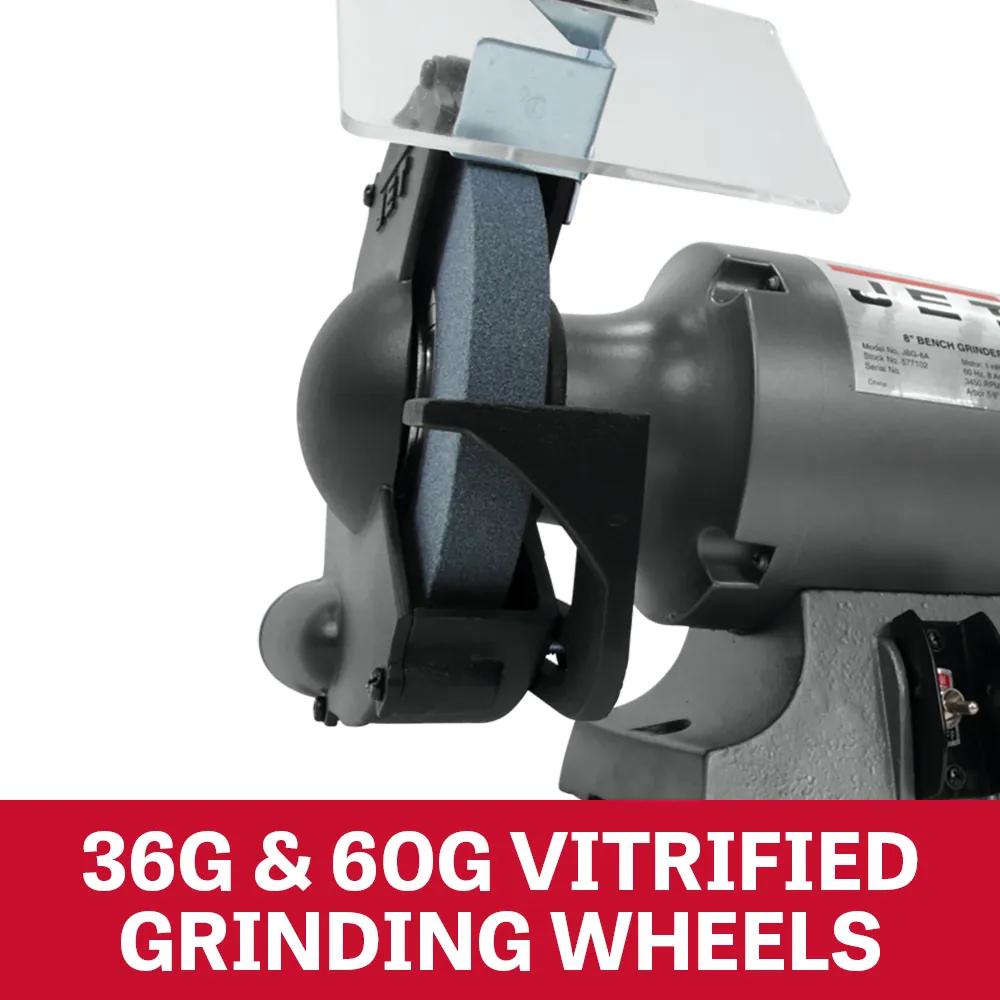

    36 / 60
  • Wheel Width
    1 in.
