Particulate capture, equipment longevity, and operator health — in one system. The JCDC-1.5 is built for facilities where equipment life and operator health both depend on filtration. Equipped with a 1.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage stands behind every CFM rating.
Features
- The 763 CFM spec was sized for the particulate loads industrial work generates.

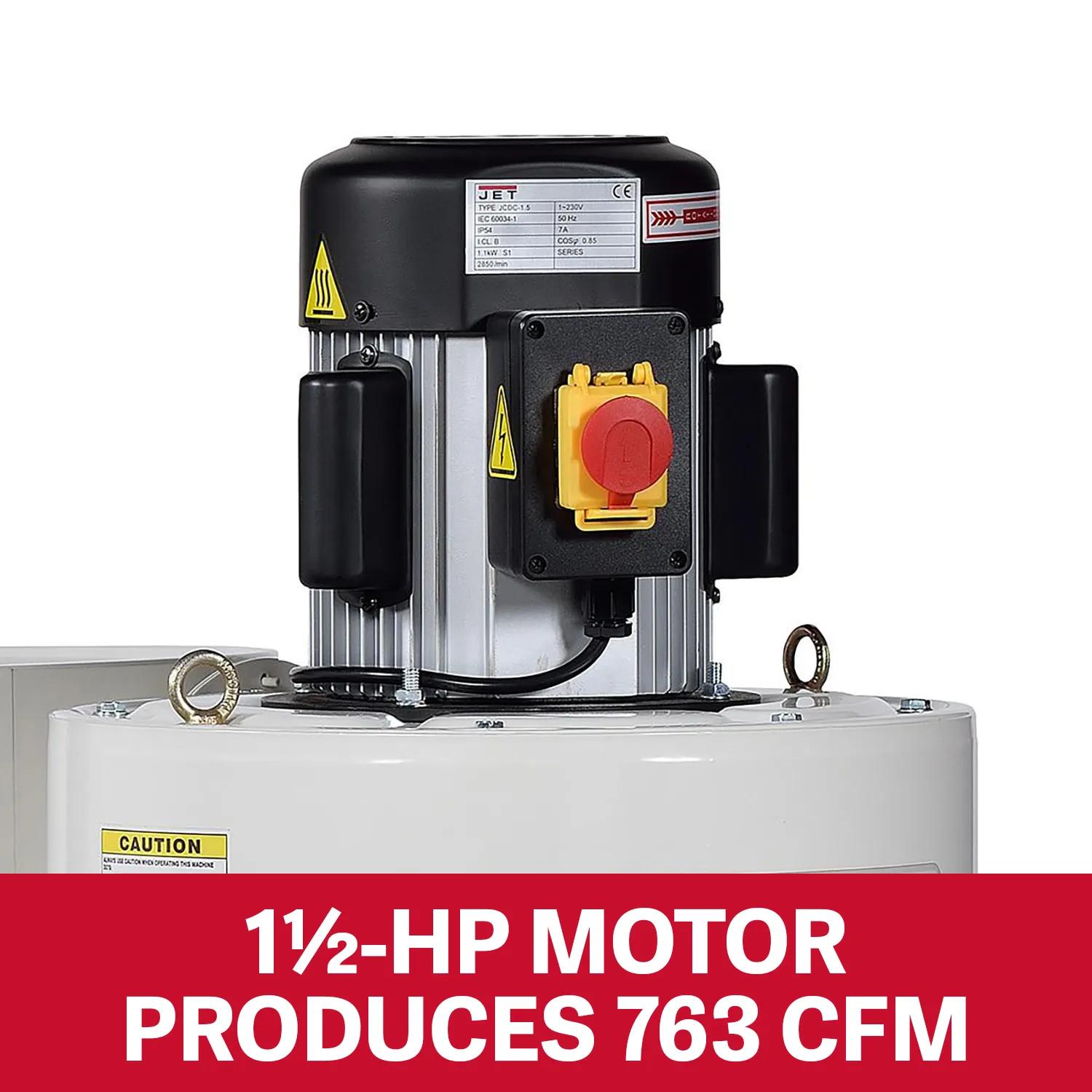

- Sealed 1.5 HP induction motor protects against the dust, chips, and humidity of tool rooms.

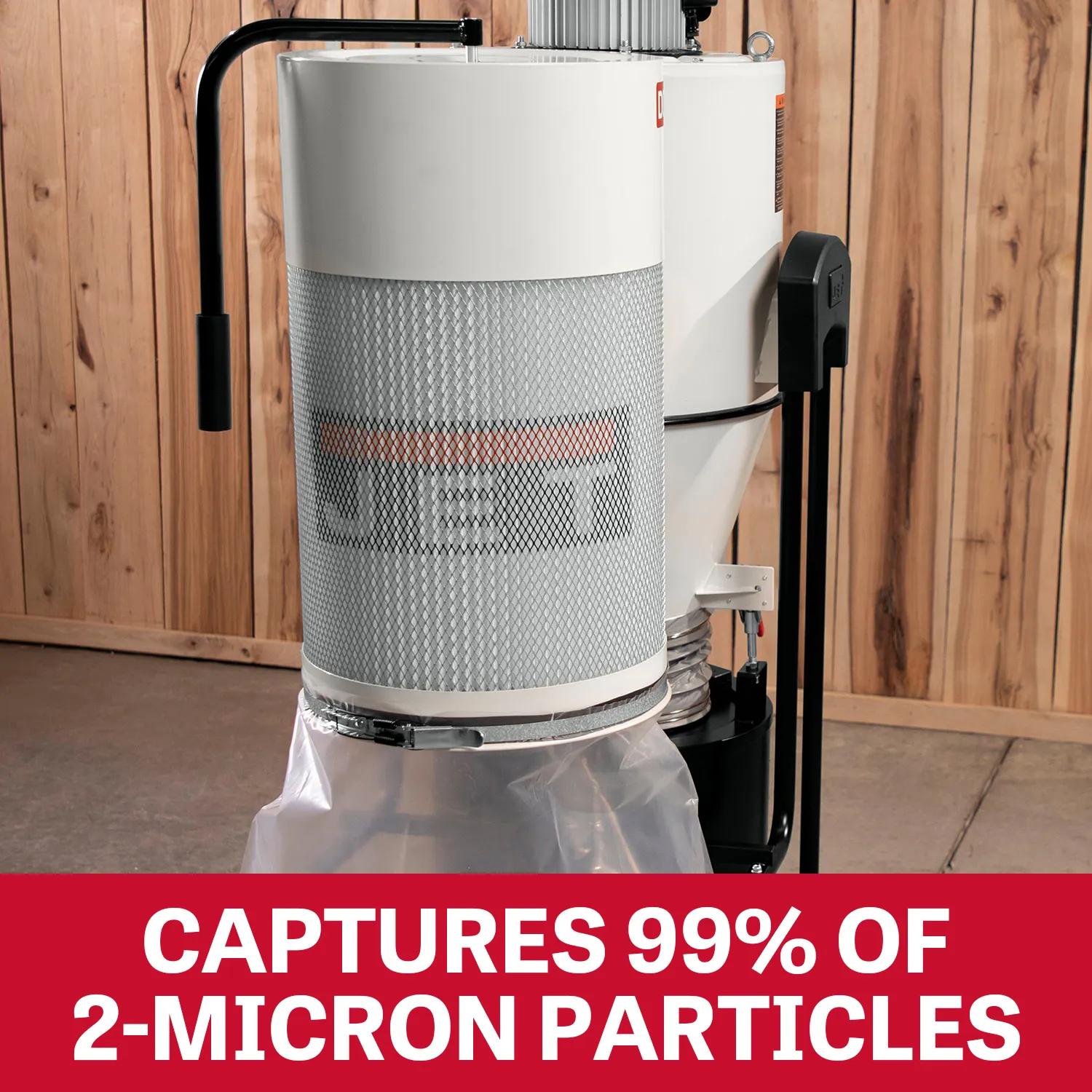

- From visible dust to invisible mist, the media catches it for capturing fine particulates production air quality monitoring requires.
- Production-grade multi-stage filter design — capturing both coarse and fine particulates in one engineered path across professional shop floors.
- Production-grade mounting design — handling continuous-duty vibration loads across professional shop layouts.
- Precision-rated hardened drivetrain components — running quieter, cooler, and with less vibration than stock-grade alternatives, engineered for the working precision shops measure in tenths.
Specifications
- SKUJT9-717515
- Air Consumption763 CFM

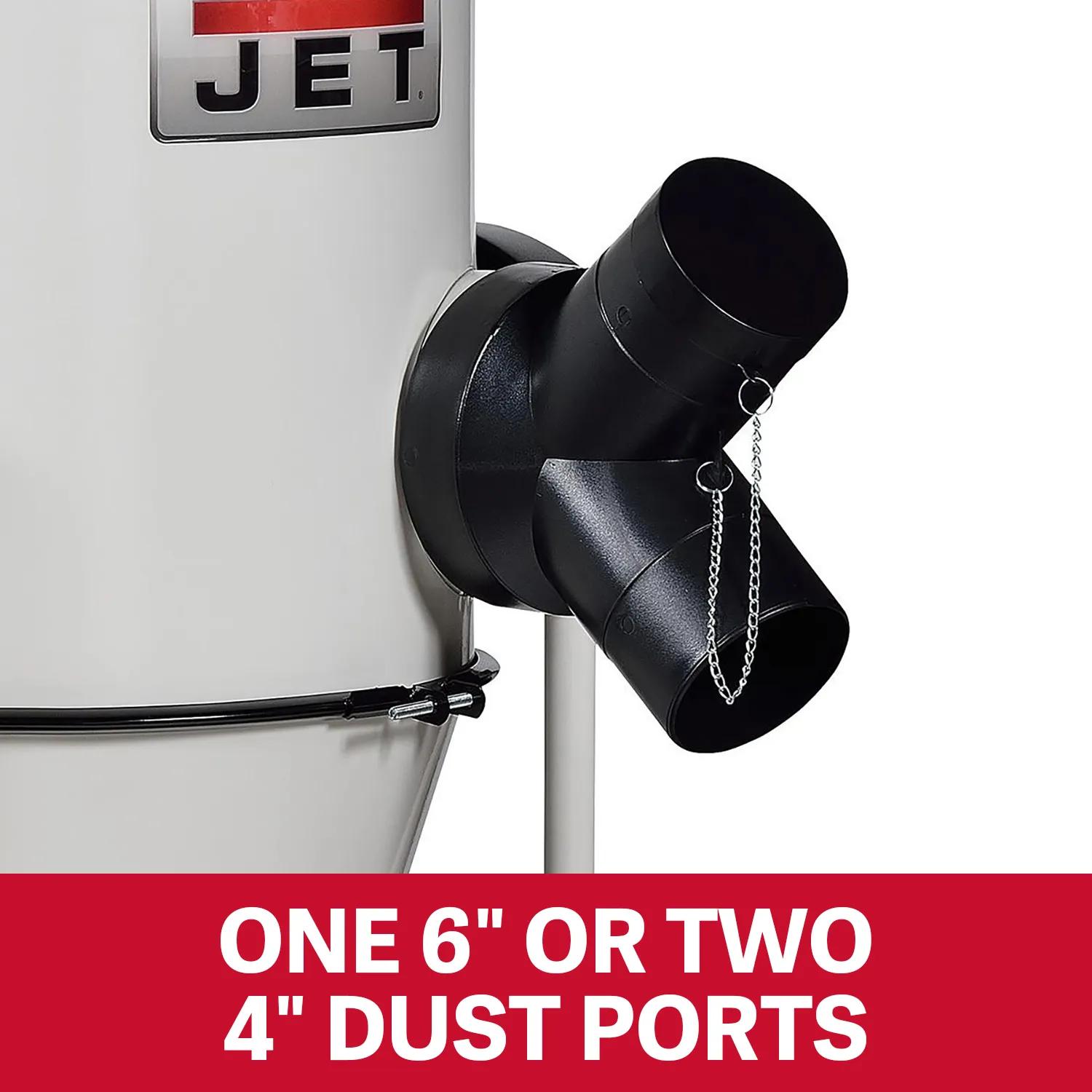

- Air Inlet Size4 or 6 in.
- Assembled Dimensions22 x 47 x 67-9/16 in.
- Base Size47 x 22 in.
- Batteries IncludedNo
- Connection Diameter4 in. 2 Hose, 6 in. 1 Hose
- Filter Canister Length15-3/4 in.
- Filter TypeCartridge and Spunbond Polyester
- Height67-9/16 in.
- Horse Power1.5 HP
- Impeller Diameter6 in.
- Impeller MaterialSteel
- Input Power115 V 1 Ph
- Maximum CFM1259 CFM
- Maximum Static Pressure8-3/16 in.
- MERV ValueMERV 13
- Model NumberJCDC-1.5
- Motor Amps14 A
- Motor HP1.5 HP
- Motor PhaseSingle
- Motor Voltage115 V
- Old Material Number717515
- Prewired Voltage115 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- SAP Gross Weight175
- SAP Net weight132
- Speeds CFM Filtered Air763 CFM
- Style TypeCyclone
- UPC731325424218
- Velocity at 4 FPM3877 FPM
- WarrantyFive Years
