Product Details
Built for shops that take air quality as serious as the work itself. Designed for shops where dust, smoke, and oil mist are part of operations, the JCDC-2 stands up to the duty cycle. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial filtration durability backed by JET service network.
Features
- 938 CFM air filtration handles the dust, smoke, and particulates for the work envelope this filtration system targets.

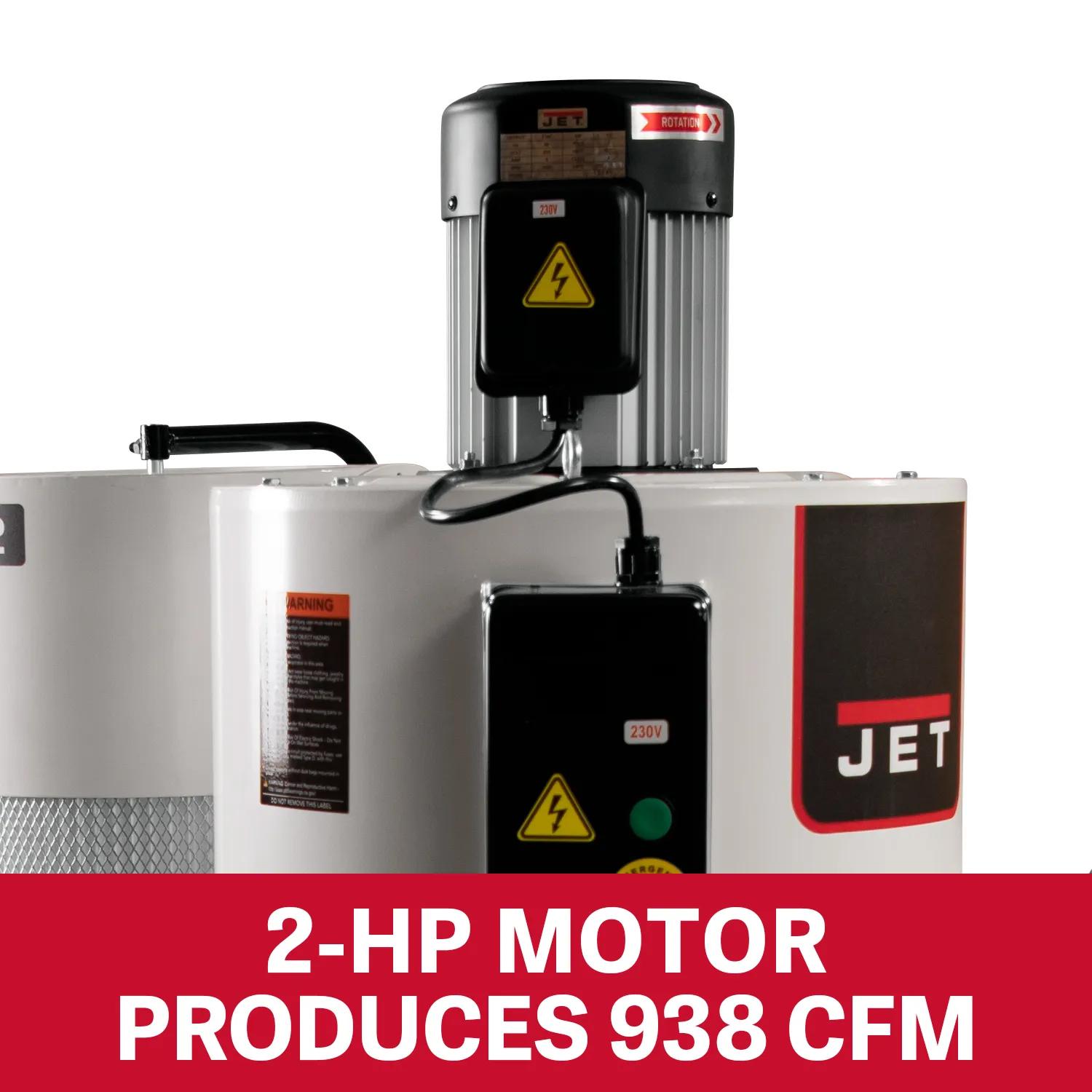

- Continuous-duty 2 HP induction drive — running at nameplate output.

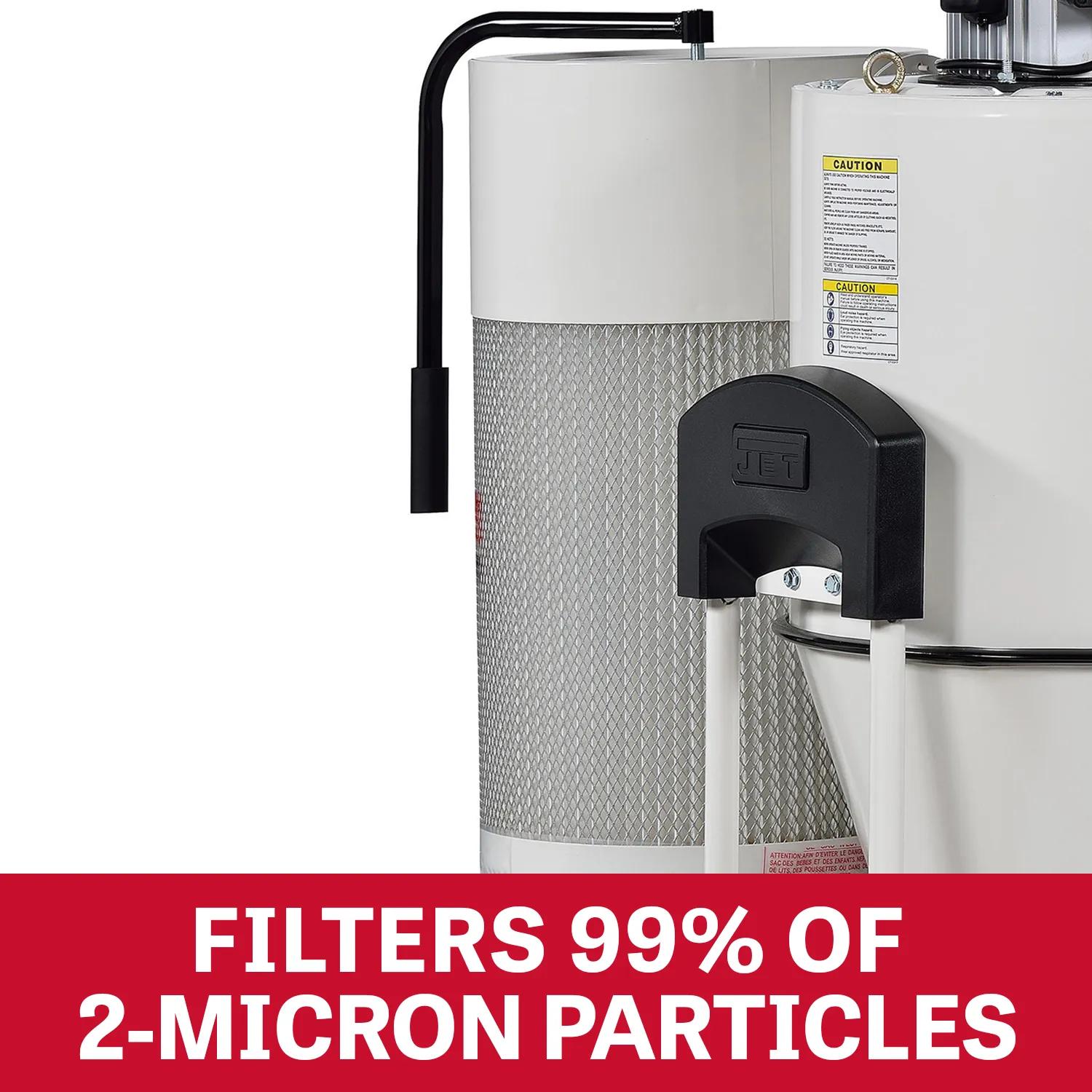

- From visible dust to invisible mist, the media catches it for the particulate sizes industrial cutting actually generates.
- Factory-tested multi-stage filter design — extending primary filter life across industrial filtration applications.
- Production-grade mounting design — fitting the shop layouts production environments actually have across production shop floors.
- Heat-treated, ground, and matched drivetrain components run as a precision system across industrial shop floors.
Specifications
- SKUJT9-717520
- Air Consumption938 CFM
- Air Inlet Size4 or 6 in.
- Assembled Dimensions25-7/8 x 50-5/8 x 72-1/4 in.
- Base Size50-5/8 x 25-7/8 in.
- Batteries IncludedNo

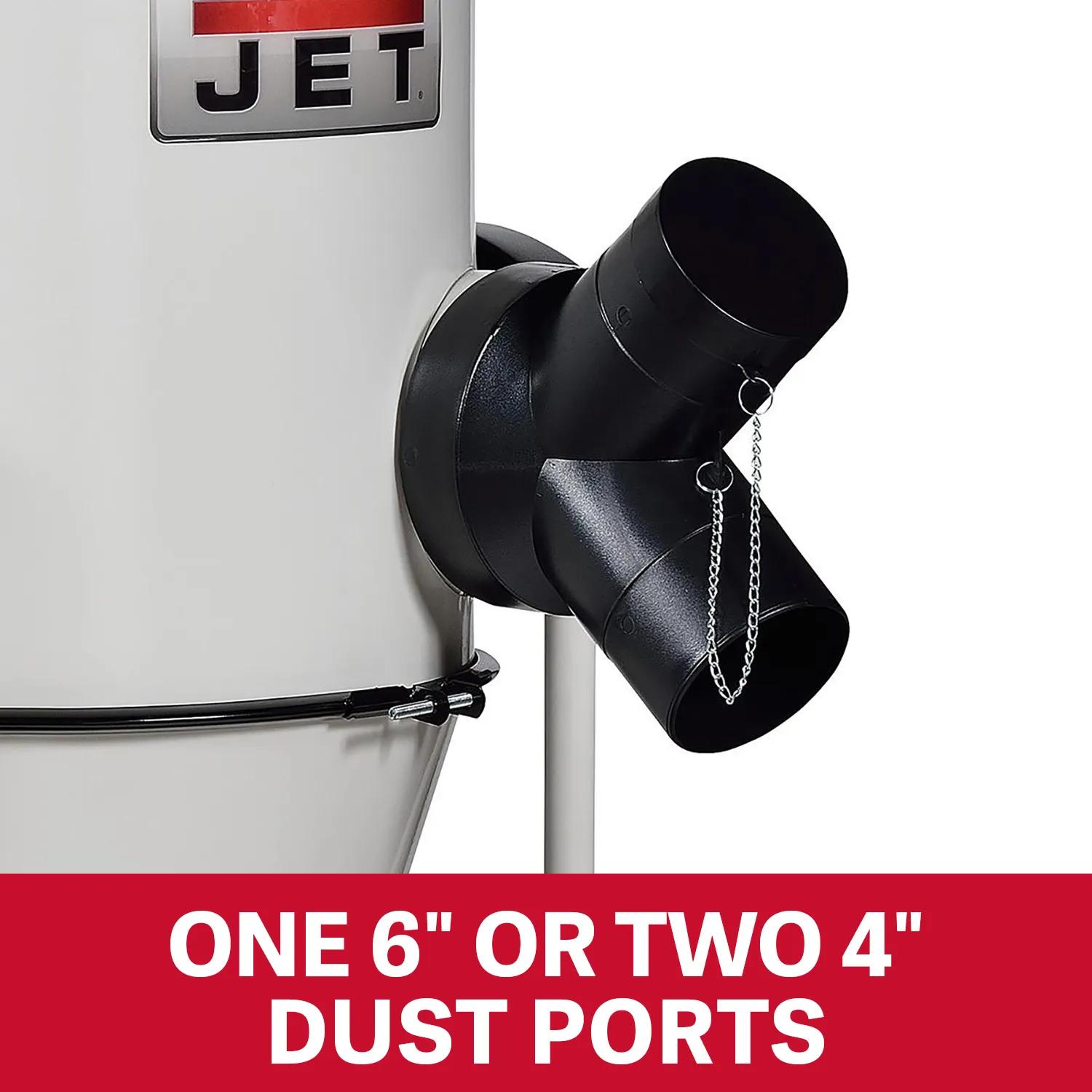

- Connection Diameter4 in. 2 Hose, 6 in. 1 Hose
- Filter Canister Length22-5/8 in.
- Filter TypeCartridge and Spunbond Polyester
- Height72-1/4 in.
- Horse Power2 HP
- Impeller Diameter14-1/2 in.
- Impeller MaterialSteel
- Input Power230 V 1 Ph
- Maximum CFM1538 CFM
- Maximum Static Pressure10-1/16 in.
- MERV ValueMERV 13
- Model NumberJCDC-2
- Motor Amps9 A
- Motor HP2 HP
- Motor PhaseSingle
- Motor Voltage230 V
- Old Material Number717520
- Prewired Voltage230 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- SAP Gross Weight235
- SAP Net weight207
- Speeds CFM Filtered Air938 CFM
- Style TypeCyclone
- UPC731325424225
- Velocity at 4 FPM4763 FPM
- WarrantyFive Years
