410 CFM, Bench Dust Collector, 1/3HP, 115V 1PH(JDC-500B)
410 CFM, Bench Dust Collector, 1/3HP, 115V 1PH(JDC-500B)
410 CFM, Bench Dust Collector, 1/3HP, 115V 1PH(JDC-500B)
410 CFM, Bench Dust Collector, 1/3HP, 115V 1PH(JDC-500B)
410 CFM, Bench Dust Collector, 1/3HP, 115V 1PH(JDC-500B)
410 CFM, Bench Dust Collector, 1/3HP, 115V 1PH(JDC-500B)
410 CFM, Bench Dust Collector, 1/3HP, 115V 1PH(JDC-500B)

410 CFM, Bench Dust Collector, 1/3HP, 115V 1PH(JDC-500B)

Stock Number: JT9-414850

0 Reviews

No reviews yet.

  • 0.33 HP, 115V, single-phase
  • 410 CFM air filtration
  • Multi-stage filter design
  • Industrial-grade construction
BUY NOW
Fetching Data...

Product Details

Production-grade air filtration for environments that demand it. Engineered around facilities where equipment life and operator health both depend on filtration, the JDC-500B earns its place. Equipped with a 0.33 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage stands behind every CFM rating.

Features

  • Workshop air turnover at 410 CFM — moving the air volume industrial environments require.
  • Factory-sealed 0.33 HP 115V induction motor stands up to fabrication shops.
  • Sub-micron capture rate built into the filter media for both equipment life and operator health.
  • Filter-stage architecture matches the particulate envelope for both coarse particulates and fine dust in one pass.
  • Overhead installation flexibility for any shop layout — keeping shop floor space clear across production shop floors.
  • Wireless remote handles speed and timer control for operators running filtration without leaving the work station.

Specifications

  • SKU
    JT9-414850
  • Air Consumption
    410 CFM

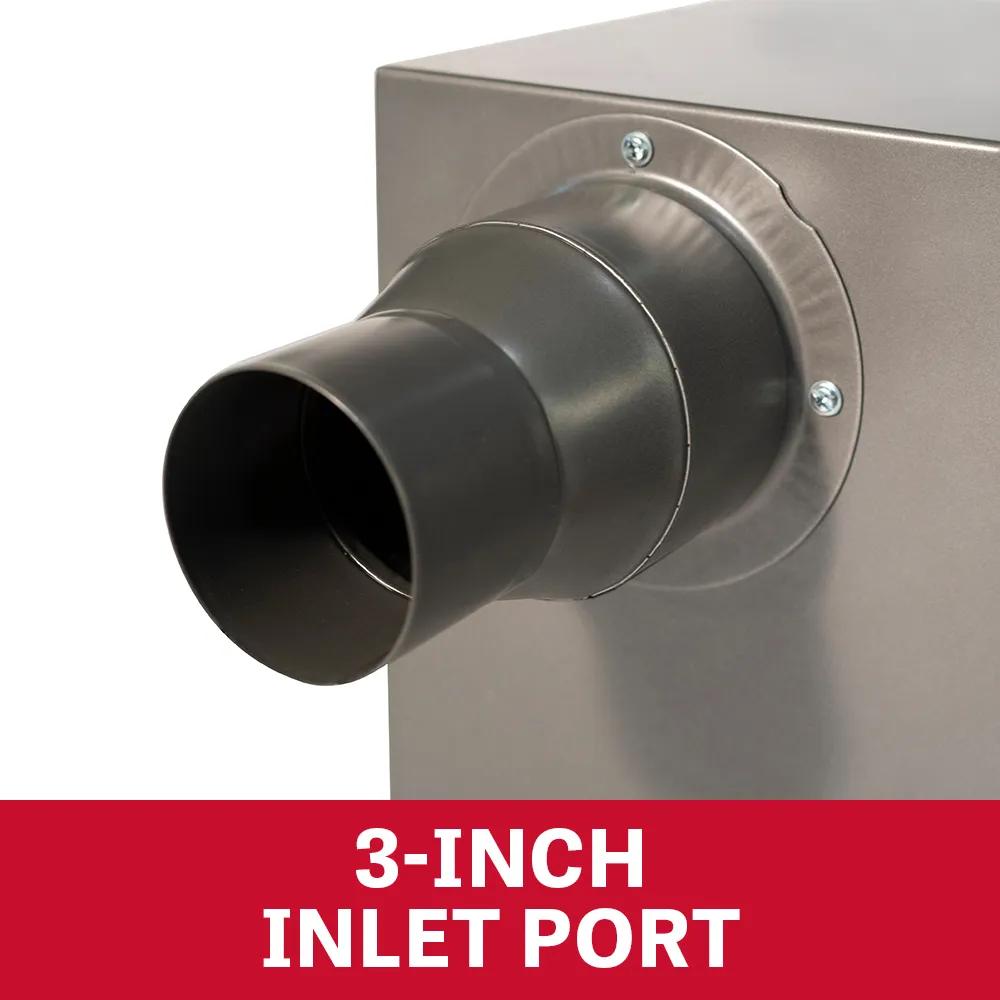

  • Air Inlet Size
    3 in.
  • Assembled Dimensions
    14-9/32 x 19-5/8 x 16-15/16 in.
  • Batteries Included
    No
  • Filter Size W X L X D
    11-25/32 x 10-15/32 x 1-3/16 in.

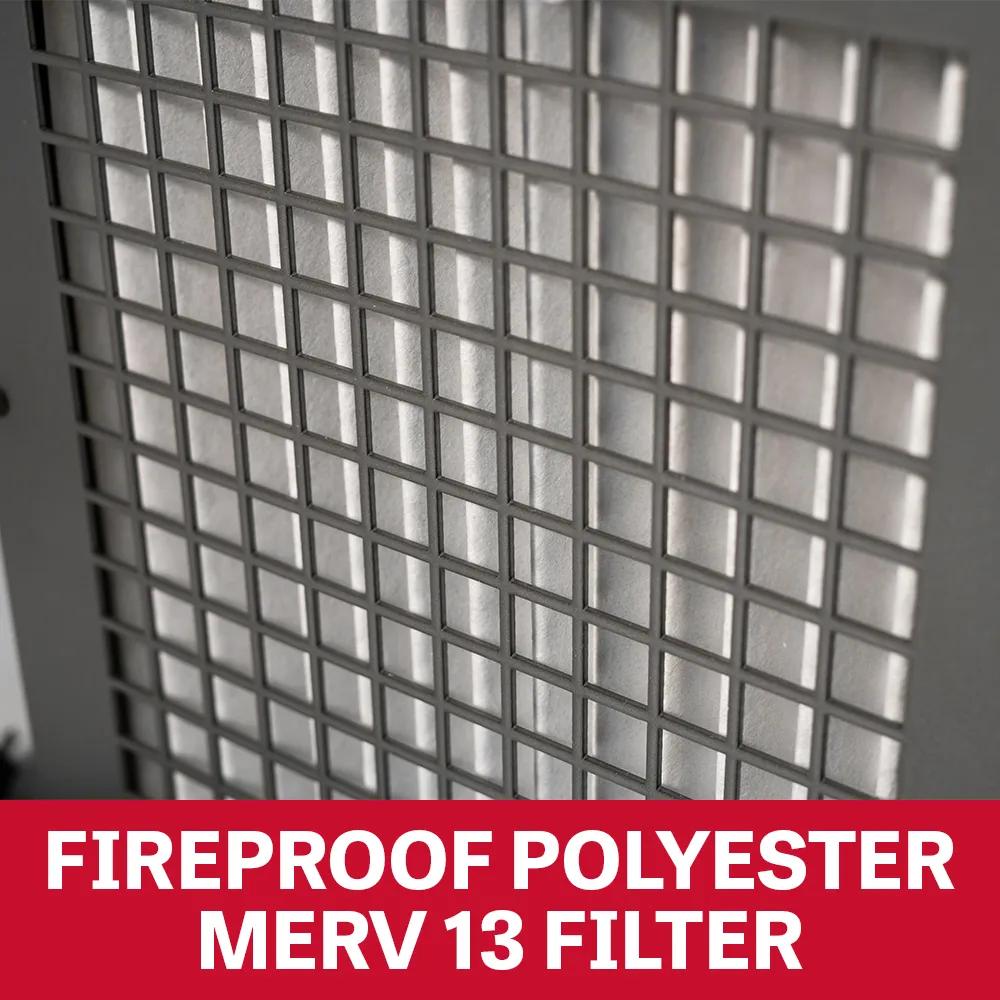

  • Filter Type
    Outside: Spunbound polyester, Inside: Anti-Spark/Fireproof
  • Height
    16-15/16 in.
  • Horse Power
    1/3 HP
  • Input Power
    115 V 1 Ph
  • Maximum CFM
    410 CFM
  • MERV Value
    MERV 13 (outer), MERV 11 (inner)
  • Micron Rating
    5 Micron
  • Model Number
    JDC-500B
  • Motor Amps
    15 A
  • Motor HP
    0.33 HP
  • Motor Phase
    Single
  • Motor Type
    Enclosed
  • Motor Voltage
    115 V
  • Noise Level Db at 3Ft
    74-88 dB
  • Number Ports
    1
  • Old Material Number
    414850
  • Port Size
    3 in.
  • Prewired Voltage
    115 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • SAP Gross Weight
    53
  • SAP Net weight
    47
  • Sound Rating Db
    75 dB @ 3 ft.
  • Speeds CFM Filtered Air
    410 CFM
  • Style Type
    Dust Collector
  • UPC
    731325868548
  • Warranty
    Two Years
