Product Details
Workshop safety starts with the air you breathe. Designed for shops where dust, smoke, and oil mist are part of operations, the JDC-501 stands up to the duty cycle. Equipped with a 1.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial filtration durability backed by JET service network.
Features
- Rated 490 CFM means the system actually clears the air for the air-volume production shops actually need to move.
- Heavy-duty 1.5 HP induction motor handles working speed under load — outlasting brush-driven alternatives across decades.
- Capture-rate engineering measured in microns, not promises — covering the particulate loads production work generates.

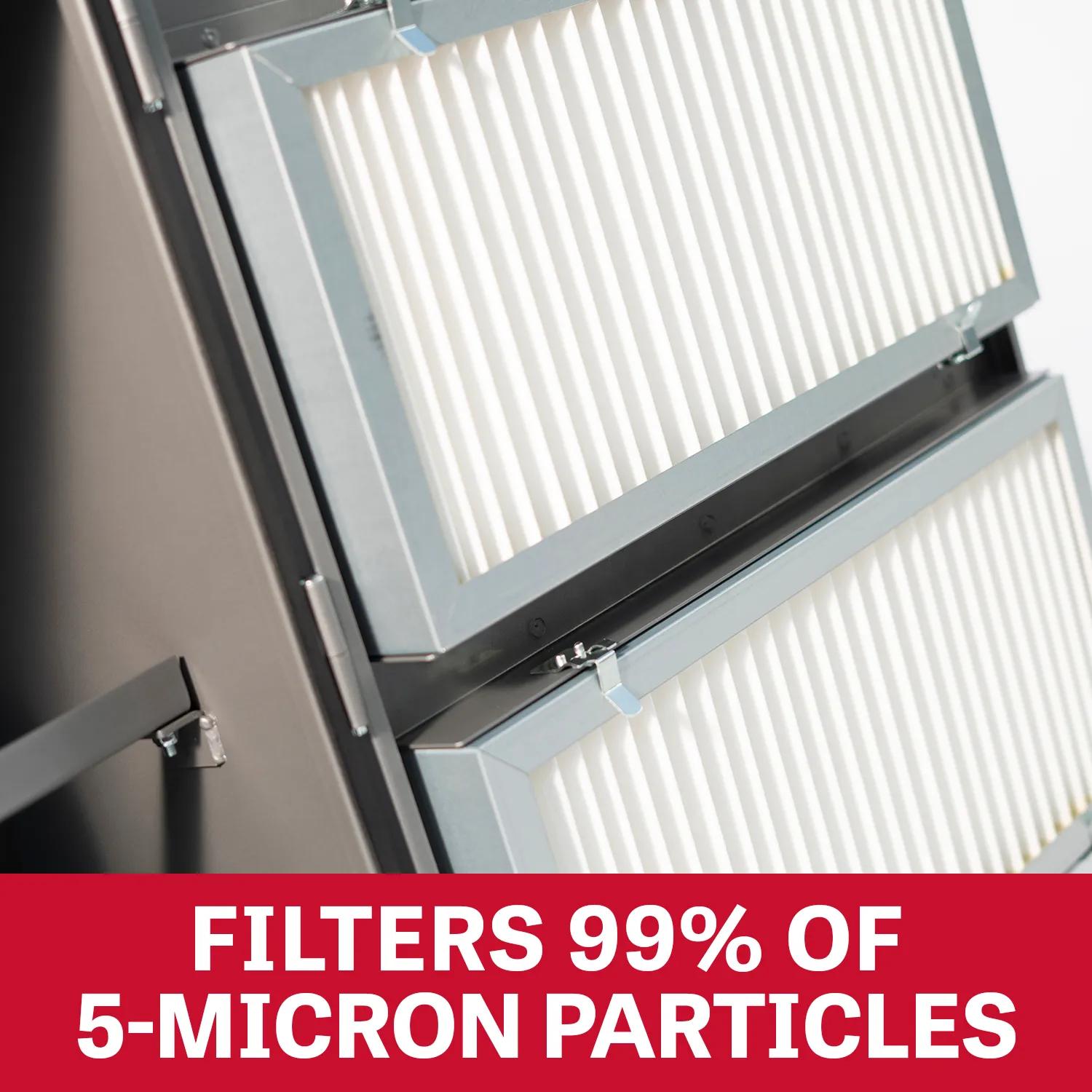

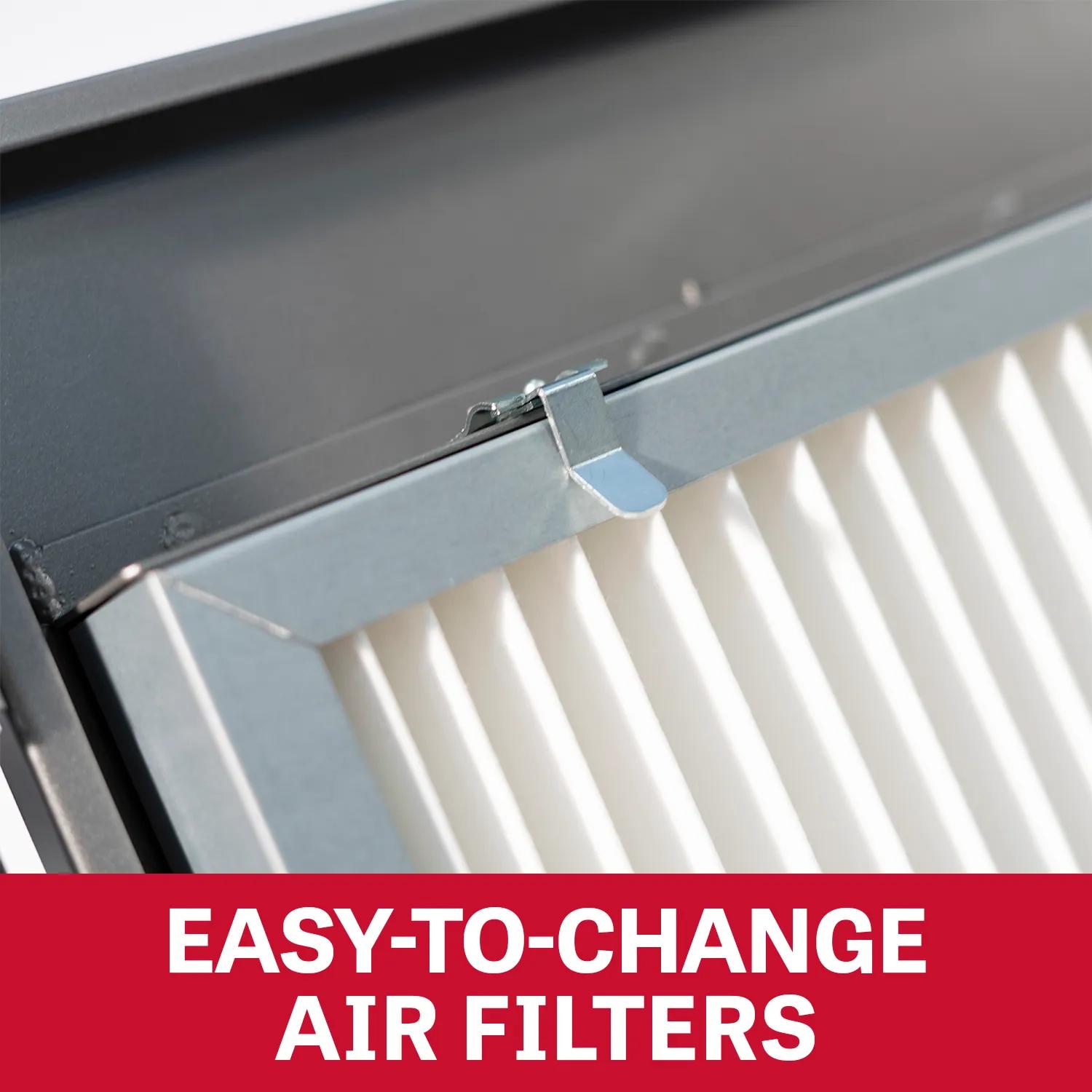

- Engineered filter media handles the dust loads for the filter-stage architecture production air work demands.
- Hanging hardware sized for continuous-duty vibration loads — delivering installation flexibility production environments expect.

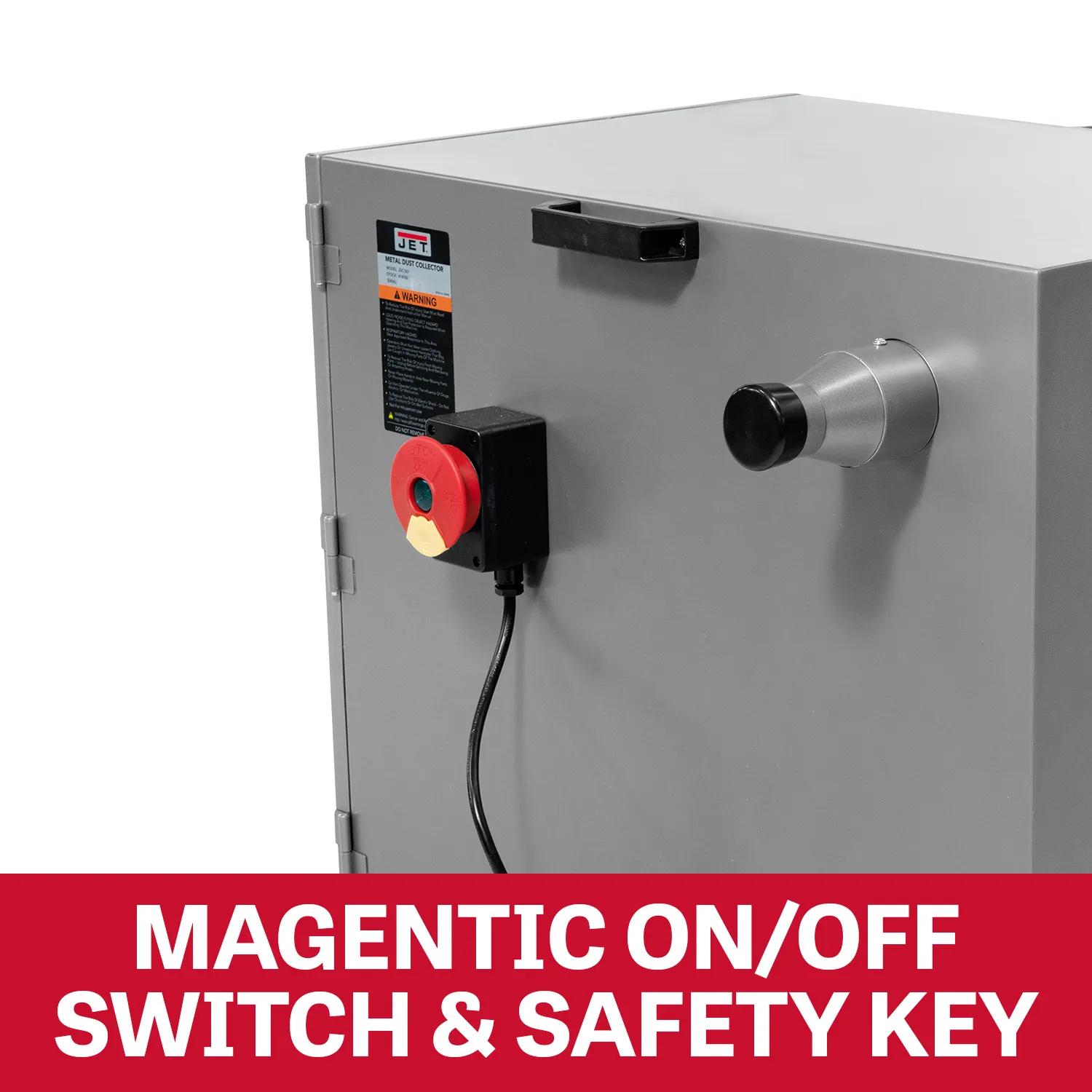

- Operator-side remote — handling speed and timer control wirelessly across industrial shop operations.
Specifications
- SKUJT9-414700
- Air Consumption490 CFM
- Air Inlet Size3 x 2 in.
- Assembled Dimensions30.5 x 31.5 x 31.5 in.
- Batteries IncludedNo
- Filter Size W X L X D19 x 9.5 x 2 in.
- Filter TypeMicro steel mesh
- Height31-1/2 in.
- Horse Power1.5 HP
- Input Power115/230 V 1 Ph
- Maximum CFM490 CFM
- Maximum Hose Velocity5610 FPM
- MERV Value99% of 5 micron
- Model NumberJDC-501
- Motor Amps30 A
- Motor HP1.5 HP
- Motor PhaseSingle
- Motor TypeEnclosed, fan-cooled, induction, capacitor start
- Motor Voltage115/230 V
- Noise Level Db at 3Ft74-88 dB
- Number Of Filters2

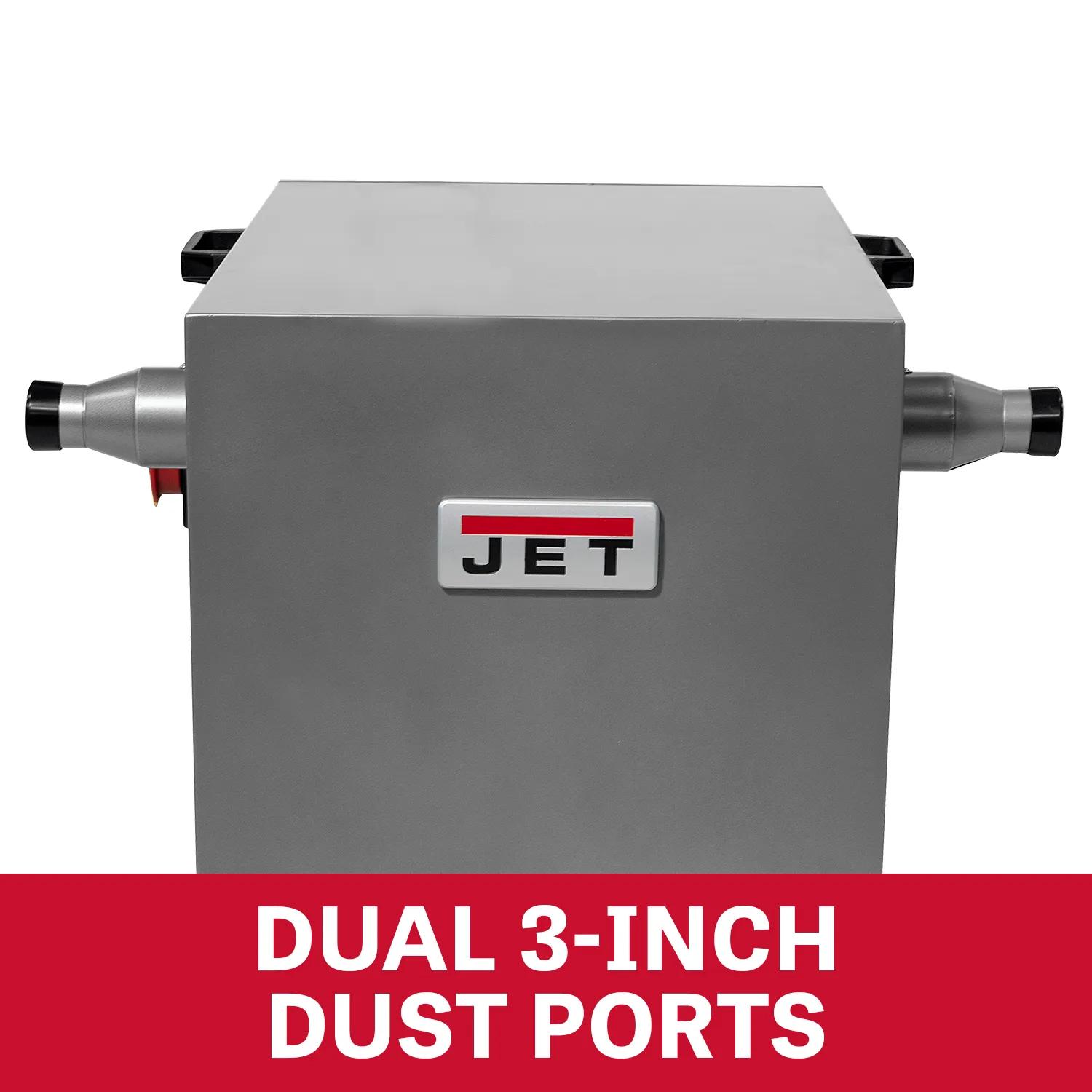

- Number Ports2
- Old Material Number414700
- Port Size3 in.
- Prewired Voltage115 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- SAP Gross Weight157
- SAP Net weight157
- Speeds CFM Filtered Air490 CFM
- Style TypeCabinet
- UPC731325204117
- WarrantyTwo Years
