Product Details
Built for shops that take air quality as serious as the work itself. The JDC-510 is built for shops where dust, smoke, and oil mist are part of operations. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for daily duty, warrantied for the long run.
Features
- Working-grade 957 CFM air movement handles particulate capture for serious shop air quality requirements.
- 3 HP, 230V single-phase induction motor — holding speed under load when lighter motors stall, sized for the duty range working shops actually run.
- Pleated filter media captures particulates for the particulate sizes industrial cutting actually generates.
- Multi-stage filter design captures both coarse particulates and fine dust for extending primary filter life across heavy use.
- Engineered mounting hardware handles the vibration loads for keeping shop floor space clear.
- RF remote means filtration runs without operator-side wiring for operators running filtration without leaving the work station.
Specifications
- SKUJT9-414900
- Air Consumption957 CFM
- Air Inlet Size3 x 3 in.
- Assembled Dimensions32.5 x 32 x 39.6 in.
- Batteries IncludedNo

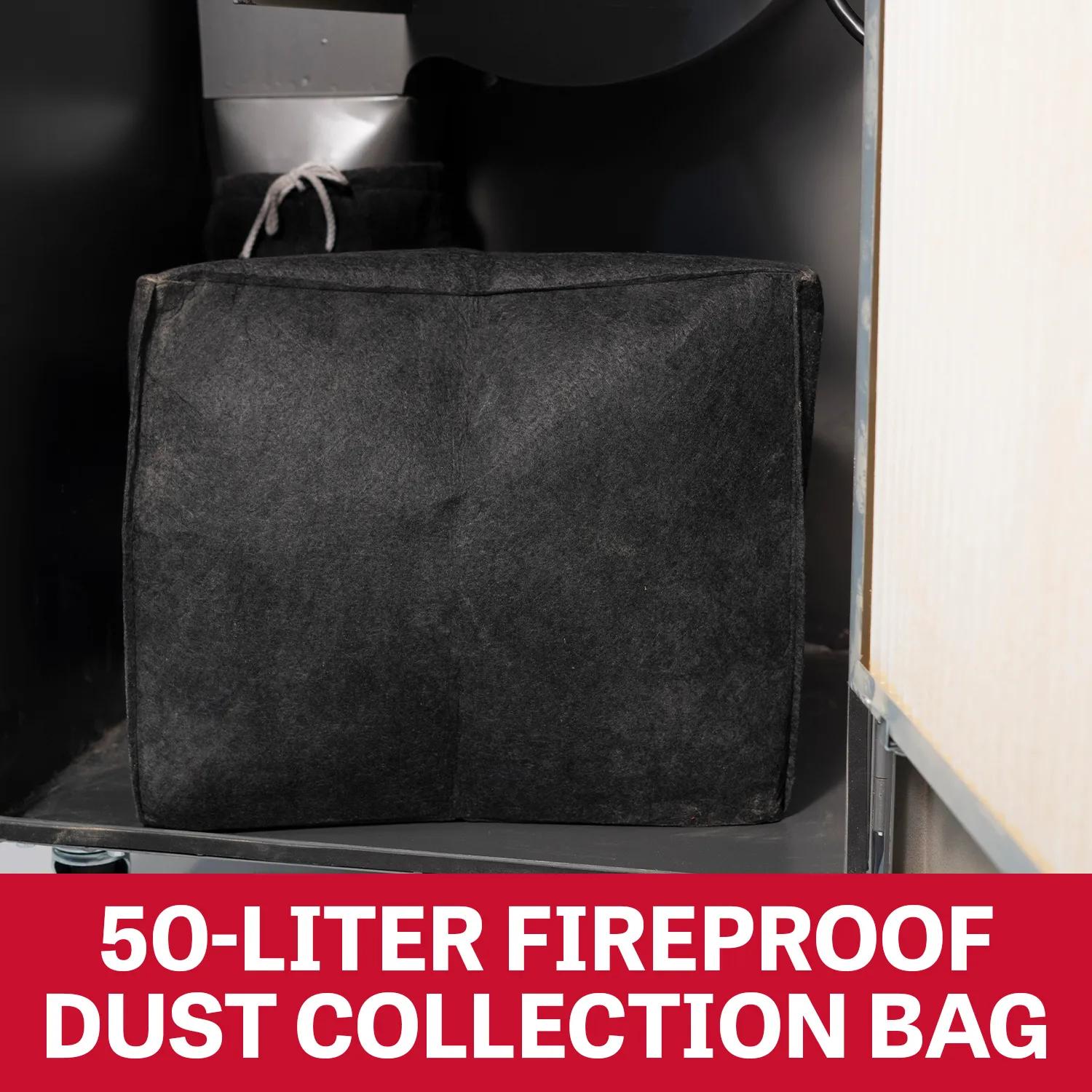

- Dust Bag50L
- Filter Size W X L X D19-3/8 x 25 x 1-25/32 in.

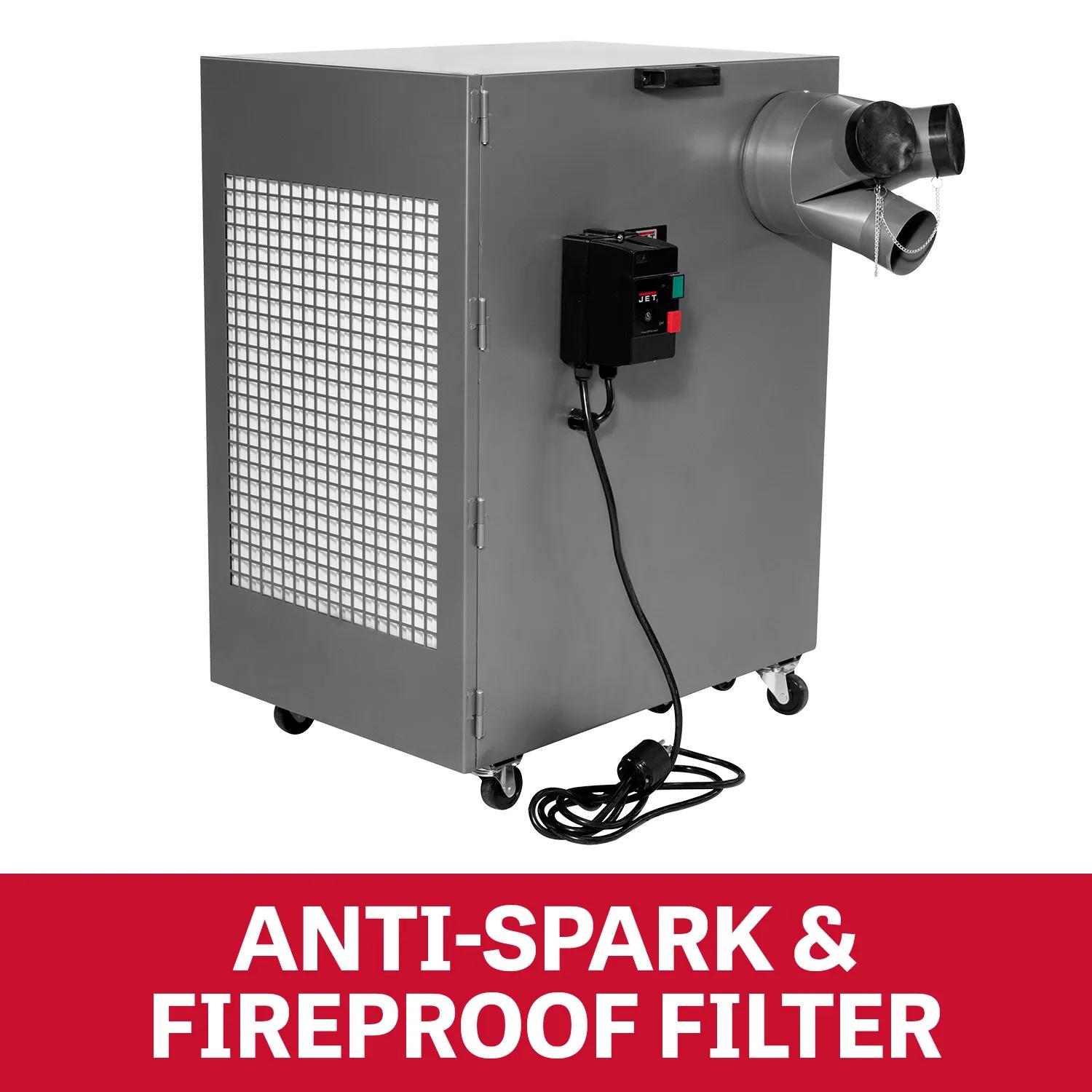

- Filter Type5 Micron Filter paper, Anti-Spark/Fireproof
- Horse Power3 HP
- Input Power230 V 1 Ph
- Maximum CFM957 CFM
- Maximum Hose Velocity2736 FPM
- MERV Value99% of 5 micron
- Model NumberJDC-510
- Motor Amps20 A
- Motor HP3 HP
- Motor PhaseSingle
- Motor TypeEnclosed, fan-cooled, induction, capacitor start
- Motor Voltage230 V
- Noise Level Db at 3Ft74-88 dB
- Number Of Filters1

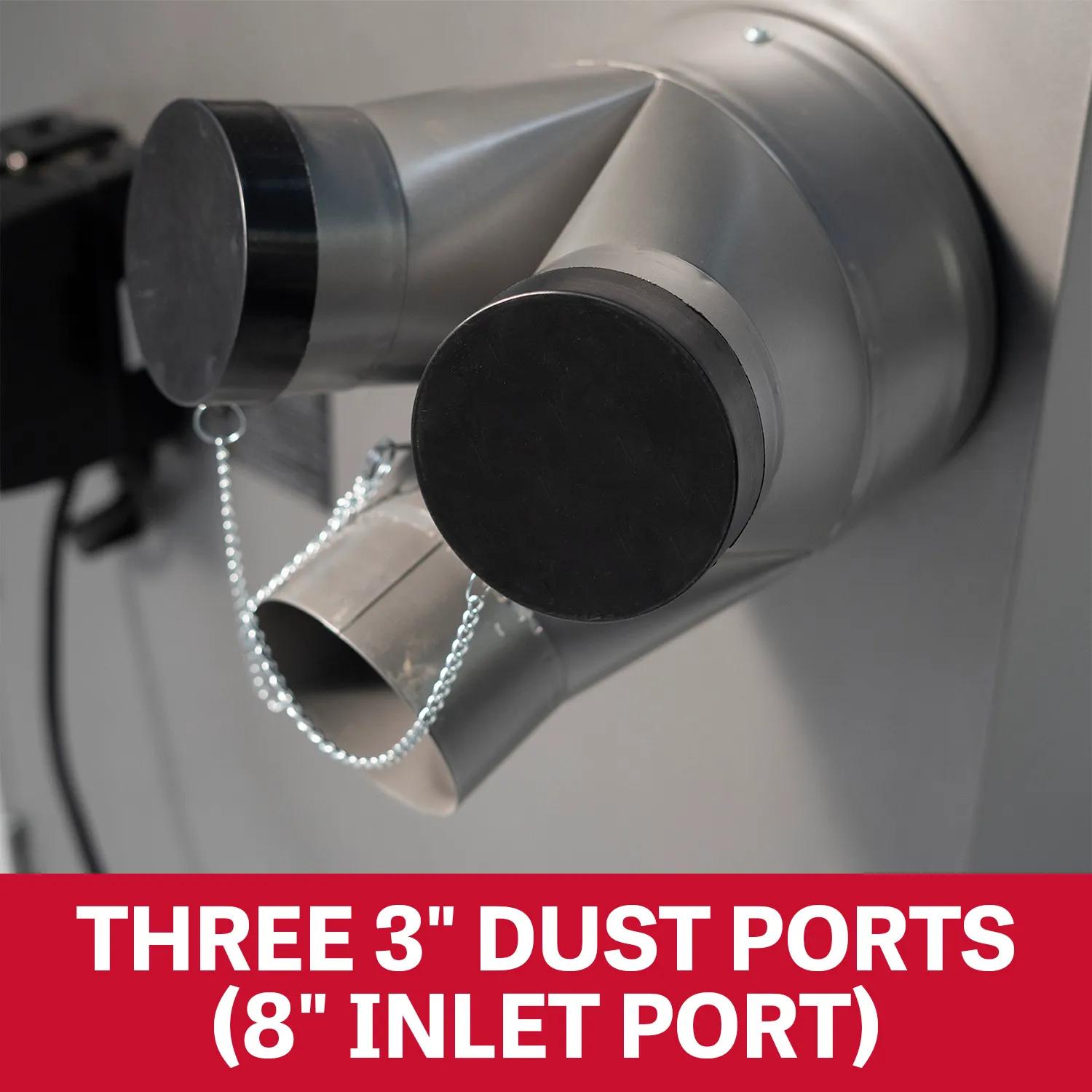

- Number Ports3
- Old Material Number414900
- Port Size8 to 3-3 in.
- Prewired Voltage230 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- SAP Gross Weight320
- SAP Net weight290
- Speeds CFM Filtered Air957 CFM
- Style TypeDust Collector
- UPC731325806816
- WarrantyTwo Years
