1-1/2" Drilling Capacity, 2HP, 230V 3PH(JDP-20EVS-110)
1-1/2" Drilling Capacity, 2HP, 230V 3PH(JDP-20EVS-110)
1-1/2" Drilling Capacity, 2HP, 230V 3PH(JDP-20EVS-110)
1-1/2" Drilling Capacity, 2HP, 230V 3PH(JDP-20EVS-110)
1-1/2" Drilling Capacity, 2HP, 230V 3PH(JDP-20EVS-110)
1-1/2" Drilling Capacity, 2HP, 230V 3PH(JDP-20EVS-110)
1-1/2" Drilling Capacity, 2HP, 230V 3PH(JDP-20EVS-110)
1-1/2" Drilling Capacity, 2HP, 230V 3PH(JDP-20EVS-110)
1-1/2" Drilling Capacity, 2HP, 230V 3PH(JDP-20EVS-110)

1-1/2" Drilling Capacity, 2HP, 230V 3PH(JDP-20EVS-110)

Stock Number: JT9-354220

0 Reviews

No reviews yet.

  • 2 HP, 230V, three-phase
  • 1-1/2" drilling capacity
  • MT-3 spindle taper
  • 6" spindle travel
BUY NOW
Fetching Data...

Product Details

Drill press performance from setup to finish. The JDP-20EVS-110 answers the work generated by industrial drilling environments running through-hole and deep-hole work. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for the cycle counts production drilling actually generates.

Features

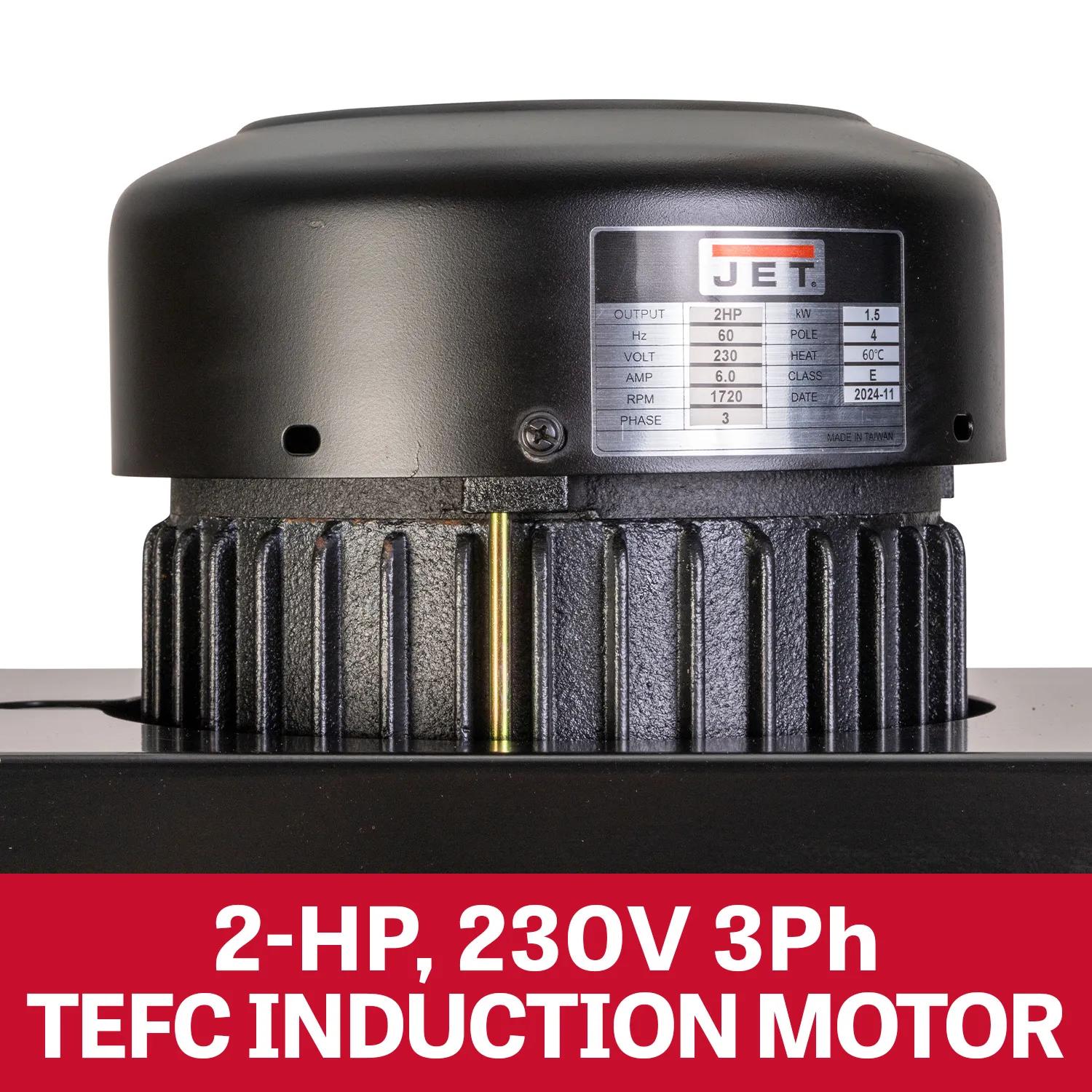

  • Brushless induction design at 2 HP delivers reliable output for industrial-grade duty cycles.
  • Wide 1-1/2-inch drilling envelope — delivering drilling capacity production work actually demands.

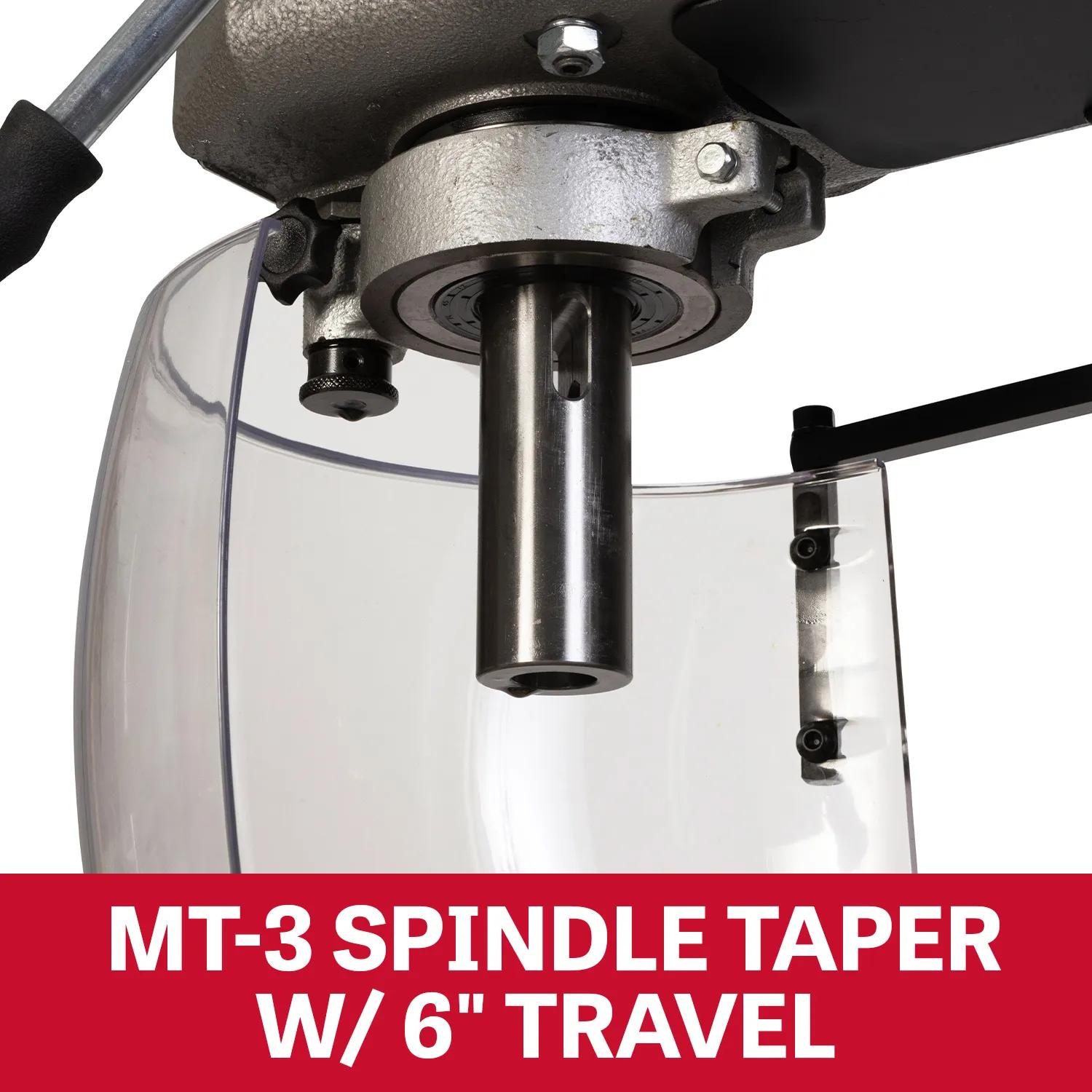

  • Engineered MT-3 spindle interface — expanding tooling compatibility without operator-side workarounds.
  • 6-inch spindle travel covers the vertical reach for repeatable depth-of-cut across long cycles.
  • Vibration-dampening cast iron base castings keep finish quality consistent for the structural stability shop work demands.
  • Heat-treated, ground, and matched headstock gears run as a precision system across precision production work.

Specifications

  • SKU
    JT9-354220
  • Assembled Dimensions
    38.18 x 27.16 x 79.52 in.
  • Base Size
    27 x 19 in.
  • Chuck Size
    0.5 x 20 in.
  • Collet Size
    4-1/2 in.
  • Distance Column to Spindle
    10 7/16 in.
  • Drilling Capacity Cast Iron
    1-1/2 in.
  • Drilling Capacity Mild Steel
    1.375 in.
  • Drills to Center of Circle
    20 in.
  • Input Power
    115 V 1 Ph
  • Inverter Type
    115V, Single Phase
  • Model Number
    JDP-20EVS-110
  • Motor Amps
    18 A
  • Motor HP
    2 HP
  • Motor Phase
    Three
  • Motor Voltage
    230 V
  • Old Material Number
    354220
  • Prewired Voltage
    230 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm

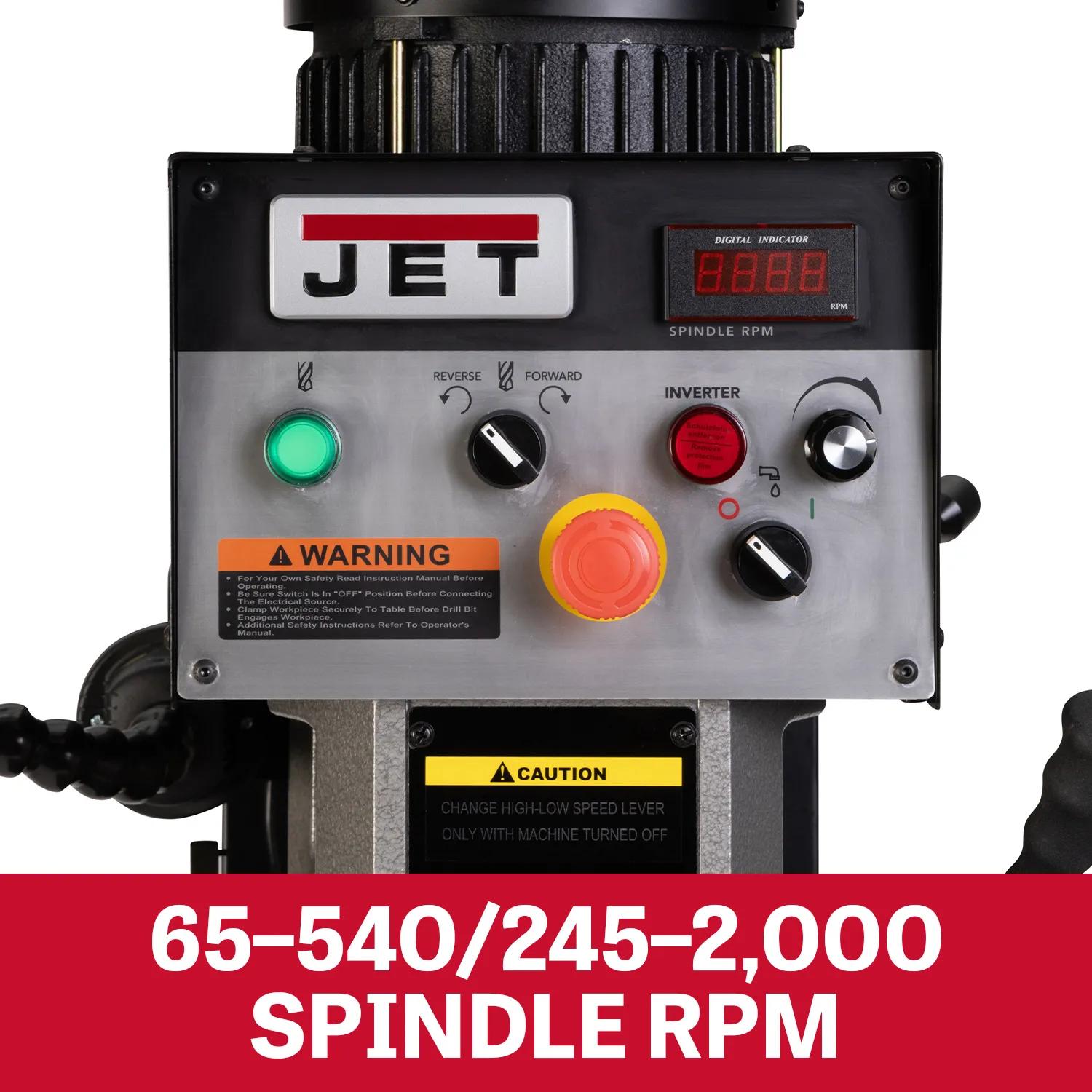

  • Range Of Spindle Speeds
    65 - 540/245 - 2000 RPM
  • SAP Gross Weight
    792
  • SAP Net weight
    792
  • Spindle Distance To Base
    44-1/2 in.
  • Spindle Distance To Table Max
    30-1/4 in.
  • Spindle Taper X Tpi
    MT3
  • Spindle Travel
    6 in.
  • Style Type
    Variable Speed
  • Swing
    20 in.
  • T-Slot Centers
    7 7/16 in.

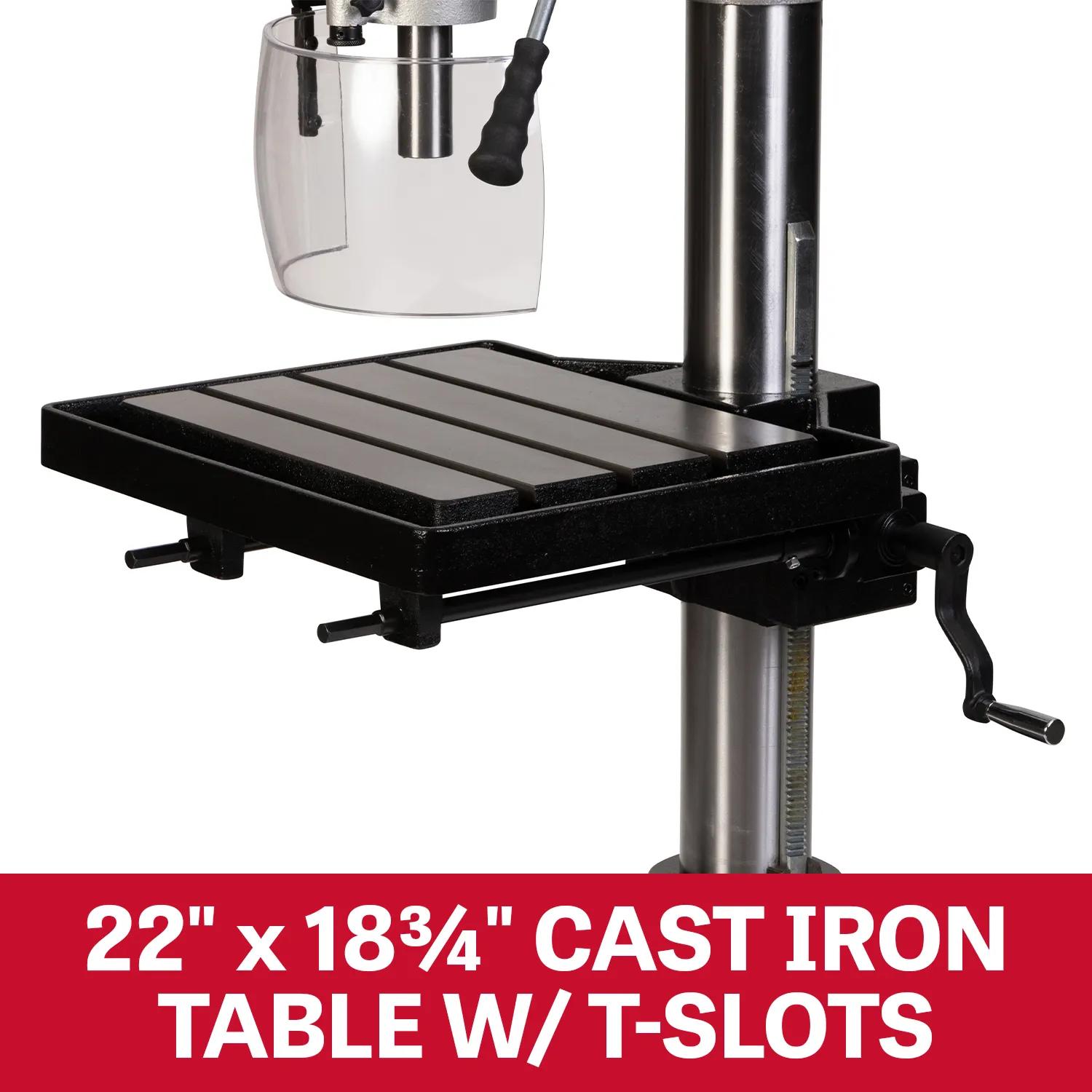

  • Table Size
    22 x 18-3/4 in.
  • Table Tilt (L, R, C)
    45 Deg.
  • Table Travel
    20 in.
  • UPC
    731325503876
  • Warranty
    Two Years
  • Work Table Weight Capacity
    154 lbs
