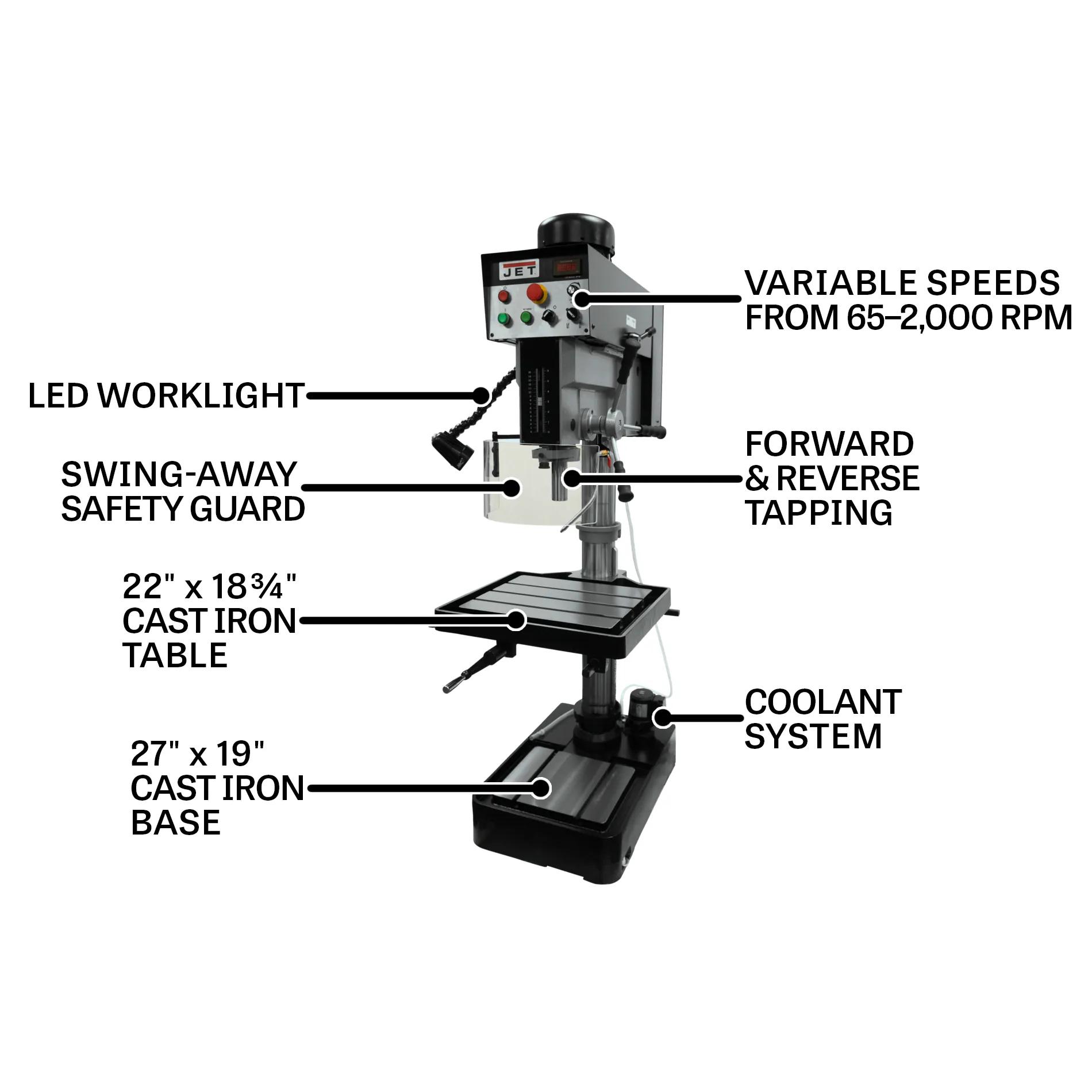

1-1/2" Drilling Capacity, w/ Forward & Reverse Tapping capability, 2HP, 230V 3PH(JDP-20EVST -230)
1-1/2" Drilling Capacity, w/ Forward & Reverse Tapping capability, 2HP, 230V 3PH(JDP-20EVST -230)
1-1/2" Drilling Capacity, w/ Forward & Reverse Tapping capability, 2HP, 230V 3PH(JDP-20EVST -230)

1-1/2" Drilling Capacity, w/ Forward & Reverse Tapping capability, 2HP, 230V 3PH(JDP-20EVST -230)

Stock Number: JT9-354225

0 Reviews

No reviews yet.

  • 2 HP, single-phase
  • 1-1/2" drilling capacity
  • MT-3 spindle taper
  • 6" spindle travel
BUY NOW

Product Details

Where holes meet tolerance. Designed for production drilling and tapping work, the JDP-20EVST -230 stands up to the duty cycle. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial-grade build, industrial-grade warranty.

Features

  • 1-1/2-inch capacity covers the production hole-making for repeatable hole-making across long runs.
  • Industrial MT-3 taper — expanding tooling compatibility without operator-side workarounds across production fabrication.
  • Engineered 2 HP motor design — matching the power demands production runs generate.
  • 6-inch stroke provides the depth-of-cut envelope for deep-hole and through-hole production work.
  • Factory-tested cast iron table castings dampen harmonics across the work envelope this machine targets.
  • Hardened and ground gear assemblies support consistent transmission for tolerance retention across years of cycles.

Specifications

  • SKU
    JT9-354225
  • Assembled Dimensions
    38.18 x 27.16 x 79.52 in.
  • Base Size
    27 x 19 in.
  • Collet Size
    4-1/2 in.
  • Distance Column to Spindle
    10 7/16 in.
  • Drilling Capacity Cast Iron
    1-1/2 in.
  • Drilling Capacity Mild Steel
    1.375 in.
  • Drills to Center of Circle
    20 in.
  • Model Number
    JDP-20EVST -230
  • Motor Amps
    6 A
  • Motor HP
    2 HP
  • Motor Phase
    Single / Three
  • Old Material Number
    354225
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Range Of Spindle Speeds
    65 - 540/245 - 2000 RPM
  • SAP Gross Weight
    792
  • SAP Net weight
    792
  • Spindle Distance To Base
    44-1/2 in.
  • Spindle Distance To Table Max
    30-1/4 in.
  • Spindle Taper X Tpi
    MT3
  • Spindle Travel
    6 in.
  • Style Type
    Variable Speed
  • T-Slot Centers
    7 7/16 in.
  • Table Size
    22 x 18-3/4 in.
  • Table Travel
    20 in.
  • Tapping Capacity Cast Iron
    0.75 in.
  • Tapping Capacity Mild Steel
    3/4 in.
  • UPC
    731325503883
  • Warranty
    Two Years
  • Work Table Weight Capacity
    154 lbs
