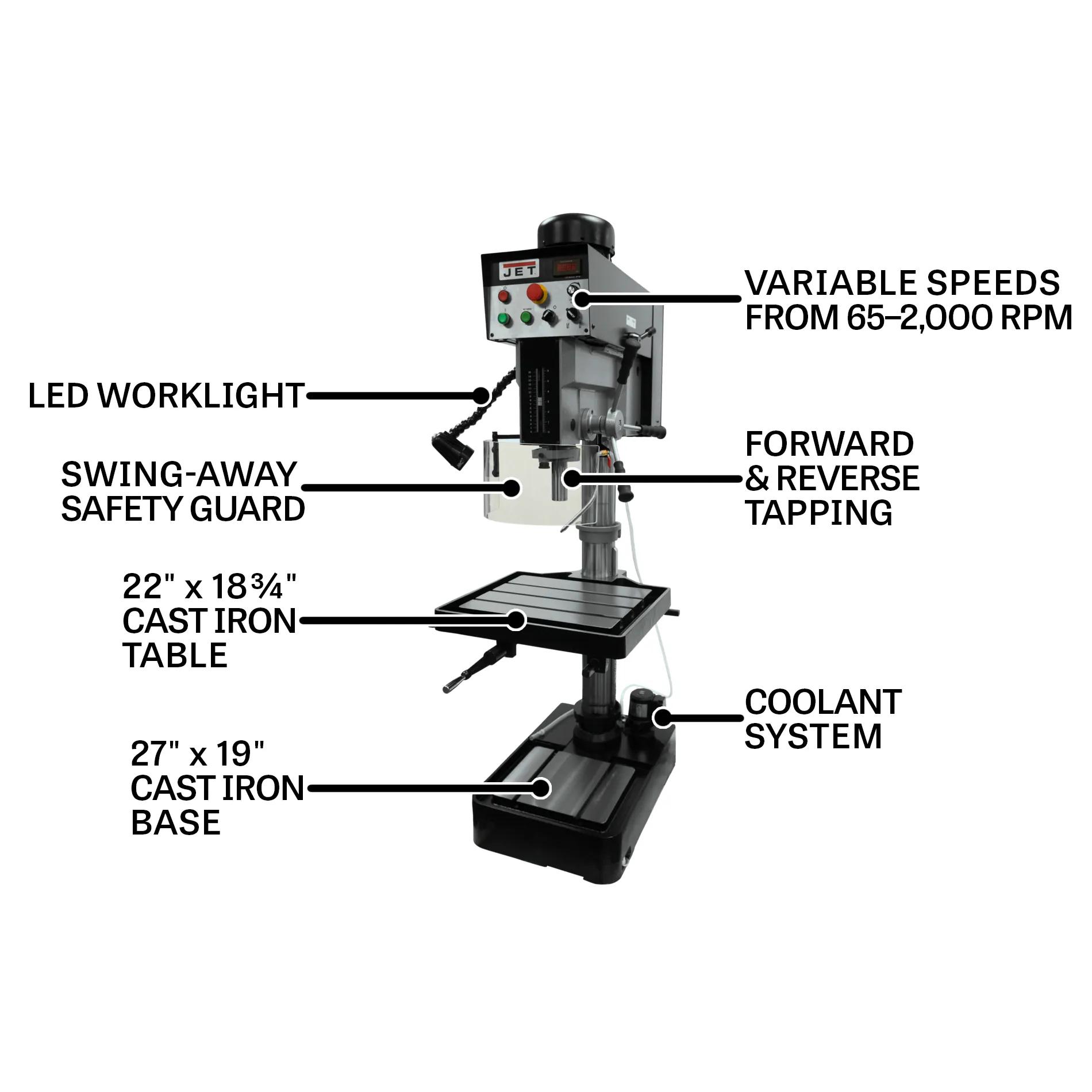

Product Details
Repeatable hole-making, run after run. The JDP-20EVST-460 is built for shops where drilling capacity meets daily duty cycles. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage and the service network keep production drilling running.
Features
- Wide 1-1/2-inch drilling envelope — covering the hole library production drilling generates.
- Premium-grade MT-3 spindle interface — expanding tooling compatibility without operator-side workarounds.
- Production-grade 2 HP drive supports working torque for full-shift operation, not weekend project work.
- Industrial-grade 6-inch spindle travel — expanding the operating envelope without compromise across production milling.
- Premium-grade cast iron table castings dampen harmonics across production cutting.
- Industrial-grade hardened spindle bearings run quieter and longer than commercial-grade alternatives across tolerance-grade machining.
Specifications
- SKUJT9-354226
- Assembled Dimensions38.18 x 27.16 x 79.52 in.
- Base Size27 x 19 in.
- Collet Size4-1/2 in.
- Distance Column to Spindle10 7/16 in.
- Drilling Capacity Cast Iron1-1/2 in.
- Drilling Capacity Mild Steel1.375 in.
- Drills to Center of Circle20 in.
- Inverter TypeM Type 460V 1/3Ph
- Model NumberJDP-20EVST-460
- Motor Amps6 A
- Motor HP2 HP
- Motor PhaseSingle / Three
- Old Material Number354226
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Range Of Spindle Speeds65 - 540/245 - 2000 RPM
- SAP Gross Weight792
- SAP Net weight792
- Spindle Distance To Base44-1/2 in.
- Spindle Distance To Table Max30-1/4 in.
- Spindle Taper X TpiMT3
- Spindle Travel6 in.
- Style TypeVariable Speed
- T-Slot Centers7 7/16 in.
- Table Size22 x 18-3/4 in.
- Table Travel20 in.
- Tapping Capacity Cast Iron0.88 in.
- Tapping Capacity Mild Steel3/4 in.
- UPC731325503890
- WarrantyTwo Years
- Work Table Weight Capacity154 lbs
