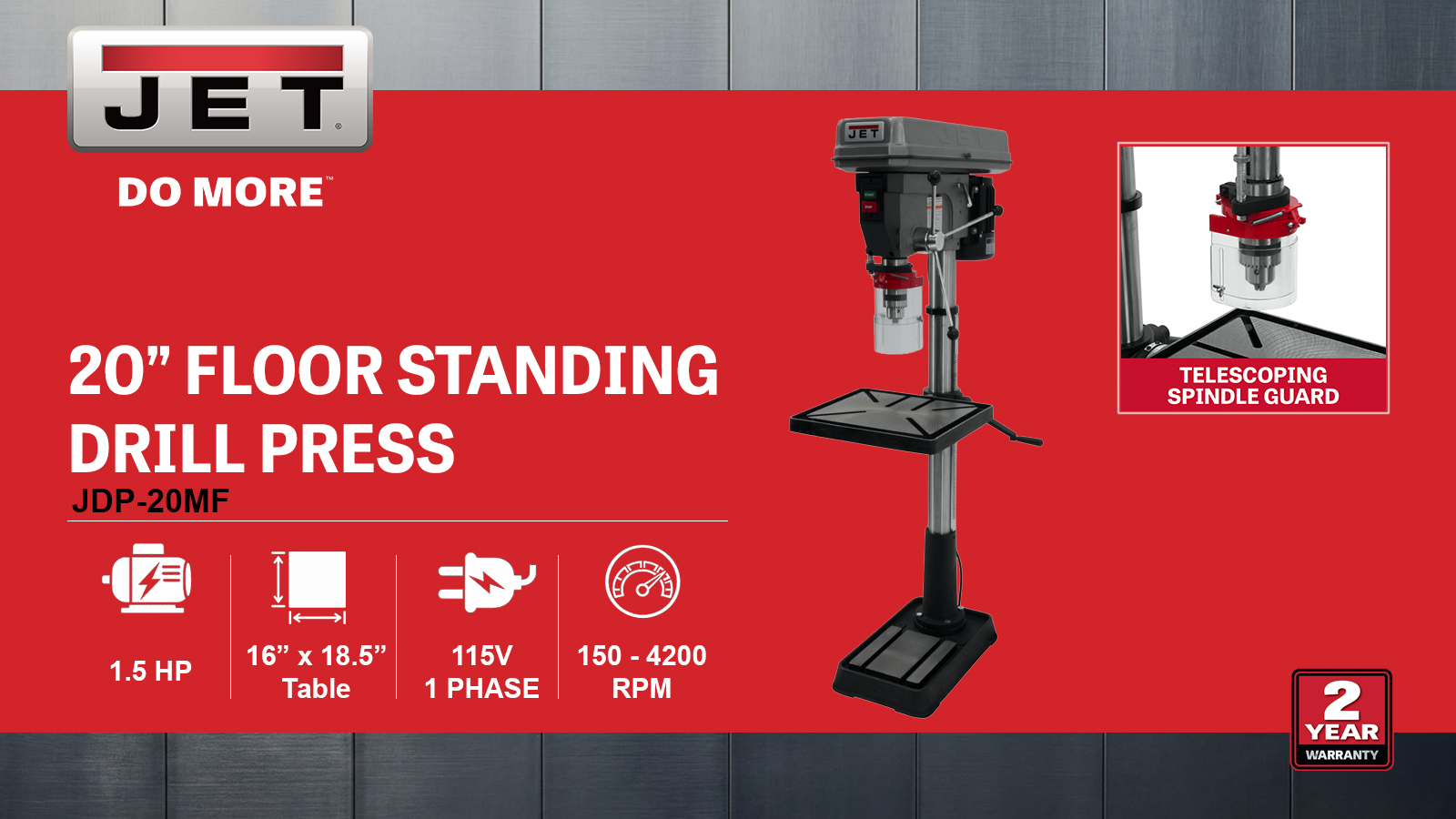

20" Floor Drill Press, 1.5HP, 115/230V 1PH(JDP-20MF)
20" Floor Drill Press, 1.5HP, 115/230V 1PH(JDP-20MF)
20" Floor Drill Press, 1.5HP, 115/230V 1PH(JDP-20MF)
20" Floor Drill Press, 1.5HP, 115/230V 1PH(JDP-20MF)
20" Floor Drill Press, 1.5HP, 115/230V 1PH(JDP-20MF)
20" Floor Drill Press, 1.5HP, 115/230V 1PH(JDP-20MF)

20" Floor Drill Press, 1.5HP, 115/230V 1PH(JDP-20MF)

Stock Number: JT9-354170

0 Reviews

No reviews yet.

  • 1.5 HP, 115/230V, single-phase
  • 20" drilling capacity
  • MT-3 spindle taper
  • 4-5/8" spindle travel
BUY NOW

Product Details

20" Floor Drill Press, 1.5HP, 115/230V 1PH(JDP-20MF)
Engineered for the drilling work production schedules actually generate. Engineered around tool-room hole-making and repeat parts production, the JDP-20MF earns its place. Equipped with a 1.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for the cycle counts production drilling actually generates.

Features

  • Engineered 1.5 HP motor with sealed bearings — standing up to the dust, chips, and humidity of working shops across professional shop floors.
  • Engineered 20-inch drilling envelope — putting production drilling in reach across professional shop floors.
  • Production-grade MT-3 spindle interface — delivering tooling compatibility shops already own.
  • 4-5/8-inch vertical reach handles production milling for the through-hole work production drilling generates.

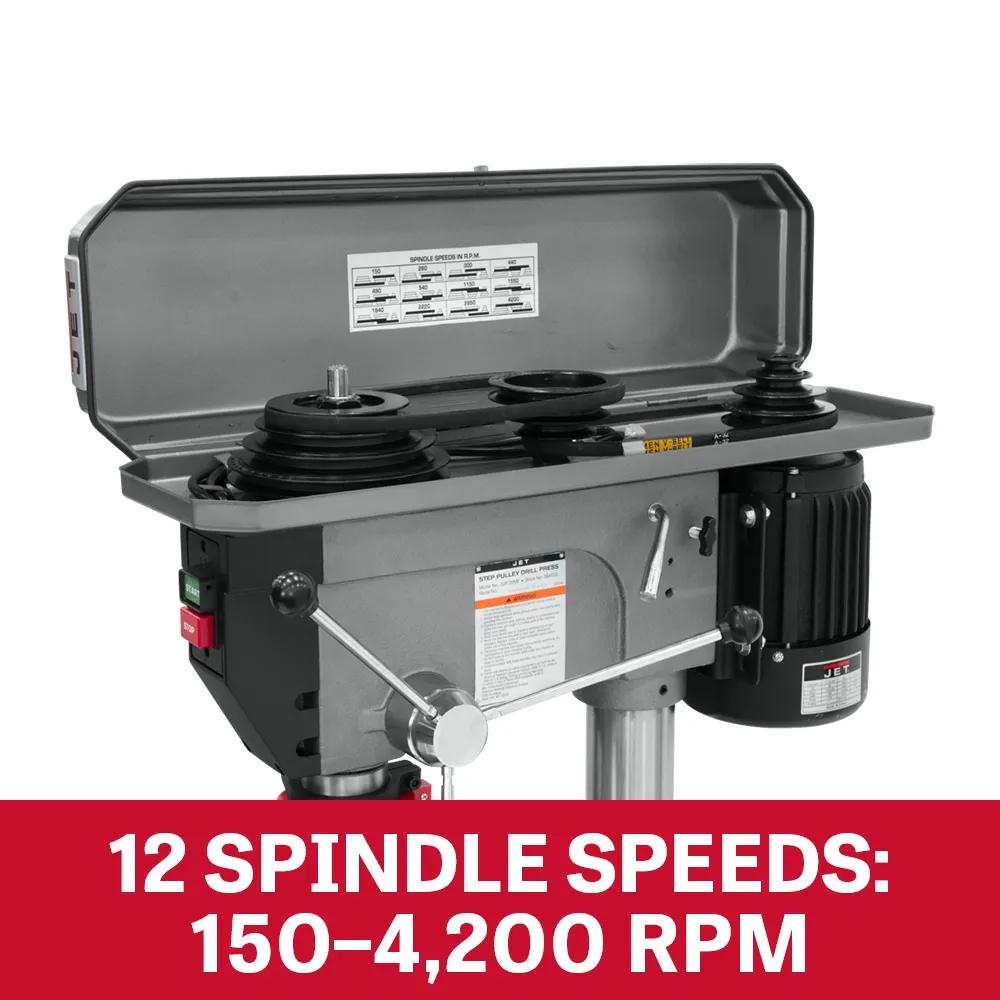

  • Wide 150 - 4,200 RPM range — eliminating the speed compromises older designs forced.
  • Heavy cast iron base castings — delivering dimensional stability lighter materials can't match, engineered for finish quality where lighter materials fail.

Specifications

  • SKU
    JT9-354170
  • Assembled Dimensions
    66 x 23 x 31-1/2 in.
  • Base Size
    13-3/4 x 22-3/4 in., 13 x 8-1/2 in.
  • Chuck Size
    3/4 in.
  • Collet Size
    3.375 in.
  • Distance Column to Spindle
    10 in.
  • Drilling Capacity Cast Iron
    1 in.
  • Drilling Capacity Mild Steel
    0.75 in.
  • Drills to Center of Circle
    20 in.
  • Input Power
    115/230 V 1 Ph
  • Model Number
    JDP-20MF
  • Motor Amps
    18/9 A
  • Motor HP
    1.5 HP
  • Motor Phase
    Single / Three
  • Motor Voltage
    115/230 V
  • Number of Spindle Speeds
    12
  • Old Material Number
    354170
  • Prewired Voltage
    115 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Range Of Spindle Speeds
    150 - 4200 RPM
  • SAP Gross Weight
    325
  • SAP Net weight
    282
  • Spindle Distance To Base
    46-3/4 in.
  • Spindle Distance To Table Max
    29-1/8 in.
  • Spindle Taper X Tpi
    MT3
  • Spindle Travel
    4-5/8 in.
  • Style Type
    Variable
  • Swing
    20 in.
  • T-Slot Centers
    3.5 in.
  • T-Slots Number And Size
    6 and 1/2 in.

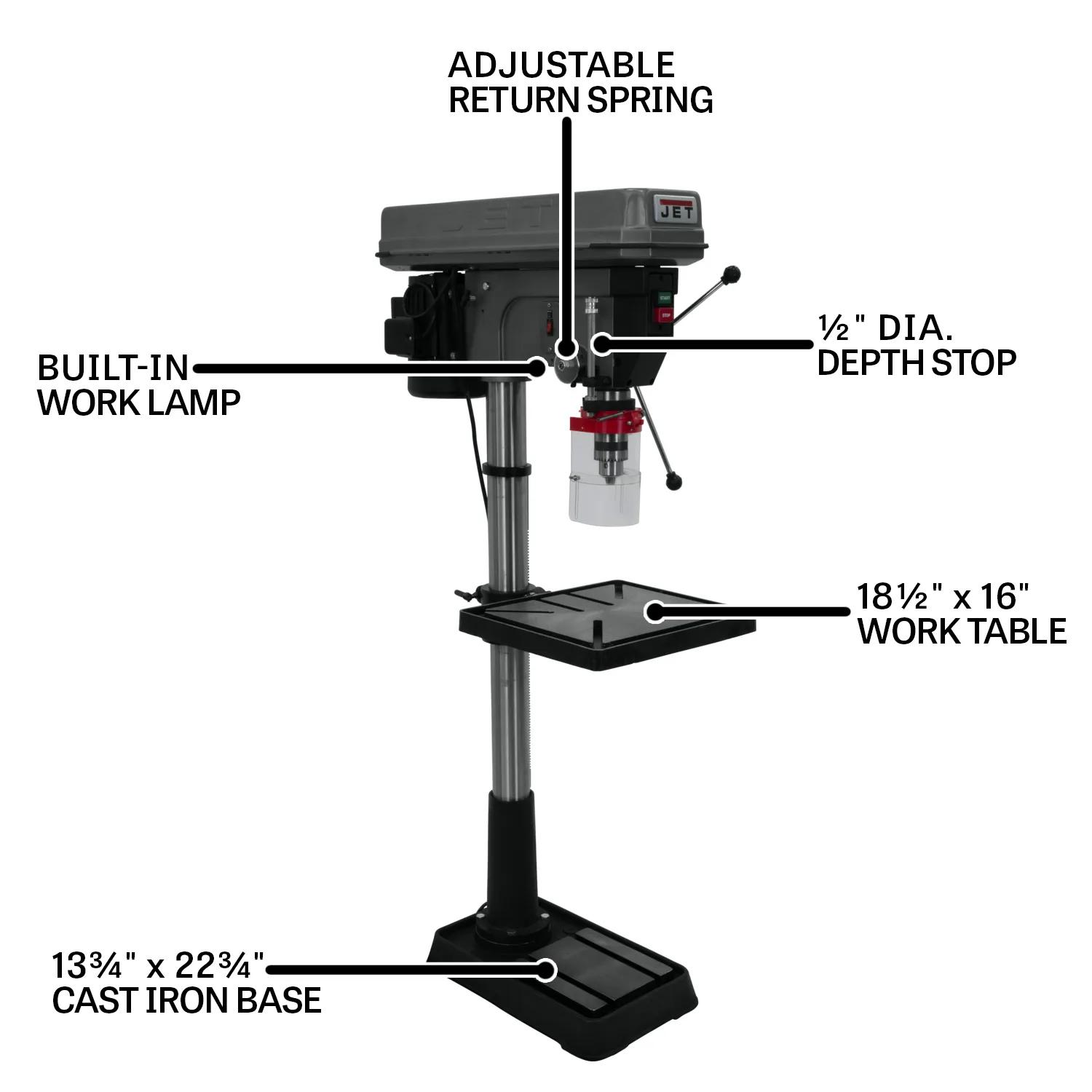

  • Table Size
    18-1/2 x 16 in.

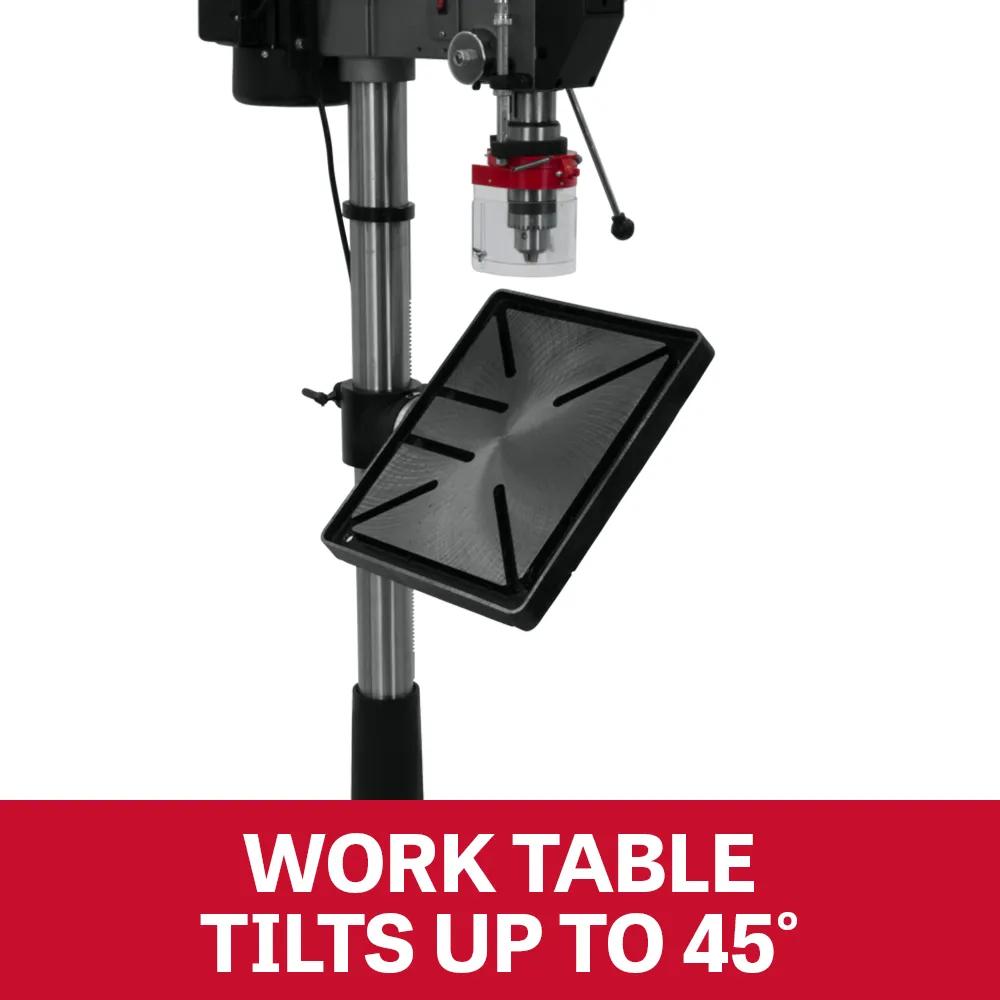

  • Table Tilt (L, R, C)
    45 Deg.
  • Table Travel
    21-1/2 in.
  • UPC
    662755104121
  • Warranty
    Two Years
  • Work Table Weight Capacity
    80 lbs
