Product Details

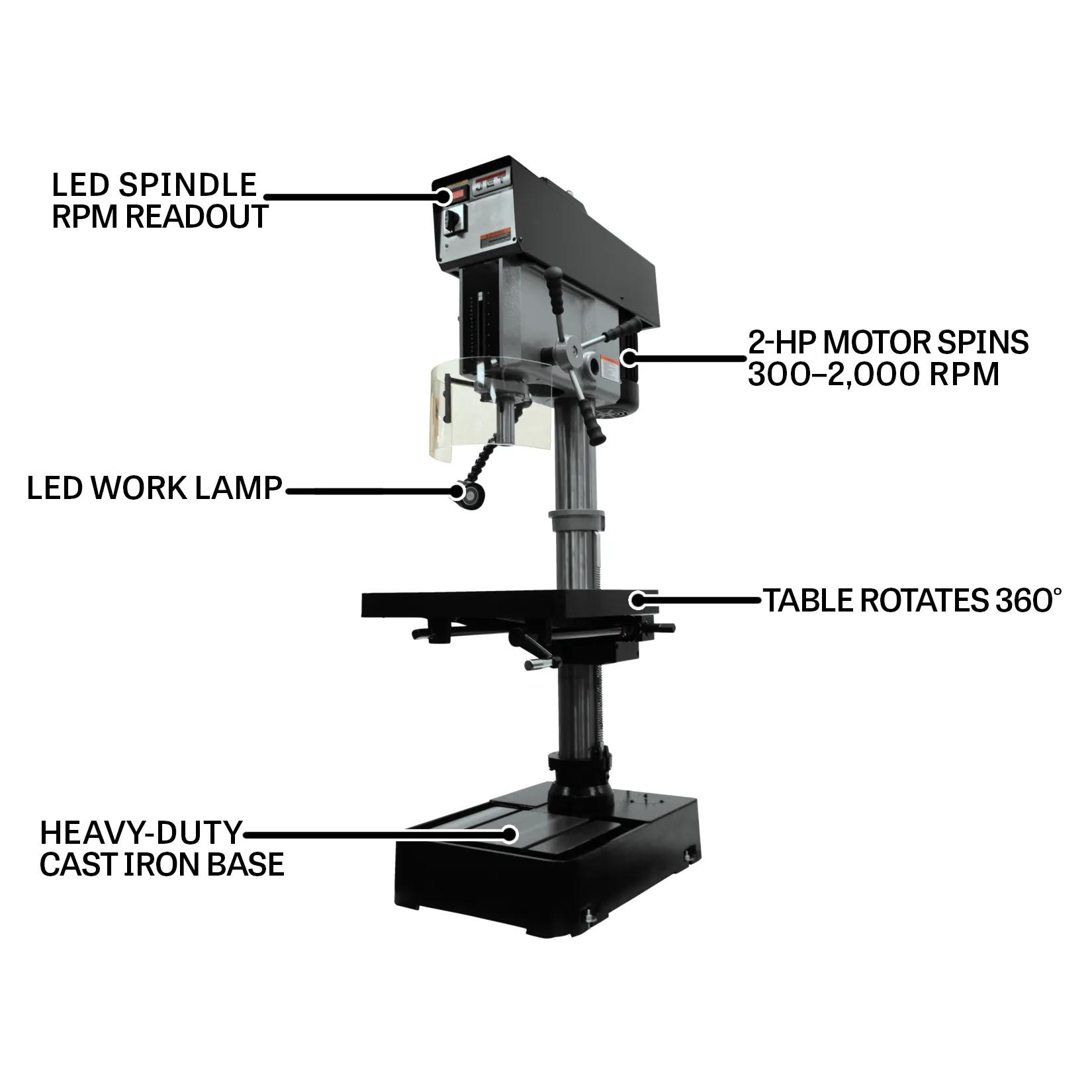

Engineered for the drilling work production schedules actually generate. The JDP-20VS-1 was sized for tool-room hole-making and repeat parts production. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for the cycle counts production drilling actually generates.
Features
- Continuous-duty 2 HP induction drive — delivering production-grade power output.
- 1-1/4-inch capacity delivers the production hole-making for the working envelope production drilling demands.
- Working-grade MT-3 spindle interface — handling the tooling loads production cutting generates.
- 6-inch vertical reach handles production milling for the vertical reach production work demands.
- Continuous-duty 300 - 2,000 RPM range — matching cut requirements without belt-pulley reconfiguration.
- Cast iron column castings match the structural mass for the working loads industrial cutting generates.
Specifications
- SKUJT9-354230
- Assembled Dimensions38.18 x 27.16 x 79.52 in. (970 x 690 x 2020 mm)
- Base Size27 x 19 in.
- Chuck Size0.5 x 20 in.
- Collet Size4-1/2 in.
- Distance Column to Spindle10 7/16 in.
- Drilling Capacity Cast Iron1.25 in.
- Drilling Capacity Mild Steel1 in.
- Drills to Center of Circle20 in.
- Input Power115/230 V 1 Ph
- Model NumberJDP-20VS-1
- Motor HP2 HP
- Motor PhaseSingle
- Motor Voltage115/230 V
- Number of Spindle SpeedsVariable
- Old Material Number354230
- Prewired Voltage115 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Range Of Spindle Speeds300 - 2000 RPM
- SAP Gross Weight780
- SAP Net weight780
- Spindle Distance To Base44-1/2 in.
- Spindle Distance To Table Max30-1/4 in.
- Spindle Speed300-2000 RPM
- Spindle TaperMT3
- Spindle Taper X TpiMT3
- Spindle Travel6 in.
- Style TypeVariable Speed
- Swing20 in.
- T-Slot Centers7 7/16 in.
- T-Slots Number And Size3 and 5/8 in.
- Table Size22 x 18-3/4 in.
- Table T-Slot3 in. and 5/8 in.
- Table Tilt (L, R, C)45 Deg.
- Table Travel20 in.
- UPC731325503906
- WarrantyTwo Years
- Work Table Weight Capacity154 lbs
