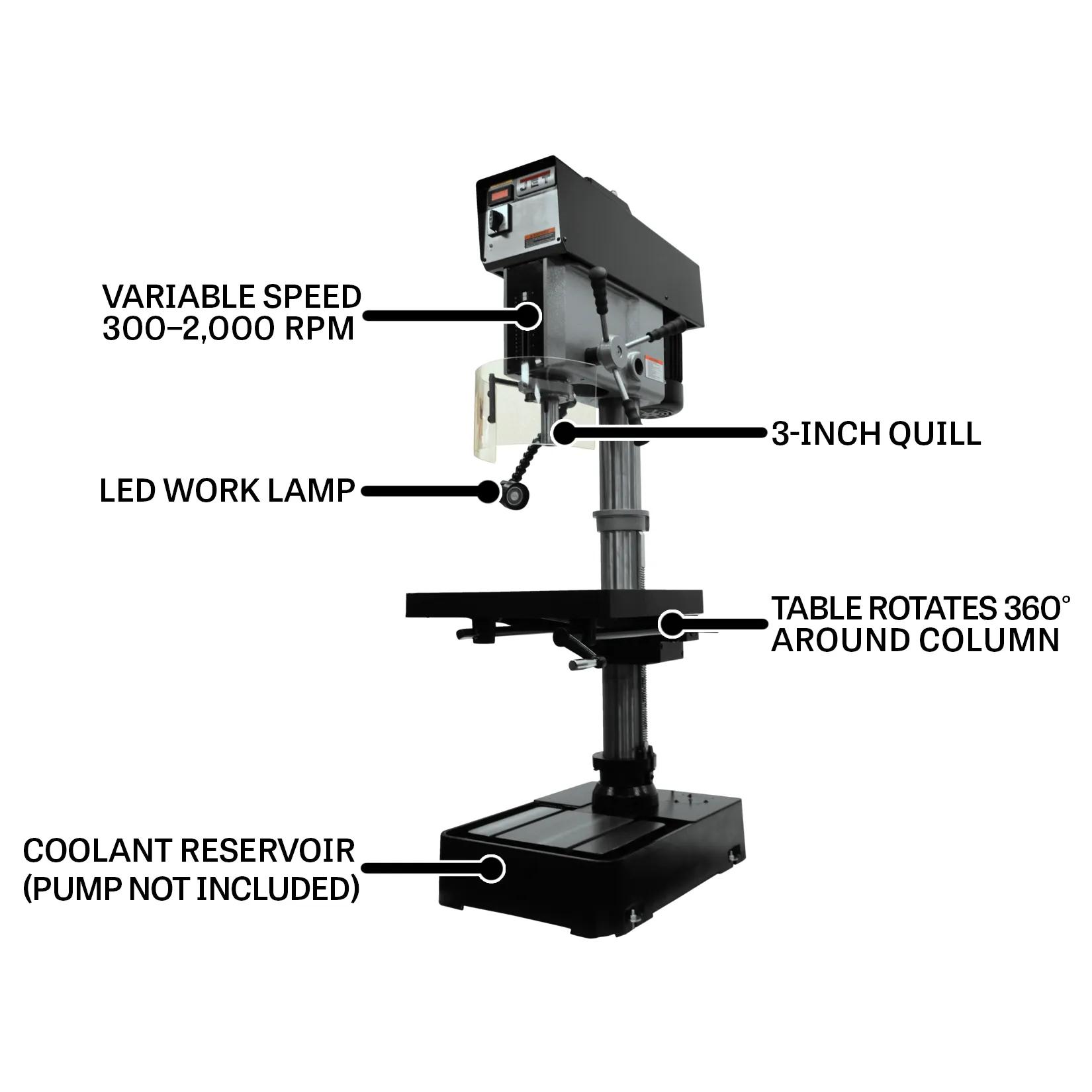

20" Swing, 1-1/2 Drilling Capacity, 2HP, 230V 3PH(JDP-20VS-3)
20" Swing, 1-1/2 Drilling Capacity, 2HP, 230V 3PH(JDP-20VS-3)
20" Swing, 1-1/2 Drilling Capacity, 2HP, 230V 3PH(JDP-20VS-3)

20" Swing, 1-1/2 Drilling Capacity, 2HP, 230V 3PH(JDP-20VS-3)

Stock Number: JT9-354231

0 Reviews

No reviews yet.

  • 2 HP, 230/460V, three-phase
  • 1-1/2" drilling capacity
  • MT-3 spindle taper
  • 6" spindle travel
BUY NOW
Fetching Data...

Product Details

Built for the production drilling that defines repeat parts. Built around production drilling and tapping work, the JDP-20VS-3 delivers production-grade results. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial-grade build, industrial-grade warranty.

Features

  • 2 HP three-phase induction motor sized for the operating envelope production demands.
  • 1-1/2-inch capacity covers the hole sizes for the production hole-making most shops actually run.
  • Heavy-duty MT-3 spindle interface — expanding tooling compatibility without operator-side workarounds.
  • Generous 6-inch quill travel handles deep-hole and through-hole production work for the vertical envelope production milling targets.
  • 300 - 2,000 RPM envelope supports the speed range for the cutting envelope production cuts demand.
  • Cast iron construction in the head castings — earning their place through sheer mechanical authority.

Specifications

  • SKU
    JT9-354231
  • Assembled Dimensions
    38.18 x 27.16 x 79.52 in. (970 x 690 x 2020 mm)
  • Base Size
    27 x 19 in.
  • Chuck Size
    0.5 x 20 in.
  • Collet Size
    4-1/2 in.
  • Drilling Capacity Cast Iron
    1-1/2 in.
  • Drilling Capacity Mild Steel
    1.375 in.
  • Drills to Center of Circle
    20 in.
  • Input Power
    230 V 3 Ph
  • Model Number
    JDP-20VS-3
  • Motor HP
    2 HP
  • Motor Phase
    Three
  • Motor Voltage
    230/460 V
  • Old Material Number
    354231
  • Prewired Voltage
    230 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Range Of Spindle Speeds
    300 - 2000 RPM
  • SAP Gross Weight
    780
  • SAP Net weight
    780
  • Spindle Distance To Base
    44-1/2 in.
  • Spindle Distance To Table Max
    30-1/4 in.
  • Spindle Taper X Tpi
    MT3
  • Spindle Travel
    6 in.
  • Style Type
    Variable Speed
  • Swing
    20 in.
  • T-Slot Centers
    7 7/16 in.
  • Table Size
    22 x 18-3/4 in.
  • Table Tilt (L, R, C)
    45 Deg.
  • Table Travel
    20 in.
  • UPC
    731325503913
  • Warranty
    Two Years
  • Work Table Weight Capacity
    154 lbs
