Product Details
Engineered for the drilling work production schedules actually generate. The JDPE-20EVS-PDF fits production drilling and tapping work — and the cycle counts they generate. Heavy-duty cast iron base and table, paired with industrial-grade spindle drive, handle daily duty cycles. Engineered for the cycle counts production drilling actually generates.
Features

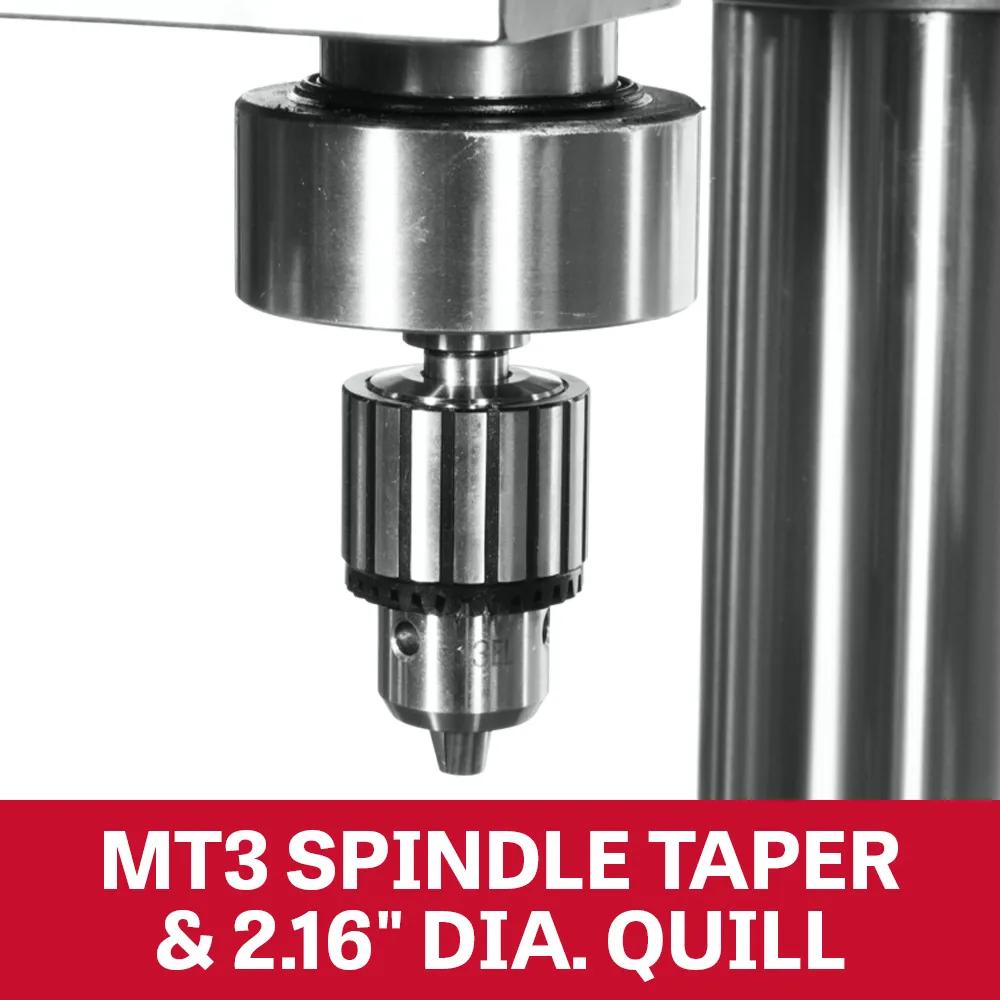

- MT-3 spindle taper covers the standard end-mill library for the standard tool-holding interface production shops use.
- Heavy-duty 5 in. Manual | 4-1/4 in. Auto spindle travel — expanding the operating envelope without compromise across production fabrication.
- Heat-treated cast iron table castings resist deflection — delivering the structural mass precision work depends on.
- Surface-ground gear assemblies support dimensional stability for power-transmission accuracy production work depends on.
- Production-spec CSA/cUS listing — shipping with the certification paperwork inspectors actually check across regulated industrial procurement.
- Industrial-grade capacity rating — handling the work envelope production environments generate across professional production environments.
Specifications
- SKUJT9-354250
- Assembled Dimensions32-3/5 x 22-2/3 x 70-25/64 in.
- Base Size17.7 x 25-1/2 in., 14-3/16 x 13 in.
- Collet Size4 in.
- Distance Column to Spindle26-1/2 in.
- Drilling Capacity Cast Iron1.25 in.
- Drilling Capacity Mild Steel1.125 in.
- Drills to Center of Circle10 in.
- Input Power115 V 1 Ph
- Inverter Type Power Source2HP/115V/1PH
- Model NumberJDPE-20EVS-PDF
- Motor Amps4.6 A
- Motor HP1.5 HP
- Motor PhaseThree
- Motor Voltage230 V
- Old Material Number354250
- Prewired Voltage230 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Quill Diameter2.16 in.

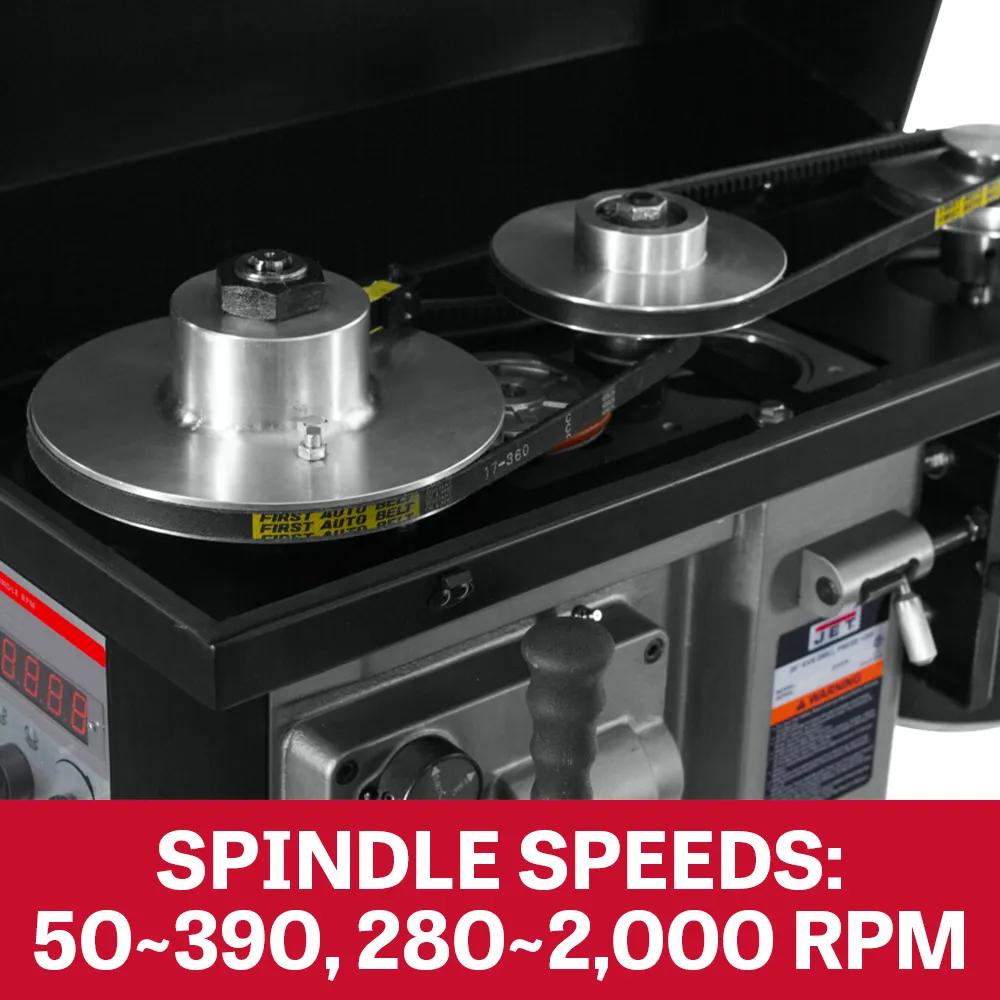

- Range Of Spindle SpeedsLow: 50 - 390 RPM, High 270 - 2000 RPM
- SAP Gross Weight566
- SAP Net weight477
- Spindle Distance To Base48.85 in.
- Spindle Distance To Table Max32.6 in.
- Spindle Taper X TpiMT3
- Spindle Travel5 in. Manual | 4-1/4 in. Auto
- Spindle Travel Manual5 in.
- Style TypeEVS

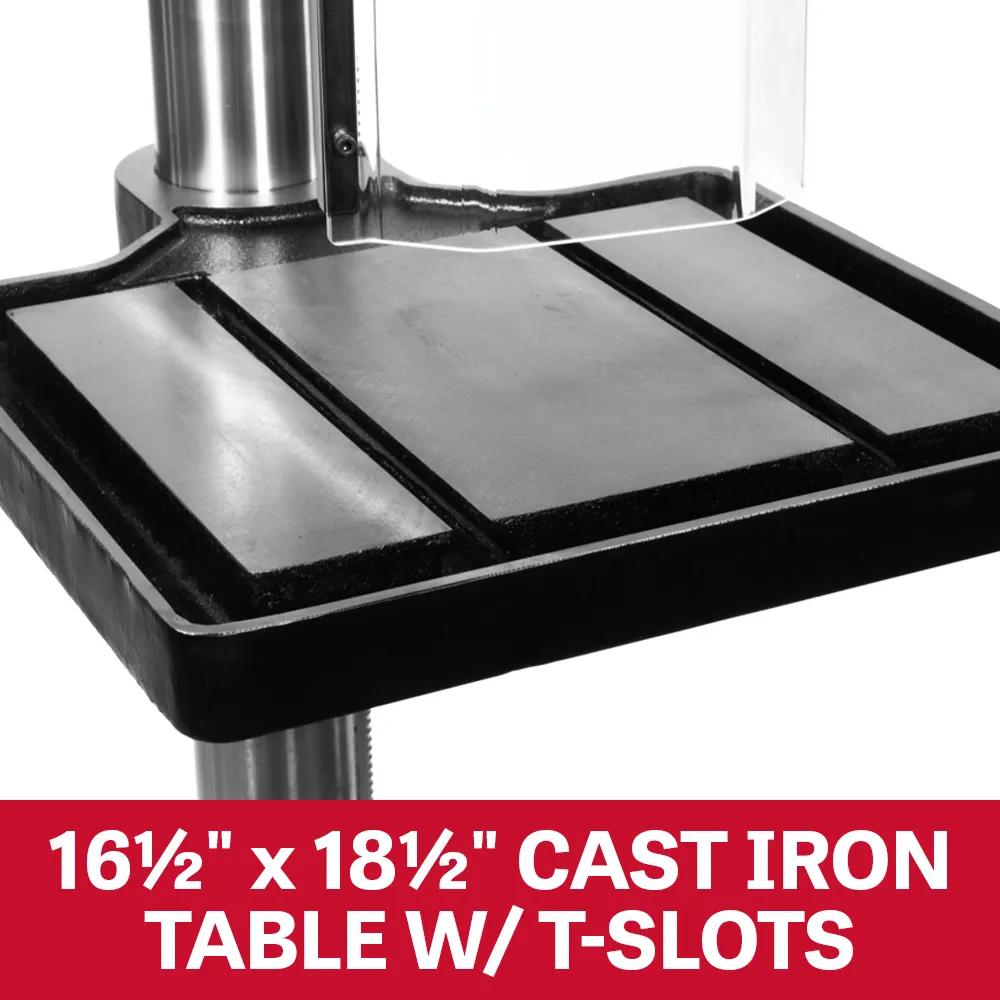

- Table Size16-1/2 x 18-1/2 in.

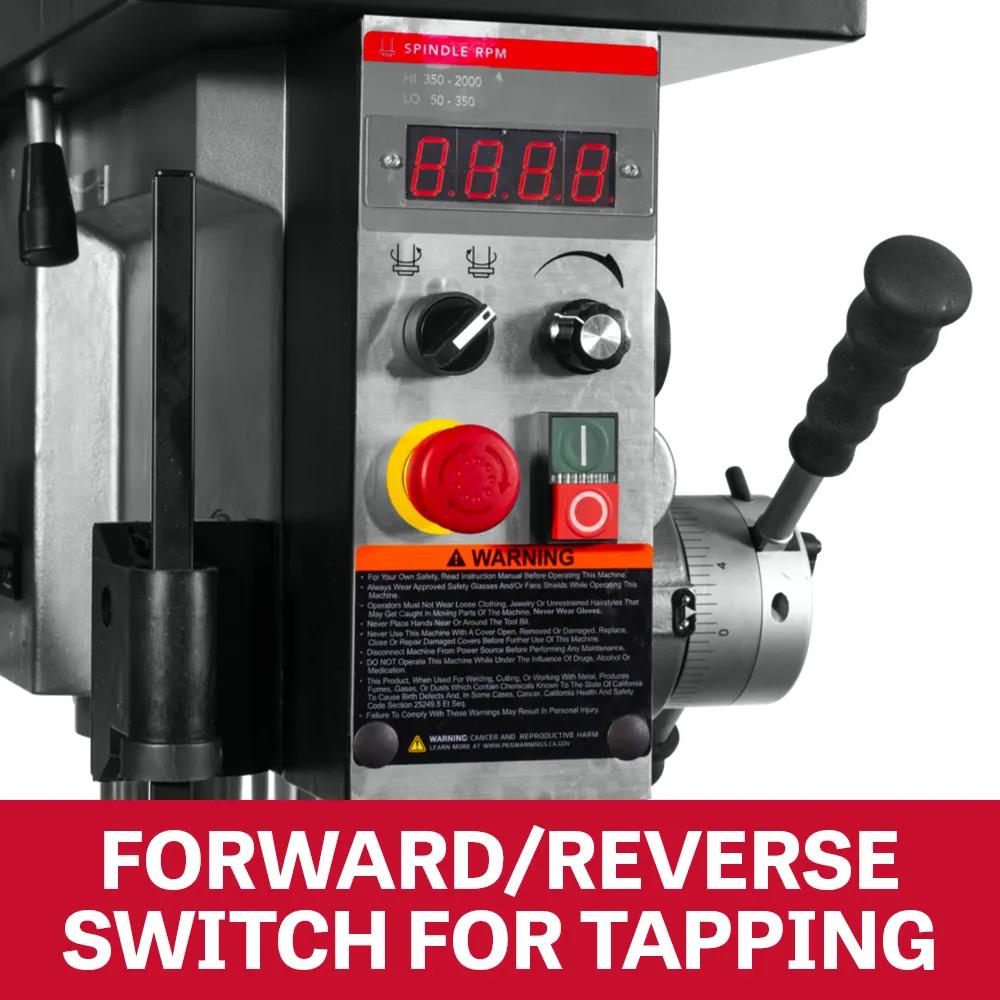

- Tapping Capacity Mild Steel3/4 in.
- UPC731325789614
- WarrantyTwo Years
