Product Details
Engineered for clean cuts across hardwoods, softwoods, and metal stock. Designed for production sawing across hardwoods, softwoods, and metal stock, the JWBS-15 stands up to the duty cycle. Equipped with a 1.75 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for production cycles, warrantied for the long run.
Features
- The 1.75 HP single-phase drive handles the working torque for industrial-grade duty cycles.
- 3100 FPM cutting speed — covering the material library production sawing runs across production fabrication.
- Heavy-duty saw frame absorbs the cutting forces for cut quality consistency across long runs.
- Factory-tested tilting table — handling miter and bevel cuts in one setup, engineered for the angled cuts production fabrication actually runs.
- Factory-tested cutting envelope handles workpiece sizes for the cutting envelope production sawing demands.
- Vibration-dampening cast iron main castings keep finish quality consistent for dimensional stability under sustained cutting loads.
Specifications
- SKUJT9-714600
- Assembled Dimensions29-1/2 x 32 x 74 in.
- Base Size25-1/2 x 21-5/8 in.
- Blade Diameter14-3/4 in.
- Blade Length133 in.
- Blade Size (In.)15 in.
- Blade Speed3100 FPM
- Cutting Capacity - Height14 in.
- Cutting Capacity - Width14-1/8 in.

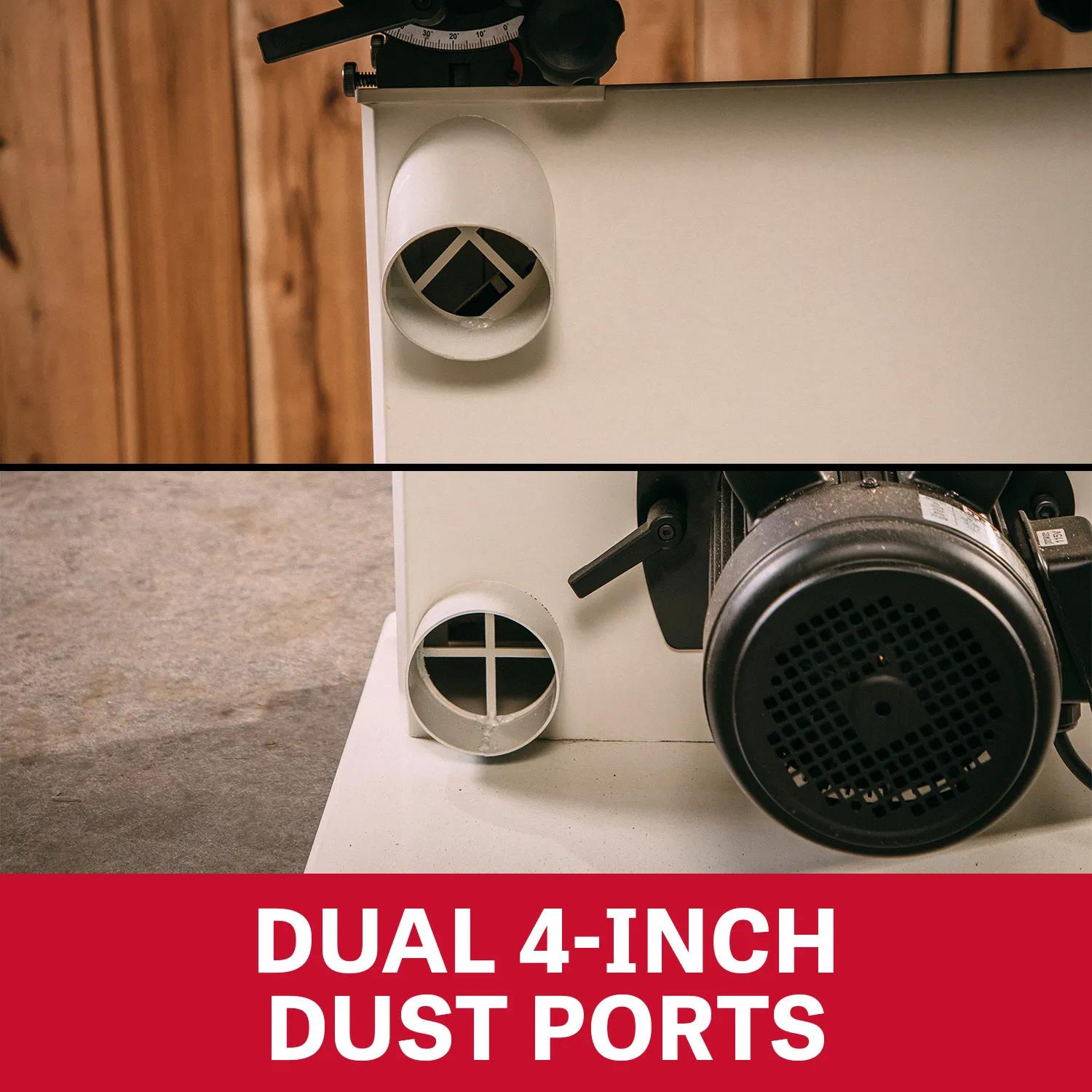

- Dust Port Outside Diameter4 in.
- Fence Size L X H18-1/8 x 1-3/4 x 6 in.
- Height74 in.
- Horse Power1.75 HP
- Input Power115/230 V 1 Ph
- Maximum Blade Width1 in.
- Maximum Rip Left Of Blade12-3/8 in.
- Minimum Saw Blade Width1/8 in.
- Model NumberJWBS-15
- Motor Amps15 A
- Motor HP1.75 HP
- Motor PhaseSingle
- Motor Voltage115/230 V
- Old Material Number714600
- Overall Assembled (Bow Lowered)29-1/2 x 32 x 74 in.
- Prewired Voltage230 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Recommended Circut Size Amp20 A
- Required Cfm400 - 400 CFM
- SAP Gross Weight446
- SAP Net weight382
- Style TypeFloor
- Table Height35 in.

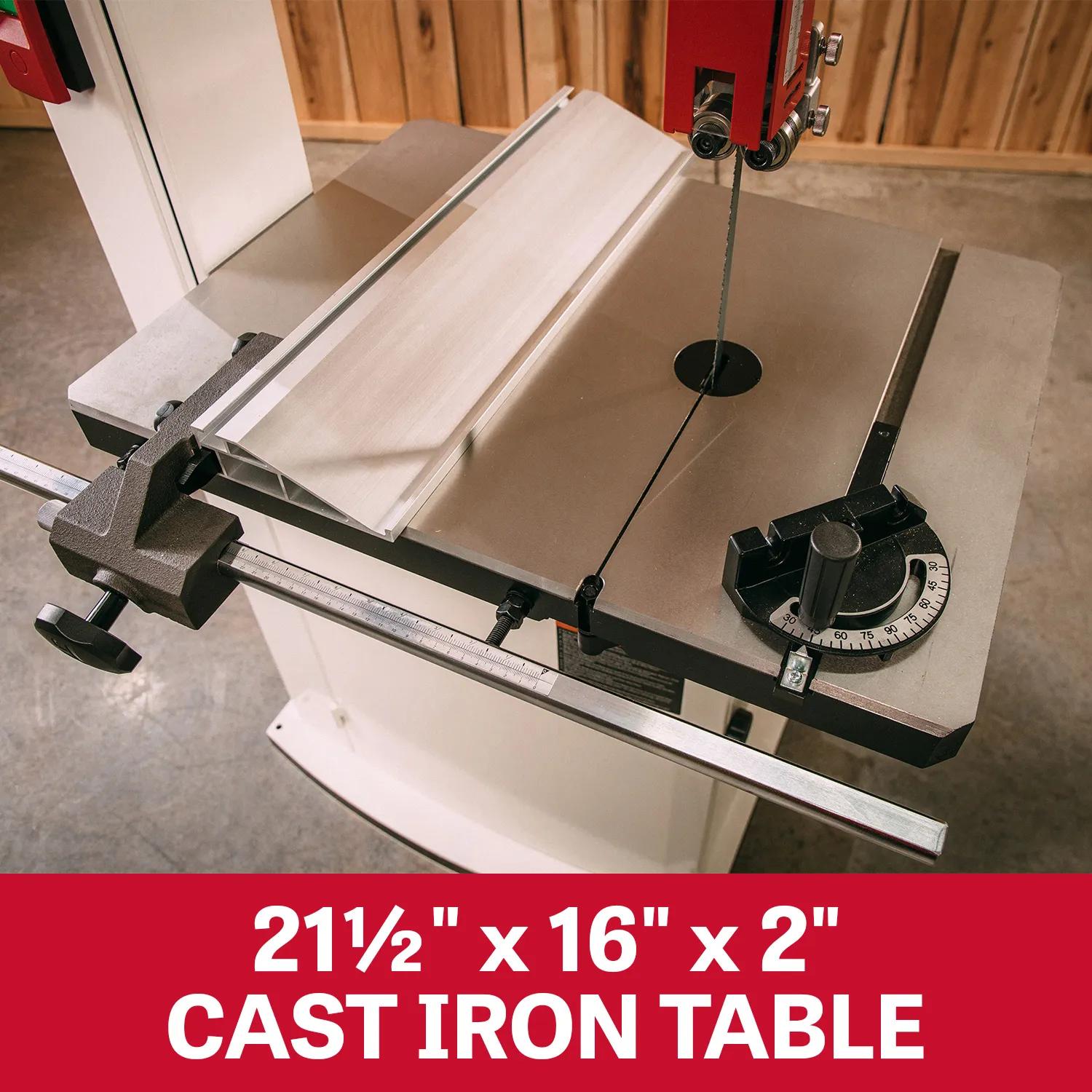

- Table Size21-1/2 x 16 in.
- Table T-Slot3/4 in.

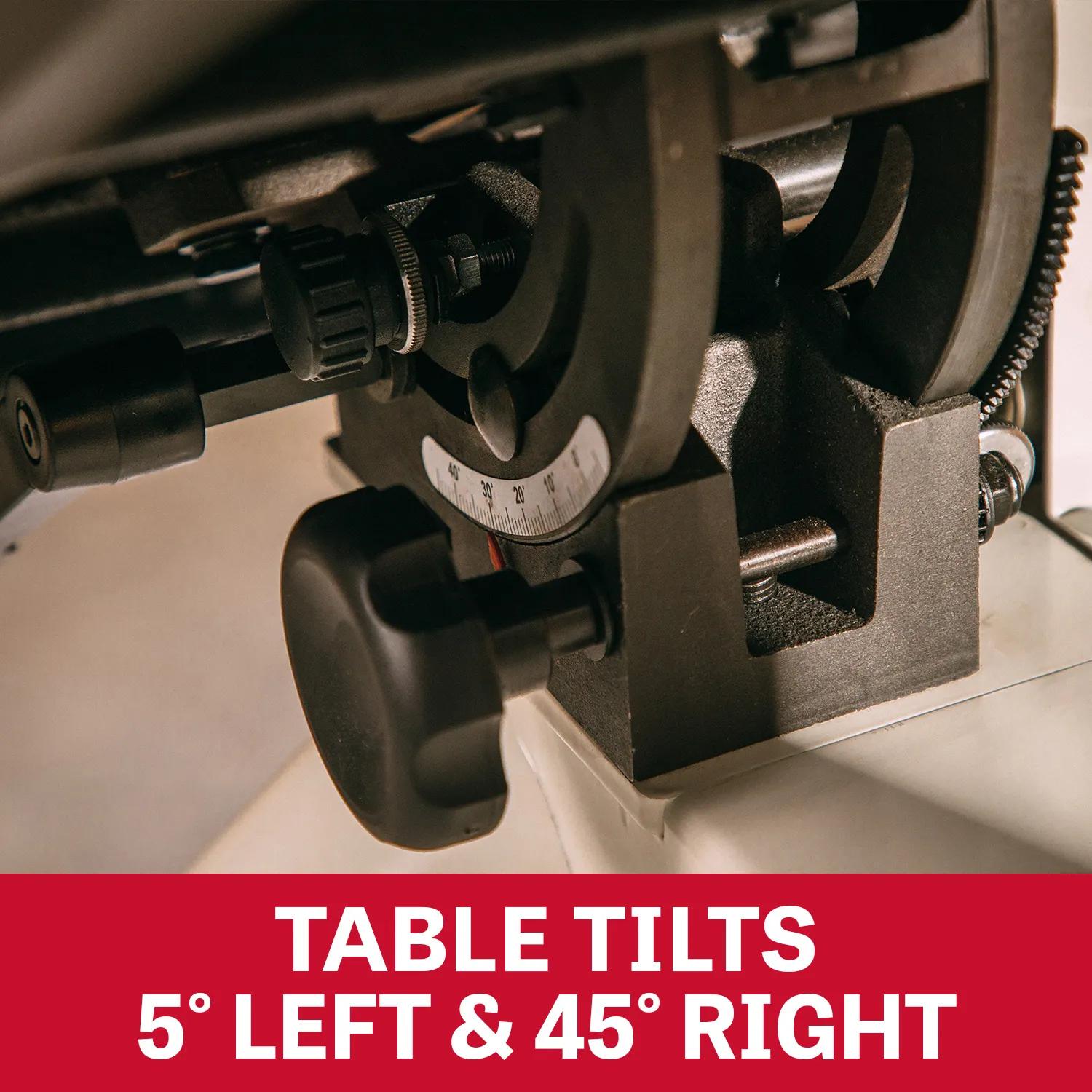

- Table Tilt (L, R, C)Right 45 Deg. / Left 5 Deg.
- Throat Depth14-1/8 in.
- UPC731325467468
- WarrantyFive Years
- Wheel Diameter14-3/4 in.
