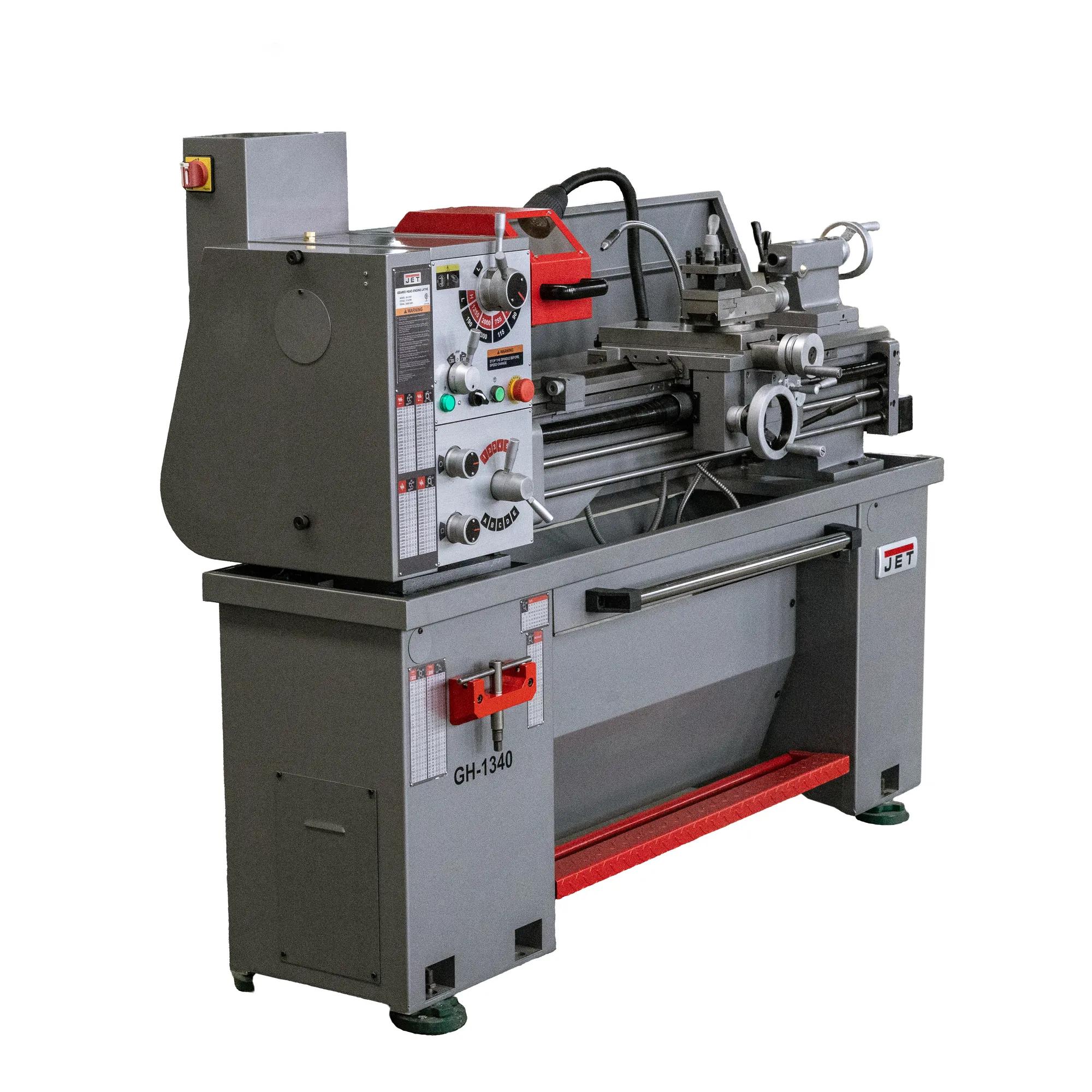

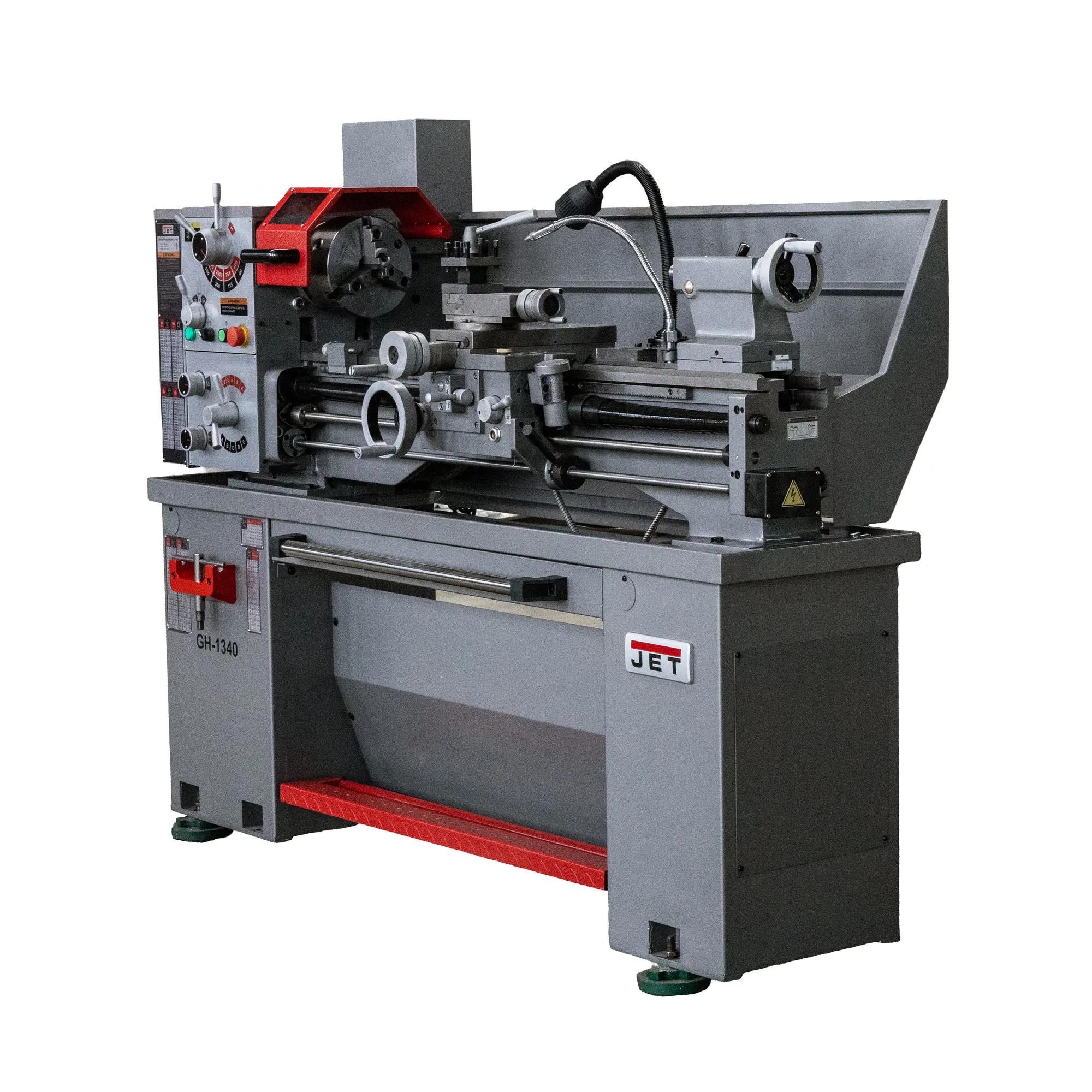

13" x 40" Gear Head Lathe w/ Taper Attachment Kit, 2HP, 230V 1PH(GH-1340)

Engineered for shops that value uptime and precision, the JET GH-1340 13x40 Gear Head Engine Lathe pairs a 13" swing capacity with a heavy geared-head drivetrain for consistent, repeatable cuts.

Long workpieces are no problem: the GH-1340 offers 39" between centers alongside a 2" spindle bore for feeding larger-diameter bar stock straight through the headstock.

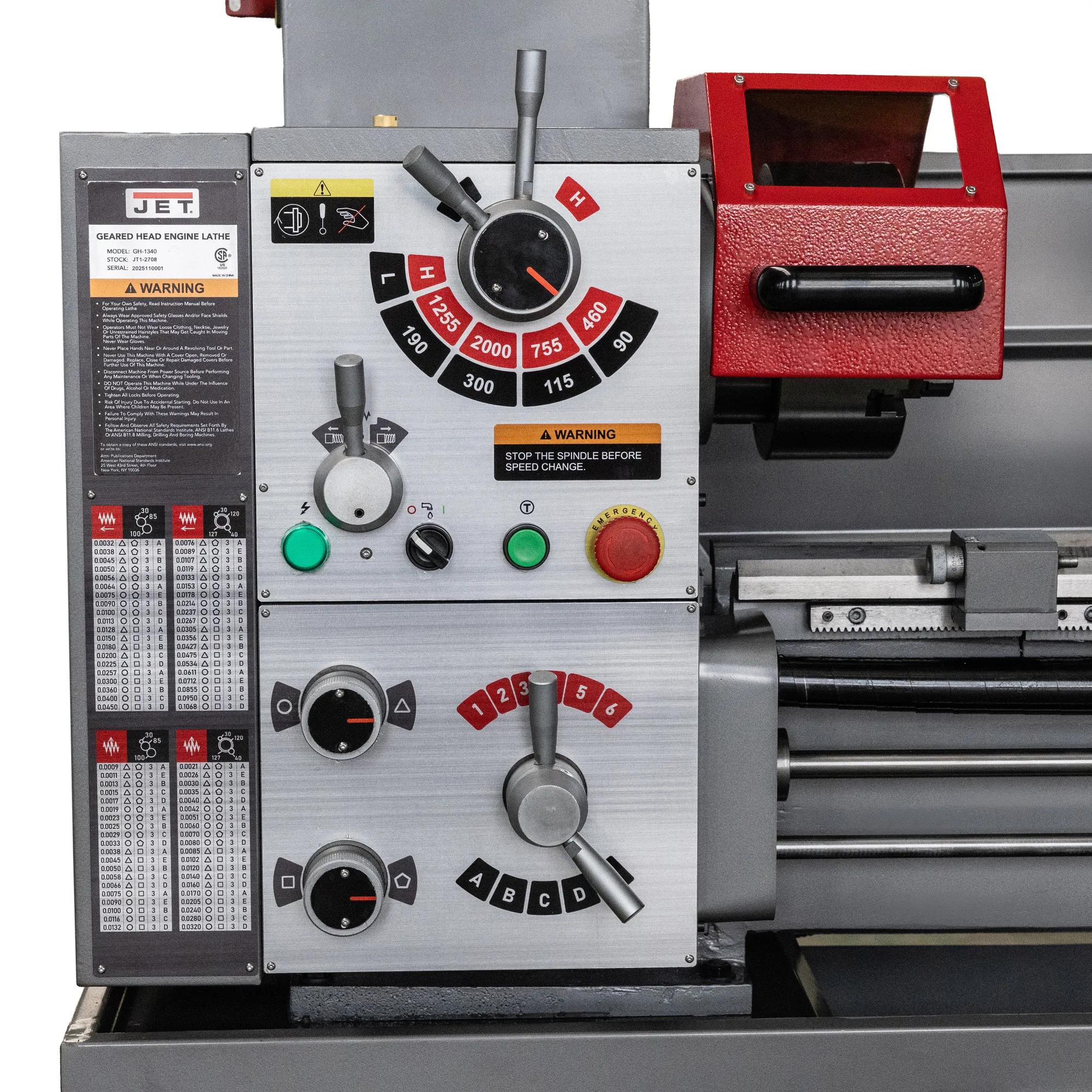

A 2 HP, Single-Phase motor drives the geared head through 8 spindle speeds (90-2000 RPM), giving operators the torque and range needed for roughing, finishing, and threading in one machine.

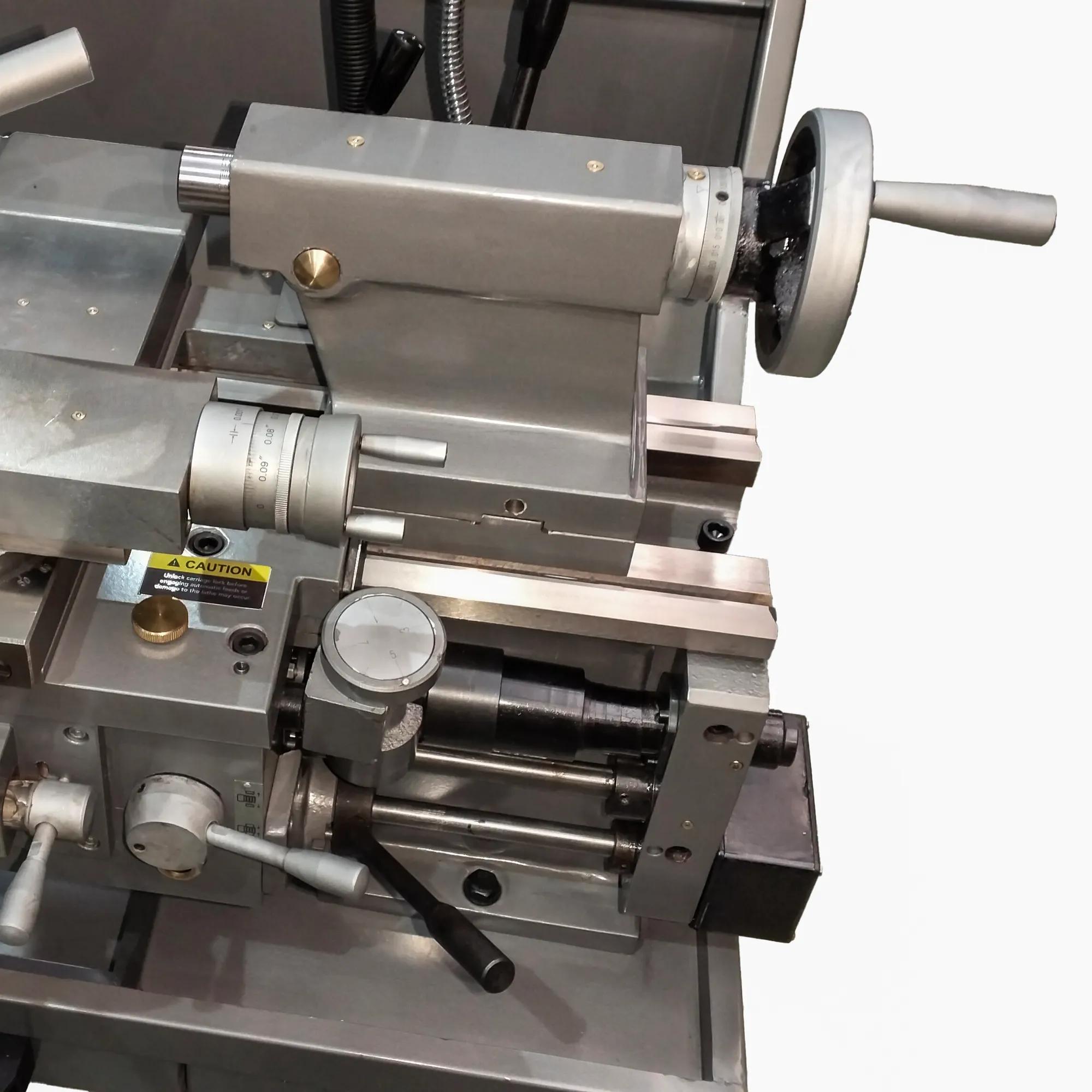

This particular GH-1340 package is equipped with a taper attachment kit for accurate, repeatable taper turning independent of the compound slide.

Standard industrial safety features include:

• Electronic chuck key holder to reduce the risk of a key left in the chuck
• Foot brake for rapid spindle stopping

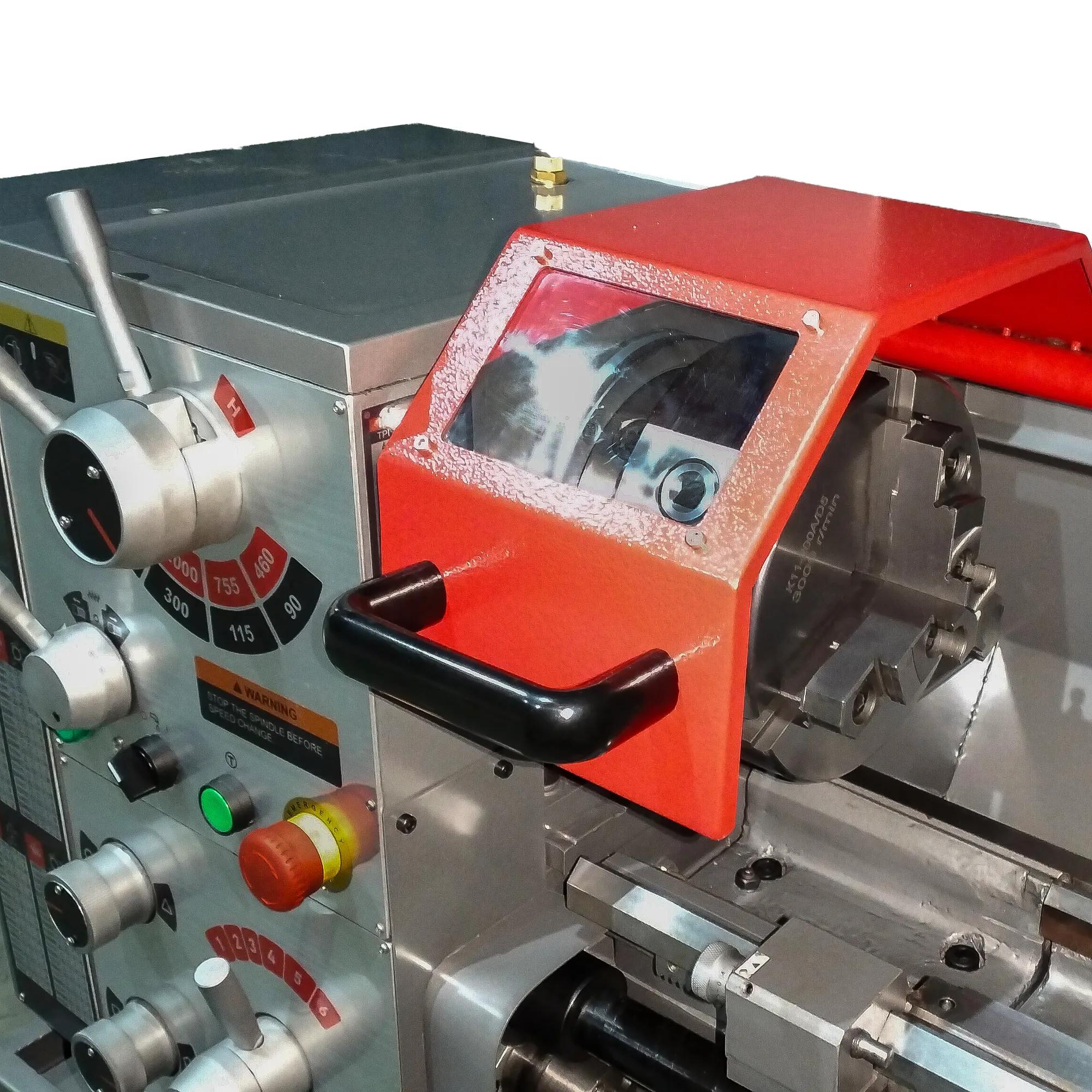

• Chuck guard at the point of operation
• Full-length splash guard
• Lead screw cover to keep debris out of the drive mechanism

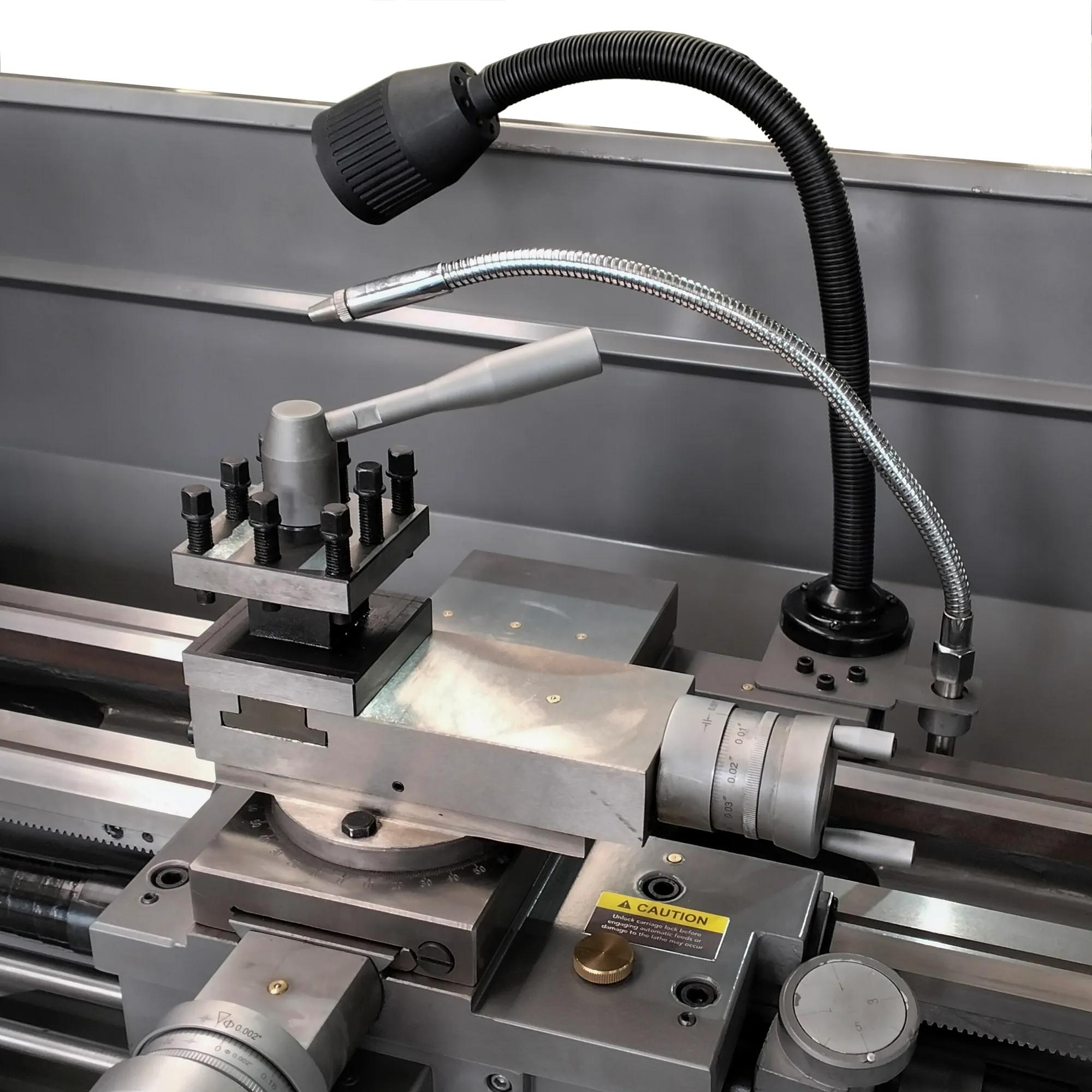

• Integrated coolant system

This machine ships only after inspection and is protected by JET's 2-year parts and labor warranty, giving shops long-term reliability and nationwide service support.

From MRO and maintenance shops to fabrication and job shops, the GH-1340 is a fit anywhere technical education programs demand accuracy and uptime.

OPTIONAL ACCESSORIES

• Collet Closer (Optional)
• 2-Axis / 3-Axis Digital Readout (Optional)
