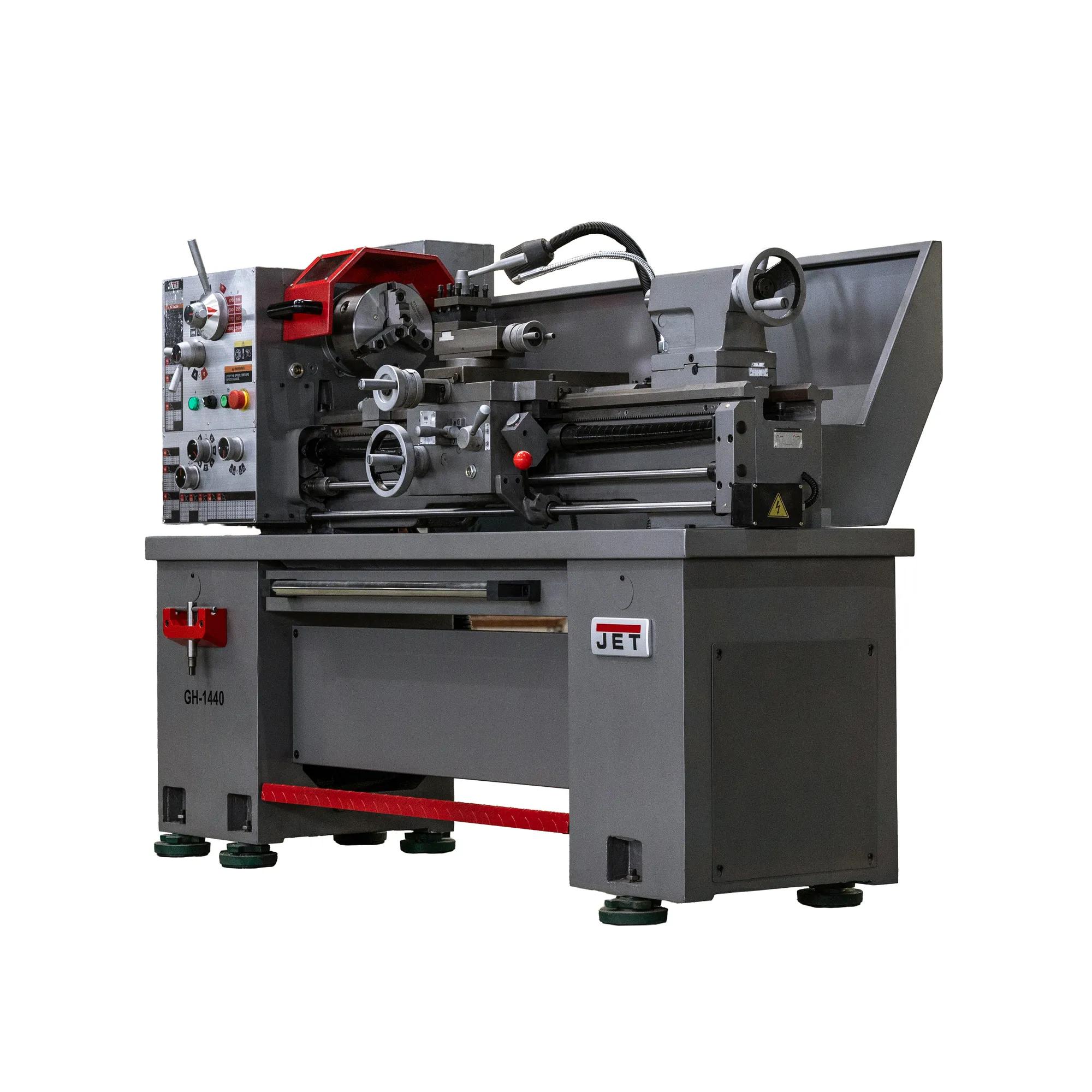

14" x 40" Gear Head Lathe w/ Acu-Rite 203 DRO, 2HP, 230/460V 3PH(GH-1440-3)

The JET GH-1440-3 14x40 Gear Head Engine Lathe is built for shops that need 14" of swing and dependable, all-day turning performance without cutting corners on operator safety.

The GH-1440-3's 40" distance between centers and 2" spindle bore give operators the reach and through-capacity needed for longer shafts and bar stock passed directly through the headstock.

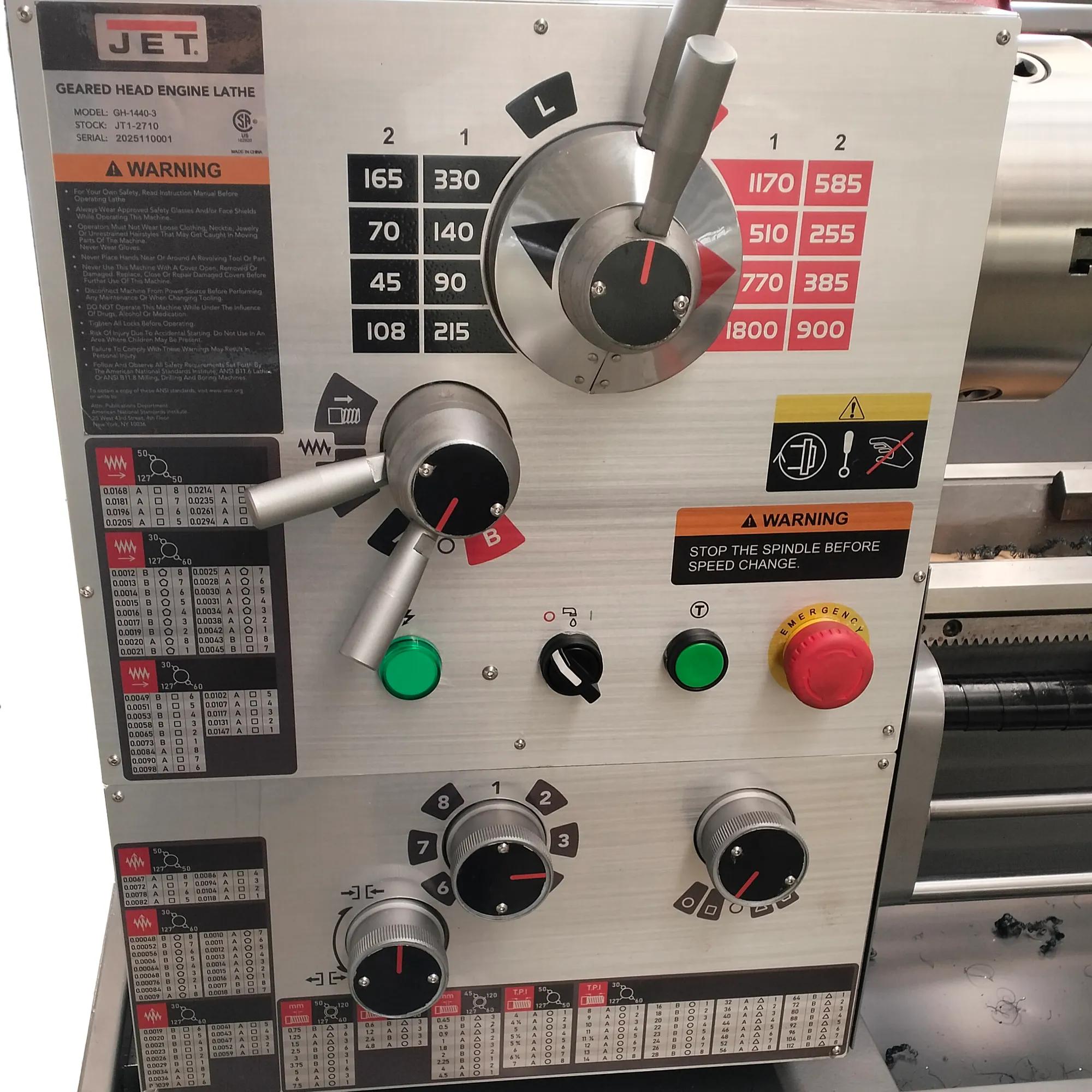

The geared head is turned by a 2 HP Three-Phase motor, offering 16 spindle speeds spanning 45-1800 RPM for flexibility across materials and cut depths.

As configured here, the GH-1440-3 includes a Acu-Rite 203 digital readout, giving the operator real-time positional feedback to cut setup time and reduce scrap.

Standard industrial safety features include:

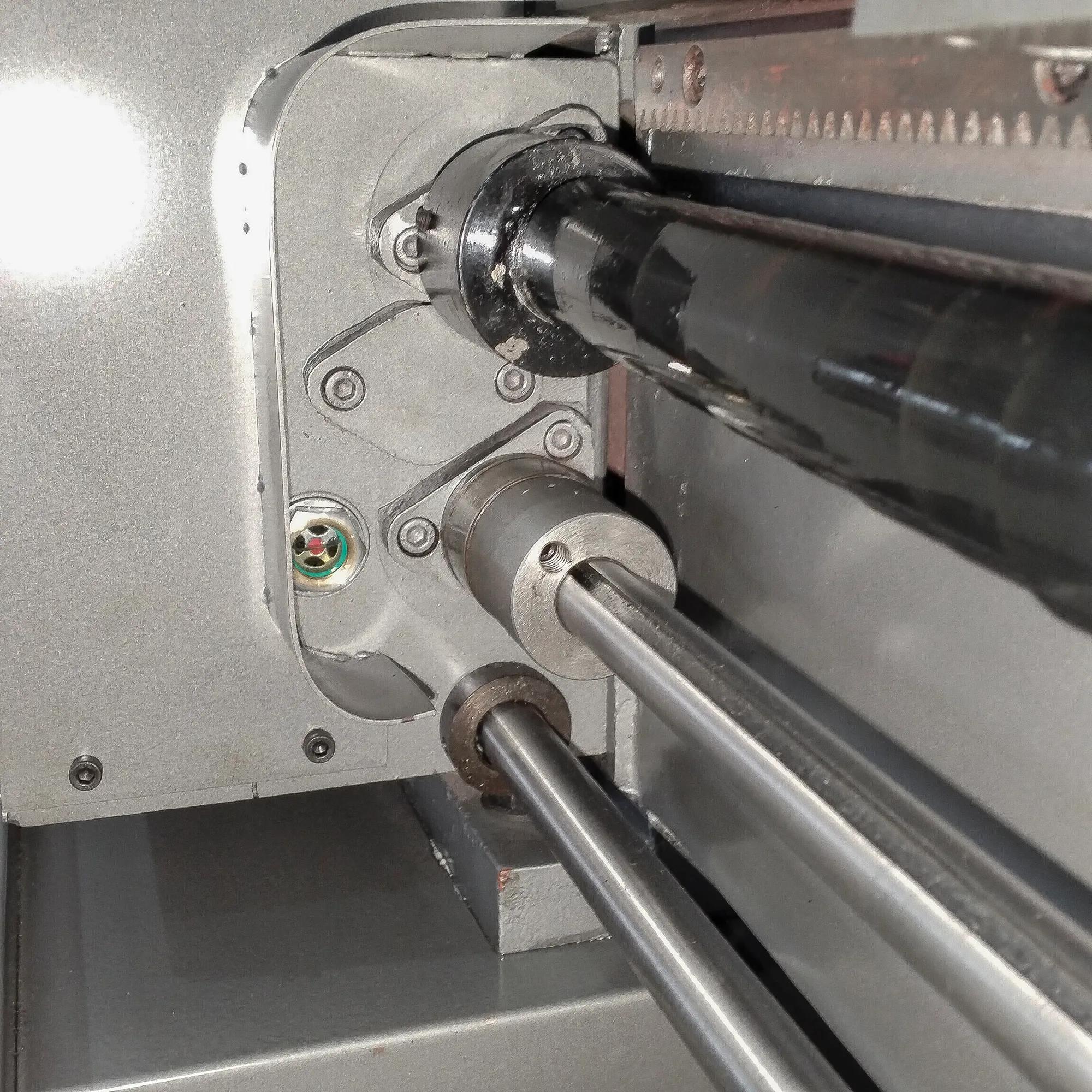

• Lead screw cover to keep debris out of the drive mechanism
• Integrated coolant system
• UL 987 certified electrical system
• Electronic chuck key holder to reduce the risk of a key left in the chuck
• Foot brake for rapid spindle stopping
• Chuck guard at the point of operation

A pre-shipment inspection and 2-year parts and labor warranty stand behind every GH-1440-3, backed by JET's nationwide authorized service network.

Shops in fabrication and job shops and technical education programs rely on the GH-1440-3 for consistent, repeatable turning work, as do automotive and light manufacturing.

OPTIONAL ACCESSORIES

• Collet Closer (Optional)
• Taper Attachment Kit (Optional)
