14" x 40" Lg Spindle Bore Gear Head Lathe w/ Acu-Rite 203, TAK, 5HP, 230/460V 3PH(GH-1440ZX)

Built around a 14" swing and 14x40 capacity, the JET GH-1440ZX Large Spindle Bore ZX Gear Head Lathe gives operators the rigidity and control needed for demanding, repeatable turning work.

A 2.55" spindle bore and 40" between centers put the GH-1440ZX ahead of comparable lathes, letting larger-diameter material pass through the headstock while supporting long-bed turning operations.

Power comes from a 5 HP Three-Phase motor feeding a 12-speed gear head (36-1800 RPM), delivering steady torque across a wide range of turning, facing, and threading operations.

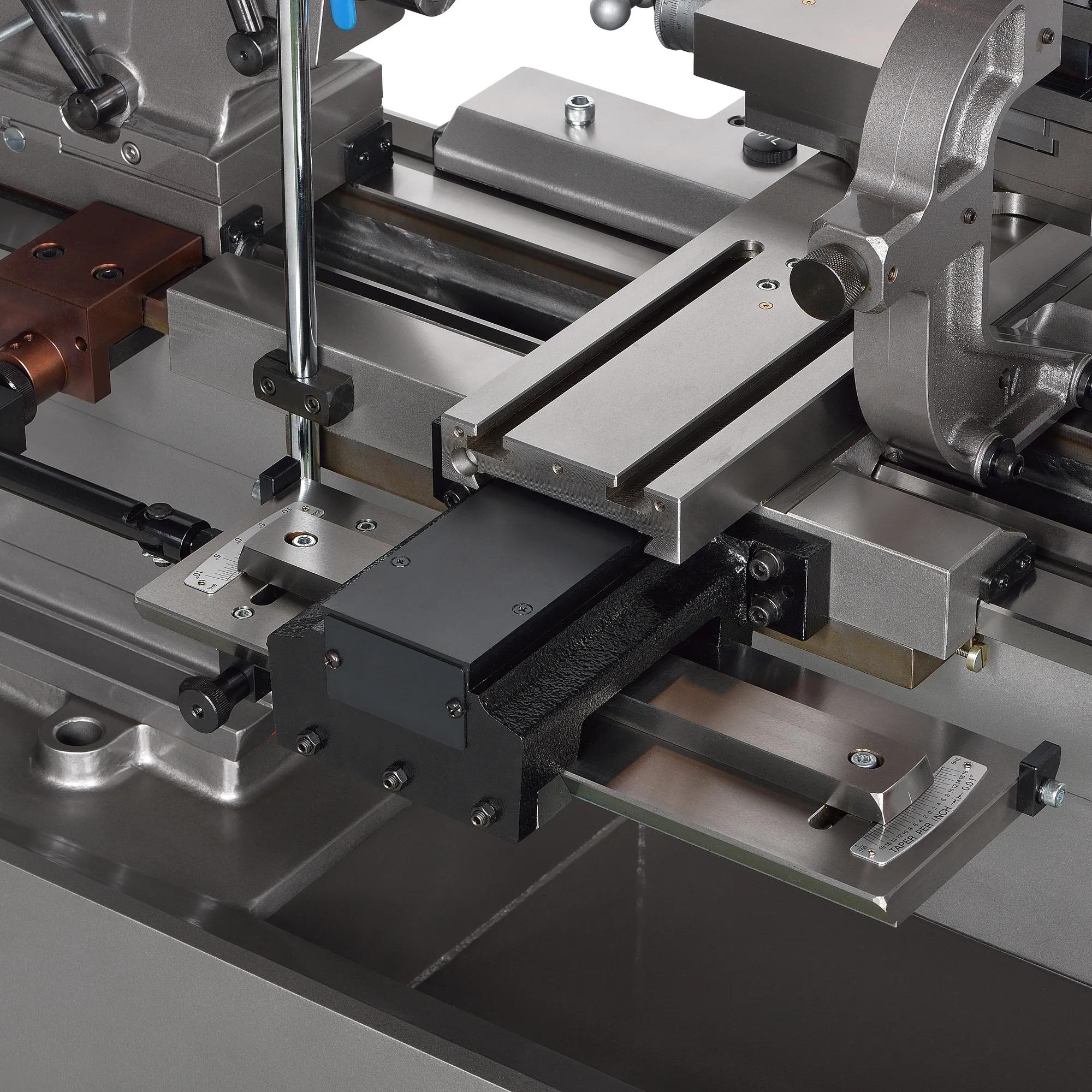

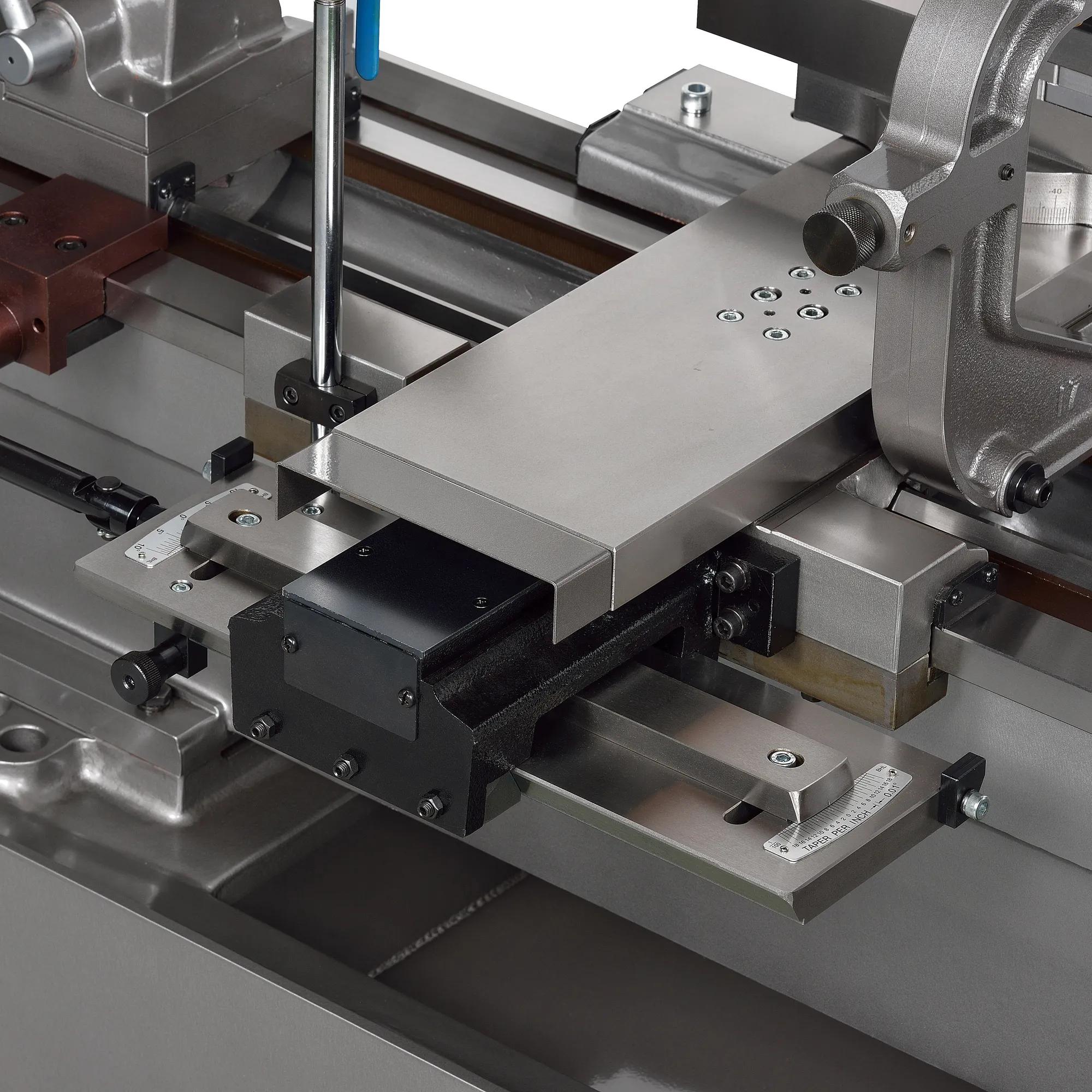

This particular GH-1440ZX package is equipped with a Acu-Rite 203 digital readout, giving the operator real-time positional feedback to cut setup time and reduce scrap, and a taper attachment kit, giving operators precise control over taper angles without disturbing the compound rest setting.

Standard industrial safety features include:

• Chuck guard at the point of operation
• Full-length splash guard
• Lead screw cover to keep debris out of the drive mechanism
• Integrated coolant system
• UL 987 certified electrical system
• Electronic chuck key holder to reduce the risk of a key left in the chuck

Every GH-1440ZX is inspected prior to shipment and backed by a 2-year parts and labor warranty, supported by JET's nationwide network of authorized service centers.

Shops in energy and oilfield equipment suppliers and industrial OEMs rely on the GH-1440ZX for consistent, repeatable turning work, as do large-scale repair facilities.

OPTIONAL ACCESSORIES

• Collet Closer (Optional)
