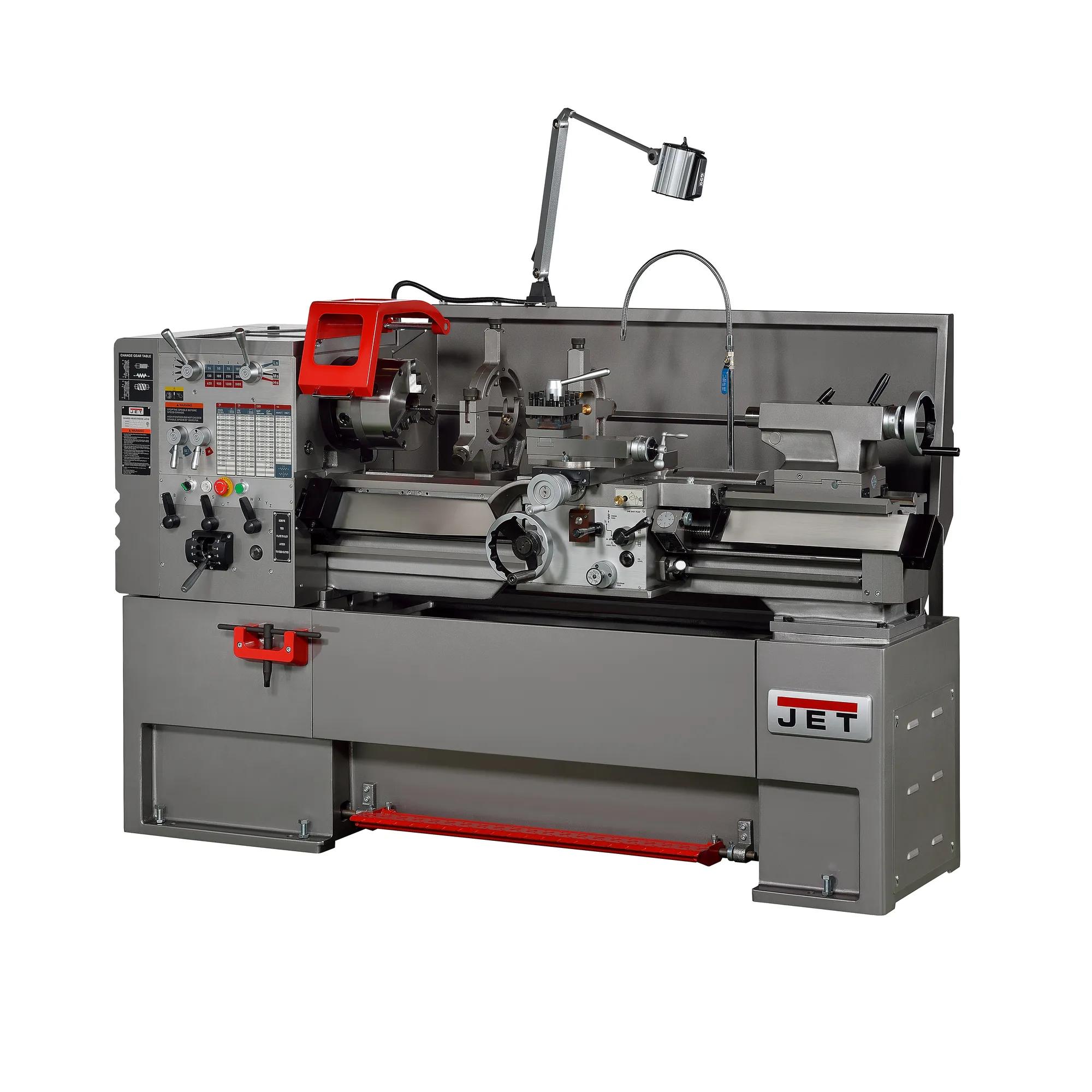

14" x 40" Lg Spindle Bore Gear Head Lathe w/ Collet Closer, 5HP, 230/460V 3PH(GH-1440ZX)

For shops that measure success in uptime, the JET GH-1440ZX 14x40 Large Spindle Bore ZX Gear Head Lathe delivers a 14" swing and a drivetrain built to run shift after shift without losing accuracy.

Capacity is where the GH-1440ZX stands out, with a 2.55" spindle bore for larger stock and 40" between centers for long shafts, rollers, and cylindrical parts.

A 5 HP Three-Phase motor and 12-speed gear head combine to cover a 36-1800 RPM speed range, from heavy roughing to fine finish passes.

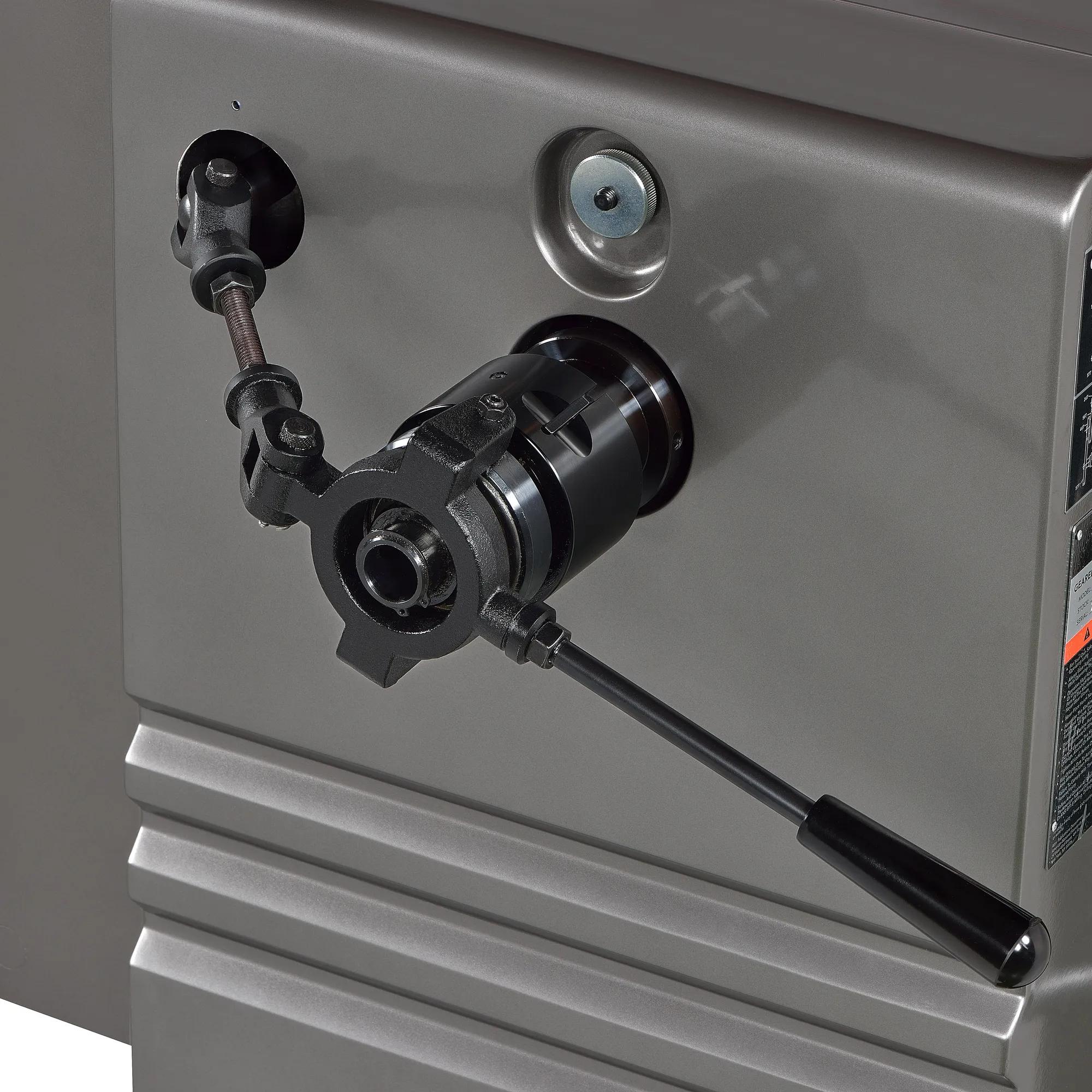

This configuration of the GH-1440ZX adds a collet closer, which speeds up workholding changeovers and improves repeatability on small-diameter or bar-fed parts.

Standard industrial safety features include:

• Full-length splash guard
• Lead screw cover to keep debris out of the drive mechanism
• Integrated coolant system
• UL 987 certified electrical system

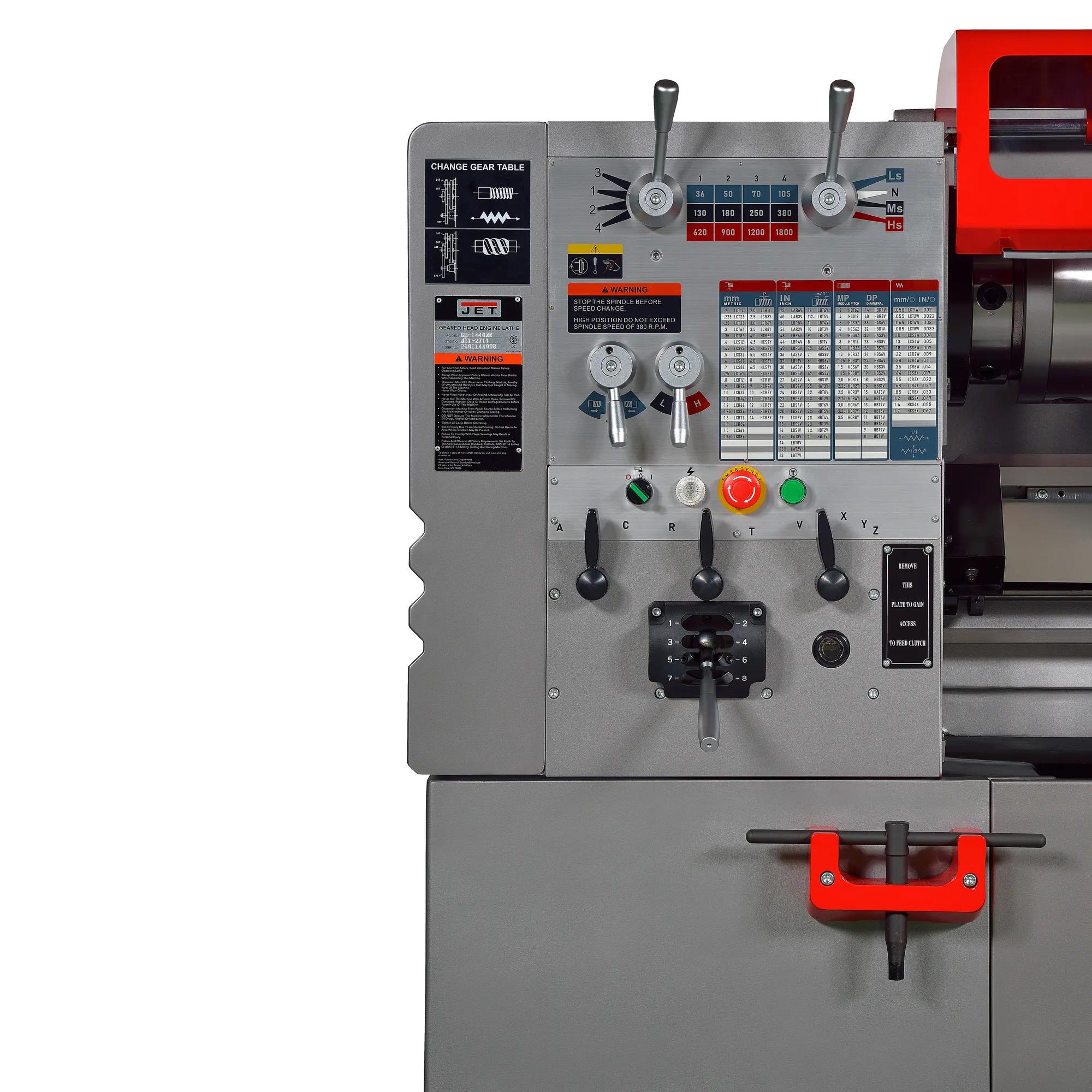

• Electronic chuck key holder to reduce the risk of a key left in the chuck
• Foot brake for rapid spindle stopping

Ownership costs stay predictable thanks to JET's 2-year parts and labor warranty on the GH-1440ZX, plus a pre-shipment inspection on every unit.

Shops in energy and oilfield equipment suppliers and industrial OEMs rely on the GH-1440ZX for consistent, repeatable turning work, as do large-scale repair facilities.

OPTIONAL ACCESSORIES

• Taper Attachment Kit (Optional)
• 2-Axis / 3-Axis Digital Readout (Optional)
